Quick Start B70/2DC
Rev01 20/08/2020
ROGER TECHNOLOGY
Via S. Botticelli 8 • 31021 Bonisiolo di Mogliano Veneto (TV) • ITALIA
P.IVA 01612340263 • Tel. +39 041.5937023 • Fax. +39 041.5937024
info@rogertechnology.com • www.rogertechnology.com
APower supply B70/2DC - Motors 3x2,5 mm2double insulated cable (max.10 m) - 3x4 mm2 (max. 30 m)
1Photocell - Receiver 5x0,5 mm2double insulated cable (max.20 m)
2Photocell - Transmitter 3x0,5 mm2double insulated cable (max.20 m)
3Flashing lamp unit 2x1 mm2double insulated cable (max.10 m)
4Antenna RG58 50 Ohm cable for external use (max.10 m)
5Selector / Keypad 3x0,5 mm2cable (max.20 m)
1. Typical installation
B70/2DC is the range of 24V DC digital controllers installed in the swing gates product.
EN
2. Electrical connections
3. Display: functions and settings
TRASFORMATORE
Cod. 702_10/0
PRIMARIO
MONOFASE
POT. 150 VA 50/60 Hz
SECONDARIO
CEI 61558-2-6
PROG TEST
+
-
POWER IN
+
-
F2
F1
M1 M2
XX
YY
ZZ
COR
910
ANT
F3
11 12 13 14 15 16 17 18 19 20 21 22 23 26 27 28 29 30 31 3224 25
COM
+LAM
+ES
+24V
COM
SC
COM
FT2
FT1
COS2
COS1
COM
ST
COM
ORO
AP
CH
PED
COM
PP
230 Vac
OR
115 Vac
B70/2DC115/BOX
L
N
MOTORE 1
MOTOR 1 MOTORE 2
MOTOR 2
L
N
FIFTHY/24
+-
CS/STD
12
Serie
F4ES-F4S
1 2 3 2345
+- +-
TX RX
1
Accessories illustrated are indicative only
PROG TEST
+
-
Back
Programming Check error alarms
PARAMETER PARAMETER
VALUE
Increase value
Decrease value
Next
PROG TEST
+
-
4. Before starting ...
d) Move the gate into the completely CLOSE position.
e) Press the TEST button.
Possible alarms and safety device messages:
SEE ACQUISITION PROCEDURE
00 No safety device in alarm state and no limit switch activated.
23 STOP contact (N.C.) open.
Jumper the STOP contact.
21 Sensing edge contact COS1 (N.C.) is open. Check connection. If sensing edge
is not installed, disable with 73 00.
20 Sensing edge contact COS2 (N.C.) is open. Check connection. If sensing edge
is not installed, disable with 74 00.
19 Photocell contact FT1 (N.C.) is open. Check connection. If photocell is not
installed, disable with 50 00.
18 Photocell contact FT2 (N.C.) is open. Check connection. If photocell is not
installed, disable with 53 00.
27 Limit switch in open MOTOR 1
(BH23 Series, if enabled - 72 01).
20 Limit switch in open MOTOR 2
(BH23 Series, if enabled - 72 01).
PROG TEST
+
-
PROG
TEST
+
-
PROG TEST
+
-
a) Select the automation system model installed with the parameter A1.
b) Select the number of motors installed with the parameter 70. This
parameter is set for two motors by default.
c) Position the mechanical stops in both the open and closed positions by tightening them very tightly.
1 MOTOR 2 MOTORS
BM20 Series BR21 Series
BR20 Series BE20 Series
BH23 Series MONOS4
6. Setting basic parameters
30 Motor torque
31 Obstacle impact force sensitivity MOTOR 1
33 Motor torque MOTOR 2
32 Obstacle impact force
sensitivity MOTOR 2
34 Start acceleration MOTOR 1
34 Start acceleration MOTOR 1
35 Start acceleration MOTOR 2
11 Deceleration
MOTOR 1
12 Deceleration MOTOR 2
26 Closing delay of MOTOR 1
19 Stop advance of
LEAF 1 when opening
20 Stop advance of
LEAF 2 when opening
14 Position control
13 Position control
13
LEAF 1 position control when
completely opens or closes
14 LEAF 2 position control when
completely opens or closes
25 Opening delay of MOTOR 2
11 Deceleration MOTOR 1
12 Deceleration
MOTOR 2
40 Speed 40 Speed
35 Start acceleration MOTOR 2
MOTOR 1
MOTOR 2
5. Acquisition procedure
1. Press and hold PROG for 4 seconds.
2. APP- appears on the display.
3. Press PROG.
4. AUTO appears on the display.
5. MOTOR 1 starts opening at low speed.
6. After the delay time set with parameter 25, MOTOR 2 starts an opening manoeuvre.
7. Once the gate is open, the message AUTO flashes on the display.
8. The message AUTO stops flashing.
9. MOTOR 2 starts closing.
10. After a delay set with parameter 26, MOTOR 1 closes.
11. When the gate is closed, the safety device symbols are displayed.
Press
PROG
AP P- AU to
x4 s
Press
PROG
1 click OPEN
MOTOR 1
OPENING
MOTOR 2
OPENING
PARAM. 25
ùDELAY
TIME
AU to
x2 s CLOSED
AU
AU
to
to
Yes
MOTOR 1
CLOSING
MOTOR 2
CLOSING
PARAM. 26
DELAY
TIME
CLOSED
7. Programming a NEW transmitter
8. Copying a transmitter
P1
L1 L2
P2 P1
L1 L2
P2
ON
P1
L1 L2
P2
1 click
This document is a basic quick guide for the initial installation of a BRUSHLESS swing gate motor.
For complete information concerning the control unit, the motor and the accessories mentioned in this quick guide, see the technical manuals available in the B2B area of the
website www.rogertechnology.it
x5 s x3 s x1 s
AAA
A
B
OLD
1. Press channel P1 (P2) of the receiver.
2. When LED L1 (L2) ashes 3 times (or 4 times
with rolling code function), press any button
on the transmitter.
3. If LED L1 (L2) remains steadily lit the
transmitter has been stored correctly.
1. Press buttons A and B on the NEW
transmitter simultaneously.
2. The LED ashes for 5 s.
3. Hold button (A) only on the NEW transmitter
you want to store.
4. The LED ashes 3 s.
5. Hold the previously stored transmitter as
close as possible to the NEW transmitter.
6. Press button (A) on the OLD transmitter.
7. The LED lights for 1 s to conrm that the copy
procedure was successful.

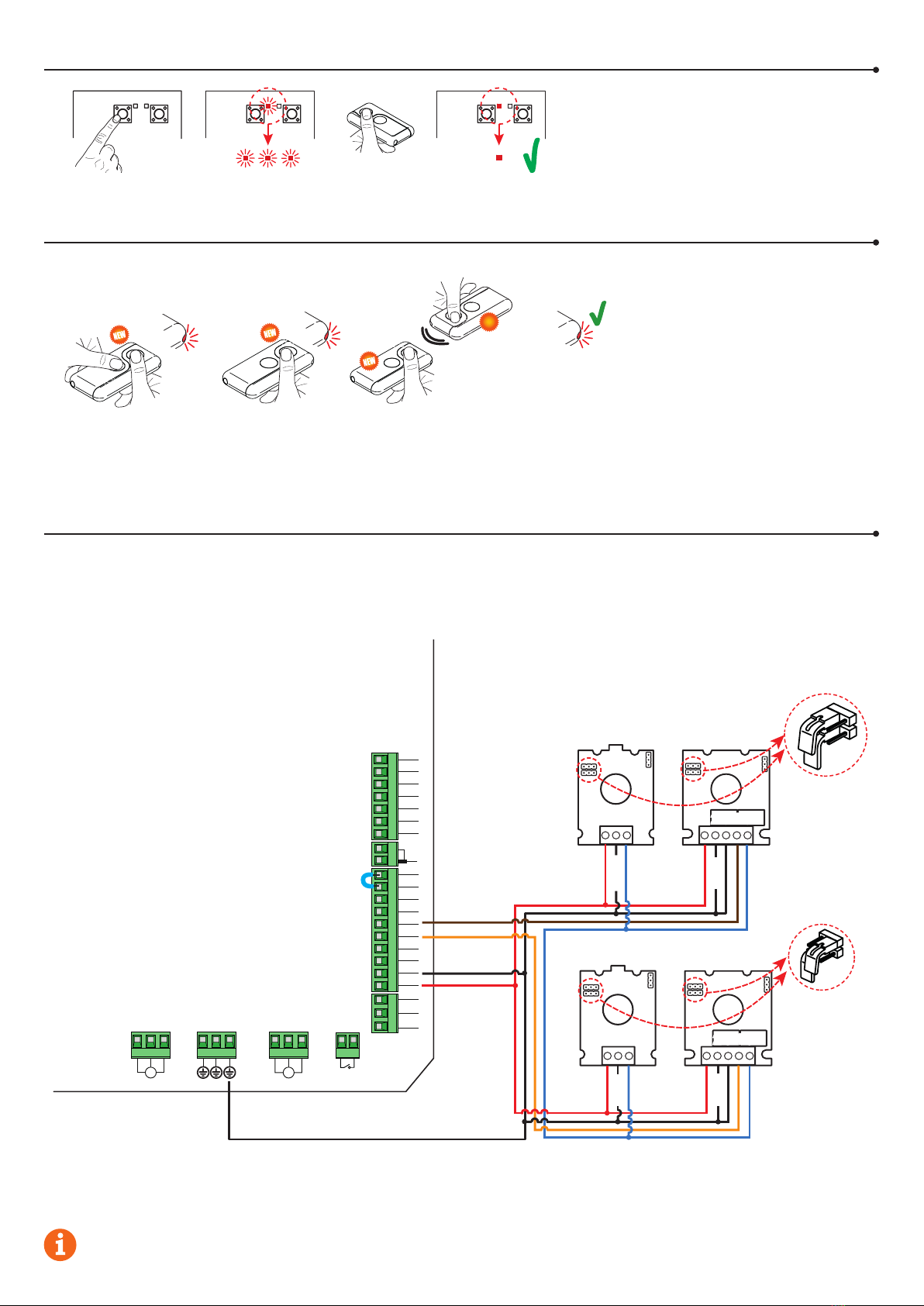

9. Photocells grounding connection
Grounding connection negative terminal (COM) photocells series F4ES/F4S or other than Roger Technology
In case of malfunction, or failure to intervene in case of dimming, or continuous detection, or abnormal behaviour of the automation (gate, overhead door,
barrier, etc.), it is advisable to connect the negative terminal (COM) of the photocells to the grounding of the system.
M1 M2
XX
YY
ZZ
COR
910
ANT
11 12 13 14 15 16 17 18 19 20 21 22 23 26 27 28 29 30 31 3224 25
COM
+LAM
+ES
+24V
SC
COM
FT2
FT1
COS2
COS1
COM
ST
COM
ORO
AP
CH
PED
COM
PP
COM(-)
RXTX
12 3 12
RXTX
FT1
FT2
MASTER
SLAVE 1
345
123 12345
COM(-)
COM(-)
COM(-)
COM(-)
COM(-)
COM(-)
