INTRODUCTION

Cerber C41 is a keypad operated burglary system, with built-in monitoring

facilities, alarm memory and 4 access codes.

The system facilities are keypad programmable. The central unit is RISC

microprocessor designed. The electric scheme includes an EEPROM

memory. Thus, the programmed parameters are retained even after all power

was removed from the control panel.

FEATURES:

4 End-of-Line zones programmed as Entry/Exit, Instant, Follower or 24

hour.

1 "Keyswitch"/Tamper zone.

 Keypad programming.

4 user codes: 1 Master code and 3 programmable access codes .

 Optional Ambush code (code 4),

Quick arming, Stay arming, Instant stay arming

Bypass.

 User programmable Chime function.

 Programmable Bell cut-off time: Steady, Pulse or Silent.

 Programmable Entry delay, Exit delay

 Optional Keyswitch arming/disarming.

 9 options for 2 programmable outputs which are: Latch on alarm, Arm-

ing/Disarming, Entry delay, Exit delay, Trouble, Steady siren, Pulsing

siren, Silent alarm, Panic.

128 event LOG transmitted to Central station on telephone line

 The first 9 alarm events displayed on keypad.

Digital communicator with programmed transmission 10PPS speed in

4x2 parity format, handshake 1400Hz / 2300Hz or DTMF Ademco 4x2

Express.

 Optional message voice module

Cerber®C41

HOOKUP INSTALLATION & PROGRAMMING MANUAL

2 programmable central station phone numbers.

Monitoring system and battery state, and AC power

EEPROM memory retains all programming, even after all power is removed

from the control panel

Up to 4 keypads, 4 wire linked

Keypad tamper using microswitch

Individual state LEDs for each zone, indicating the alarm state

System state LEDs which are: READY, SYSTEM, ARMED

TECHNICAL SPECIFICATIONS:

Power

 12V/4Ah battery

 50mA stand-by current

 500mA maxim power output on AUX

Inputs

 4 fully programmable 2K2 EOL zones.

 1 Keyswitch/tamper 2K2 EOL zone.

Outputs

 2 "open-collector" outputs with negative trigger, max. 100mA

 1 "open-collector" siren output with positive trigger, max. 1A

Cerber®C41

HOOKUP INSTALLATION & PROGRAMMING M ANUAL

INSTALLING AND COMMISSIONING

PANEL MOUNTING

The location must be close to a telephone line and a ground 220VAC source.

Remove the printed circuit board and mount the cabinet onto the wall using 4

screws. Mount the PCB into the cabinet. Pull all cables into the cabinet and

prepare them for connection.

KEYPAD MOUNTING

The keypad should be located close to the designed Entry/Exit door and

mounted at a convenient height for all users.

Disassemble the keypad and mount the backplate on the wall. Pull the

keypad wiring inside the keypad and prepare it for connection.

WIRING

NOTE: Complete all wiring before applying the control panel to

battery or AC power.

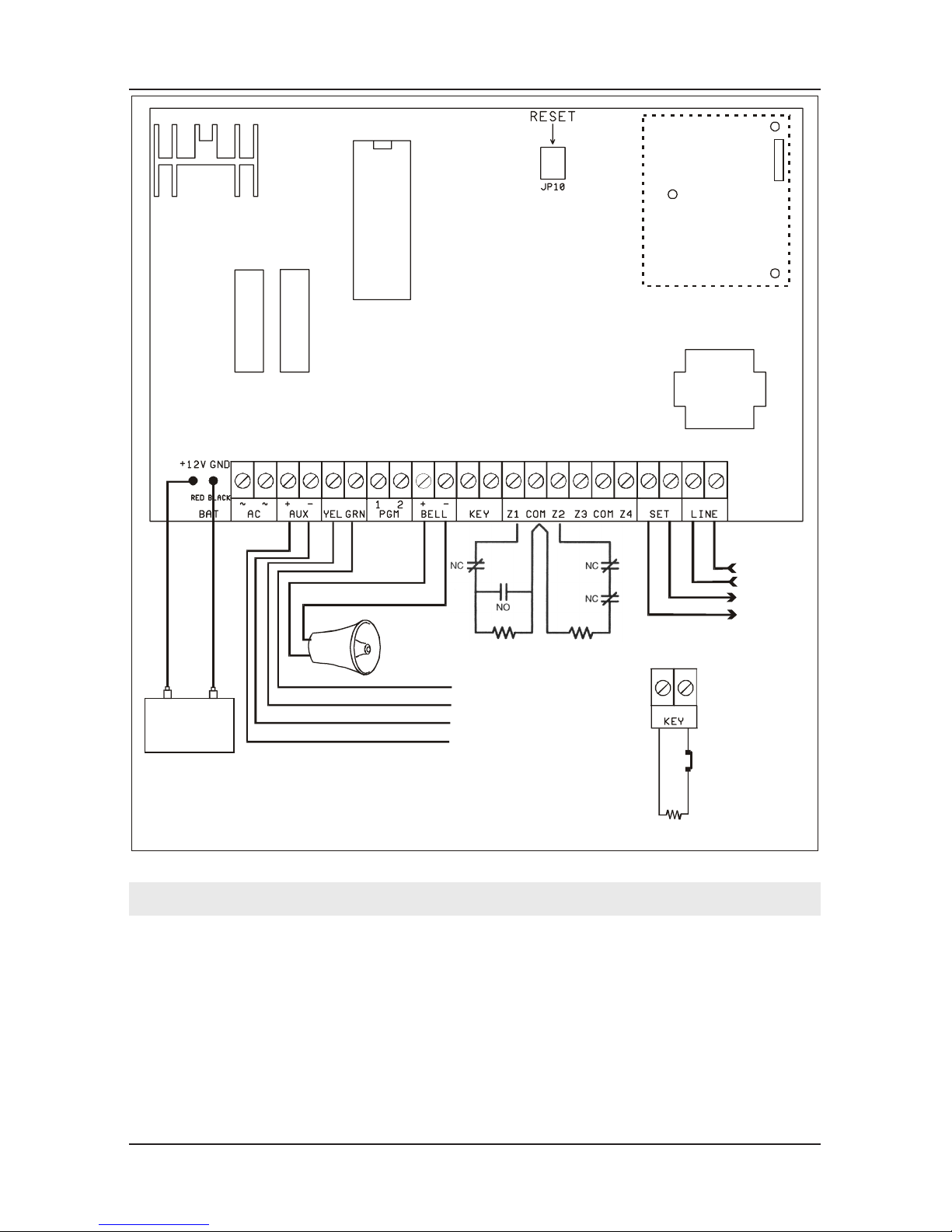

Wiring should be done according to the next diagram.

Cerber®C41

HOOKUP INSTALLATION & PROGRAMMING MANUAL

RED

BATTERY

12V/4Ah

BLACK

KEYPAD

GRN

REZISTOR

EOL 2K2

REZISTOR

EOL 2K2

REZISTOR

EOL 2K2

MOMENTARY

KEYSWITCH

YEL

PHONE

LINE

PHONE

SET

AUX

1,6A

SIREN

1,6A

SIREN

OUTPUT

MAX 1A

OBSERVE

POLARI TY

GND

+12VDC

AUX

FUSE

BELL

FUSE

F2 F1

Room for

MPV4+

module

CONNECTING TERMINALS

The following PCB connectors are located on the control panel:

AUX - , AUX +

Connectors for auxiliary power supply.

These terminals supply power for keypads, PIR detectors and other active

devices inside the system.

The maximum load on these terminals cannot exceed 500mA. Observe

polarity!

Cerber®C41

HOOKUP INSTALLATION & PROGRAMMING M ANUAL

YEL, GRN

Keypad communication.

PGM 1, PGM 2

Programmable "open collector" outputs with negative trigger. The maximum

load on these terminals cannot exceed 100mA.

BELL +, BELL -

Siren output. "BELL+" is a positive trigger output.

The maximum load on these terminals cannot exceed 1A. Observe polar-

ity!

KEY

Terminals for Keyswitch/Tamper zone (see mounting diagram on page 5).

If not used, the terminals will be closed with a 2K2 EOL resistor.

Z1, COM, Z2, Z3, COM, Z4

Terminals for fully programmable zones (see mounting diagram on page 5).

If not used, the terminals will be closed with a 2K2 EOL resistor.

SET

Phone set.

LINE

Phone line.

COMMISSIONING

When finishing connections, first reset the system following the procedure

described bellow.

Reset to Default

1. Disconnect power, both batteries and AC power.

2. Connect jumper JP10 on PCB.

3. Power the panel and wait for 2 seconds..

4. If the system was reset to default, zone LEDs will blink successively, and

the green "READY" LED will turn on.

5. Disconnect power, both batteries and AC power.

6. Take jumper JP10 off PCB.

7. Power the panel. From now on, the system parameters are set to default

and the system is disarmed.

Cerber®C41

HOOKUP INSTALLATION & PROGRAMMING MANUAL

OPERATION

Zone LEDs

SYSTEM LED

READY LED

ARMED LED

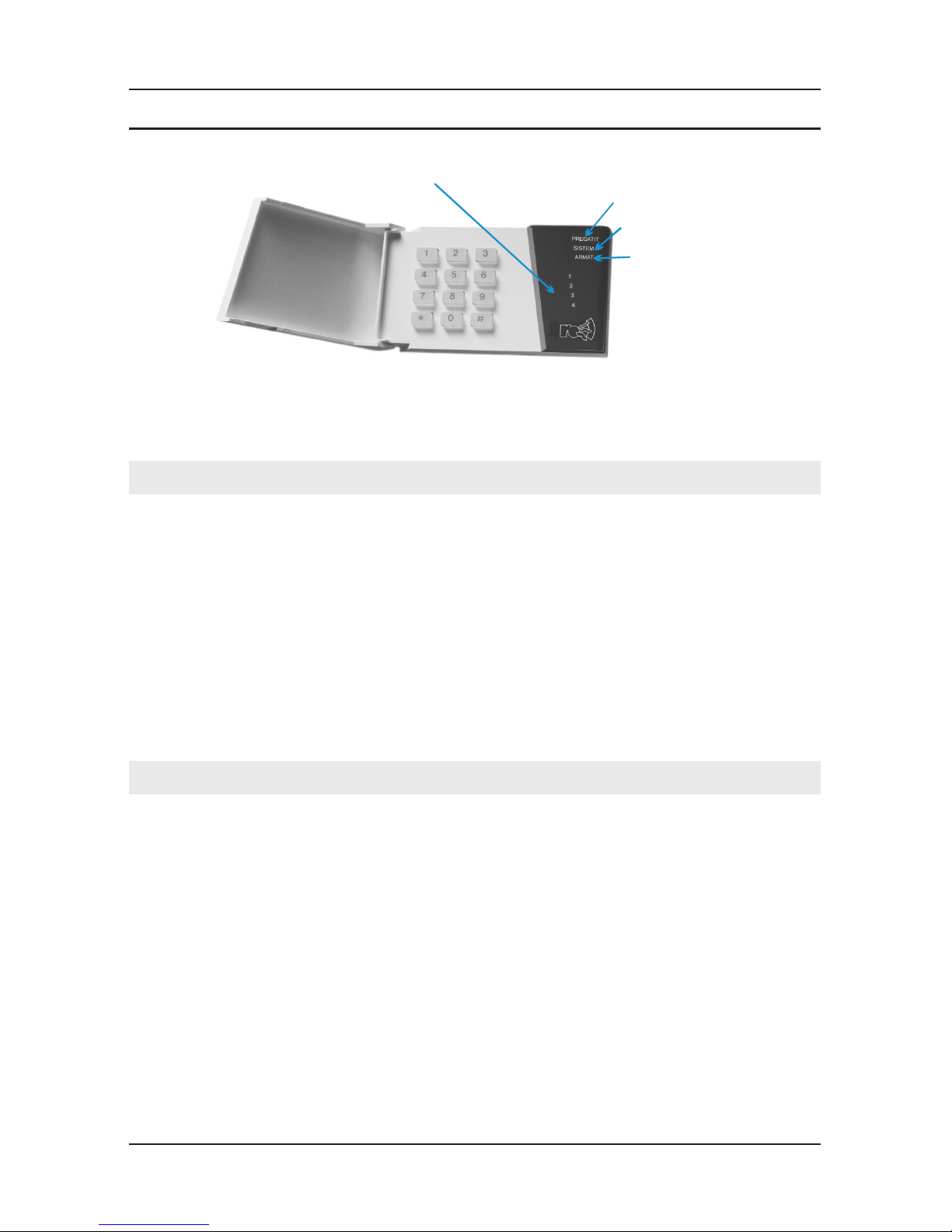

System operation is done using the keypad and LEDs' indications. There are

4 zone LEDs and 3 state LEDs (READY, SYSTEM, ARMED) on the keypad.

OPERATION CODES

There are 4 programmable operating codes in the system. Only the Master

code is programmed by default. The default value for the Master code is

"1234". Using the Master code, one can operate the system and program the

other user codes.

If programmed, the fourth code becomes the "ambush code". When

disarming, using this particular code, the panel will transmit a special code

meaning that the system was disarmed under threat.

Modifying codes, including Master code, is done by [*][7][Master Code]

command.

INSTALLER'SPROGRAMMING CODE

The default Installer's Programming Code is 0269.

Using this code and the [*][8][Installer's code] command, the installer can

perform programming functions.

The installer should change the code after installing the system!

Cerber®C41

HOOKUP INSTALLATION & PROGRAMMING M ANUAL

ARMING

Before arming the system, make sure that all protected doors and windows

are closed.

If the System LED is lit, check the following:

- the alarm memory ([*][5] command). If there are alarms in the memory, they

will be cleared when arming the system.

- bypassed zones ([*][3] [Access code] command). Make sure that all zones

displayed as being bypassed are intentionally bypassed.

- system trouble ([*][4] command). If there is trouble with the battery or the

AC power, fix them before arming.

If "READY" LED is not lit, then one or more zones are opened. One cannot

arm the system unless "Ready" LED is lit.

To arm the system, introduce a 4 digit access code. Whenever a key is

pressed, the keypad buzzer will emit a short beep.

After pressing the access code, the "Armed" LED will turn on and the keypad

buzzer will emit 6 beeps.

If the access code is not correct, the keypad buzzer will sound a long beep.

Press the [#] key, and then press the access code again.

After pressing the access code and the "Armed" LED was lit, exit the

protected area through the Entry/Exit zone before the Exit time was over.

After the Exit time was over, all LEDs will be off except the "Armed" LED.

The default Exit time is 120 seconds (see section [03]).

OTHER ARMING MODES

QUICK-ARM

[*] [0]

This function will be used by someone who doesn't own an access code.

Arming will be done by pressing the sequence [*][0]. Next, the user should

leave the protected area before Exit time was over. After the Exit time was

over, the whole system will arm and the "Armed" LED will stay lit.

INSTANT STAY ARMING

[*] [1] [ACCESS CODE]

Thisarmingmodeis

used for perimetral protection. Thus, the user can stay inside the protected

area (i.e.: arming the panel at night while staying home).

Autres manuels ROEL Système de sécurité

ROEL

ROEL Alcar H51 Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
