ROCWARE RC58 Manuel utilisateur

USB HD Video Conference Camera

STANDBY POWER

User Manual

English (V1.1)

All contents of this manual, whose copyright belongs to our corporation cannot be cloned, copied or

translated without the permission of the company. Product specifications and information which

were referred to in this document are for reference only. We may change, delete, or update any

content at any time and without prior notice.

=============================================================================

This is class A production. Electromagnetic radiation at specific frequencies may affect the image

quality of TV in home environment.

USB HD Video Conference Camera User Manual

Catalogue

1 Note ............................................................................................................................. 1

2 Packing List ................................................................................................................. 1

3 Quick Start ...................................................................................................................1

4 About Product ..............................................................................................................2

4.1 Features ................................................................................................................................................ 2

4.2 Product Specification ............................................................................................................................2

4.3 Interfaces and Buttons ......................................................................................................................... 4

4.4 Dimension ............................................................................................................................................. 4

4.5 Remote Control .....................................................................................................................................5

4.6 RS232 Interface ....................................................................................................................................6

4.7 Serial Communication Control ............................................................................................................. 6

5 GUI Settings ................................................................................................................ 7

5.1 MENU ....................................................................................................................................................7

5.2 EXPOSURE .......................................................................................................................................... 7

5.3 COLOR ..................................................................................................................................................8

5.4 IMAGE ...................................................................................................................................................8

5.5 P/T/Z ......................................................................................................................................................8

5.6 NOISE REDUCTION ............................................................................................................................ 9

5.7 SETUP .................................................................................................................................................. 9

5.8 COMMUNICATION SETUP ................................................................................................................. 9

5.9 RESTORE DEFAULT......................................................................................................................... 10

6 Network Function .......................................................................................................10

6.1 Operating Environment ...................................................................................................................... 10

6.2 Equipment Installation ........................................................................................................................ 10

6.3 Internet Connection ............................................................................................................................ 10

6.4 Camera Controlled by LAN ................................................................................................................ 10

6.4.1 Setup IP Address .............................................................................................................................10

6.4.2 Visit/Access Camera ....................................................................................................................... 12

6.5 Camera Controlled by WAN ...............................................................................................................12

6.5.1 Setup IP Controlled by Dynamic DNS ..............................................................................................12

USB HD Video Conference Camera User Manual

6.5.2 Camera Visiting via Dynamic DNS ................................................................................................. 12

6.5.3 VLC Stream Media Player Monitoring ............................................................................................ 12

6.6 Camera Parameter Setup .................................................................................................................. 13

6.6.1 Homepage Introduction ...................................................................................................................13

6.6.2 Video Settings ................................................................................................................................. 14

6.6.3 Image Settings ................................................................................................................................ 15

6.6.4 Audio Settings ................................................................................................................................. 16

6.6.5 System Settings .............................................................................................................................. 16

6.6.6 Network Settings .............................................................................................................................16

6.6.7 Device Information .......................................................................................................................... 17

6.7 Download the Network Upgrade Program ........................................................................................ 17

7 Maintenance and Troubleshooting ............................................................................ 18

USB HD Video Conference Camera User Manual

1Note

Electric Safety

Installation and operation must accord with

electric safety standard.

Caution to Transport

Avoid stress, vibration or soakage in transport,

storage and installation.

Polarity of Power Supply

The power supply of this product is DC 12V,

polarity of the power supply plug drawing

shows as below.

Installation Precautions

Do not grasp the camera lens when carrying it.

Don’t touch camera lens by hand. Mechanical

damage may be caused by doing so.

Do not use in corrosive liquid, gas or solid

environment to avoid any cover (plastic

material) damage. Make sure there is no

obstacle within rotation range.

Please never power on before installation is

completed.

Do not Dismantle the Camera

We are not responsible for any unauthorized

modification or dismantling.

Specific frequencies of electromagnetic field

may affect the image of the camera!

2Packing List

When unpacking the package, check that all

the supplied accessories are included:

Name

Quantity

Camera

Power Adapter

Power Cable

USB Cable

Remote Control

User Manual

3Quick Start

1) Please check connections are correct before starting.

Network Cable (Not Supplied)

USB Cable (Supplied)

RS232 Cable (Not Supplied)

3.5mm Audio Cable (Not Supplied)

DC 12V IN

Power Adapter (Supplied)

Power Cable (Supplied)

PC, Router or Switch,

TV, VCR with audio input

interface, Speaker

Microphone, etc.

NET HDMI RS232 USB3.0 LINE IN RS485 DC 12V

RS485 Cable (Not Supplied)

HDMI Cable (Not Supplied)

USB HD Video Conference Camera User Manual

2) Connect the power adapter to the power

connector on the rear panel of the camera.

The power indicator on the front panel of

the camera turns on.

3) After the camera is powered on, it starts to

initialize, upper right turns to the limit

position, and then the horizontal and

vertical turn to the middle position. When

the motor stops running, it means that the

initialization is completed. (Note: If preset

0 is saved, the PTZ will turn to preset 0).

4About Product

4.1 Features

Full Function USB Interface

Full function USB interface, compatible with

USB 3.0 and USB 2.0, support audio and

encoding output, and support the UVC

V1.1 protocol.

1080P Full HD

High-quality HD CMOS sensor with 2.07

million effective pixels for high-quality images

up to 1920x1080.

72.5° Wide-angle-lens +16x Digital Zoom

The exclusively customized 72.5° high-quality

ultra-wide-angle lens, support 12x optical

zoom and 16x digital zoom.

Low Illumination

The new CMOS image sensor with ultra-high

SNR can effectively reduce the image noise

under low illumination. The application of 2D

and 3D noise reduction algorithm greatly

reduces the image noise even under the

condition of ultra-low illumination, it keeps the

picture clean and clear, and the SNR of image

is as high as 55dB.

PoE

The wired network supports PoE power supply,

the control, power supply, video and audio can

be completed with a network cable.

Remote Control

The camera can be controlled remotely

through the RS232, RS485, network and

USB port.

H.264 Slice/H.264 SVC

The H.264 stream supports Slice and SVC

encoding modes, and suitable for high-end

USB conference video applications.

Dual Stream

Support two stream output (YUY2, MJPEG,

H.264 each of both) to reduce the host codec

pressure.

Multiple & Complete Interfaces

Support 1080P video output through HDMI,

USB 3.0 and network simultaneously.

Three Power Supply Modes

Simultaneously support USB 5V, 12V power

adapter and PoE power supply.

High Frame Rate

1080P output frame rate up to 60fps.

4.2 Product Specification

Name

USB HD Video

Conference Camera

Camera

Video System

1080P/60, 1080P/50，

1080/P30, 1080P/25，

720P/60, 720P/50

Sensor

1/2.8 inch, CMOS,

Effective Pixel: 2.07M

Scanning Mode

Progressive

Lens

12x, f=3.5mm ~ 42.3mm,

F1.8 ~ F2.8

Digital Zoom

16x

Minimum

Illumination

0.5 Lux @ (F1.8, AGC ON)

Shutter

1/30s ~ 1/10000s

White Balance

Auto, Indoor, Outdoor,

One Push, Manual, VAR

Backlight

Compensation

Support

Digital Noise

Reduction

2D & 3D Digital Noise

Reduction

USB HD Video Conference Camera User Manual

Signal Noise

Ratio

≥55dB

Horizontal Angle

of View

72.5° ~ 6.9°

Vertical Angle of

View

44.8° ~ 3.9°

Horizontal

Rotation Range

±170°

Vertical Rotation

Range

-30° ~ +90°

Pan Speed

Range

2.7° ~ 35.7°/s

Tilt Speed

Range

2.7° ~ 31.5°/s

H & V Flip

Support

Image Freeze

Support

Number of

Preset

255

Preset Accuracy

0.1°

Network Features

Video

Compression

H.264/MJPEG

Video Stream

First Stream,

Second Stream

First Stream

Resolution

1920x1080, 1280x720,

1024x576, 960x540,

640x480, 640x360

Second Stream

Resolution

1280x720, 1024x576,

720x576 (50Hz),

720x480 (60Hz),

720x408, 640x360,

480x272, 320x240,

320x180

Video Bit Rate

for First Stream

32Kbps ~ 20480Kbps

Video Bit Rate

for Second

Stream

32Kbps ~ 6144Kbps

Bit Rate Control

CBR, VBR

Frame Rate

50Hz: 1fps ~ 50fps,

60Hz: 1fps ~ 60fps

Audio Type

AAC

Audio Bit Rate

96Kbps, 128Kbps,

256Kbps

Protocols

TCP/IP, HTTP, RTSP,

RTMP(S), ONVIF, DHCP,

Multicast, etc.

USB Features

Operate System

Windows 7, Windows 8,

Windows 10, Mac OS X,

Linux, Android

Color System /

Compression

MJPG/YUY2/H.264

Video Format

YUY2:1080P@60fps

(max.)

H.264 AVC:

1080P@60fps (max.)

H.264 SVC:

1080P@60fps (max.)

MJPEG: 1080P@60fps

(max.)

USB Audio

Support

USB Video

Communication

Protocol

UVC 1.1

UVC PTZ

Support

Input/Output Interface

Network

Interface

1 x NET: 10M/100M

Adaptive Ethernet Port

USB Interface

1 x USB 3.0: Type-C

LINE IN

Interface

1 x LINE IN: 3.5mm Audio

Interface

Communication

Interface

1 x RS232: 8pin Min DIN,

Max. Distance: 30m,

Protocol: VISCA/Pelco-D/

Pelco-P

1 x RS485: 2pin phoenix

port, Max. Distance:

1200m, Protocol: VISCA/

Pelco-D/Pelco-P

HDMI Output

Interface

1 x HDMI 1.4b

Power Jack

JEITA type (DC IN 12V)

/USB Type-C (DC IN 5V)

/PoE

Physical Parameter

Input Voltage

DC 12V/DC 5V

/PoE (802.3af)

USB HD Video Conference Camera User Manual

Current

Consumption

12V 1.0A (max.)

/5V 1.5A (max.)

Operating

Temperature

-10°C ~ 40°C

Storage

Temperature

-40°C ~ 60°C

Power

Consumption

12W (max.)

MTBF

>30000h

Size (mm)

144 x 144 x 166.9

Net Weight

1.4Kg

4.3 Interfaces and Buttons

1 2 3 4 5 6 7

NET HDMI RS232 USB3.0 LINE I N RS485 DC 12V

Item

Name

Network Interface

HDMI Interface

RS232 Interface

USB 3.0 Interface

LINE IN Interface

RS485 Interface

DC 12V Interface

4.4 Dimension

32.00

155.00

1.90

STANDBY POWER

166.89

R10.00

Ø5.00

ø100.00

50.00

3-M3, hole

22.00

120.06°

144.00

120.00°

USB HD Video Conference Camera User Manual

4.5 Remote Control

987

654

1 2 43

F1 F2 F3 F4

PRESET

CAMERA SELE CT

STD REV

RESET

SLOW

BACKLIGHT P/T RST

FAR

FOCUS

ZOOM FAST

Key Description

1. (Standby) Key

Press to enter standby mode. Press again to

resume to normal mode.

Note: The power consumption in standby

mode is approximately half of that in normal

mode.

2. Number Key

To set preset or call preset.

3. * Key

Use with other keys.

4. PRESET Key

Set preset: Store a preset position.

[PRESET] + Number key (0-9): Set a

corresponding preset position.

5. HOME Key

Confirm selection or press to turn PTZ back to

the middle position.

6. (Return) Key

Press to return to the previous menu.

7. ZOOM Key

SLOW: Zoom In [+] or Zoom Out [-] slowly.

FAST: Zoom In [+] or Zoom Out [-] fast.

8. L/R SET Key

Press with 1 or 2 key to set the direction of the

Pan-Tilt.

Simultaneously press L/R SET + 1 [STD]:

Set the Pan-Tilt turn the same direction as

the PTZ control key.

Simultaneously press L/R SET + 2 [REV]:

Set the Pan-Tilt turn the opposite direction

as the PTZ control key.

9. FOCUS Key

Focus adjustment:

Press [AUTO] to adjust the focus

automatically.

Press [MANUAL] to adjust the focus manually.

When in manual focus mode, press [FAR] to

focus on far object or [NEAR] to focus on near

object.

10. CAMERA SELECT Key

Camera selection:

Press to select and control the camera.

11. # Key

Use with other keys.

12. IR Remote Control Key

[*] + [#] + [F1]: Address 1

[*] + [#] + [F2]: Address 2

[*] + [#] + [F3]: Address 3

[*] + [#] + [F4]: Address 4

13. RESET Key

Clear the preset position:

[RESET] + Number key (0-9).

Or: [*] + [#] + [CLEAR PRESET]: Erase all the

preset individually.

14. PTZ Control Key

Press arrow button to perform panning and

tilting. Press [HOME] button to face the

camera back to front.

15. MENU Key

Enter or exit OSD MENU.

16. BACKLIGHT Key

Backlight ON/OFF: Press repeatedly to

enable or disable the backlight compensation.

NOTE:

Effective only in auto exposure mode.

USB HD Video Conference Camera User Manual

If there is a light behind the subject, the

subject will become dark, press the

backlight key to enable the backlight

compensation. Press again to disable this

function.

17. P/T RST (PTZ Reset) Key

Press to preset Pan/Tilt self-test.

18. Image Freezing Function

Manual freeze: Press the [F4] key to open

the freezing function, “Freeze” will be

displayed on the left upper corner. To

cancel the freeze function, press [F4] key

again, “Unfreeze” shows on the left upper

corner and it will be disappeared

automatically five seconds later.

Image freeze when recalling the preset:

After enable the “Image Freeze” function by

the OSD menu setting, the screen will

remain the previous image when recalling

the preset. The screen will switch to the

preset image after the camera turn to the

preset position.

19. Shortcut Set

[*] + [#] + [1]: OSD menu default English

[*] + [#] + [3]: OSD menu default Chinese

[*] + [#] + [4]: Display current IP address

[*] + [#] + [6]: Quickly recover the default

[*] + [#] + [8]: View the camera version

[*] + [#] + [9]: Quickly set up inversion

[*] + [#] + [MANUAL]: Restore to default IP

address.

4.6 RS232 Interface

2 1

345

678

No.

Function

DTR

DSR

TXD

GND

RXD

GND

IR OUT

The correspondence between the camera and

Windows DB-9 pin:

Camera

Windows DB-9

1.DTR

1.CD

2.DSR

2.RXD

3.TXD

4.GND

4.DTR

5.RXD

5.GND

6.GND

6.DSR

7.IR OUT

7.RTS

8.NC

8.CTS

9.RI

The correspondence between the camera and

the Mini DIN pin:

Camera

Mini DIN

1.DTR

2.DSR

3.TXD

4.GND

5.RXD

6.GND

7.IR OUT

7.NC

8.NC

4.7 Serial Communication Control

RS232 Communication Control

Camera controlled via RS232. The RS232

serial port parameters are as follows:

Baud rate: 2400/4800/9600/38400

Starting Position: 1 bit

Data bits: 8 bits

Stop bits: 1 bit

Parity: None

USB HD Video Conference Camera User Manual

RS485 Communication Control

Camera controlled via RS485, half duplex

mode:

Baud rate: 2400/4800/9600/38400

Starting position: 1 bit

Data bit: 8 bits

Stop bit: 1 bit

Check digit: None

After power on, the camera goes to the upper

right limit and then back to the middle position.

The lens pulled to the farthest position (auto

focus) and the aperture will be adjusted to the

default value. If preset 0 is saved, the PTZ will

be turn to position 0 after the initialization is

completed. Use the serial port command to

control the camera.

List of protocols (omitted)

The serial port of the camera follows the

VISCA/Pelco-D/Pelco-P standard protocol. If

secondary development is required, the

camera can be controlled according to the

standard protocol.

For a detailed list of VISCA/Pelco-D/Pelco-P

protocols, please contact with manufacturer.

5GUI Settings

5.1 MENU

Press [MENU] key to display the main menu

on the screen. Use the arrow key to move the

cursor to desired item and press the [HOME]

key to confirm to enter the corresponding

sub-menu.

Exposure

Color


P/T/Z

Noise Reduction

Setup

Communication Setup

Restore Default

[Home] Enter

[Menu] Exit

5.2 EXPOSURE

When in main menu page, move the cursor to

[Exposure] and press [HOME] key to confirm

to enter the exposure page as shown in below

figure.

EXPOSURE

Mode

Auto

ExpCompMode

ExpComp

-1

Backlight

Off

Gain Limit

Anti-Flicker

50Hz

Meter

Average

DRC

Select Item

Change Value

[Menu] Back

Mode: Auto, Manual, SAE, AAE, Bright.

ExpCompMode (Exposure Compensation

Mode): On, Off (Effective only in Auto mode).

ExpComp (Exposure Compensation Value):

-7 ~ +7 (Effective only in ExpCompMode On).

Table des matières

Autres manuels ROCWARE Caméra IP

ROCWARE

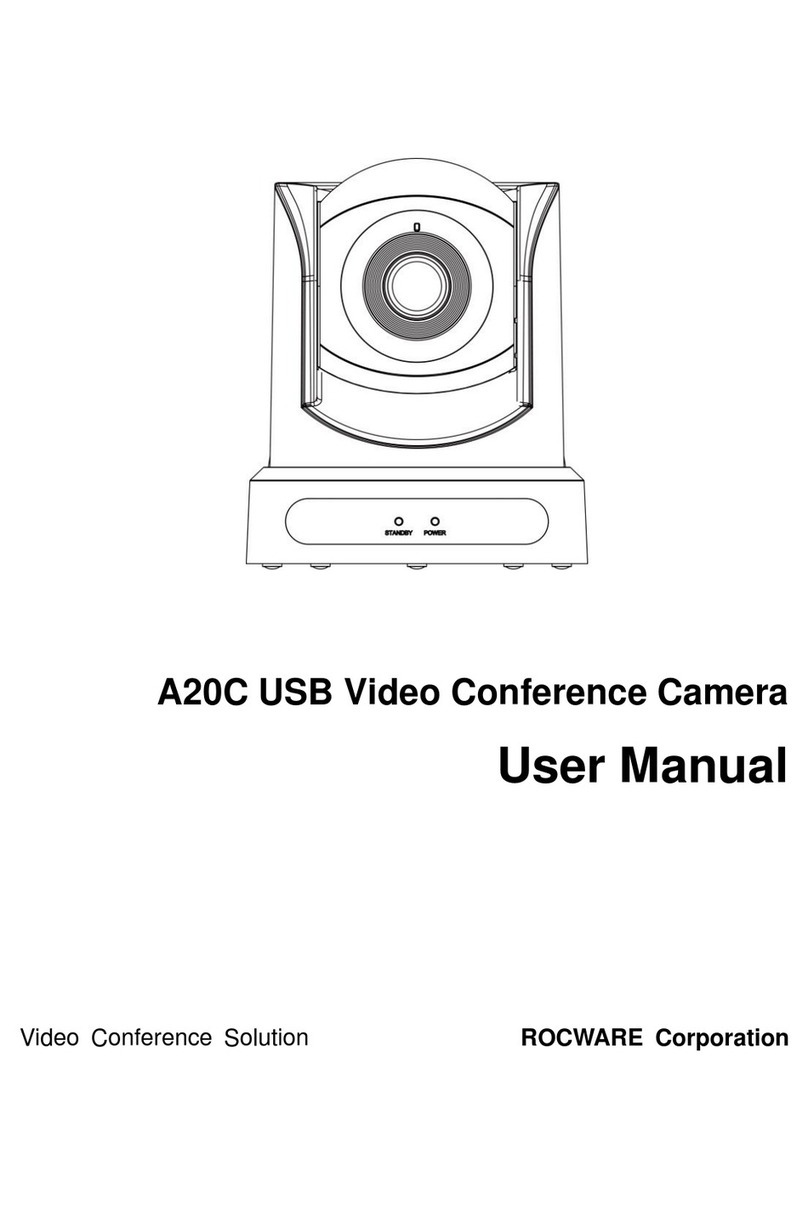

ROCWARE A20C Manuel utilisateur

Manuels Caméra IP populaires d'autres marques

FLIR

FLIR Exx series Manuel utilisateur

Avigilon

Avigilon H4A-BO1-IR Manuel utilisateur

Digital Watchdog

Digital Watchdog DWCA-C128-64 Manuel utilisateur

ShareTech

ShareTech AV1 Manuel utilisateur

Ezviz

Ezviz C6C Manuel utilisateur

Melchioni

Melchioni UCAM 2015 Manuel utilisateur

Geutebruck

Geutebruck G-Cam/ESD-4630 Manuel utilisateur

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Manuel utilisateur

Mitel

Mitel 6800i Series Manuel de service

Vitek

Vitek VTC-IR403-212NP Manuel utilisateur

THOMSON

THOMSON DSC - 323W Manuel utilisateur

AVer

AVer FB2027 Manuel utilisateur

ENFORCER

ENFORCER EV-T5105-N2SQ Manuel utilisateur

Wansview

Wansview NC543 Manuel utilisateur

Eneo

Eneo MCB-64A0003M0A Manuel utilisateur

deView electronics

deView electronics CBDNI36F Manuel utilisateur

Swann

Swann SwannEye Manuel utilisateur

LevelOne

LevelOne IP CamSecure Manuel utilisateur
