Cherry Bomb (CB5)
INSTALL INSTRUCTIONS
© 2021 MSE Audio. Rev. 02.19.2021
Ultra-Fidelity Outdoor Speakers
Thank you for purchasing your CB5 landscape speaker
from Rockustics®. Cherry Bomb’s patented three-way
design includes a 5” double-chamber, band-pass sub-
woofer, a 4” woofer and a .75” tweeter all in one. When
properly installed, these speakers will provide years of
listening enjoyment. If you have any questions that are not
answered in the following directions, please contact your
local sound contractor or the Rockustics®/MSE Audio®
technical support team.
Site Preparation
There are several factors to consider when choosing
mounting locations for your CB5 landscape speaker:
1) The speakers are designed to be partially buried in the
ground, but the CB5 unit can also be installed by simply sitting
on its base above ground.
2) The CB5 speaker is a full-range system with integrated sub
woofer. Plan the speaker locations to provide even audio
coverage and attempt to keep an even distance between
each of the CB5 speakers.
3) It is preferred to place the CB5 speakers around, or near the
perimeter of the listening area where the audio is intended
to be heard.
4) There should be a direct line of sight from the speaker to
the listening area.
5) Position each speaker so they are all approximately the
same distnace away from the listening area.
6) Do not place the speakers in areas that are prone to
ooding with standing water.
7) The speakers should not be positioned directly in front of, or
in direct spray from, sprinklers.
8)
Do not aim the top speaker at more than 45º from horizontal to
keep the unit from collecting water on the cone.
We cannot antiicpate or accomodate every possible
installation conguration. Trial and error methods may have to
be employed to achieve acceptable audio dispersion. Included
are some typical installation layouts for your reference.
HOUSE
PATIO
PATIO POOL
HOUSE
Cherry Bomb (CB5)
INSTALL INSTRUCTIONS
© 2021 MSE Audio. Rev. 02.19.2021
Ultra-Fidelity Outdoor Speakers
Wiring Diagram
The CB5 speakers all come equipped with high voltage (70V)
transformers and may also be run in an 8Ω direct mode. The
speaker comes with hard wire leads for the two options. See
the gures below for typical 70V and 8Ω wiring congurations
Step-by-Step Setup
~12”
~16”
HOUSE
PATIO
AMP
1. Layout Design
Determine the layout of your
system. Place each speaker
in the general location it will
be installed. Also place your
amplier where it will be
installed.
2. Digging
Dig a hole sufcient to bury
the speaker(s) to the correct
depth (noted above) and
to also accomodate 2-3”
of gravel or crushed rock
under the speaker housing.
8 Ohm -8 Ohm +
8 Ohm Wiring
Heat Shrink Cap
8 Ohm Wiring
Soldered leads with
pre-installed wire nuts
3. 8Ω Wiring
Locate the green and white wires. Disconnect the red wire from
the green wire and the black wire from the white wire. Connect
the positive (+) lead from the amp to the green wire on the CB5,
then connect the negative (-) lead from the amp to the white wire
on the CB5. You will NOT use the red, black, yellow, or blue
wires in an 8Ω installation. Simply tape or cap them off.
Expandable
70V Wiring Diagram
SoundTube MA3501t
Speaker Installation
Rockustics recommends using either 14 gauge or 16 gauge
direct-burial wire. It is best to lay out the wire to each of the
intended speaker locations before installing the speakers.
8 Ohm Wiring
Green
8 Ohm +
White
8 Ohm -
8 Ohm Wiring Diagram
Audio
Source
Amplier must be able to
handle an 8Ω load for this
conguration
4. Test
Fully wire the rest of your
system and test to make
sure sound is coming from
each unit.
5. Bury Speakers
Place your speakers in each
hole, and aim in the desired
direction. Begin lling back
up. Be sure the speaker is
deep enough in the ground
that the wire(s) can be
buried at least 2” below
nal landscaping. Pack
down the dirt.
IMPORTANT: Remember to
NOT cover the port with dirt
so your speaker functions
properly.
Cherry Bomb (CB5)
INSTALL INSTRUCTIONS
© 2021 MSE Audio. Rev. 02.19.2021
Ultra-Fidelity Outdoor Speakers
Tilting
Red +
Black -
+
__
2.
+
__
2.
Red +
Black -
Yellow (+)
Blue (-)

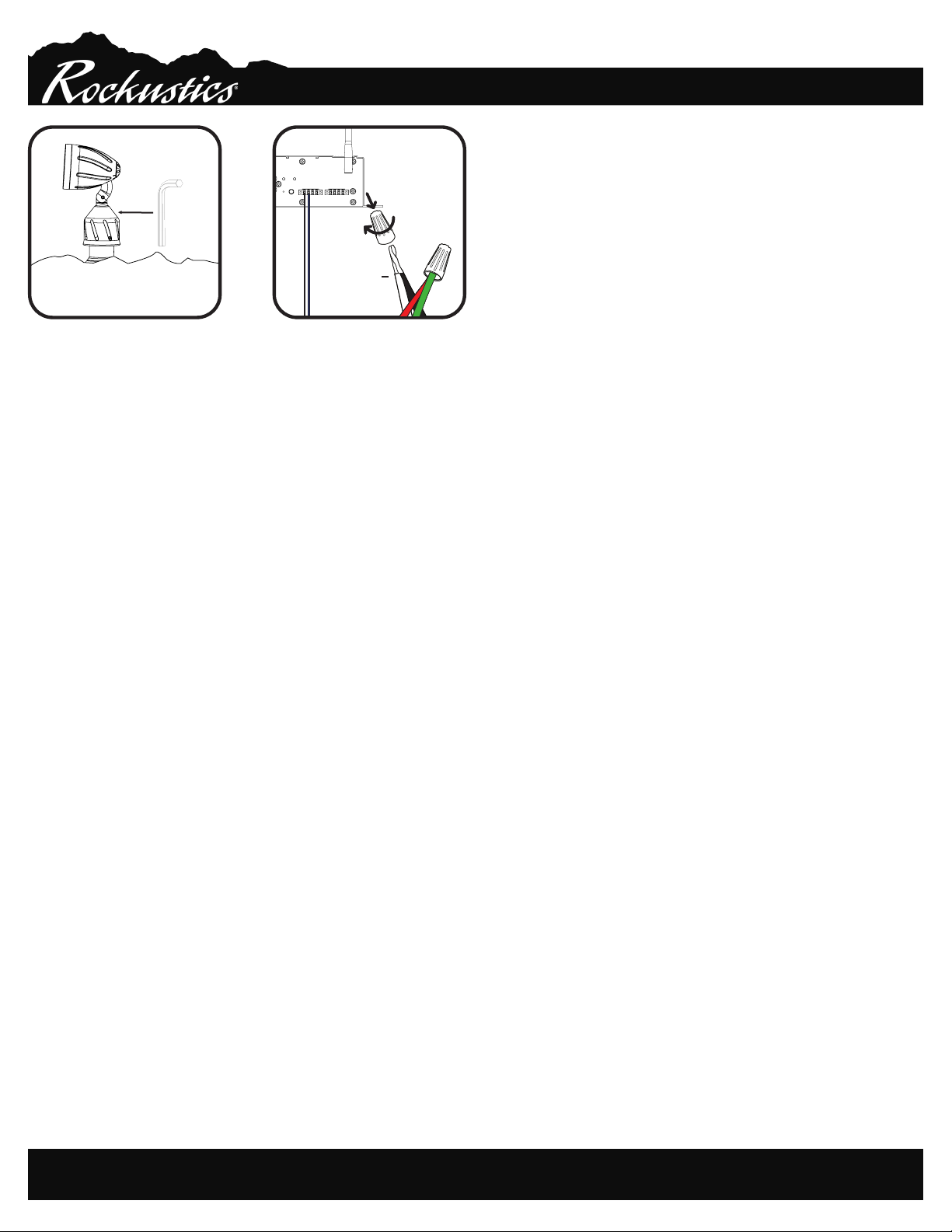

6. Fine-Tune Aiming
Angle the speakers in your
desired position with the
allen wrench.
Alternative Step:
70V Wiring
When wiring for 70V appli-
cations leave the Green and
Red wires tied together.
Leave the Black and White
wires tied together. Then
nd Yellow (+) and Blue (-)
wires and connect them to
your 70V amplier output.
This transformer setting is
tapped at 64W.
Limited Warranty
Rockustics warrants its loudspeakers to be free from defects in
material and workmanship for a period of ten (10) years for speaker
product and three (3) years for the electronic components to the
original purchaser. Purchase must be made from an authorized
Rockustics dealer.
This warranty does not cover service or parts to repair damage
caused by misuse, abuse, damage while in transit, alterations,
unauthorized repairs, failure to follow instructions, re, ood, or any
other cause beyond the reasonable control of Rockustics. Defects
in speaker cabinets or grilles must be brought to the attention of
your dealer immediately after purchase. This warranty will be void
if the products’ serial number has been altered or removed.
Should your Rockustics product require service, please call the
MSE Audio customer service department for a return authorization.
All merchandise returned to Rockustics without prior authorization
will be refused. For your return authorization number, please call
913.663.5600 or email sales@mseaudio.com
