Rocket Man Plus

M1001

Operating Manual

Greetings:

We sincerely believe that once you use the Rocket Man M1001

Backpack Drink Dispenser to promote your beverage products, you

will share our enthusiasm for its unique exibility.

e purpose of this manual is to clearly explain the current

standards of operation and provide the basis for maintaining

consistency and uniformity of beverage quality.

I encourage you to consult our website from time to time at

www.rocketman.com.We are constantly updating and improving

the operating manual and adding new products and services.

If you have questions or need more information, our team can

help you by telephone, fax, or e-mail.

ank you for your business.

TABLE OF CONTENTS

A) What Is Included....................................................................................................................

B) Accessories ............................................................................................................................

C) Fitting Backpack Harness Assembly ...........................................................................

D) Filling Beverage Tank — Non-Carbonated & Carbonated Beverages.................

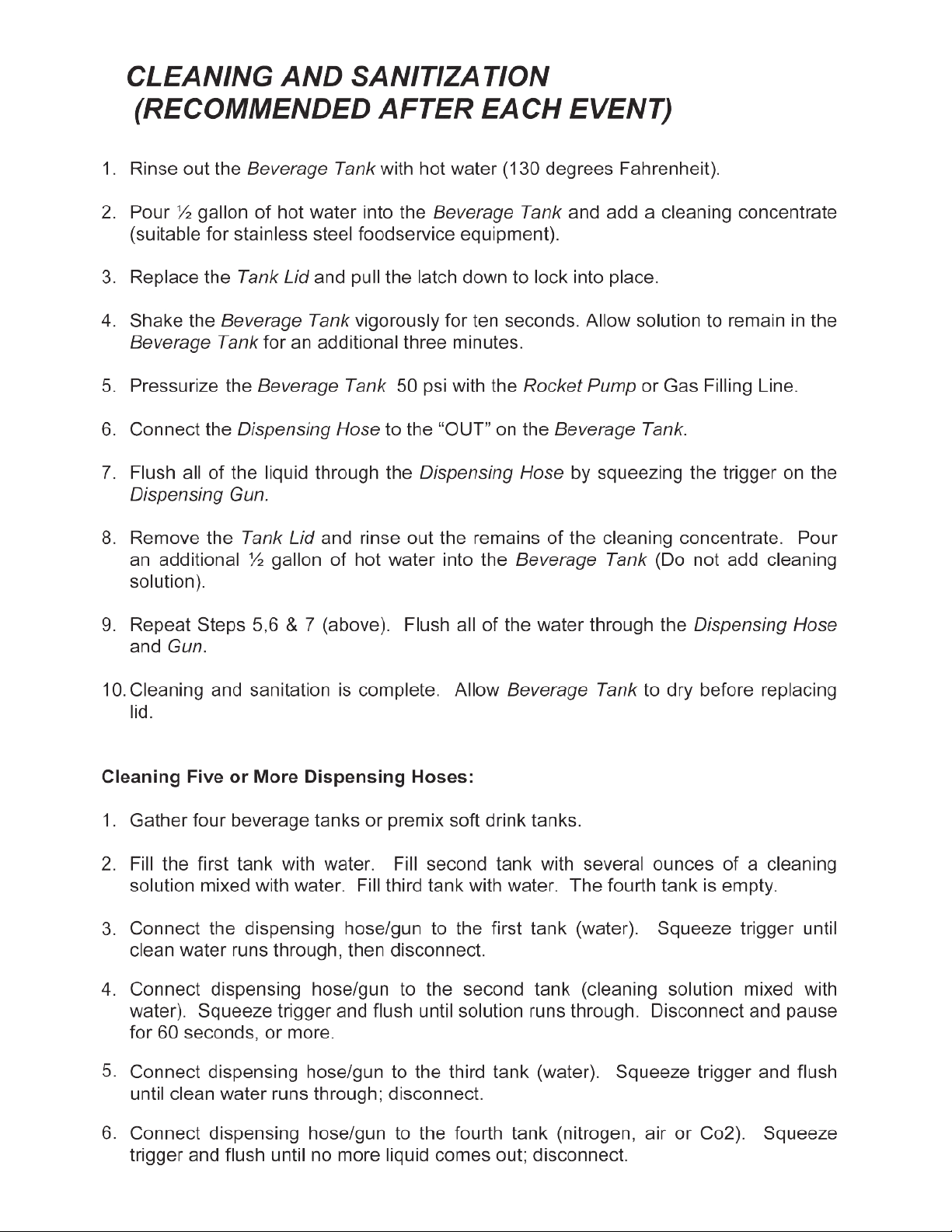

E) Cleaning and Sanitization of the Equipment.............................................................

F) Troubleshooting.....................................................................................................................

G) Warranty...................................................................................................................................

H) Spare Parts.............................................................................................................................

A. WHAT IS INCLUDED

Each Rocket Man M1001 Backpack Drink Dispenser comes

with the following:

• 3 Gallon (11.25 liters) Stainless Steel Beverage Tank

• Insulated backpack cover

• Harness assembly with shoulder & chest straps, hip belt

and lumbar support

• Sign compartment (clear vinyl)

• Cup dispenser

• Dispensing hose and gun

• Slip on sleeve with manual hand pump

Hand Pump & Sleeve

B. ACCESSORIES

Sleeve with

Manual Pump

#1131

C. FITTING BACKPACK HARNESS ASSEMBLY

1. Loosen straps on harness assembly.

2. Place backpack over your shoulders - slip shoulder straps over arms.

3. Connect the hip belt around the your waist and pull straps tight

so that the hip bears most of the weight.

4. Tighten shoulder and chest straps (not shown).

5. Tuck in loose straps for a neat appearance.

The following components are included with the M1001 Rocket Man backpack:

insulated backpack, beverage tank which holds 3 gallons, cup dispenser which holds

2-10 ounce cups, hose assembly with quick disconnect tting, and slide-on sleeve with

the pump to pressurize the tank.

1. The rst step is to release any pressure from the tank by pulling on the pressure

release ring. To open the lid pull the handle and using the palm of your hand push

down, then pull the lid out. Fill up to 2.5 gallons of your beverage, replace the lid, and

rmly push the latch down.

Open the backpack and insert the hose into the backpack. Then place the tank

into the backpack and connect the black quick-connect hose to the out valve of the

beverage tank.

3. Next, slide the outer sleeve holding the pump onto the adjusting strap snuggly. Then

thread the hose thru the bottom of the backpack and connect the gray quick connect

to the “IN” valve of the tank. Pump ve or six times until the ow is at the desired

level. Then continuously repump as needed when the ow lessens. Close and zip the

lid, attach the cup holder using the supplied velcro straps, and ll the cup dispenser

with cups.

4. Adjust the straps to t your personal comfort.

FILLING BEVERAGE TANK Carbonated & Non-carbonated

Insulated Backpack Cup Dispenser

Hose Assembly

Slide on Sleeve w/ Pump

Tank

 

    

           

             



            

    

    

                

      

          

          

   

        

          

           

              

         

              

         

           

             

  

                

        

              

              

      

F. TROUBLESHOOTING

 

    

             



            

    

    

      

          

          

   

        

          

           

              

         

         

  

        

              

      

refridgerated (see at 33 degrees).

 

      

          

          

   

       

         

       

    

       

   

   
