Trouble shooting manual – Robur gas fired wall heater model 5001

Version 1.2 - 12/06/2006 1/21

GAS-FIRED WALL HEATER

MODEL “5001”

TROUBLE-SHOOTING AND SERVICE MANUAL

Trouble shooting manual – Robur gas fired wall heater model 5001

Version 1.2 - 12/06/2006 2/21

L1-L2: Electrical supply 120V – 60Hz; L1

phase, L2 neutral

M9: Main Fuse – 5x20 size – A

Z1: Reset switch

M2: Fan thermostat

M: Fan motor

Z9: Room thermostat

M1: Overheat thermostat

NP: Pressure switch

RP8: Flame sensor

RP7: Spark igniter

S: Combustion blower motor

EV: Gas valve

TR: 120/2 V transformer

SF: Flame view lamp (Green lamp)

SB: Lock-out lamp (Red lamp)

Trouble shooting manual – Robur gas fired wall heater model 5001

Version 1.2 - 12/06/2006 3/21

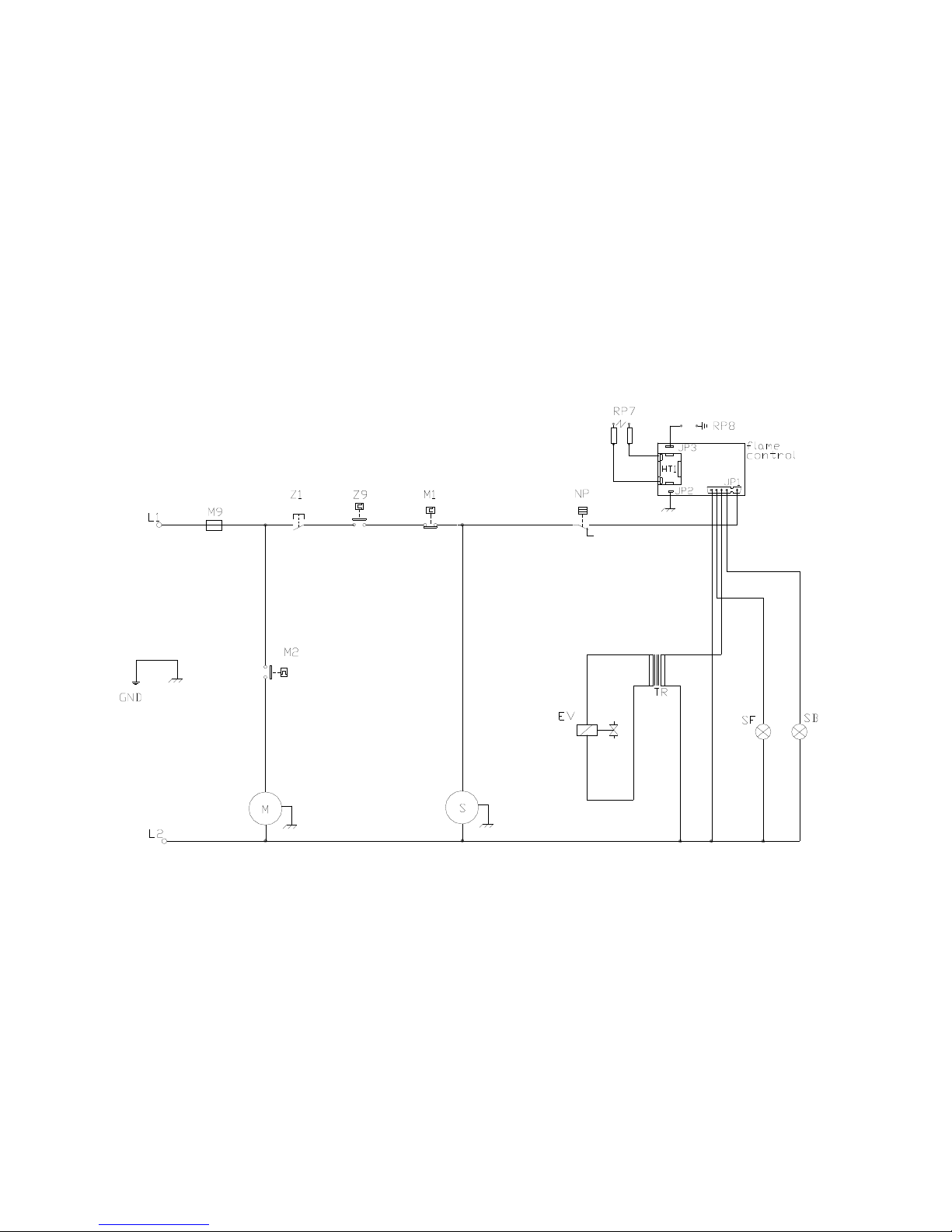

FUNCTIONAL DIAGRAM

Trouble shooting manual – Robur gas fired wall heater model 5001

Version 1.2 - 12/06/2006 4/21

ELECTRIC SCHEME (*

(*) 5001: Only one fan motor (V1)

Trouble shooting manual – Robur gas fired wall heater model 5001

Version 1.2 - 12/06/2006 5/21

ELECTRIC BOX

TR – 120/2 V Transformer

Part number: JTRS017

Ignition control box

Part number: JCNT019

NP – Pressure switch

Part number: JPRS010

Z9 – Room thermostat

Part number: JTLT005

Z1 – Reset switch Part number: N19800205

SF/SB – Green and red lamps

Part number: ELMP006 –

ELMP007

Trouble shooting manual – Robur gas fired wall heater model 5001

Version 1.2 - 12/06/2006 6/21

GAS ASSEMBLY

Gas burner + gas

nozzle

Part number:

JPRT010

Natural gas nozzle

LP gas nozzle

Part number: JGLL065

Part number: JGLL067

EV – Gas valve

Part number: JVLV065

Trouble shooting manual – Robur gas fired wall heater model 5001

Version 1.2 - 12/06/2006 7/21

COMPONENTS (1

S – Combustion

blower motor

Part number: JMTR017

M1 – Overheat

thermostat

Part number: JTLT006

M2 - Fan thermostat Part number:J12301018

Trouble shooting manual – Robur gas fired wall heater model 5001

Version 1.2 - 12/06/2006 8/21

COMPONENTS (2

RP8 : Flame sensor Part number:JLTT015

RP7: Spark igniter

(n.2 pcs)

Part number: JLTT023

Trouble shooting manual – Robur gas fired wall heater model 5001

Version 1.2 - 12/06/2006 9/21

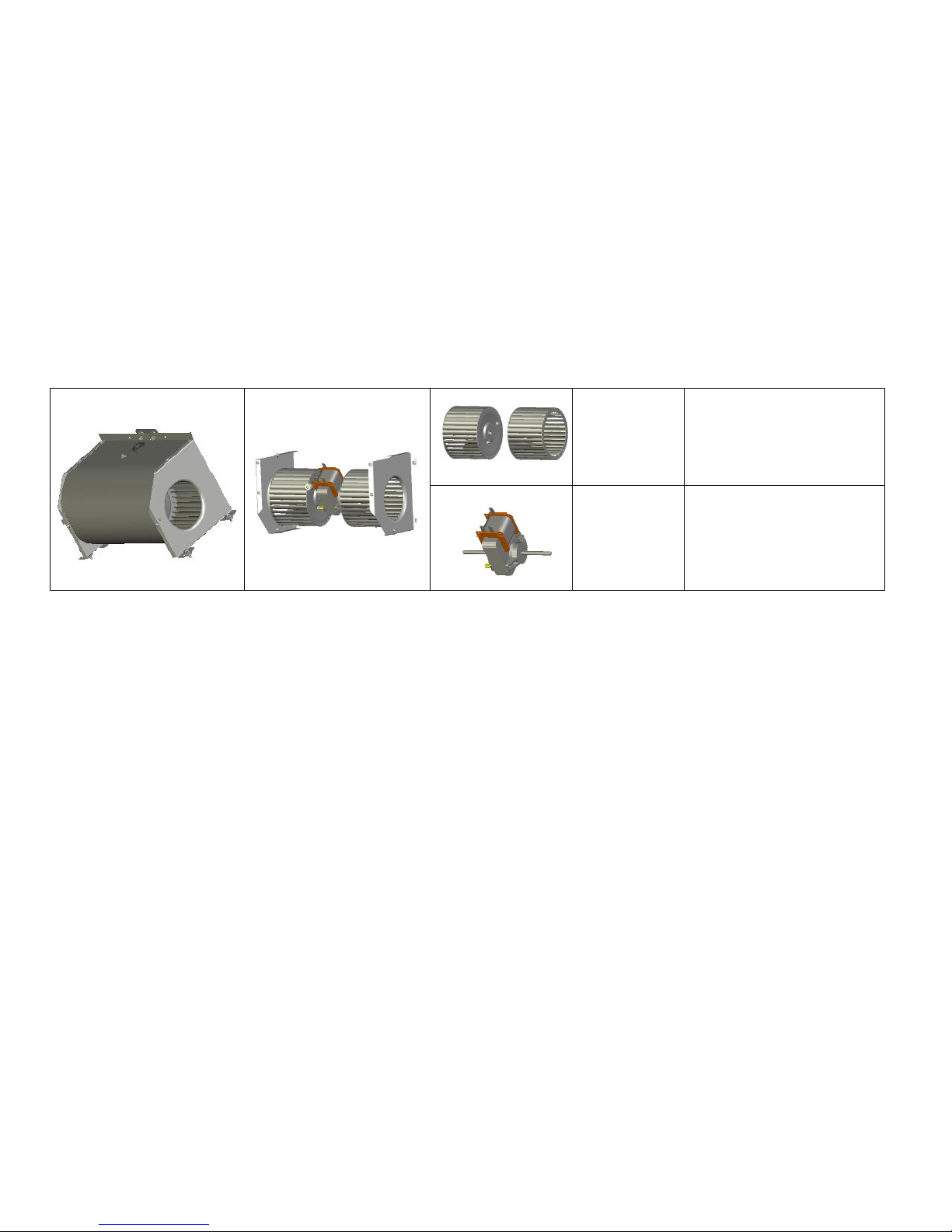

COMPONENTS (3

Fan blades Part number: VVNT003-

VVNT002

M - Fan motor Part number: JMTR018

Trouble shooting manual – Robur gas fired wall heater model 5001

Version 1.2 - 12/06/2006 10/21

V = 120 V

Starting sequence (electrical

STEP 1

1. Check L1 – L2 (Supply 120 V, 60 Hz)

2. Check M9 (Main fuse)

TROUBLE-SHOOTING STEP 1

Point 1 (L1-L2 .

No voltage (120 V).

Check the electrical supply line, wirings and connections.

Point 2 (M9 .

Fuse damaged.

Check the electrical supply line and replace the fuse.
