RoboLabs ROBOMIX MINI Manuel utilisateur
tm3971 Jan-20
2
Table of contents
Safety requirements...........................................................................................3
1. Overview........................................................................................................4
1.1. Purpose...................................................................................................4
1.2. Technical specifications ..........................................................................4
1.3. Delivery set .............................................................................................4
1.4. Power requirements................................................................................4
1.6. Ambient conditions..................................................................................5
1.7. Getting started.........................................................................................5
2. Intended use..................................................................................................5
2.1. Principle of operation...............................................................................5
2.2. Operation mode ......................................................................................6
3. Technical maintenance..................................................................................7
4. Transportation and storage............................................................................7
5. Acceptance certificate....................................................................................8
6. Warranty obligations......................................................................................9
7. Manufacturer details......................................................................................9
Annex A Wiring diagram..................................................................................10
Annex B. Parts list ...........................................................................................11
tm3971 Jan-20
3
Safety requirements
DO NOT WASH MACHINE WITH WATER!
ONLY INSTRUCTED PERSONNEL ARE ALLOWED TO OPERATE THE MACHINE!
DO NOT PROCESS OTHER PRODUCTS THAN POPCORN!
DO NOT LEAVE RUNNING MACHINE UNATTENDED!
ALL SWIVEL CASTERS MUST BE LOCKED WHILE IN OPERATION!
DO NOT TURN THE MOTOR ON WITH OPEN CONTAINER!
BEWARE MOVING PARTS!
tm3971 Jan-20
4
1. Overview
1.1. Purpose
RoboMix Mini coater is used for making popcorn coated with dry or liquid
seasoning mixes of any kind: oil, cheese, tomato, salt, pepper, sugar powder
etc. Both varieties of popcorn, Butterfly or Mushroom can be processed in the
machine.
1.2. Technical specifications
Operating volume
25 L
Rated voltage
1/N/PE AC 230 V 50/60 Hz
Power
50 W
Dimensions (LxWxH)
840x525x855 mm
Weight
30 kg
IP rating
IP 22
The equipment must be operated at the ambient temperature from +5° to +40°C
and relative humidity not more than 50% at 40°C. Altitude above sea level
should not exceed 1000 m.
1.3. Delivery set
The delivery set includes the following:
RoboMix Mini coater
1 pc
37.5 L container
1 pc
Documentation set
1 copy
1.4. Power requirements
CONNECTIONS MUST BE DONE ONLY BY QUALIFIED ELECTRICIAN!
ELECTRIC SOCKET MUST HAVE GROUNDING TERMINAL!
IF SUPPLY CORD DAMAGED, IT MUST BE REPLACED BY MANUFACTURER, SERVICE AGENT, OR
QUALIFIED PERSONS IN ORDER TO AVOID HAZARD!
It is necessary to periodically check electric connections, including grounding
connection. Whenever any fault conditions are found, do not turn the equipment
tm3971 Jan-20
5
and call for qualified electrician!
Equipotential bonding wire (up to 10 sq.mm) shall be connected to screw
terminal marked with IEC 5021 sign.
It is necessary to check electric wires and ground connection of the machine
periodically. In case of faults found, an electrician must be called. It is allowed to
turn the machine on only after all the issues are resolved.
1.6. Ambient conditions
The equipment must be operated at the ambient temperature between +5° and
+40°C (+41°F to +104°F), relative humidity not more than 45% at 40°C/104°F).
Altitude above sea level should not exceed 1000 m.
1.7. Getting started
Unpack the unit carefully, check the delivery set. Remove protective film from
metal surfaces. Insert plastic container firmly into the cradle. Put coater onto
even surface; make sure that there are no items obstructions that may affect
machine operation. Lock all four swivel casters to avoid unexpected machine
roaming.
2. Intended use
2.1. Principle of operation

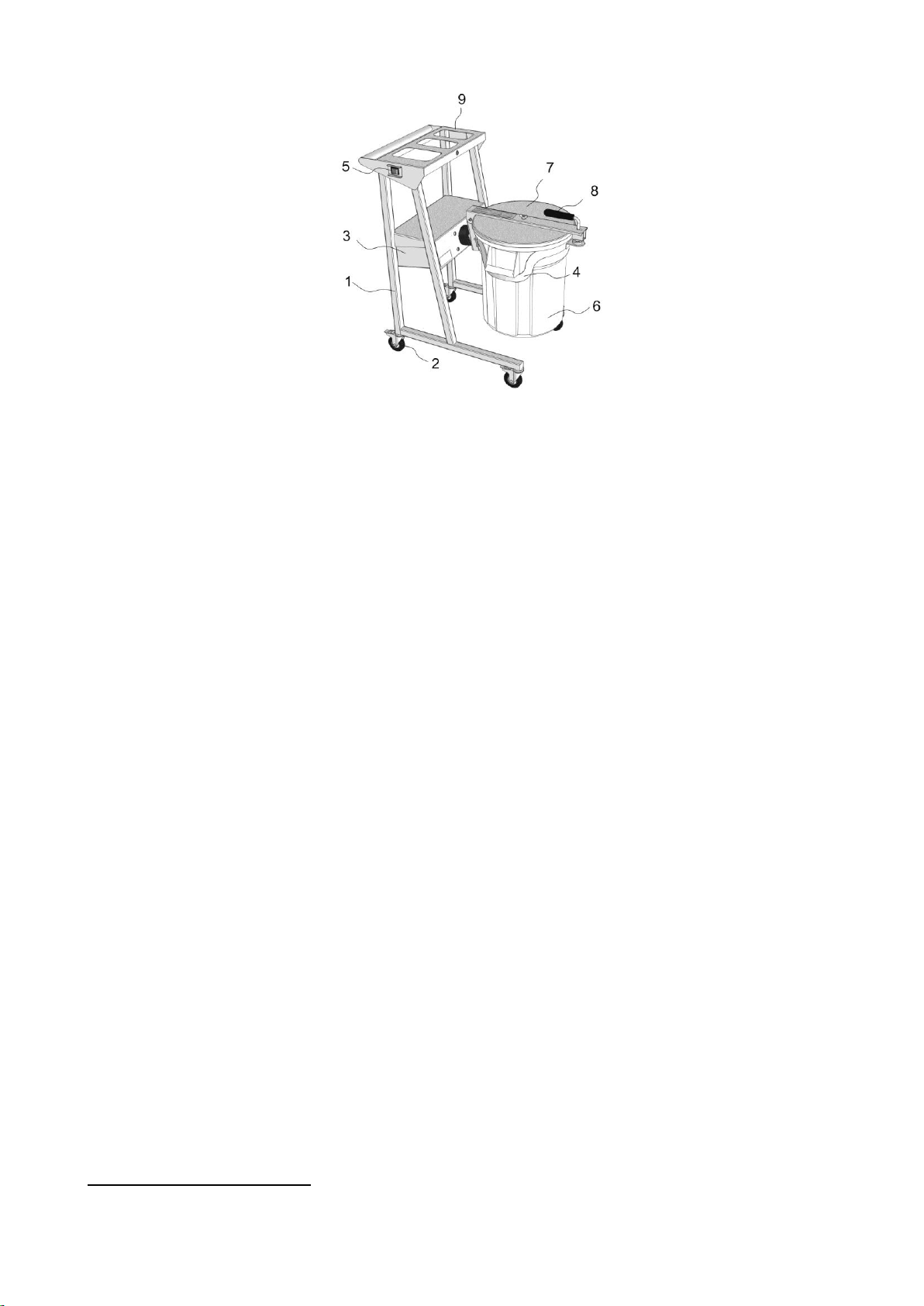

General appearance of the coater is shown on Fig.1. Coater is made of
stainless steel. Main parts of the machine are: stand (1) mounted on swivel
locking casters (2); electric motor (3) with cradle (4) fixed to motor’s shaft; main
motor switch (5); plastic container (6) for popcorn; covering lid (7); locking
handle (8); tabletop (9) with openings where two GN1/9 containers (not shown)
and an oil pump (not shown) can be accommodated
1
.
The principle of operation is the following. Popcorn and seasoning that put into
container are being mixed (i.e. popcorn is being coated with seasoning) due to
container rotation.
1
GN1/9 containers and oil pump are not included in the delivery set and can be ordered
separately, if required!
tm3971 Jan-20
6
Fig. 1 Main components
2.2. Operation mode
Prepare popped popcorn, and seasoning mixture. It is recommended to use a
mix of liquid oil and dry seasoning powder. The main purpose of oil is to provide
proper binding of popcorn and seasoning.
Fill the container with popped popcorn not more than 2/3 of its volume. Then
add seasoning mixture into the container.
Close the lid properly; press the handle firmly until you hear magnet lock
clicked.
Turn the main switch. The container will be spinning. Wait 1-2 minutes
2
then
turn the switch off.
Make sure that the container is in upright position. Pull the locking handle to
release magnet lock and lift the lid until it will be locked in open position (there is
a small magnet lock in upper part of the stand).
2
Depending on recipe used.
tm3971 Jan-20
7
3. Technical maintenance
The aim of technical maintenance is to keep the equipment in order during
whole lifetime; and also to fulfill food safety requirements.
Do not use abrasive materials to avoid scratches! Do not use steel or iron tools;
it can cause stainless steel corrosion!
Do not wash electric parts and compartments of the machine with water!
Use a slightly dampen, soft cloth to clean the surfaces, wipe dry immediately
after cleaning. The recommended schedule is below:
PROCEDURE
PERIOD3
Inner and outer surfaces cleaning
once a day
Container cleaning
once a day
Container lid cleaning
once a day
4. Transportation and storage
The equipment may be transported by any kind of covered vehicle, in
accordance with transportation rules for this kind of vehicle.
Ambient temperature during the transportation and storage must be between
minus 25°C to +55°C.
3
The period may vary. Cleaning must be done as necessary.
tm3971 Jan-20
8
5. Acceptance certificate
ACCEPTANCE CERTIFICATE
__________________
Product Name
№ ________________________
Serial Number
The equipment is made with accordance to mandatory requirements of the state standards, actual technical
documentation, and approved for use.
QC Engineer
Stamp Here
_________________
Signature
_________________
Date
_________________
Full Name
tm3971 Jan-20
9
6. Warranty obligations
The manufacturer guarantees trouble-free operation of the equipment during 12
months from the date of receiving the equipment by dealer (in accordance with
transport documentation); or, in case of purchase directly through Trapeza LLC,
from the purchase date, given that terms of using, transportation, and storage
are met.
The warranty repair is performed upon presentation of this manual and filled
warranty card with the seller’s seal and the date of sale.
Technical specifications of the equipment can be changed by manufacturer at
any time due to improvements and/or other reasons. Technical specifications
stated in this document are intended to act as a reference point, which is
necessary to evaluate suitability of the equipment for the customer’s needs, and
are not the subject of warranty policy.
The information stated in this document has been thoroughly checked and
considered as accurate one; nevertheless, the manufacturer is not responsible
for any typographical errors or misprints.
Due to constant improvement of the equipment, technical specifications
are subject to change without prior notice!
7. Manufacturer details
NPO Tvertorgmash LLC
11 Industrial Street, Tver, 170000 Russia
Technical support:
Email: support@robolabs.pro
Phone: +7 495 956 4000
tm3971 Jan-20
10
Annex A Wiring diagram
SIGN
ARTICLE#
PART
SPEC
C
11792
Capacitor
CВВ61 1uF 450V AC
M
3811
Motor
YN70-15/70JB36G10 Linix
SA
3730
Rocker switch with backlight
B4 MASK T120/55 3/4HP
