Robin America PKX401 Manuel utilisateur

PARTS

MANUAL

PKX401

PUMP

Model

PUB-PP

Rev. 06/02

940 Lively Blvd. • Wood Dale, IL 60191 • Phone: 630-350-8200 • Fax: 630-350-8212

e-mail: [email protected] • www.robinamerica.com

PKX401 - 3 - 06-02

HOW TO USE THIS MANUAL

Robin engines are identiﬁed by MODEL, SPECIFICATION, and CODE NUMBER. For each

model there may be many different versions called speciﬁcations. Each speciﬁcation will be

unique in some way. The difference may only be the paint color or it may have a different type

of PTO or some other signiﬁcant difference.

In order the identify the correct service part number, it is important to conﬁrm the speciﬁca-

tion and code numbers for your engine. The speciﬁcation and code number together are

know as the PRODUCT NUMBER.

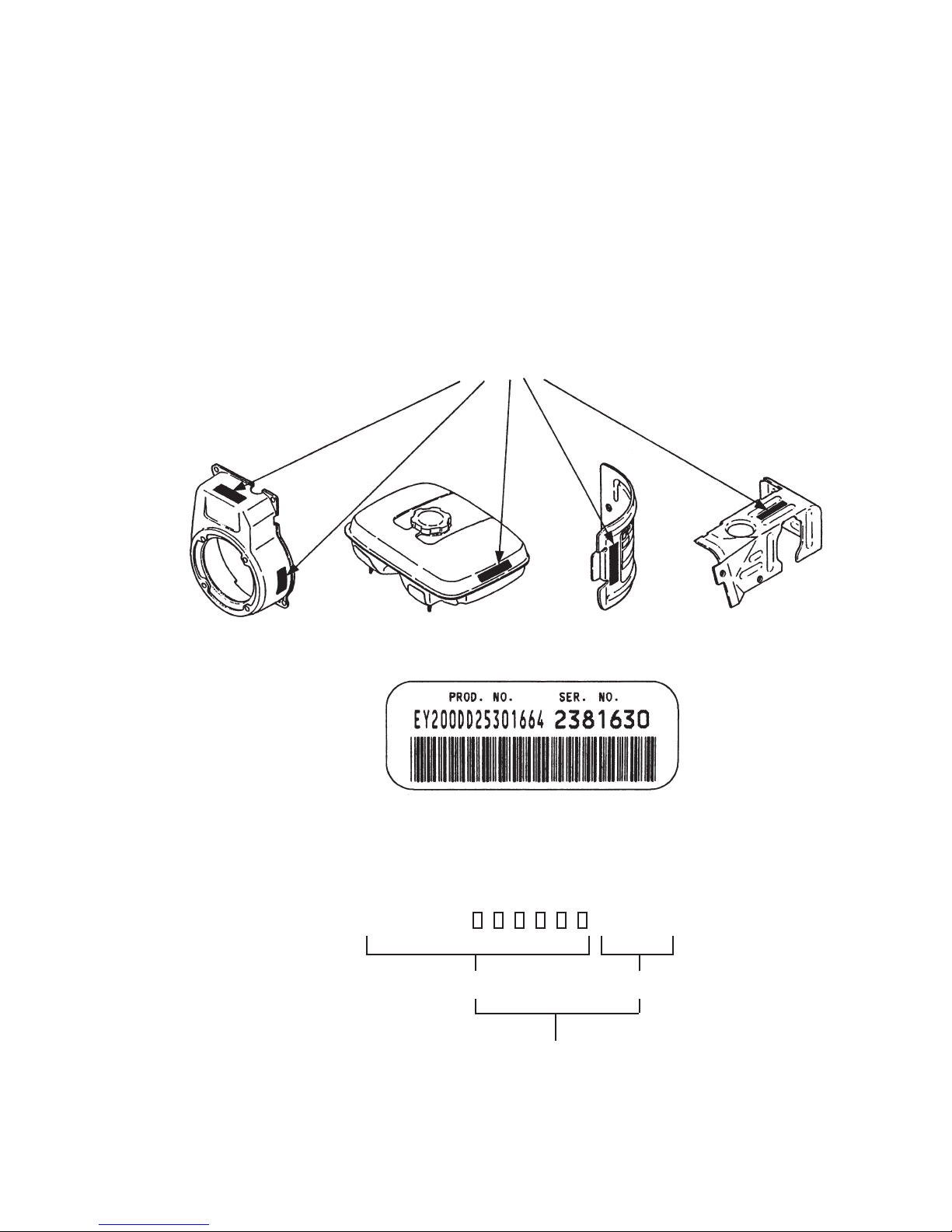

All Robin 4 cycle engines have a Product Number label similar to the label illustrated below.

The Product Number Label has a 15 digit alphanumeric string that consists of the

SPECIFICATION (SPEC) number (11 digits) and the CODE number (4 digits). Please

note the illustration below:

X X X X

SPEC NO. (11 digits) CODE NO. (4 digits)

PRODUCT NO. (15 digits)

PKX 401

PKX401 - 4 - 06-02

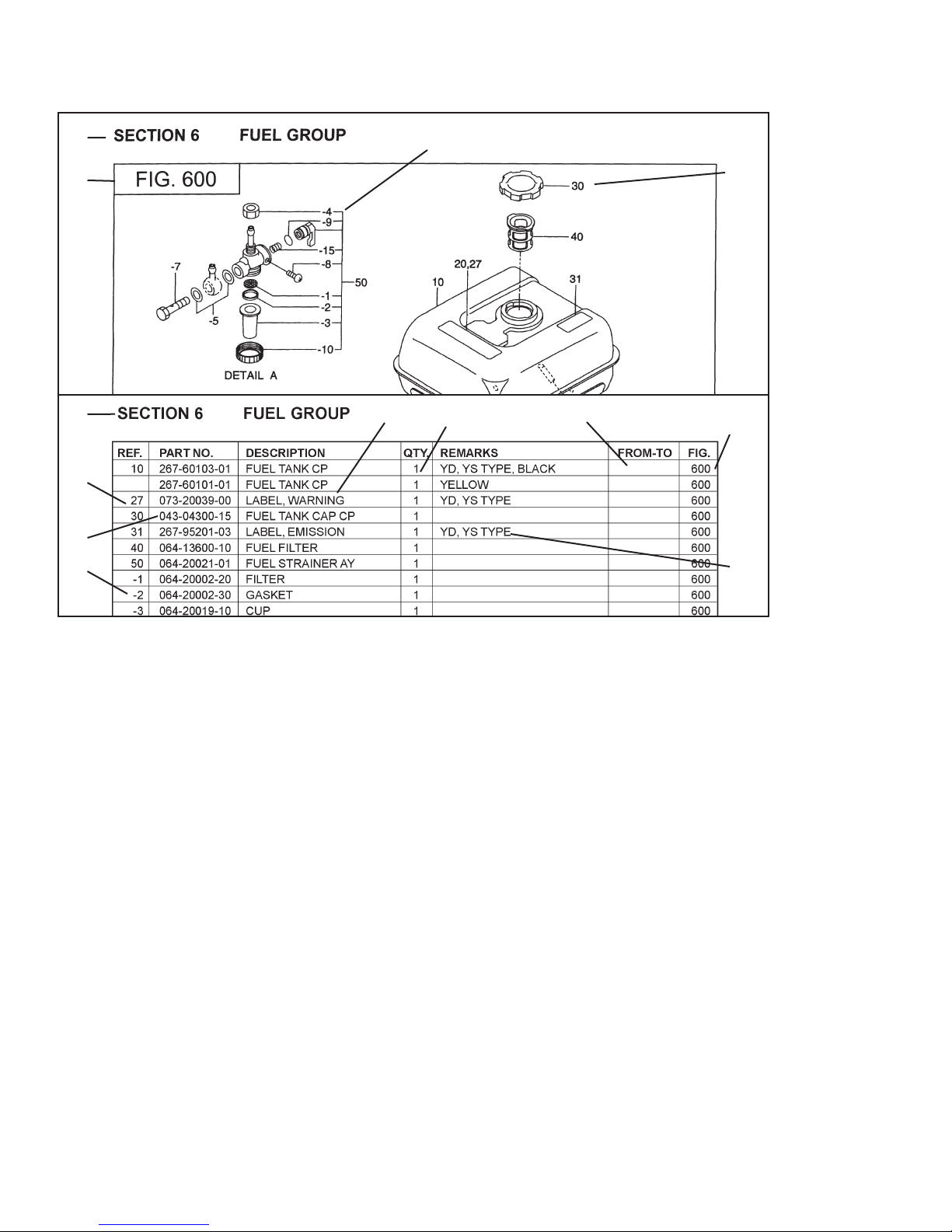

MANUAL LAYOUT

1. SECTION NAME Parts are broadly classiﬁed according to their functions.

Refer to the Group Index (table of contents) for respective section name.

2. FIG. No. The FIG. number indexes the reference and part numbers to the illustration. Figure numbers

that vary only in the tens place (i.e..: 700 and 710) are in a group of the same section

(i.e..:Electrical Device Group).

3. REF. No . The Reference number identiﬁes the part illustration with the corresponding part number in the

part list.

4. SUBASSEMBLY SUBASSEMBLY parts of part assembly are listed below the assembly part. The subassembly

part reference number is indicated by the number led by "-" such as "-1", "-2".

5. PART NUMBER It is the number assigned for sales unit. Use the PART No. when making an order.

6. DESCRIPTION It is designation of the part.

7. QTY. Quantity of each part used for each product.

8. REMARKS This gives a distinctive feature and/or a supplementary comment for the type, the speciﬁcation,

and the part concerned. It also shows part number(s) interchangeable for the part.

9. FROM-TO This section shows the CODE No. to indicate the history of progress in which improved parts

have been introduced in the product. The FROM-TO CODE No. helps to identify PART No.

being employed in the product concerned. See the examples below:

- The part is used in the product irrespective of CODE No.

2101- The part is used in the products with CODE No. of 2101 and after this number.

- 2100 The part is used in the products with CODE No. of 2100 and before this number.

16792

PKX401 - 5 - 06-02

GROUP INDEX

Group Name Page

PUMP FROUP............................................................................................ 6

CRANKCASE GROUP............................................................................... 8

CRANKSHAFT GROUP........................................................................... 10

INTAKE and EXHAUST GROUP.............................................................. 12

GOVERNOR GROUP .............................................................................. 16

COOLING and STARTING GROUP......................................................... 18

FUEL, LUBRICANT GROUP.................................................................... 20

CARBURETOR GROUP.......................................................................... 22

ELECTRIC DEVICE GROUP .................................................................. 24

ACCESSORY GROUP............................................................................. 26

SYMBOL DESCRIPTION

AY...........................ASSEMBLY

CP...........................COMPLETE

EX...........................EXPORT (from Japan)

FIG..........................FIGURE

FR...........................FRONT

"..............................INCH

INCL. ......................INCLUDE

~L............................LITER

L= ...........................LENGTH (in. mm)

L.H. (LH).................LEFT-HAND SIDE

MECH.....................MECHANICAL

NO (NON)...............NONE

OPT.........................OPTIONAL

O.S. ........................OVER SIZE

SYMBOL DESCRIPTION

P=...........................PITCH (in mm)

P.T.O. (PTO)...........POWER TAKE OFF

REF.........................REFERENCE

R.H. (RH)................RIGHT HAND SIDE

RR. .........................REAR

STD. .......................STANDARD

SW..........................SWITCH

T=...........................THICKNESS (in mm)

UN ..........................UNIT

U.S..........................UNDER SIZE

~V...........................VOLTAGE

~W..........................WATT

W/...........................WITH

W/O ........................WITHOUT

INDEX OF DESCRIPTION SYMBOLS

PKX401 - 6 - 06-02

SECTION 1 PUMP GROUP

FIG. 100

PKX401 - 7 - 06-02

SECTION 1 PUMP GROUP

REF PART NO DESCRIPTION QTY REMARKS FROM - TO FIG

110 470-01165-53 PUMP CASING 1 100

115 471-00000-41 O RING 1 100

120 470-01107-17 VOLUTE CASING 1 100

130 470-01156-64 IMPELLER 1 100

140 470-01157-64 MECHANICAL SEAL 1 100

145 470-01100-81 ADJUSTING WASHER 3 100

150 471-00000-40 O RING 1 100

170 470-01180-79 PLUG AY 2 100

180 471-00000-42 BOLT AND WASHER 12 100

210 470-01157-63 FLANGE BRACKET 1 100

280 471-00000-43 SOCKET BOLT 4 100

285 471-00000-02 SEAL WASHER 4 100

310 470-01113-65 SUCTION OR DELIVERY 1 100

320 470-01173-63 CHECK VALVE 1 100

410 471-01161-51 DELIVERY FLANGE 1 100

420 470-01107-50 DELIVERY FLANGE PACK 1 100

510 470-01112-17 STRAINER 1 100

520 471-00000-46 HOSE BAND 3 100

610 470-01177-47 FRAME AY 1 100

670 470-01105-15 CUSHION RUBBER 4 100

675 470-01159-23 CUSHION RUBBER 1 100

680 471-00000-61 BOLT AND WASHER 1 100

681 471-00000-71 BOLT AND WASHER 4 100

684 471-00000-68 SPRING WASHER 4 100

686 471-00000-66 WASHER 4 100

690 471-00000-38 NUT 4 100

691 471-00000-57 NUT 4 100

695 471-00000-36 BOLT AND WASHER 4 100

910 470-01165-69 LABEL 1 100

PKX401 - 8 - 06-02

SECTION 2 CRANKCASE GROUP

FIG. 200

PKX401 - 9 - 06-02

SECTION 2 CRANKCASE GROUP

REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.

10 279-10102-21 CRANKCASE CP 1 w/ Oil Sensor 200

20 237-14202-03 VALVE GUIDE 2 200

26 277-16010-01 STEM SEAL 1 200

30 044-03001-60 OIL SEAL 1 200

40 060-03003-40 BALL BEARING 1 200

50 277-15011-03 PIPE KNOCK 2 200

60 010-50802-50 STUD 2 200

70 010-50604-10 STUD 2 200

75 044-00600-20 OIL SEAL 1 200

80 040-11400-30 PLUG 2 200

90 021-11400-20 GASKET 2 200

210 279-11001-11 MAIN BEARING COVER CP 1 200

220 044-03001-60 OIL SEAL 1 200

230 060-03000-20 BALL BEARING 1 200

250 277-45004-11 GOVERNOR GEAR CP 1 200

260 263-41901-03 GOVERNOR SLEEVE 1 200

270 279-63601-03 OIL GAUGE 1 200

275 279-65001-03 FILLER PLUG 1 200

280 021-32000-50 GASKET 1 200

281 021-32000-50 GASKET 1 200

300 001-04083-50 FLANGE BOLT 7 200

610 279-13001-01 CYLINDER HEAD CP 1 200

620 279-15001-13 GASKET, head 1 200

630 011-00802-40 FLANGE BOLT 4 200

631 001-04083-50 FLANGE BOLT 1 200

680 277-15501-01 ROCKER COVER CP 1 200

690 277-16001-03 GASKET, rocker cover 1 200

700 277-15011-03 PIPE KNOCK 2 200

710 011-00600-20 FLANGE BOLT 4 200

850 085-10800-00 RUBBER PIPE 1 200

960 279-99001-07 GASKET SET 1 200

EX0-20000-01 GASKET IN A TUBE

Gasket Sets include the following:

Fig. 200 items 90, 280, 620 and 690

Fig. 400 items 340 and 550

PKX401 - 10 - 06-02

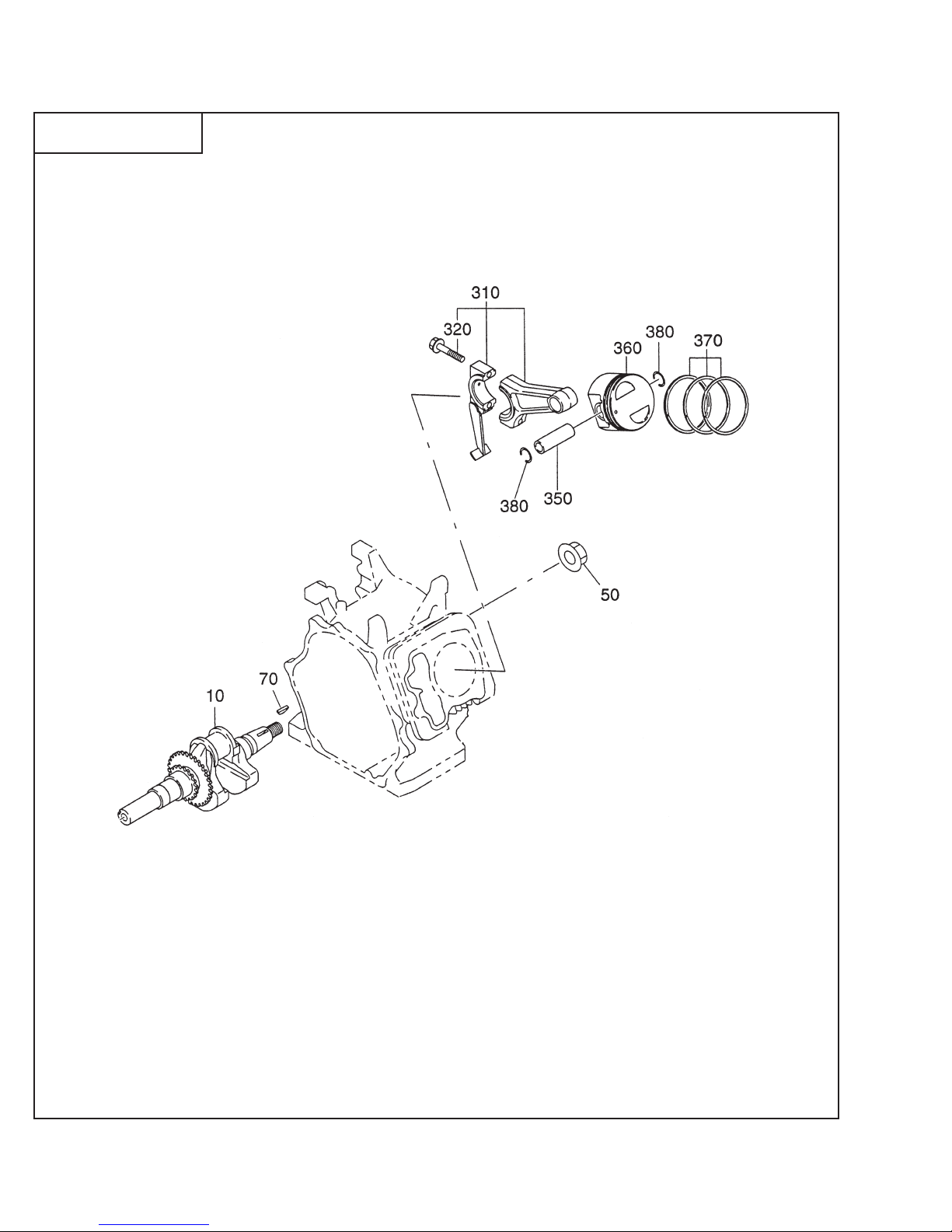

SECTION 3 CRANKSHAFT GROUP

FIG. 300
