Roban EC-135 Manuel utilisateur

800sizeEC‐135

including

SM2.0 mechanics



Manual



CCPMSCALERCHELICOPTER

INCLUDINGFENESTRON



SuperScale800Manual–EC‐135

Release1.0‐August2016



RobanLimited

ZhengyacunIndustrialZone,VentureCrossRd.

Jiaolian,WanjiangCityDistrictofDongguan,

523046DongguanCounty(GD)‐PRC



SPECIFICATIONS

Bodylength:  1760mm

Width:360mm

Height:500mm

Mainrotordiameter:  1560mm

Mainbladelength:  700mm

Tailrotordiameter:  160mm

Tailbladecount:  9

Mainshaftdiameter:  12mm

Tailshaftdiameter:  6mm

Spindlediameter:  8mm

Batterycompartment:  120x60x180mm

Motor:*1x750MX450KVbrushlessoutrunner,12Scapable

Speedcontroller:* 1x120Abrushless,12Scapable

Servo:*3xmetalgearcyclic,1xmetalgeartailservo(8kg+!!)

Battery:* 44.4V5000mAh35C+

Flighttime:   5minutes

Takeoffweight:  8500g

FlightStabilization:* 3axisflybarlessgyro

RadioControl:*  min.6channelwithpitchandthrottlecurves



*)Optionallyavailableequipment



TheCompactorisahighperformanceradiocontrolledscalehelicopter.

Ourgoalwastocreateasimple,highperformancehelicopter,withaminimumofmechanicalcomponentsandsimplemaintenance.

Pleasereadthisusermanualcarefully,itcontainsinstructionsforthecorrectassemblyofthemodel.

Pleaserefertothewebsitewww.robanmodel.comforupdatesandotherimportantinformation.

Thankyouforyourpurchase,andhaveagreattimewithyourCompactor!

RobanLimited





IMPORTANTNOTES



*Thisradiocontrolledhelicopterisnotatoy.

*Thisradiocontrolledhelicoptercanbeverydangerous.

*Thisradiocontrolledhelicopterisatechnicallycomplexdevicewhichhastobebuiltandhandledverycarefully.

*Thisradiocontrolledhelicoptermustbebuiltfollowingtheseinstructions.Thismanualprovidesthenecessaryinformation

tocorrectlyassemblethemodel.Itisnecessarytocarefullyfollowalltheinstructions.

*Inexperiencedpilotsmustbemonitoredbyexpertpilots.

*Alloperatorsmustwearsafetyglassesandtakeappropriatesafetyprecautions.

*Aradiocontrolledhelicoptermustonlybeusedinopenspaceswithoutobstacles,andfarenoughfrompeopletominimize

thepossibilityofaccidentsorofinjurytopropertyorpersons.

*Aradiocontrolledhelicoptercanbehaveinanunexpectedmanner,causinglossofcontrolofthemodel,andmakeitavery

dangerousflyingobject.

*Lackofcarewithassemblyormaintenancecanresultinanunreliableanddangerousmodel.



*NeitherRobanLimitednoritsagentshaveanycontrolovertheassembly,maintenanceanduseofthisproduct.Therefore,no

responsibilitycanbetracedbacktothemanufacturer.YouherebyagreetoreleaseRobanLimitedfromanyresponsibilityor

liabilityarisingfromtheuseofthisproduct.



SAFETYGUIDELINES



*Flyonlyinareasdedicatedtotheuseofmodelhelicopters.

*Followallcontrolproceduresfortheradiofrequencysystem.

*Itisnecessarythatyouknowyourradiosystemwell.Checkallfunctionsofthetransmitterbeforeeveryflight.

*Thebladesofthemodelrotateataveryhighspeed;beawareofthedangertheyposeandthedamagetheymaycause.

*Neverflyinthevicinityofotherpeople.



NOTESFORASSEMBLY

Pleaserefertothismanualforassemblyinstructionsforthismodel.

Followtheorderofassemblyindicated.Theinstructionsaredividedintochapters,whicharestructuredinawaythat

eachstepisbasedontheworkdoneinthepreviousstep.Changingtheorderofassemblymayresultinadditionalor

unnecessarysteps.

Usethreadlockersandretainingcompoundsasindicated.Ingeneral,eachboltorscrewthatengageswithametalpart

requiresthreadlock.

Factorypre‐assembledcomponentshavebeenassembledwithalltherequiredthreadlockandlubricants,

andhavepassedqualitycontrol.Itisnotnecessarytodisassembleandre‐assemblethem.

Wedonotrecommendtheuseofthincyanoacrylateglueforsurfacemountofpaintedparts.Thefumesofthecuringglueleave

whitestainsontheclearcoat,whicharehardtoremove.



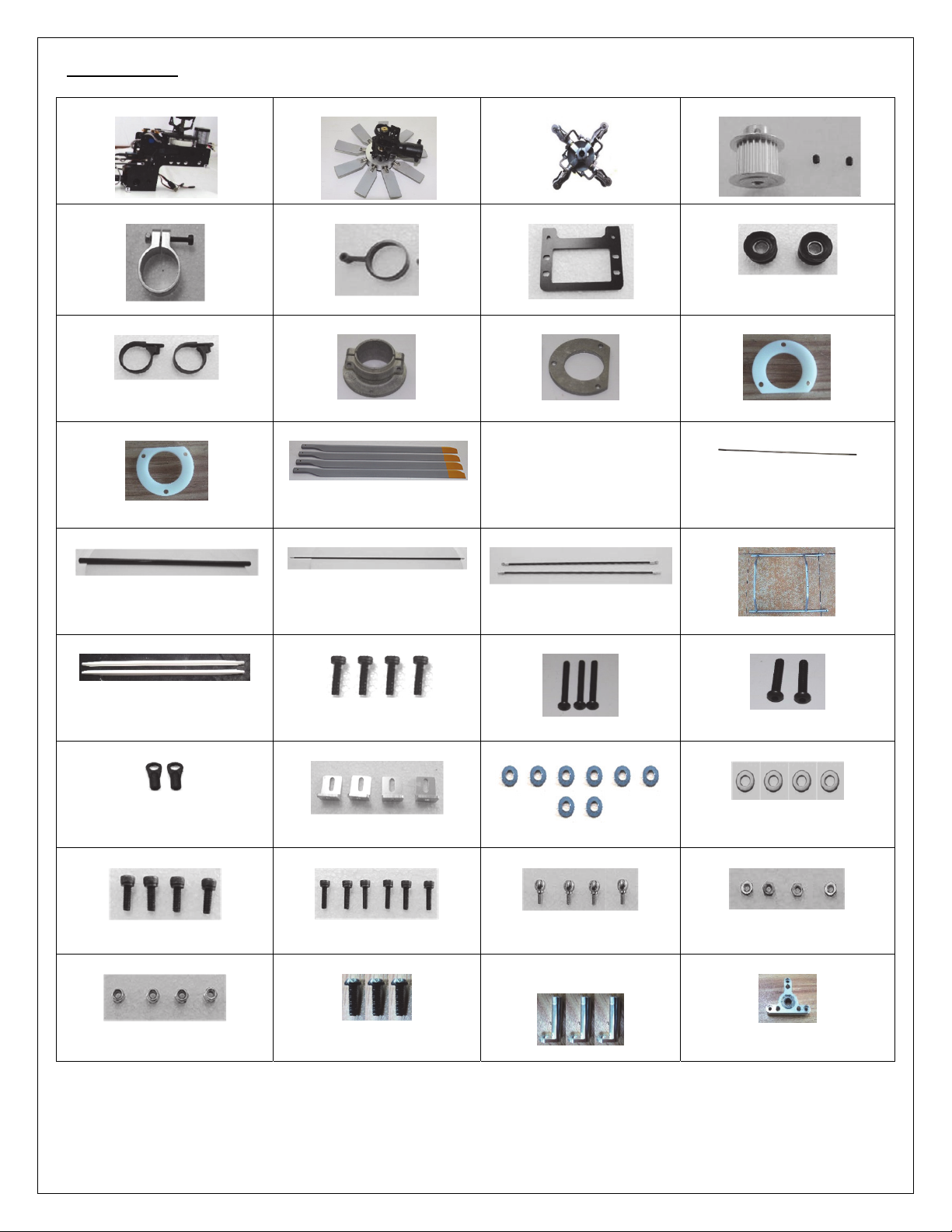

1 – Main Frame



2 – Fenestron assy



3 – Main rotor head (412)



4 – – Motor pulley



5 – Tail boom clamp



6 – Pushrod holder



7 – Tail servo holder

8 – Torque tube holder x2



9 – Tail servo clamp x2



10 – Inner duct clamp

11 – Outer duct clamp

12 – Inner duct spacer

13 – Outer duct spacer



14 – Main rotor blades x4



15 – NA16 – Tail pushrod 228mm

17 – Tail tube 810mm



18 – Torque tube 798mm

19 – Tail boom support x2

20 – Landing gear

21 – Landing gear steps x2

22 – Screw M3x16 x4



23 – Screw M2.5x20 x3

24 – Screw M2.5x12 x2

25 – Servo connectors x2

26 – L brackets x4

27 – Washer M3 x8

28 – Washer M4 x4

29 – Screw M4x10 x4

30 – Screw M3x10 x6

31 – Ball link x4

32 – Nut M2 x4

33 – Nut M3 x4

34 – Screw M3x10 x3

35 – Motor pinion support

x3

36 – Pinion bearing block

CONTENTS:

37 – Screw A3x25 x4

38 – Screw A2x8 x4

39 – Screw A2x6 x6

40 – Wooden washers x6

41 – Horizontal tail wings x2



42 – Vertical tail fins x2

43 – Scale part A



44 – Scale part B

45 – Scale Part x2

46 – Scale Part



47 – Scale Part x2

48 – Wire cutter

49 – Scale part x2



50 – Stair holder x4



51 – Red LED light

52 – Green LED light

53 – Red LED light



54 – 60cm prolonging wire



55 – 90cm prolonging

wire x3

56 – Red light cap



57 – LED controller



58 – Instrument panel



59 – center console

60 – Front seat x2



61 – Middle seat



62 – Back seat

63 – Seat head rest x8

64 – Cyclic stick x2



65 – CP stick x2



66 – Rudder pedals left x2

67 – Rudder pedals right



68 – Decal set

ADDITIONALCOMPONENTSREQUIRED

*ElectricMotor:

12S–450KV750MX,orsimilar

pinionshaftdiameter6mm

*Speedcontroller:

minimum120Atobesafe

*Batteries:10‐12S4000‐5000mAh

*1flybarless3axiscontrolunit,suitableforscaleflying

*Radiopowersystem

*3cyclicservos

*1tailrotorservo

*6channelradiocontrolsystemon2.4GHz



TOOLS,LUBRICANTS,ADHESIVES

*Genericpliers

*Hexagonaldriver,size1.5,2,2.5,3,4mm

*4mmT‐Wrench

*5.5mmSocketwrench(forM3nuts)

*8mmHexforkwrench(forM5nuts)

*Mediumthreadlocker(eg.Loctite243)

*Strongretainingcompound(eg.Loctite648)

*Spraylubricant(eg.Try‐FlowOil)

*Syntheticgrease(eg.Tri‐FlowSyntheticGrease)

*Cyanoacrylateadhesive

*PitchGauge(forset‐up)

*Solderingequipment(formotorwiring)

Inside the main box there are:



Insidethemainbox:

Bag1:Manual

Box2:Fuselage

Box3:TailWings

Box4:Scaleparts,Accessories

Box5:Boom,Blades,Fenestron,Rods

Box6:Mechanics



AssemblyScaleFuselage

Priortoinstallingthemechanicsintothefuselage,pleasepreparethefuselageaccordingtothefollowingsteps.Installationintothe

fuselagemostofthehelicoptermechanicbecomeinaccessible.Thelandinggearhastobeinstalledfirst.Asyouwillhavetoturnthe

mechanicsover,pleasemakesurethatyouarenotscratchingthepaintbyusingaoldblanketorarigwhileworkingonit.



 


