Roadmaster ANDROID CAR NAVIGATION Manuel utilisateur

The use of certain features of these devices depends on your network

service provider's network settings and performance. In addition, due to

the different network service providers, some certain functions of this

device may not be able to apply or restrict to apply. And please contact

your network service provider for consulting the network functions and

availability of this device.

This mark indicates that the product uses a label which is

classified CLASS1 laser, indicating that the device uses the

weakest level of laser beam, and there is no risk of

radiation outside the unit.

Contents

Contents...........................................................................................................3

1. Quick Review..........................................................................................................5

1.1 Turning On and Turning Off......................................................................5

1.2 Panel Function Button...............................................................................5

1.3 Tips for Using Touch Screen....................................................................6

1.3.1 Clicking Function............................................................................6

1.3.2 Pressing Function...........................................................................6

1.3.3 Dragging Function..........................................................................6

1.3.4 Zooming Function ..........................................................................6

1.4 Main Screen..................................................................................................6

1.5 Status bar indicator....................................................................................7

1.6 Time and Date Setting................................................................................7

1.7 Text Inputting. .............................................................................................8

2. Function Operations............................................................................................9

2.1 Basic Settings..............................................................................................9

2.1.1 User Defined Home Screen.........................................................10

2.1.2 Setting Wallpaper..........................................................................10

2.1.3 Shortcut...........................................................................................10

2.1.4 Widget...............................................................................................10

2.2 General........................................................................................................11

2.2.1 Steering Wheel...............................................................................11

2.2.2 Screen Calibration.........................................................................12

2.2.3 Navigation application.................................................................13

2.2.4 Factory settings.............................................................................13

2.3 Navigation...................................................................................................14

2.3.1 Navigation Software Installation................................................14

2.4 Radio 6............................................................................................................1

2.4.1 Radio 6.................................................................................................1

2.4.2 RDS...................................................................................................17

2.5 Bluetooth Wireless Connection............................................................18

2.5.1 Startup bluetooth application.....................................................18

2.5.2 Bluetooth pairing...........................................................................19

2.5.3 Bluetooth Phone Book.................................................................19

2.5.4 Phone................................................................................................20

2.5.5 Call Record......................................................................................22

2.5.6 Bluetooth Music.............................................................................23

2.5.7 The whole Bluetooth hardware settingss...............................23

2.6 3G Application 4...........................................................................................2

2.6.1 Allow data roaming 4.......................................................................2

2.6.2 Set the access point information..............................................24

2.7 WLAN 0...........................................................................................................3

2.8 Multimedia 1..................................................................................................3

2.8.1 Equalizer 1..........................................................................................3

2.8.2 DVD Play..........................................................................................32

2.8.3 CD Play.............................................................................................34

2.8.4 IPod Play..........................................................................................34

2.8.5 Audio Play.......................................................................................35

2.8.6 Video Playing..................................................................................37

2.8.7Picture Browse................................................................................38

2.8.8 Digital TV 0..........................................................................................4

2.8.9 Analog TV......................................................................................40

2.9 AUX IN Function........................................................................................40

2.10 Rear View..................................................................................................40

2.11 E-mail.........................................................................................................41

2.11.1 Email Setting.................................................................................41

2.11.2 Sending E-mail.............................................................................43

2.11.3 E-mail input...................................................................................44

2.12 Message Functions................................................................................45

2.12.1 Compose New Mails...................................................................45

2.12.2 E-mails Reply...............................................................................46

2.13 Applications.............................................................................................46

2.13.1 Weather..........................................................................................46

2.13.2 Calculator......................................................................................47

2.13.3 Electronic reader.........................................................................48

3. Firmware Upgrading...........................................................................................48

3.1 Preparing for upgrade..............................................................................48

3.2 Update MCU................................................................................................48

3.3 Update system 49

..................................................................................

3.4 Update DVD.......................................................................................50

4. Trouble handle.....................................................................................................50

5. Specification..............................................................................................52

6. Remote control operation guide…………………………………………….54

1. Quick Review

Warning: Before using this device, please read the manual safety and

law information.

1.1 Turning On and Turning Off

Turning On When you plug in the car keys, open the car's ACC

power, the device will be automatically turned on,

displaying the boot animation LOGO.

Turning Off When you take off the key, turn off the car's ACC

power, the device will automatically be shut down.

1.2 Panel Function Button

Icon Button Function

PWR/VOL Power/

Volume

①When power off, short press this button, the

system is switched on

②In the boot state, press this button short, the

system becomes mute; long press this button, the

system is shutdown

③Turn this button clockwise, the volume is

increased

④Turn this button counterclockwise, the volume is

decreased

HOME Main

Interface

①Click to enter into main interface

②Long press for 3secs to show the running

function

MENU Main Menu

①In each function, for extended manipulation of

information, press the MENU key to pop up

②In main interface, press the MENU key for the

system to quickly set functions

BACK Back ①Click to get back to the last interface

②Long press for 3secs to quit the running function

NAVI Navigation Click to enter into GPS navigation interface

DVD DVD Play Click to enter into disk play interface

PHONE PHONE

①Click to enter into Bluetooth telephone interface

②Bluetooth dailing keyboard will pop up by long

pressing this button in other function interfaces.

Phone will be hung up by short press

RADIO RADIO Click to enter into radio interface for receiving

FM1/FM2/ AM radio

TUNE Compound ①In the audio and video playback interface, up /

down one player

②In the radio interface up / move down frequency

In/Out

Disc Button Disk in and out

SD SD Media Insert the appropriate memory card, multimedia file

Card slot system can read the card

USB USB Socket ①Connect other devices by USB socket.

②Connecting an external WIFI/3G dongle

RESET Reset

Button Click reset button to reset system and re-start.

MIC Microphone Receive voice from bluetooth telephone call.

Remark: All long press means press time at least lasting 3 seconds;

Please noted button and socket are different according to different car

types.

1.3 Tips for Using Touch Screen

When using the touch screen, you can use several ways to

perform corresponding operations on the device.

1.3.1 Clicking Function

You could select an application icon or option on the screen to

use clicking function. For example, click Bluetooth to enter into

bluetooth application.

1.3.2 Pressing Function

You could press the current user interface, icon, and inputting

column by pressing function. For example, press on the blank

area of the main interface, then comes a pop-up menu, you

could perform some function on the menu.

1.3.3 Dragging Function

Drag the touch screen or press the scroll bar for up and down

operation. For example, browse the contact list of the bluetooth

phones by dragging function.

1.3.4 Zooming Function

When browsing the web, click the screen twice, then you could

zoom in or out the page content. Or you could press the screen

with two fingers by control the sliding distance between the

fingers to zoom in or out the page content.

1.4 Main Screen

You can use the touch screen operation to use the various

functions of the device. This equipment has a total of five main

screens, and left or right sliding can be switched with each other. In

any interface, press the HOME physical buttons on the panel to

return to the main screen interface, display the application icon in

the main screen interface, and click any application icon to open

the program.

Note: You can add or remove programs in the main screen to customize

your unit.

Click the application icon and you can view all of the programs

preinstalled.

1.5 Status bar indicator

Icons on the left top of the screen are notifications for

messages and events; Icons on the right top of the screen are

device status indicator.

If there is new message, it will be displayed on the status bar,

slide your finger gently from the status bar, all prompts would

be displayed. Then you could click the message and view the

content.

Indicators

on the left Description Indicators

on the right Description

Network signal

strength Network signal

New Message USB connection

instructions

WIFI signal indicator Current Time indication

Tip: You can tap and hold the status indication bar to view the

current date.

Note: The device software is under upgrading, the status

indicator may be different with your device; please refer to

the actual device software.

1.6 Time and Date Setting

This device has the function to automatically calibrate the current

time when GPS is active. You could also manually set the date,

time zone and format.

Applications> Settings

> Date and Time

> Setting Date or Setting Time

Tip: You can set the time zone and time format according to

request.

1.7 Text Inputting

When editing text, you could use existing inputting method and

Android keyboard to edit English, numbers, and symbols etc., such

as editing message, searching key words etc.

Tip: The display format would be different according to different

status and keyboard of the entering. Please refer to the actual

status.

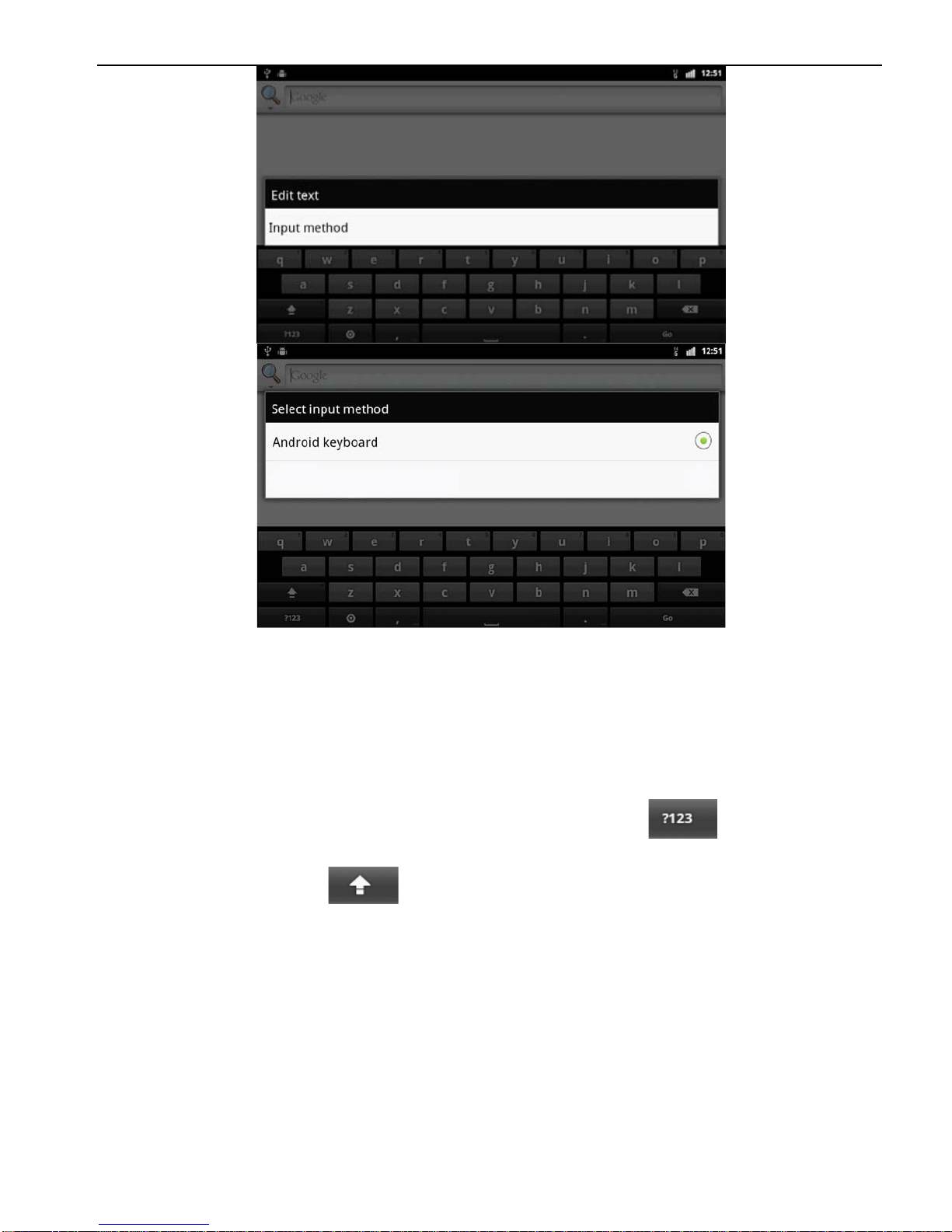

1.7.1 Switch on the Inputting Method

Open the text editing interface

Click in the editing area, then the editing menu would appear.

Click the input method, you can choose theAndroid keyboard or install

third-party input method.

1.7.2 Android Keyboard Input

Switch the input method into Android keyboard (see switch

input method)

Remark:

You can click the number sign key to switch to

numbers and symbols input mode.

Click to switch letter case.

2. Function Operations

2.1 Basic Settings

2.1.1 User Defined Home Screen

There are 5 main screens of this device, sliding left or right to

switch. In any interface, you just need to click the HOME to get

back to main screen.

Note: You could add shortcut, widget and file in the blank area

of the main screen on the condition that there is enough

room for placing.

2.1.2 Setting Wallpaper

Click the blank area of main screen> Wallpaper

> Wallpaper or Pictures Bank

Choose your preferred wallpaper and click to set as wallpaper.

2.1.3 Shortcut

Click the blank area of main screen> shortcut

> Choose Shortcut

Click the shortcut needed.

2.1.4 Widget

Click the blank area of main screen> Widget

> Choose widget

Click the widget needed.

Table des matières

Langues :

Manuels Système de navigation automobile populaires d'autres marques

Clarion

Clarion Navigation In-Car Entertainment Manuel utilisateur

Rosen

Rosen DP-1001 Manuel utilisateur

Alpine

Alpine INE-W970HD Manuel utilisateur

Skoda

Skoda AMUNDSEN+ Manuel utilisateur

Blaupunkt

Blaupunkt TravelPilot DX-N Manuel utilisateur

Pioneer

Pioneer MZ360500EX Manuel utilisateur

Sanyo

Sanyo NVM-4030 - Easy Street - Automotive GPS... Manuel utilisateur

Kenwood

Kenwood DNN991HD Manuel utilisateur

AvMap

AvMap Geosat 2C Manuel utilisateur

Eonon

Eonon GE01B Manuel utilisateur

Pioneer

Pioneer AVIC-Z920DAB Manuel utilisateur

Nextar

Nextar M3-MX - Automotive GPS Receiver Manuel utilisateur

Furrion

Furrion NV2200 Manuel utilisateur

Mio

Mio MOOV 200-Series Manuel utilisateur

Prestigio

Prestigio GeoVision 5150 Manuel utilisateur

Hummer

Hummer 2006 H3 Manuel utilisateur

Magellan

Magellan Maestro 4210 - Automotive GPS Receiver Guide de configuration

Garmin

Garmin StreetPilot c510 Manuel utilisateur
