RM Italy BLA600 Manuel

RM Italy BLA-600

Disassembly Procedure

With a TORX (TX10) screwdriver unscrew the right had

side screw underneath the warranty seal.

With a TORX (TX10) screwdriver, unscrew the left hand

screw near the AC input connector.

Pull out the panel to extract the voltage change system

with the corresponding cables.

With pliers, remove all the numbered cables from the

panel. Do not pull the cables to disconnect the

connector.

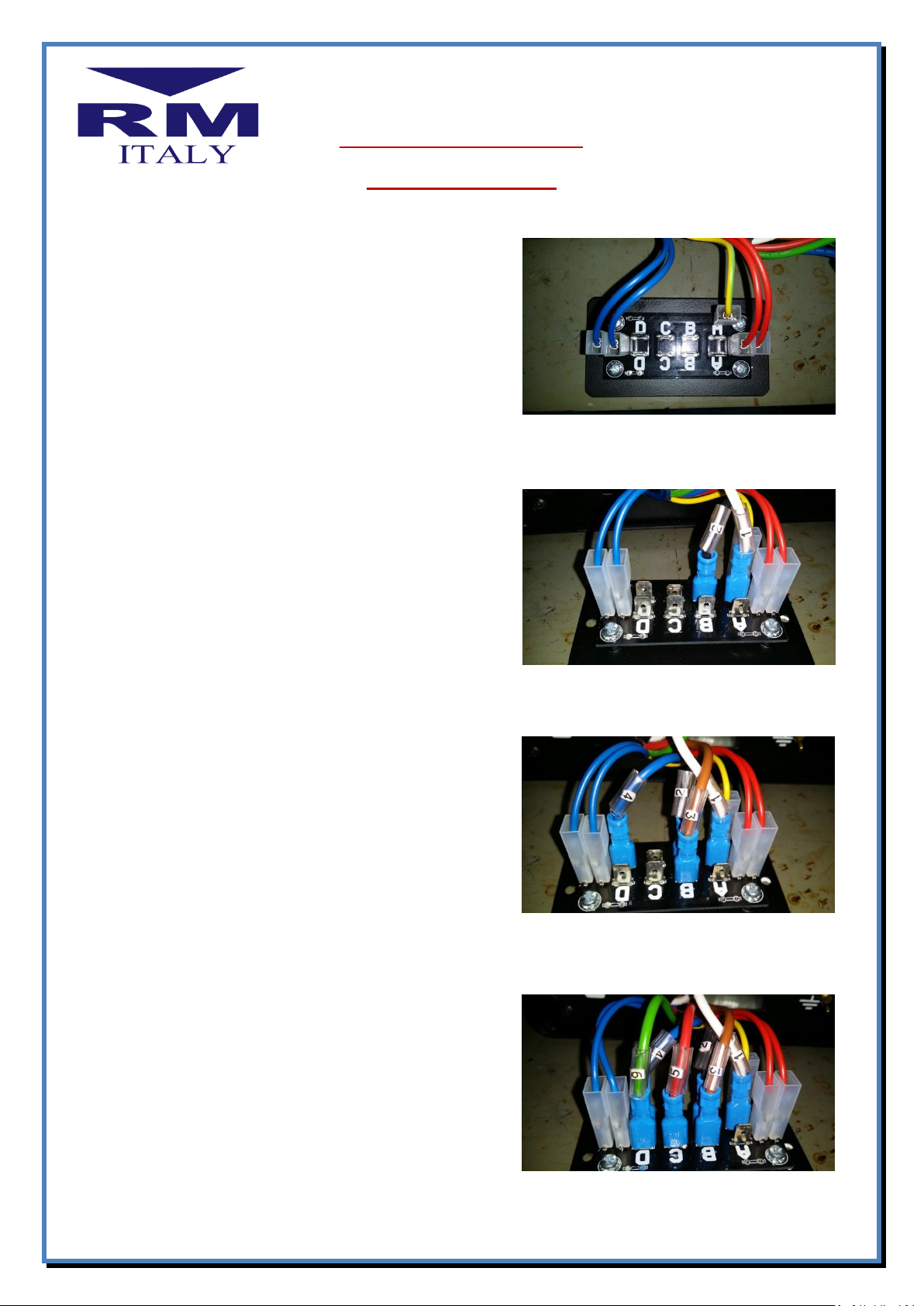

At this point you should find the panel as in the

picture. Now you are ready to set the AC input voltage

of the amplifier.

RM Italy BLA-600

115VAC Setup

At this point you should find the panel as in the photo.

Now you are ready to set the AC input voltage of the

amplifier.

Connect cable "1" to one of the spade lugs labelled "A"

Connect cable "2" to one of the spade lugs labelled "D"

Connect cable "3" to one of the spade lugs labelled "A"

Connect cable "4" to one of the spade lugs labelled "D"

Connect cable "5" to one of the spade lugs labelled "B"

Connect cable "6" to one of the spade lugs labelled "C"

RM Italy BLA-600

230VAC Setup

At this point you should find the panel as in the photo.

Now you are ready to set the AC input voltage of the

amplifier.

Connect cable "1" to one of the spade lugs labelled "A"

Connect cable "2" to one of the spade lugs labelled "B"

Connect cable "3" to one of the spade lugs labelled "B"

Connect cable "4" to one of the spade lugs labelled "D"

Connect cable "5" to one of the spade lugs labelled "C"

Connect cable "6" to one of the spade lugs labelled "D"

RM Italy BLA-600

240VAC Setup

At this point you should find the panel as in the photo.

Now you are ready to set the AC input voltage of the

amplifier.

Connect cable "1" to one of the spade lugs labelled "A"

Connect cable "2" to one of the spade lugs labelled "B"

Connect cable "3" to one of the spade lugs labelled "B"

Connect cable "4" to one of the spade lugs labelled "C"

Connect cable "5" to one of the spade lugs labelled "C"

Connect cable "6" to one of the spade lugs labelled "D"

RM Italy BLA-600

Supply Voltage and Fuse Information

Supply Voltage information:

Supply Voltage 50/60 Hz 1200VA max

120 Vac +/- 5%

230 Vac +6%, -10%

240 Vac +10%, -6%

When making a change to the input voltage, the input Fuse must also be changed:

AC Input Fuse 5 x 20 mm F LBC 250V (Fast Blow)

115 Vac Supply 10A

230 Vac Supply 6A

240 Vac Supply 5A

RM Italy BLA-600 Input Voltage Set Up and Voltage/Fuse Information

Courtesy of DX Engineering - 16 August 2018

DX Engineering - 1200 Southeast Ave. - Tallmadge, OH 44278 USA - Phone 800-777-0703
