INITIAL SETTING MANUAL

RKCRKC INSTRUMENT INC.

F.MFRANKLIN PTY LTD

PH. (07) 3391 4865

This is a manual for the initial setting of the REX-C100, -C400, -C410, -C700, & -C900. Do not

touch or adjust parts other than those covered in this manual. The instrument was manufactured

and delivered under close quality control by us. However, is some subject troubled or noted, your

kindly announce and advice to our business department, nearest business office also agent where

you bought is very much appreciated.

C O N T E N T S

Page

1. Initial set mode changing

1.1 Entering the initial set mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.2 Exiting the initial set mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2. Setting

2.1 Description of each parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.2 Each parameter setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

(1) Input type selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

(2) Engineering unit and cooling type selection . . . . . . . . . . . . . . . . . . . . . . . 6

(3) Selection of break alarm (HBA, LBA) etc. . . . . . . . . . . . . . . . . . . . . . . . . 7

(4) First alarm (ALM1) type selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

(5) Second alarm (ALM2) type selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

(6) Control output selection etc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

(7) Energize/de-energize alarm selection etc. . . . . . . . . . . . . . . . . . . . . . . . . . 12

(8) PV bias setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

(9) Differential gap setting of ON/OFF action . . . . . . . . . . . . . . . . . . . . . . . . 13

(10) Differential gap setting of first alarm (ALM1) . . . . . . . . . . . . . . . . . . . . . 13

(11) Differential gap setting of second alarm (ALM2) . . . . . . . . . . . . . . . . . . . 13

(12) High-limit setting for set-value (SV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

(13) Low-limit setting for set-value (SV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.3 Each parameter checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

-1-

1. I n i t i a l s e t m o d e c h a n g i n g

1.1 Entering the initial set mode

(1) Press the key to display the set data locking parameter

symbol on the measured-value (PV) display unit.

At this time, the least significant digit on the set-value (SV)

display unit lights brightly. The digit which lights brightly is

settable.

(2) Press the key to shift the digit which lights brightly up to

the hundreds digit. The digit which lights brightly shifts as

follows every time the key is pressed.

(3) Press the key to set “ ”. Pressing the key increments

numerals, and pressing the key decrements numerals.

:No initial set mode locked

(4) Hold both the (A) and (B) keys simultaneously

until appears.

Cautions

1. In order to enter the initial set mode, always set the data locking

to “ ”. Any setting other than “ ”

cannot enter the initial set mode.

2. If the controller is set to the initial set mode, all outputs are turned OFF.

3. An example of the REX-C900 is described here, but the same procedure applies to other

controllers (REX-C100, -C400, -C410, and -C700).

-2-

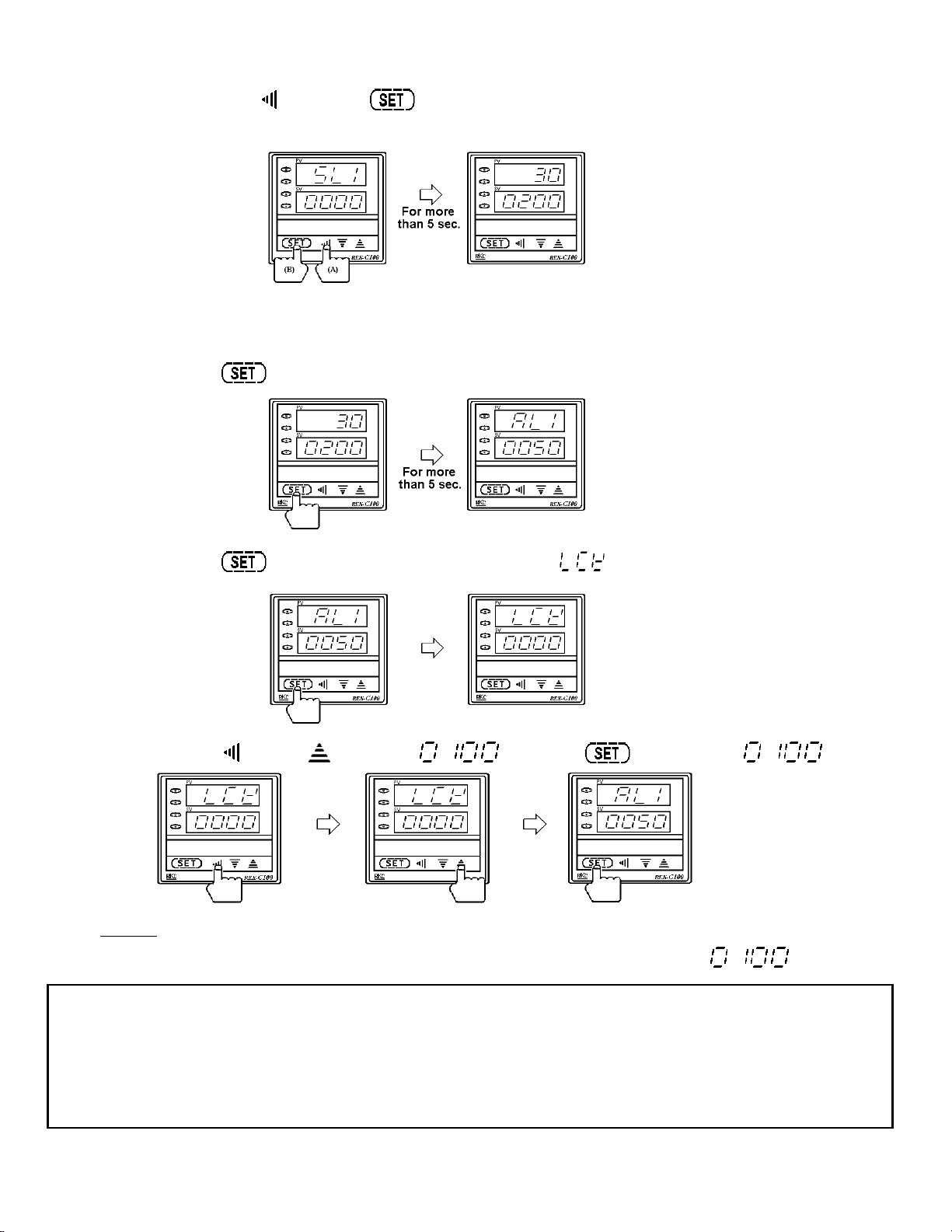

1.2 Exiting the initial set mode

(1) Exits from the initial set mode

Keep pressing both the key (A) and (B) keys simultaneously for more than 5 seconds can enter the

PV/SV display mode.

‰Even if the controller exits from the initial set mode at any point, the setting mode so far set becomes valid.

(2) Locks the initial set mode (Change the content of set data lock setting)

1. Press the key to enter the parameter setting mode.

2. Press the key by required number of times to show “ ” on the measured-value (PV) display

unit.

3. Press the key and keys to set “ ”. Press the key to register “ ”.

Caution

If the controller exits from the initial set mode, confirm that set data lock setting is set to “ ”.

< Each status when power failure occurs in the initial set mode >

•Setting prior to power failure is valid

•Instantaneous power failure (within 20 msec.) does not exert bad influence on the instrument.

•If long power failure occurs, the instrument exits from its initial set mode. After power recovery, the instrument

is set to the PV/SV display mode. The measured-value (PV) at this time shows that at the time of power

recovery, and the set-value (SV) is the same as that before power failure.

-3-

2. S e t t i n g

2.1 Description of each parameter

“” appears on the display, and every press of the key advances the parameter symbol as shown in

the following table. After one cycle, the display shows “ ”.

MEASURED-VALUE (PV)

DISPLAY UNIT SETTING DESCRIPTION

Input type selection

Engineering unit selection (EC, EF)

Heater break alarm (HBA) selection

Control loop break alarm (LBA) selection

Special specification [Z-132] selection

Selection of control loop break alarm output terminals

First alarm (ALM1) type selection

First alarm (ALM1) hold action selection

Second alarm (ALM2) type selection

Second alarm (ALM2) hold action selection

Direct / reverse action selection

Control action type selection

Control output type selection (Heating / cooling side)

Energize / de-energize alarm selection

Special specification [Z-124] selection

“” cannot be set.

PV bias setting

Differential gap setting of ON / OFF action

Differential gap setting of first alarm (ALM1)

‰No display appears when no first alarm (ALM1)

function is provided.

Differential gap setting of second alarm (ALM2)

‰No display appears when no second alarm (ALM2)

function is provided.

High-limit setting for set-value (SV)

Low-limit setting for set-value (SV)

-4-

2.2 Each parameter setting

uMethod of setting

(2) Press the key to display the input type selection parameter

symbol ( ) on the measured-value (PV) display unit.

At this time, the least significant digit on the set-value (SV)

display unit lights brightly. The digit which lights brightly is

settable.

(3) Press the key to shift the digit which lights brightly up to

the tens digit. The digit which lights brightly shifts as follows

every time the key is pressed.

(4) Press the key to set “ ”. Pressing the key increments

numerals, and pressing the key decrements numerals.

:Thermocouple type L

(5) After finishing the setting, press the key to

Cautions

1. If no key operation is performed for more than 60 sec. during setting or when any

parameter other than

“” is displayed, the display returns to “ ”.

2. An example of the REX-C900 is described here, but the same procedure applies to other controllers

(REX-C100, -C400, -C410, and -C700).

-5-

(1) Input type selection ( )

Set-value (SV) display unit

VALUE INPUT TYPE HARDWARE

TC R

W5Re / W26Re

PLII

Pt100 S(JIS / IEC)

RTD J Pt100 S(JIS) c

0 to 5 V DC

Voltage 1 to 5 V DC d

0 to 20 mA DC

Current 4 to 20 mA DC e

Cautions

1. Conduct setting so as to meet the instrument specification (input type).

Setting change between different symbols may cause malfunction, but the setting can be changed when

hardware types have the same symbol. However, when the setting is changed, always reset “ ” and

“”. (See page 14).

2. “” setting displays are only “ ”and “ ”.

-6-

(2) Engineering unit and cooling type selection ( )

Set-value (SV) display unit

VALUE DESCRIPTION

ECEngineering unit

EFselection

Air-cooling (Type A) ‰1 Cooling type

Water-cooling (Type W) ‰2 selection

Fixed

‰1 Type A : Heating / cooling PID action (Air-cooling)

‰2 Type W : Heating / cooling PID action (Water-cooling)

Cautions

1. For the voltage and current input types, the engineering unit setting of EC or EF is ignored.

2. When control action is of the type D (PID action [direct action] or type F (PID action [reverse action] ), “Cooling

type selection” setting is ignored.

3. Do not set the upper 2 digits to numeric values other than “ ” since they are not used.

4. “” setting displays are only “ ”and “ ”.

-7-

(3) Selection of break alarm (HBA, LBA) etc. ( )

Set-value (SV) display unit

VALUE DESCRIPTION

Without HBA function Heater break alarm (HBA)

With HBA function selection

Without LBA function Control loop break alarm

With LBA function (LBA) selection

Without Z-132 specification Special specification

With Z-132 specification ‰[Z-132] selection

First alarm side Selection of control loop

Second alarm side break alarm output terminals

‰Z-132 specification : Heater break alarm output is delayed.

Cautions

1. “With HBA function” setting is ignored for the following instruments :

CInstrument with deviation or process alarm as the second alarm (ALM2)

CInstrument with control loop break alarm (LBA)

CInstrument whose control output is the current output type

2. “With LBA function” setting is ignored for the following instruments :

CInstrument with deviation or process alarm as the first alarm (ALM1) and second alarm (ALM2)

CInstrument with heater break alarm (HBA)

CInstrument whose control action is type W (Heating / cooling PID action [Water-cooling] ) or type A

(Heating / cooling PID action [Air-cooling] ).

3. For the instrument without heater break alarm (HBA), “With Z-132 specification” setting is ignored.

4. “” setting displays are only “ ”and “ ”.

-8-

(4) First-alarm (ALM1) type selection ( )

Set-value (SV) display unit

VALUE DESCRIPTION

No first alarm

High alarm

Low alarm Deviation First alarm (ALM1)

High / Low alarm alarm type selection

Band alarm (See page 10)

High alarm Process

Low alarm alarm

Without alarm hold action First alarm (ALM1)

With alarm hold action hold action selection

Cautions

1. The following instrument is set to “ ”.

CInstrument without the first alarm (ALM1).

CInstrument which outputs control loop break alarm (LBA) from the first alarm side. [

setting details : For “ ” ]

2. “” setting displays are only “ ”and “ ”.
