RJE AquaGuard Manuel utilisateur

QUICK REFERENCE GUIDE

The following is a “quick reference” guide to operating your AquaGuard Pool Alarm System. Refer

to OPERATING THE AQUAGUARD SYSTEM on page 10 of this manual for detailed instructions to

operate, monitor and maintain the system.

Function At Detector Unit At Remote Unit

To turn the system on Enter your access code on the keypad.

•The Detector Unit sounds 10 short

beeps, followed by one long beep,

indicating the system is “armed.”

The red LED begins flashing.

•Not applicable

To place the system in “SWIM” mode Enter your access code on the keypad.

•The red LED on the Detector Unit

turns off. This indicates the system

is not armed.

Press the OK button three times.

•The green LED stops blinking; the

red LED blinks slowly.

To place the system in “ARMED”

mode

Press the OK button on the keypad two

times.

•The Detector Unit sounds 10 short

beeps, followed by one long beep,

indicating the system is “armed.”

The red LED begins flashing.

Press the OK button two times,

•The red LED stops blinking; the

green LED blinks slowly.

To place the system in “SERVICE”

mode (to allow for pool maintenance)

Enter __________ on the keypad.

•The system is deactivated for 30

minutes.

Not applicable

To cancel an active alarm Press any key on the keypad. Press the OK button once.

To turn the system off for an

extended period

Enter your access code followed by *99

on the keypad.

Not applicable.

OWNER’S MANUAL

Revision A

RJE Technologies, Inc.

15375 Barranca Parkway, Suite B-107, Irvine, CA 92618

Ph: (877) 467-6627 • Fax: (949) 727-0070

www.aquaguardpoolalarm.com

AquaGuard Owner’s Guide RJE Technologies, Inc.

TABLE OF CONTENTS

INTRODUCTION ......................................................................................................... 1

About This Manual.................................................................................................. 1

Contacting RJE Technologies................................................................................. 1

SAFETY PRECAUTIONS ........................................................................................... 1

General Swimming Pool Safety Guidelines ............................................................ 2

ABOUT THE AQUAGUARD POOL ALARM SYSTEM .............................................. 2

System Components .............................................................................................. 3

Controls and Indicators ........................................................................................... 3

Swimming Pool Alarm Operation ............................................................................ 4

ASSEMBLING THE AQUAGUARD SYSTEM ............................................................ 4

Installing the Batteries ............................................................................................ 4

Assembling the Detector Base Unit and Sensor Tube ............................................ 5

INSTALLING THE AQUAGUARD SYSTEM............................................................... 5

Installation Considerations...................................................................................... 5

Tools Required ....................................................................................................... 6

Installation............................................................................................................... 6

Installing Two Detector Units ................................................................................ 10

OPERATING THE AQUAGUARD SYSTEM............................................................. 10

Setting System Parameters .................................................................................. 10

Operating the System ........................................................................................... 11

Managing the System ........................................................................................... 12

MAINTAINING THE AQUAGUARD SYSTEM .......................................................... 13

Replacing the Batteries......................................................................................... 14

Testing the System ............................................................................................... 15

Special Considerations During Winter .................................................................. 15

The Anti-Theft System .......................................................................................... 15

TERMS AND CONDITIONS OF WARRANTY .......................................................... 17

FCC REGULATIONS

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference with

radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

•Reorient or relocate the antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This

device may not cause harmful interference, and (2) This device must accept any interference received,

including interference that may cause undesired operation.

Per FCC Part 15.21, any changes or modification not expressly approved by RJE Technologies, Inc. could

void the user's authority to operate the equipment.

The minimum separation distance between the antenna and any part of human bodies should be 2.5 cm.

RJE Technologies, Inc. AquaGuard Owner’s Guide

TERMS AND CONDITIONS OF WARRANTY

The AquaGuard™ Pool Alarm System manufactured by RJE Technologies, Inc. is warranted to be free from defects

in workmanship and materials under normal use and service when correctly installed (by an AquaGuard™ Certified

Technician), used and maintained. This limited warranty is subject to the following conditions and qualifications.

Duration of the Warranty:

Aqua-Guard™ products are warranted for a period

of two (2) years from the original date of installation,

which must be performed by an Aqua-Guard™

Certified Technician. RJE Technologies shall, at its

option, repair or replace defective products free of

charge within the two-year period. Warranty

replacements or repairs will not extend the two-year

period.

Scope of Warranty:

This limited warranty is effective on Aqua-Guard™

products only. It does not cover any product,

component, part or accessory, which Aqua-Guard™

determines to have become defective through abuse

or neglect. In addition, the limited warranty will be

voided if the equipment has been modified, altered,

or contains components, parts, or other accessory

products that are not part of the Aqua-Guard™

product line.

RJE Technologies shall not be responsible to

customers or any third party for loss, damage, or

injury caused by, resulting from, or in any way

attributable to the use or operation of Aqua-Guard™

products or any special, indirect, incidental or

consequential damages arising from the use of

SonarGuard products.

Purchaser’s sole remedy for any Aqua-Guard™

product found to be defective will be to have it

repaired or replaced by an Aqua-Guard technician.

Please contact the Aqua-Guard™ Customer Service

Department for instructions or assistance.

Exclusions (That is not covered):

The above warranties do not apply to:

•Conditions resulting from a defect in a

component part which is not part of Aqua-

Guard™.

•Conditions resulting from failure to provide

reasonable and necessary maintenance in

accordance with Aqua-Guard™ Owner’s Manual.

•Conditions resulting from misuse, abuse,

negligence, accident or alteration.

•Normal discoloration, fading and minor

deterioration of exterior surfaces resulting from

exposure to the elements, except conditions that

do or will affect performance.

•Conditions resulting from improper pool

maintenance, water level, and pool equipment

usage.

•Items consumed through use.

Warranty Disclaimers and Additional

Information:

The warranty set forth above is in lieu of, and RJE

Technologies hereby disclaims and excludes, all

other warranties, express or implied, including

without limitation, any warranty of merchantability or

fitness for a particular use. RJE Technologies is not

liable for, and purchaser waives any right of action if

has or may have against RJE Technologies for any

consequential or special damages arising out of any

breach of warranty, and for any damages purchaser

may claim for damages to any property or injury or

death to any person arising out of it’s purchase of

the use, operation or maintenance of the product.

RJE Technologies will not be liable for any damage

done by unauthorized repair work, unauthorized

replacement parts, from any misapplication of them,

or from damage due to accident, abuse, rodents,

weather, conditions creating improper pool use of

maintenance, or acts of god.

RJE Technologies will not be responsible for

damages or events from overheating, incorrect wire

runs, improper electrical supply, or by running the

filtration pump outside the published minimum and

maximum specifications. In no event shall RJE

Technologies by liable for loss damage, or expense

directly or indirectly arising from the use of the

Aqua-Guard™, or from any other cause, except as

expressly stated in this warranty.

AquaGuard Owner’s Guide RJE Technologies, Inc.

RJE Technologies, Inc. AquaGuard Owner’s Guide

INTRODUCTION

Thank you for choosing the AquaGuard Pool Alarm System. You have taken an important step in

creating a safer environment for your children. RJE Technologies, the maker of AquaGuard, has

over 20 years experience providing sonar equipment to the military. We have brought our vast

experience into the swimming pool market with the AquaGuard Pool Alarm System.

About This Manual

This manual will help you install and operate your AquaGuard Pool Alarm System properly. Read

this manual carefully and completely before installing and operating your AquaGuard system.

The AquaGuard Pool Alarm System is a powerful safety addition to your swimming pool or spa.

However, the system can help protect your family only when it is used properly, and in conjunction

with other safety devices and precautions, including:

•Door and gate alarms

•Security fences

•Pool covers

•Safety training

Contacting RJE Technologies

Please feel free to write or call us with your comments or questions at the address below. We have

a trained staff available between 8:00 AM and 5:00 PM (Pacific Time), Monday through Friday.

RJE TECHNOLOGIES

15375 Barranca Parkway, Suite B-107

Irvine, CA 92618

(877) 467-6627

www.poolalarm.com

SAFETY PRECAUTIONS

Important! The AquaGuard system is a pool alarm; not a life-saving device. It should be used

along with other safety equipment and precautions. It is intended to provide an additional level of

security to your pool and/or spa.

This device is not intended to replace any other safety consideration; that is, adult supervision,

lifeguards, fences, gates, pool covers, locks, and so forth, and some devices may not detect

gradual entry.

Always observe the following safety guidelines:

•DO NOT allow children to operate the AquaGuard system without adult supervision.

•This system is a protection device that sounds an alarm to indicate a potential

EMERGENCY situation. When the alarm sounds, PROMPT ACTION by a responsible adult

is essential to preventing serious injury or death.

•Be sure a RESPONSIBLE ADULT is present to observe swimming activities whenever the

AquaGuard system is turned off.

AquaGuard Owner’s Guide RJE Technologies, Inc.

General Swimming Pool Safety Guidelines

•NEVER leave children unattended in or around the swimming pool or spa. Children under

five years of age are at GREATEST RISK for injury or death in pool-related accidents.

•DO NOT assume that swimming pool safety devices replace the need for adult supervision.

ALWAYS have a responsible adult present to ensure safety. Give extra attention when

several people are swimming at the same time.

•Teach your children to swim at an EARLY age.

•Instruct ALL pool and spa users in the location and proper operation of safety features. BE

SURE that pool maintenance personnel understand and can properly operate the

AquaGuard system.

•Keep RESCUE EQUIPMENT (such as a rubber life preserver and/or rescue pole)

within easy reach.

•Keep a TELEPHONE close to the pool so it can be easily accessed in case of an

emergency.

•Learn CPR (cardiopulmonary resuscitation) and other life-saving techniques.

•Keep the pool area CLEAR of toys and other obstructions. Keep the water CLEAN and

uncontaminated.

•Keep security gates CLOSED when the pool is unattended.

IF AN ACCIDENT OCCURS

•Get the person out of the pool as QUICKLY as possible.

•IMMEDIATELY call for help, and follow the advice given.

•Administer CPR (cardiopulmonary resuscitation) as directed or a necessary.

•Remove wet clothes and replace with warm covers.

ABOUT THE AQUAGUARD POOL ALARM SYSTEM

The AquaGuard Pool Alarm System is designed to detect a child, pet or object of a minimum size

falling into a pool or spa. The system monitors the movement of water caused by a fall into the pool

or spa by detecting changes in water pressure. When a change in water pressure is great enough

to indicate a fall may have occurred, a siren sounds at the Detector Unit (by the pool or spa) and at

the Remote Unit (inside the house).

AquaGuard technology has been extensively tested to the most rigorous standard in the world for

pool alarms (AFNOR) as well as the U.S. ASTM standard. What does all this mean? It means,

finally, there is a consumer-installed pool alarm system that provides excellent performance

features combined with high immunity to wind, rain and other water surface disruptions.

RJE Technologies, Inc. AquaGuard Owner’s Guide

•Hold the Remote Unit near the Detector Unit. Press the Remote Unit OK button 10 times,

then pause; the Remote Unit will beep once. Press the Remote Unit OK button two times;

the Remote Unit will beep twice to confirm the radio link between the Detector Unit and the

Remote Unit is established.

If the Remote Unit sounds one low beep, it indicates the radio link is not established. Make

sure you have enabled the radio link at the Detector Unit, move the Remote Unit closer to

the Detector Unit, and repeat the procedure.

Testing the System

It is strongly recommended that a System Test be performed periodically, using the procedure

described in Installation , STEP 5 on page 8.

Special Considerations During Winter

The AquaGuard system will not operate if the water in your pool becomes frozen. Additionally,

allowing water to freeze in the Sensor Tube can damage the system’s sensing mechanism.

If your pool is located in an area in which freezing normally occurs, and you do not intend to

maintain your pool in a heated state throughout the winter season, you should remove the Detector

Unit before freezing occurs. Store the unit indoors, under cover, and re-install when the water has

thawed.

Be sure to remove the batteries from the Detector Unit when placing the unit in storage for a

prolonged period. Corrosion may occur if the batteries are left in the unit during storage.

The Anti-Theft System

When the AquaGuard Detector Unit is installed and initialized, its internal “anti-theft” system is

enabled. Any attempt to dismantle or remove the Detector Unit without first turning the system off

will cause the alarm siren to sound. To turn off the “anti-theft” alarm, enter 1234*99 on the Detector

Unit keypad.

Be sure to turn the system “off” before removing the Detector Unit for maintenance or storage by

entering 1234*99 on the Detector Unit keypad.

AquaGuard Owner’s Guide RJE Technologies, Inc.

•Sensor Tube Check: Check the sensor tube monthly to ensure it is secure and damage-

free (no cracks, breaks, deformation, etc.). Make sure the bottom of the sensor tube is 5 - 6

inches (13 – 15 cm) below the surface of the water. Add water to the pool, or install a

Sensor Tube Extension (see System Components on page 3 for more information) if

needed.

•System Test: Perform a monthly System Test to ensure the system can detect a body of

weight falling into the pool (see Testing the System on page 15 for details).

•Storage During Winter: If the water in your pool normally freezes during the winter months,

the Detector Unit must be removed for storage before freezing occurs (see Special

Considerations During Winter on page 15 for more information).

Replacing the Batteries

Replace the Detector Unit or Remote Unit batteries whenever a low battery is indicated (see

Managing the System on page 12 for a description of the low battery indication).

Be sure to turn the system off whenever replacing the Detector Unit batteries. If the unit is

not turned off, the unit’s Anti-Theft System will sound the alarm (see The Anti-Theft System

on page 15 for more information).

Detector Unit:

1. Press 1234*99 on the Detector Unit keypad to turn the system “off.”

2. Remove the two screws at the rear of the Detector Unit. Lift up slightly at the rear of the

Detector Unit housing, and slide the unit forward off of the base plate.

3. Remove the old batteries from the battery compartment. Install four “D” size batteries in the

battery compartment.

4. Place the Detector Unit housing over the base plate. Lift up slightly on the rear of the

housing. Slide the tab on the front of the base plate into the slot in the nose of the Detector

Unit housing; then lower the housing onto the base plate.

5. Re-install the two screws at the rear of the Detector Unit.

6. The system will now start the arming sequence. The Detector Unit will emit 10 short beeps,

followed by one long beep, indicating that the system is armed. The rear LED will begin

flashing.

Remote Unit:

1. Remove the four screws on the back of the Remote Unit, and remove the back cover.

2. Remove the old battery from the battery clip.

3. Install a new 9-volt battery in the battery compartment by snapping the battery clip onto the

battery posts.

4. Place the back cover onto the Remote Unit, and re-install the four screws.

Re-establish the radio link:

Whenever the batteries are replaced in either the Detector Unit or the Remote Unit, you must re-

establish the radio link.

•Press 1234*7001 on the Detector Unit keypad to enable the radio link.

RJE Technologies, Inc. AquaGuard Owner’s Guide

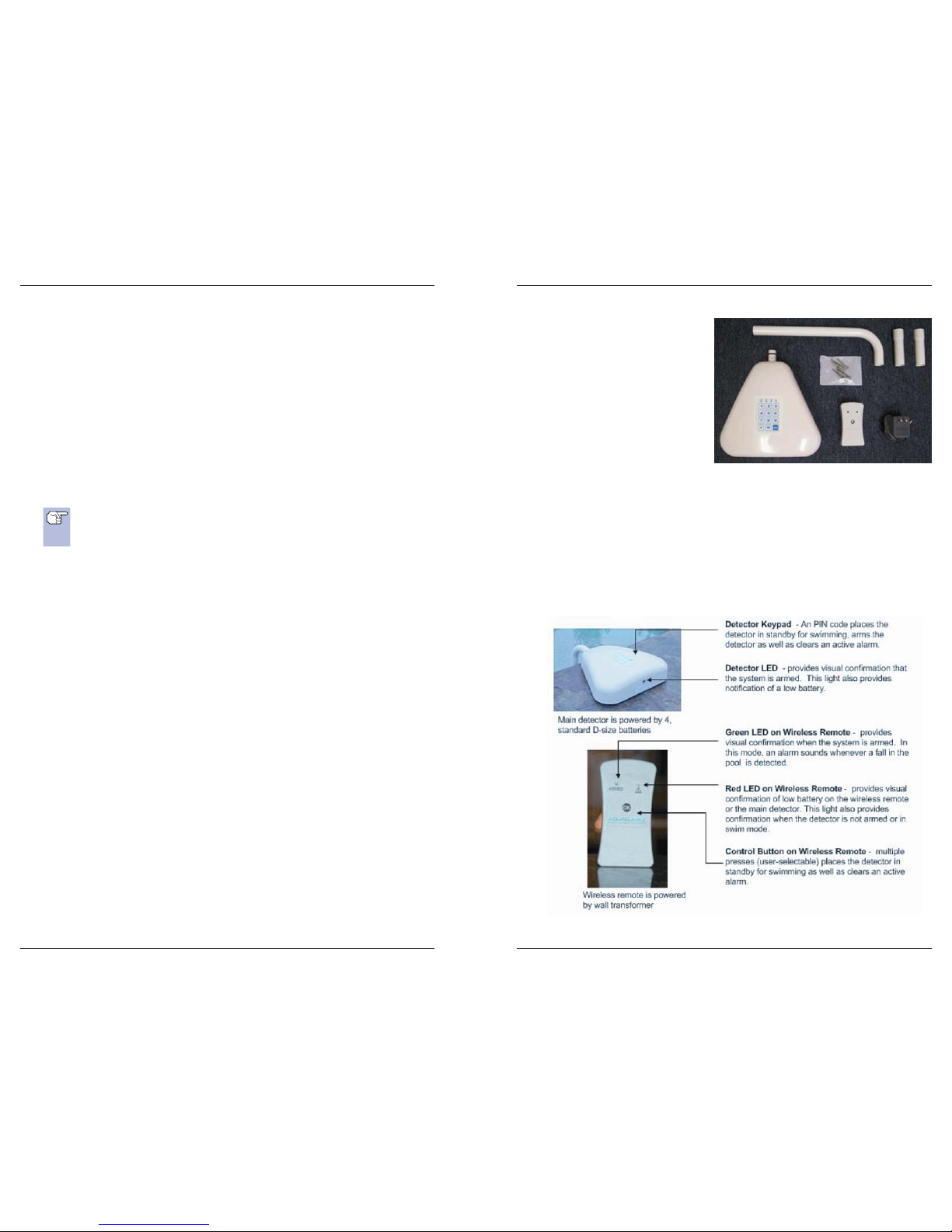

System Components

Your AquaGuard Pool Alarm System is

shipped with the following components:

•Detector Unit (1)

•Remote Unit (1)

•AC Adapter (1)

•Sensor Tube (1)

•Sensor Tube Extensions (2)

•Installation Kit (1)

•Owner’s Manual (not shown)

You will also need the following items NOT SUPPLIED with the system:

•“D” cell batteries (4) to power the Detector Unit

•9-volt battery (1) to power the Remote Unit when not connected to an AC source

Controls and Indicators

Each AquaGuard Pool Alarm System includes a main Detector Unit and a wireless Remote Unit

with transformer. The system can be operated from either unit using the controls and indicators

described below.

AquaGuard Owner’s Guide RJE Technologies, Inc.

Swimming Pool Alarm Operation

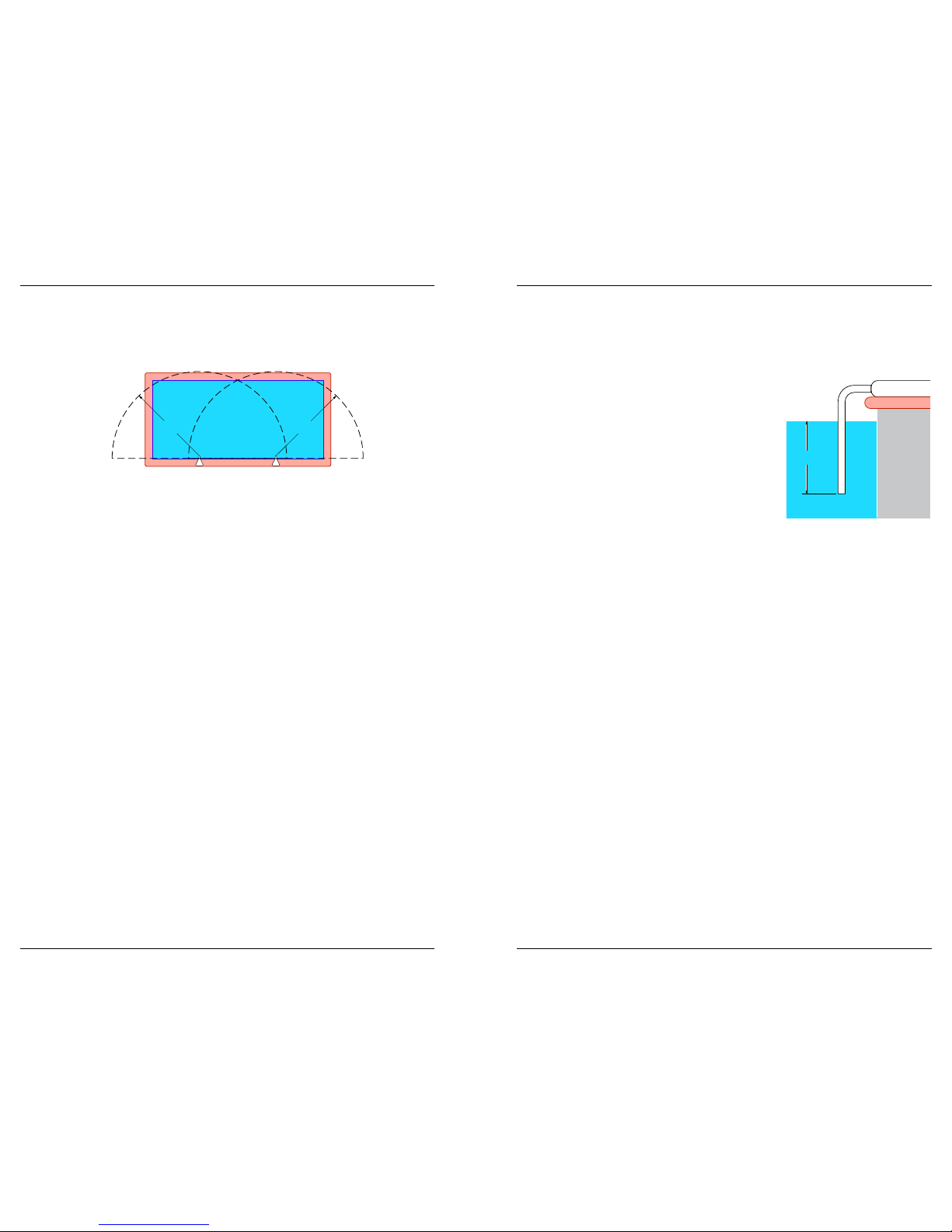

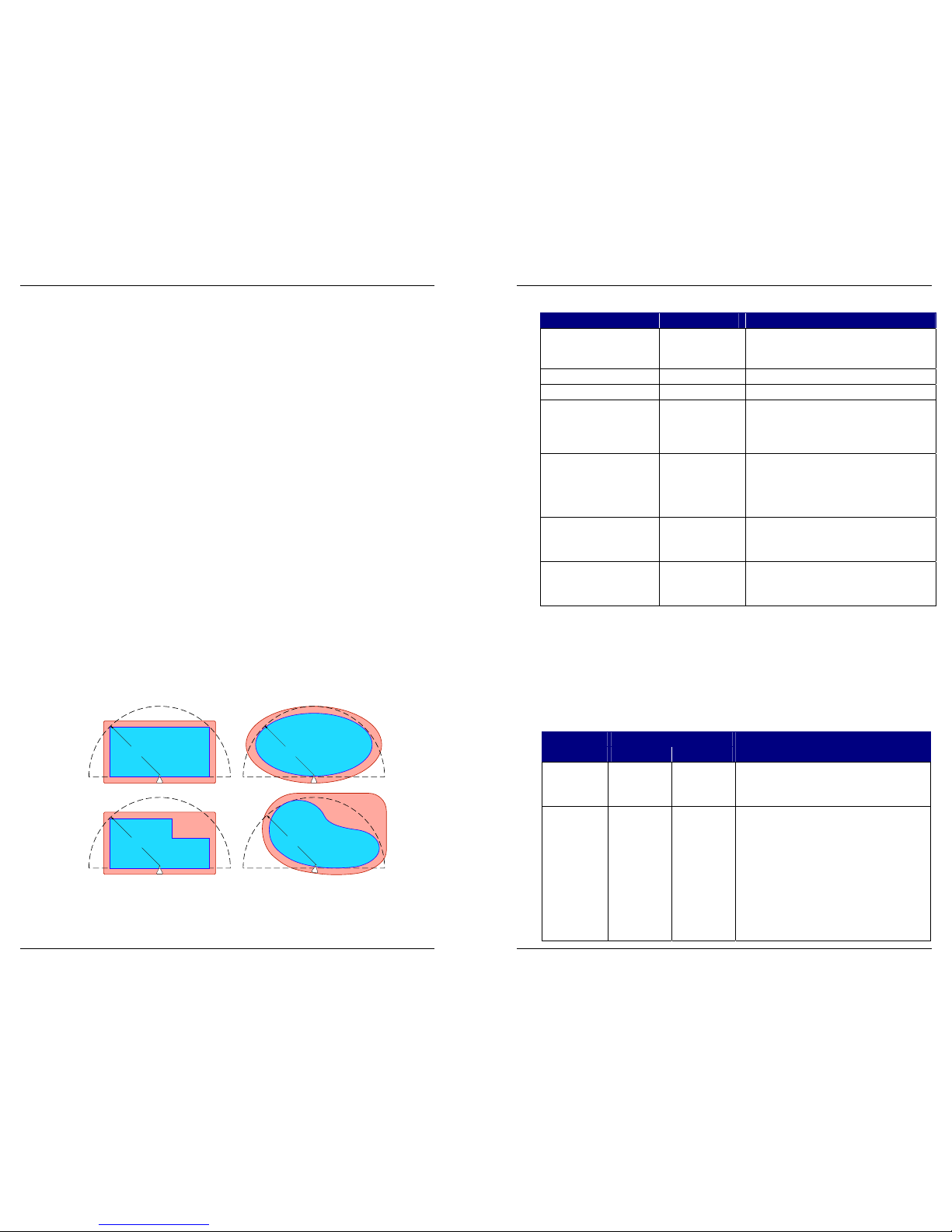

One AquaGuard Pool Alarm System will cover a typical 16 X 32 foot (4.9 X 9.8 meter) rectangular

or kidney-shaped swimming pool. If the pool is larger, or irregularly shaped, two systems will be

needed (consult your AquaGuard dealer or call us directly with questions). When using two

systems, two Detector units can be operated by one wireless Remote Unit. A spa will require a

separate system.

The AquaGuard Pool Alarm System is operated using the keypad on the Detector Unit, or the OK

button on the Remote Unit. An audible "beep" sounds when you press a key on the Detector Unit

keypad:

•Short "beep" for valid entry

•Long "beep" when an error is detected

The AquaGuard Pool Alarm System provides ease of use and intuitive "messaging" that lets you

know the status of the system. When you wan to use the pool, you simply enter your access code

at the Detector Unit's keypad (or from the Remote Unit) putting the system in "swim standby"

mode. A short while after everyone has left the pool, the system will automatically re-arm. We felt

that it is important for you to know the status of the system (whether it is "armed" or on "swim

standby" mode) or when a low battery condition was present. For this purpose, the Detector Unit

has a large red LED visible of the rear of the unit that shows system status (the Remote Unit does

the same). Whenever the system "re-arms", an audible "beep" sounds at the Detector Unit and the

Remote Unit.

ASSEMBLING THE AQUAGUARD SYSTEM

Installing the Batteries

It is recommended that you use “long life” Alkaline batteries in both the Detector Unit and the

Remote Unit.

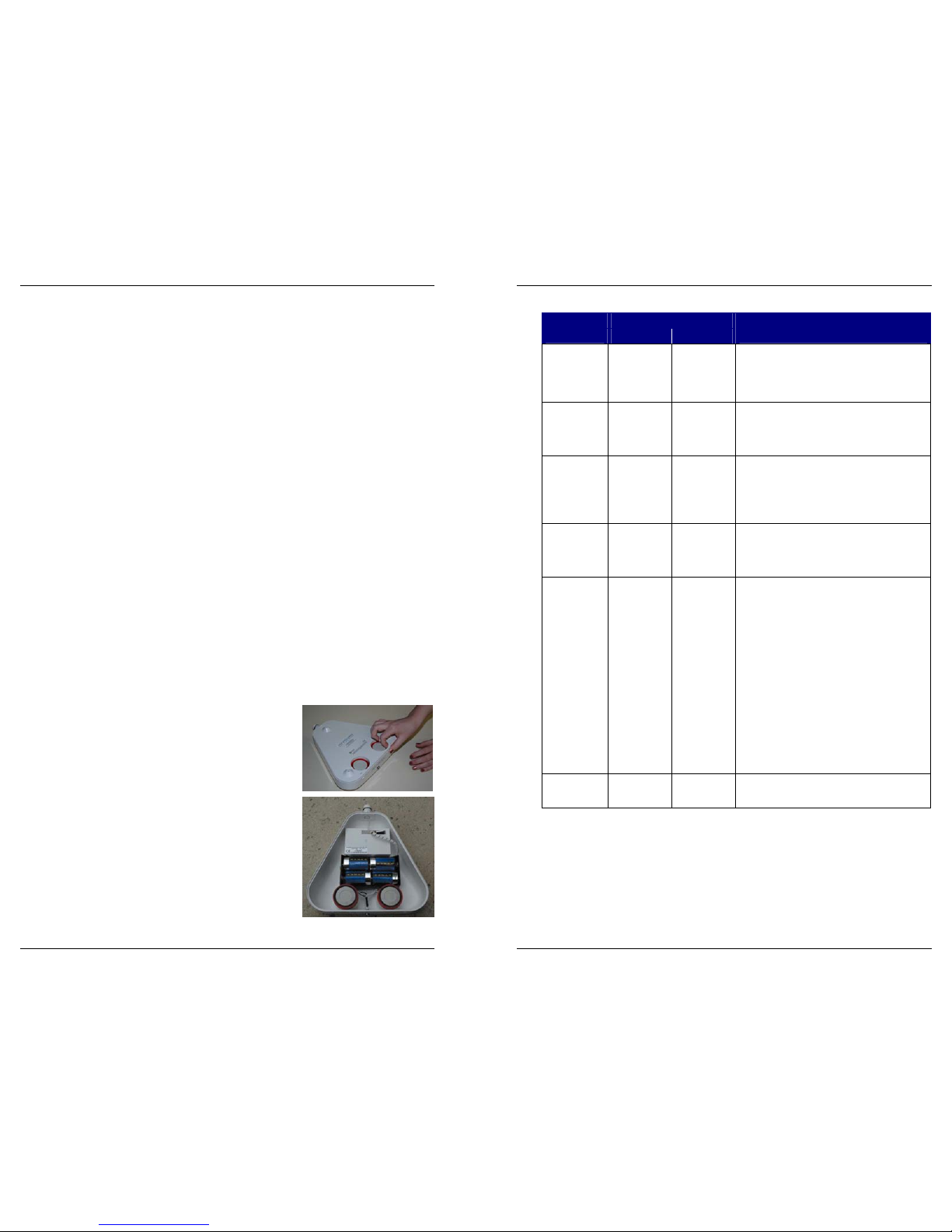

Detector Unit:

1. Remove the two screws at the rear of the Detector Unit.

2. Turn the unit upside down. Lift up slightly on the base

plate (see photo). Slide the base plate toward the back

of the unit, and remove the base plate from Detector

Unit housing.

3. Install four “D” size batteries in the battery compartment.

4. Slide the tab on the front of the base plate into the slot in

the nose of the Detector Unit housing; then lower the

base plate into place.

5. Reinstall the two screws at the rear of the Detector Unit.

6. The system will now start the arming sequence. The

Detector Unit will emit 10 short beeps, followed by one

long beep, indicating that the system is armed. The rear

LED will begin flashing.

RJE Technologies, Inc. AquaGuard Owner’s Guide

Alert and Fault Signal Indications

Indication

Condition Detector Unit Remote Unit Response

Fall or activity in

the pool while

system is in

“ARMED” mode.

Siren sounds. Siren sounds. •Press any key on the Detector Unit keypad;

Press the OK key on the Remote Unit once.

•Immediately determine whether an accident has occurred,

and provide aid as necessary.

Anti-Theft alarm

activated (Detector

Unit opened

without turning unit

off)

Siren sounds. Siren sounds. •Enter your access code on the Detector Unit keypad.

NOTE: The Anti-Theft alarm can be cancelled only at the

Detector Unit.

Low battery in

Detector Unit

Red LED blinks

rapidly, and

audible beeps

sound

Red LED shows a

steady series of

single flashes

(one per second)

+ audible beeps

•Press the OK key on the Detector Unit keypad to cancel

the audible beeps (BATTERY indicator will continue

flashing until batteries are replaced).

•Replace Detector Unit batteries as soon as possible to

avoid an interruption in protection (see Replacing the

Batteries on page 14 for details).

Low battery in

Remote Unit

NONE RED LED shows

a steady series of

flashes (two per

second) + audible

beeps

•Replace Remote Unit batteries as soon as possible (see

Replacing the Batteries on page 14 for details) or connect

Remote Unit to AC power source.

Detector fault or

“rough” condition

in pool (accurate

detection cannot

be assured due to

disturbance in

water)

Red LED off Green LED off;

red LED blinks

slowly

•Check to see if water is agitated due to recent swimming

activity or by environmental “noise” (wind, rain, etc.). If so,

allow 6 to 12 minutes for water to settle and unit to “arm.”

NOTE: In case of “rough” condition, it may be necessary to

temporarily disable the system to prevent a “false” alarm. Be

sure to monitor activity around the pool whenever the alarm

is disabled. Be sure to re-activate the alarm when the “rough”

condition is no longer present.

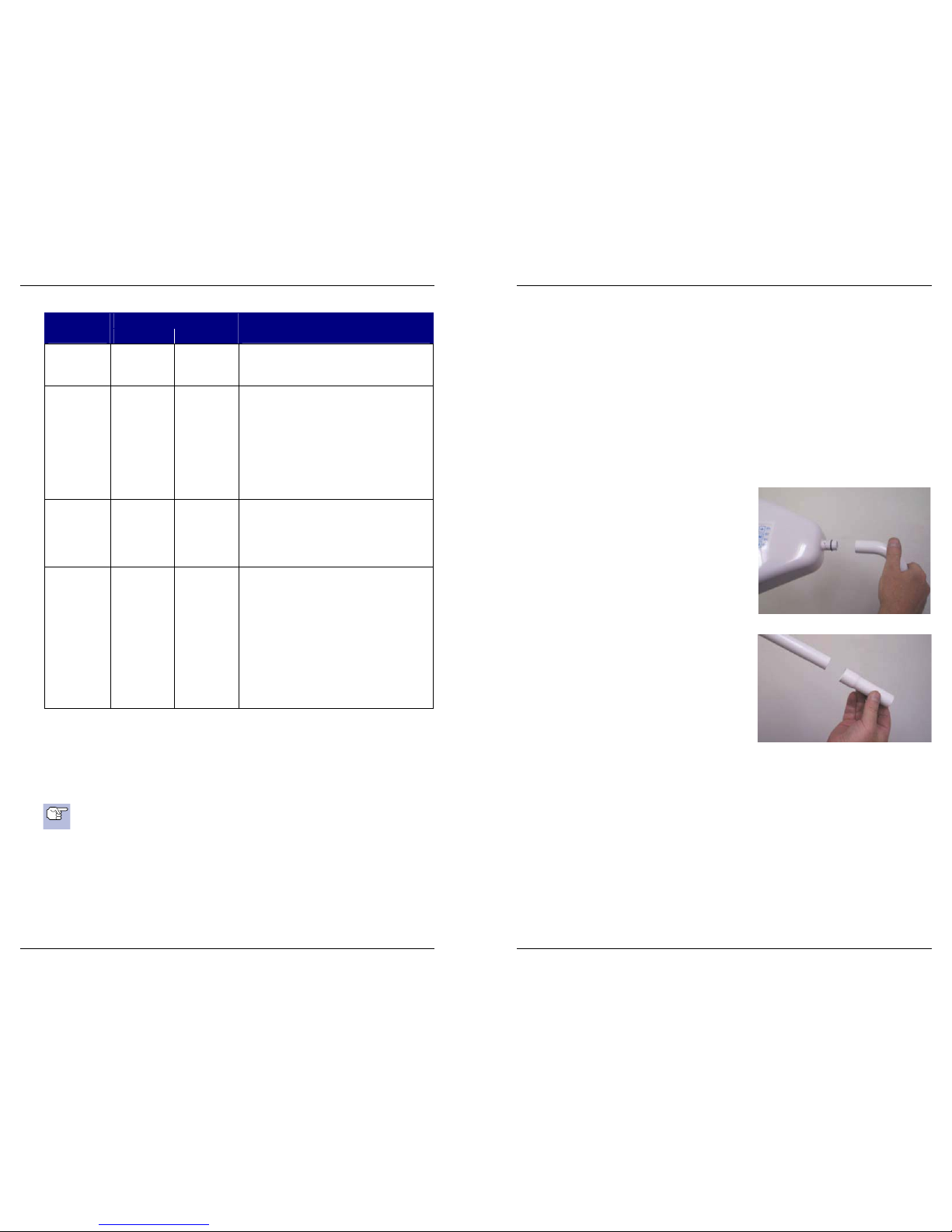

•Make sure the end of the Sensor Tube is at least six

inches below the water surface. If necessary, add water to

pool, or install Extension Tube on Sensor Tube (see The

Remote Unit must always be powered by the AC

adapter. The battery is for back-up and

emergency use only.

•Assembling the Detector Base Unit and

Sensor Tube on page 5 for details).

•If problem cannot be corrected, contact your reseller.

General system

fault

Red LED flashes

rapidlky and

permanently.

RED LED flashes

rapidly and

permanently.

■The AquaGuard system is not functional.

■Contact your reseller immediately.

MAINTAINING THE AQUAGUARD SYSTEM

Once installed, your AquaGuard system requires very little maintenance. To ensure trouble-free

system operation, perform the following maintenance functions at regular intervals:

•Battery Replacement: Replace the Detector Unit batteries (see Replacing the Batteries on

page 14 for battery replacement procedures) whenever a low battery is indicated (see

Managing the System on page 12 for a description of the low battery indication).

AquaGuard Owner’s Guide RJE Technologies, Inc.

AquaGuard Operating Modes

Indication

Condition Detector Unit Remote Unit Response

“SWIM” Mode

(continued)

Once you have placed the system in SWIM Mode, you must

enter the pool within nine minutes, or the system will return to

“ARMED” Mode automatically. You can also manually

reactivate the alarm as described below.

Alarm Reactivation Red LED blinks

slowly, and

audible beeps

sound for 10

seconds before

the system returns

to “ARMED” mode

NONE After swimming, the AquaGuard system will automatically

return to “ARMED” Mode after nine minutes. If desired, you

can manually return the system to “ARMED” Mode.

NOTE: If the water has not calmed, the alarm may be

triggered when you place the system in “ARMED” Mode.

To reactivate the alarm:

•From the Detector Unit: Press the OK button on the

Detector Unit keypad twice.

•From the Remote Unit: Press the Remote Unit OK

button two times.

Alarm Condition Siren sounds. Siren sounds. When a potential accident or another activity in the pool is

detected, the alarm sounds. YOU MUST RESPOND

IMMEDIATELY. Press any key on the Detector Unit keypad

to silence the alarm.

NOTE: The alarm will turn off automatically one minute and

30 seconds after activation.

OFF Mode NONE NONE You can turn the AquaGuard system OFF to change the

Detector Unit batteries, or to perform other pool maintenance

activities.

NOTE: Be sure a RESPONSIBLE ADULT is present to

observe swimming activities whenever the system is turned

OFF.

To turn the system OFF: Enter XXXX*99 on the Detector Unit

keypad (where XXXX is your Access Code).

To turn the system ON: Enter your Access Code on the

Detector Unit keypad.

NOTE: Whenever the system has been turned off, then

turned back on, you must perform a functional test of the

system (see Testing the System on page 15 for details).

Managing the System

You can use the LED indicators and alarm siren on the Detector Unit or the Remote Unit to monitor

the current state of your AquaGuard system. The following table shows a list of possible system

conditions, the indications associated with each condition, and the proper responses/remedies to

restore normal system operation.

Be sure to correct system faults promptly to avoid an interruption in protection. If a fault

cannot be corrected, contact your reseller for assistance.

RJE Technologies, Inc. AquaGuard Owner’s Guide

Remote Unit:

1. Remove the four screws on the back of the Remote Unit, and remove the back cover.

2. Install one 9-volt battery in the battery compartment by snapping the battery clip onto the

battery posts.

3. Place the back cover onto the Remote Unit, and re-install the four screws.

The Remote Unit must always be powered by the AC adapter. The battery is for back-up and

emergency use only.

Assembling the Detector Base Unit and Sensor Tube

You must assemble the Sensor Tube and Detector Unit before installing the unit at poolside.

1. Remove the screw from the front fitting of the Detector Unit.

Make sure the o-ring is installed on the front

fitting of the Detector Unit before installing

the Sensor Tube.

2. Slide the short end of the Sensor Tube onto

the front fitting of the Detector Unit. Twist the

Sensor Tube back and forth slightly while

applying firm pressure to slide the tube onto

the fitting.

3. Line up the hole at the top of the Sensor Tube

with the mating hole in the front fitting of the

Detector Unit; then re-install the screw to

secure the tube in place.

Depending on the installation site for the

Detector Unit (see Installation on page 6 for

details), you may need to install one or more

Sensor Tube Extensions. If so, simply slide

the Extension(s) onto the end of the Tube.

The Tube must penetrate the water by 5-6

inches (13-15 cm).

INSTALLING THE AQUAGUARD SYSTEM

Installation Considerations

There are a number of features that can affect AquaGuard’s “detection” abilities. Keep the following

system limitations in mind to ensure optimum performance of your AquaGuard system:

•The AquaGuard alarm must be audible from inside your home. Be sure to verify the alarm

can be heard inside your home when testing the system during installation. Care should be

taken to place the Remote Unit in an accessible location, preferably plugged into a standard

wall outlet. This way you know where it is, and that it is powered.

•Pool cleaners (sweepers) that move around the pool, climb the pool walls, and fall back into

the pool can look like a small child to the AquaGuard system. False alarms can occur if the

pool sweeper hits the Sensor Tube.

AquaGuard Owner’s Guide RJE Technologies, Inc.

•Water movement caused by high velocity/high flow filtration systems can affect

AquaGuard’s “detection” sensitivity.

•Extreme environmental conditions (strong wind, heavy rain) can affect AquaGuard’s

“detection” sensitivity. The time required to return to “armed” mode under these conditions

may be longer than normal.

•In order to properly detect and signal a potential, the AquaGuard Detector Unit must be

installed within 22 feet (6.7 meters) of all possible fall locations. Larger pools should be

equipped with an additional Detector Unit to meet this requirement.

•Pools with perimeter overflow are not compatible with AquaGuard.

•Vanishing edge (Infinity or zero edge) pools typically require two AquaGuard Detector Units.

Tools Required

You will need the following tools and materials to install and test the AquaGuard system:

•Marking pen •Flat-head screwdriver

•Drill •2.5 (19.5 liter) gallon water container

•¼” (7 mm) Masonry drill bit •Rope

•Phillips-head screwdriver

Installation

STEP 1 - Choose the Detector Unit Installation Site

•The Detector Unit must be installed within 22 feet (6.7 meters) of all possible fall

locations, and must have direct view of the rest of the pool. In most cases, this location

will be at the middle of the longest side of your pool. Typical examples of installation are

shown below.

22 FEET

(6.7 METERS)

22 FEET

(6.7 METERS)

22 FEET

(6.7 METERS)

22 FEET

(6.7 METERS)

•Be sure that the Detector Unit is not installed next to any pool features (jets, water

features, etc.) that may cause disturbance.

•Be sure that the Detector Unit can be accessed easily.

RJE Technologies, Inc. AquaGuard Owner’s Guide

User-Configurable Parameters

Parameter Key Combination Allowable Values

Access Code XXXX*01YYYY XXXX = Current access code

YYYY = New access code

Default Value = 1234

Enable Radio Link XXXX*7001 XXXX = Access code

Disable Radio Link XXXX*7000 XXXX = Access code

Radio channel used – this

parameter can be changed to

remedy a “weak signal” condition

(see Managing the System on

page 11 for more information)

XXXX*70NN XXXX = Access code

NN = radio channel; allowable values are 11 through 26

Default Value = 11

Radio address for the AquaGuard

devices – an AquaGuard system

may use more than one Detector

Unit and/or Remote Unit; each

component must be set to the

same radio address)

XXXX*71NN XXXX =- Access code

NN = radio address; allowable values are 00 through 99

Default Value = 00

Radio Test – tests radio

transmission from the Detector

Unit and reception by the Remote

Unit

XXXX*72M XXXX = Access code

M= Test Mode; 0 for transmission, 1 for reception

Reset System Parameters Press and hold 1 and 3

keys while replacing

Detector Unit batteries

ALL user-configurable values are reset to the factory

defaults. If system parameters are reset, you must re-

establish the radio link (see Installation, STEP 4, on page

7 for details)

Operating the System

Your AquaGuard system has five operating modes or states. This section describes the

AquaGuard modes of operation, and provides the procedures for entering and/or exiting each

mode. You can control and monitor your AquaGuard system from either the Detector Unit or the

Remote Unit. Refer to Controls and Indicators on page 3 for general instructions on using system

controls and indicators.

AquaGuard Operating Modes

Indication

Condition Detector Unit Remote Unit Response

“ARMED” Mode Red LED blinks

once every two

seconds

Green LED shows

a steady series of

single blinks.

“ARMED” Mode is the normal operating mode for the

AquaGuard system. When the AquaGuard system is in

“ARMED” Mode, an alarm sounds whenever a fall is detected

(or there is similar activity in the pool).

“SWIM” Mode

Red LED is off Green LED is off;

red LED blinks

slowly

You must place the AquaGuard system in “SWIM” Mode

whenever you wish to use your swimming pool. When the

AquaGuard system is in “SWIM” Mode, activity in the pool will

not trigger the alarm. Be sure a RESPONSIBLE ADULT is

present to observe swimming activities whenever the system

is place in “SWIM” Mode.

To place the system in “SWIM” Mode:

•From the Detector Unit: Enter your Access Code on the

Detector Unit keypad.

•From the Remote Unit: Press the Remote Unit OK

button three times.

AquaGuard Owner’s Guide RJE Technologies, Inc.

Installing Two Detector Units

The AquaGuard Pool Alarm System can be configured with two Detector Units when required due

to pool size or to accommodate a vanishing edge (Infinity) type design, as shown on the following

page.

22 FEET

(6.7 METERS)

22 FEET

(6.7 METERS)

•Assemble and position the Detector Units as described in STEP 1 and STEP 2.

•Establish the radio link between the Remote Unit and both Detector units as described

in STEP 4.

Be sure to set both Detector Units to the same radio channel; e.g., press 1234*7001 on

Detector Unit 1 and Detector Unit 2.

OPERATING THE AQUAGUARD SYSTEM

Refer to Controls and Indicators on page 3 for a description of the controls and indicators used to

operate and monitor your AquaGuard system. Once your AquaGuard system has been installed,

and the radio link established, you can control and monitor the system from either the Detector Unit

or from the Remote Unit.

A “Quick Reference” guide to operating your AquaGuard system is provided on the back cover of

this manual. For detailed operating instructions, see the following paragraphs:

•Refer to Setting System Parameters on page 10 for instructions on setting user-configurable

operating parameters for your AquaGuard system.

•Refer to Operating the System on page 11 for procedures to switch system operating

modes, cancel an active alarm, and turn the system ON and OFF.

•Refer to Managing the System on page 12 for descriptions of “alert” and “fault” indications

and corrective actions.

Setting System Parameters

The AquaGuard system has several user-configurable parameters. Each parameter has a factory-

set default value. You can leave these parameters at their default values, or modify the parameters

to “personalize” your system. The following table shows a list of user-configurable system

parameters, the key combination used to modify the parameter, and the allowable values for each

parameter.

All user-configurable parameters must be modified at the Detector Unit. Refer to Controls and

Indicators on page 3 for general instructions on using the Detector Unit keypad.

RJE Technologies, Inc. AquaGuard Owner’s Guide

STEP 2 - Position the Detector Unit at the Chosen Site

•Place the Detector Unit at the installation site so the Sensor Tube extends into the

water.

•Make sure the bottom of the Sensor Tube is between 5 - 6 inches (13 – 15 cm) below

the water’s surface.

If the Sensor Tube is too short, install a Tube

Extension on the Sensor Tube to meet the

required depth (see Assembling the Detector

Base Unit and Sensor Tube on page 5 for

details).

If the Sensor Tube is too long, it may be

necessary to cut the Tube to the proper length.

BE SURE the water in the pool is at its normal

level before measuring. Fill the pool if

necessary. BE SURE to measure carefully

before cutting the Tube.

If the tube end is at less than 5 inches (15 cm), unwanted alarms may occur. If the tube

end is deeper than 6 inches (15 cm), the unit’s “detection” sensitivity will be lessened.

STEP 3 - Choose a Location for the Remote Unit

•The Remote Unit must be placed within 150 feet of the Detector Unit.

The Selected location should have as few obstructions between the Remote Unit and

the Detector Unit as possible. Interior and exterior walls or other obstacles will reduce

the range of the Remote Unit.

•Choose a location that will allow the Remote Unit alarm to be heard throughout the

house.

•Choose a location that is near an AC outlet to allow the Remote Unit to be powered by

the AC adapter.

The Remote Unit must always be powered by the AC adapter. The battery is for back-up

and emergency use only.

STEP 4 - Establish the Radio Link

The AquaGuard system uses a radio transmitter/receiver to allow communication between

the Detector Unit and the Remote Unit. You must establish the radio link to use the Remote

Unit to monitor and control your AquaGuard system.

•Ensure that the Detector Unit is on (the red LED on the rear of the Unit flashes slowly

when the Unit is on).

•Press 1234*7001 on the Detector Unit keypad to enable the radio link.

•Hold the Remote Unit near the Detector Unit. Press the Remote Unit OK button 10

times, then pause; the Remote Unit will beep once. Press the Remote Unit OK button

two times; the Remove Unit will beep twice to confirm the radio link between the

Detector Unit and the Remote Unit is established.

5 - 6 INCHES

(13 - 15 CM)

AquaGuard Owner’s Guide RJE Technologies, Inc.

If the Remote Unit sounds one low beep, it indicates the radio link is not established.

Make sure you have enabled the radio link at the Detector Unit, move the Remote Unit

closer to the Detector Unit, and repeat the procedure.

STEP 5 - Test the System for Detection

Prepare a Test Simulator

•Fill a 2.5-gallon (19.5 liter) water container with enough water to weigh approximately 15

pounds (6.8 kg).

•Tie a 6-foot (1.8 meter) length of rope to the container handle.

Perform Test One

•Make sure both the “ARMED” LED on the Detector Unit and the “green” LED on the

Remote Unit are on.

If the LEDs are not on, the system is not “armed”. Allow additional time for the water in

the pool to settle enough to allow the Detector Unit to “arm.”

•Place the test simulator on the edge of the pool, 4 - 6 feet (1.2 – 1.8 meters) from the

Detector Unit.

•Hold the rope, and roll the test simulator into the pool. Both the Detector Unit and the

Remove Unit alarms should sound.

If the alarms do not sound, it may be necessary to change the location of the Detector

Unit.

Reset the System

•Press any key on the Detector Unit keypad to turn the alarm off.

•Remove the test simulator from the pool.

•Wait 6 to 10 minutes to allow the unit to automatically “re-arm.” When the water has

stabilized and the unit is “armed”, the “ARMED” LED will blink and the beep sequence

will repeat.

Perform Test Two

•Make sure both the “ARMED” LED on the Detector Unit and the “green” LED on the

Remote Unit are on.

If the LEDs are not on, the system is not “armed”. Allow additional time for the water in

the pool to settle enough to allow the Detector Unit to “arm.”

•Place the test simulator on the edge of the pool, at the point farthest from the Detector

Unit, not to exceed 22 feet (6.7 meters).

•Hold the rope, and roll the test simulator into the pool. Both the Detector Unit and the

Remote Unit alarms should sound.

If the alarms do not sound, it may be necessary to change the location of the Detector

Unit.

RJE Technologies, Inc. AquaGuard Owner’s Guide

Reset the System

•Press any key on the Detector Unit keypad to turn the alarm off.

•Remove the test simulator from the pool.

•Press 1234*99 on the Detector Unit keypad to turn the system “off.”

The Detector Unit's "anti-theft" alarm will sound if the Unit is dismantled while the system is

on. Enter 1234 on the Detector unit keypad to deactivate the "anti-theft" alarm.

STEP 6 - Mount the Detector Unit Base Plate

•Mark the location of the Detector Unit on the pool deck. Remove the Detector Unit from

the pool.

•Remove the two screws at the rear of the Detector Unit, and slide the base plate off the

Detector Unit housing. Remove the batteries from the Detector Unit to prevent the "anti-

theft" alarm from activating.

•Place the base plate at the previously marked position. Use a permanent marker to

mark the locations of the three holes in the base plate. Set the base plate aside.

•Use a drill and ¼”(7 mm) masonry bit to drill three holes, ¾” (19 mm) deep, at the

marked locations.

Be sure to drill the holes straight and perpendicular to the surface of the pool deck. If the

hoes are drilled at an angle, the base plate may not secure properly.

•Install one plastic insert (provided) into each of the drilled holes.

•Place the base plate on the pool deck over the drilled holes. Secure the base plate to

the pool deck with the three screws provided.

•Re-install the batteries in the Detector Unit. Place the Detector Unit housing over the

base plate. Lift up slightly on the rear of the housing. Slide the tab on the front of the

base plate into the slot in the nose of the Detector Unit housing; then lower the housing

onto the base plate.

•Re-install the two screws at the rear of the Detector Unit.

STEP 7 - Confirm the System is On and Armed

•Wait 6 to 10 minutes to allow the unit to automatically “arm.” When the water has

stabilized and the unit is “armed”, the “ARMED” LED will blink and the beep sequence

will repeat.

•Establish the radio link as described in step 4.

•Repeat the tests described in step 5.

Table des matières

Autres manuels RJE Système de sécurité

RJE

RJE ULB-350 Series Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
