Ritmo PS 180 Manuel
ORIGINAL HANDBOOK: ITALIAN
Rev.: 2 27/03/2019
MU001869
ISO9001 Quality System
PS 180
PS 400
PIPE SCRAPER
USE AND MAINTENANCE HANDBOOK
S.p.A.
Via A. Volta, 35-37 –(Z.I.)
35037 BRESSEO DI TEOLO (PD)
ITALY
Tel. +39.049.990.1888
Fax +39.049.990.1993
I
Ritmo S.p.A. è libera di apportare modifiche senza preavviso alle caratteristiche della macchina descritta in
questo manuale e alle informazioni qui contenute.
È vietata la riproduzione, anche parziale e sotto qualsiasi forma, di questo documento.
EN
Ritmo S.p.A. is free to modify the contents of this handbook, as well as the features of the machine described
herein, at any time, without notice.
All rights reserved. It is strictly prohibited to reproduce this document or part of it in any form whatsoever.
F
L’entreprise Ritmo S.p A. Se réserve le droit d’apporter, sans préavis, toutes les modifications qu’elle désirera aux
caractéristiques de la machine décrite dans ce manuel ainsi qu’aux informations qu’il contient.
La reproduction de ce document, même partielle, sous n’importe quelle forme, est strictement interdite.
E
Ritmo S.p.A. se reserva el derecho de hacer modificaciones sin previo aviso a las características de la máquina
descrita en este manual y a las informaciones en él incluidas.
Está terminantemente prohibida toda reproducción de este documento, incluso parcial o de cualquier otra
P
A Ritmo S.p.A. pode efectuar sem pré-aviso quaisquer modificações às características da máquina descrita no
presente manual, bem como às informações nele inseridas.
A cópia total ou parcial deste documento è severamente proibida, sob qualquer forma.
D
Die hier angegebenen Daten sind öhne Gewähr und Ritmo S.p.A. behält sich Änderungen ohne
Vorankündigung vor.
Die Vervielfertigung, auch auszugsweise, dieses Dokumentes ist verboten.
NL
Ritmo S.p.A. is vrij om de inhoud van deze handleiding en de kenmerken te wijzigen van NL de machine die
hierin beschreven wordt, op elke gegeven tijd, zonder waarschuwing. Alle rechten voorbehouden. Het is streng
verboden om dit document of een gedeelte ervan in elk vorm dan ook te reproduceren.
Rus
Ritmo S.p.A имеет право вносить изменения в аппарат, описанный в данной инструкции и в информацию
о нём без предварительного уведомления.
Все права защищены. Данный документ и любые его части воспроизводить запрещено.
AR
EN
PS 180 –PS 400
EN
1
INTRODUCTION
Dear Customer,
Thank you for choosing a machine from the ritmo range of products.
This manual is designed to illustrate the features and operating methods of your new
machine PS series. It contains all the necessary information and prescriptions for correct and
safe use of the equipment by professional operators. Please read all parts of the manual
carefully and keep it in a safe place for future consultation and/or to transfer to any future
owners/users of the machine.
We are confident that you will enjoy getting to know your new equipment and will be able to
use it profitably for many years to come.
Cordialmente,
Ritmo S.p.A.
FIELDS OF APPLICATION
Pipe scraper is a manual tool with a cutting device for the removal of material
from the surface of polyethylene (PE) and polypropylene (PP) in the different dimensions
and the fields of application.
Warning
This tool is not for:
- scraping (cleaning) other materials different from polyethylene (PE) and polypropylene
(PP);
- making any kind of operation not described by the instructions of the constructor in this
manual.
TECHNICAL FEATURES
PS 180
PS 400
Dimensions
595×272×190 mm
(23.4×10.7×7.5 in)
790x400x400 mm
(31.1x15.7x15.7 in)
Box dimensions
453×185×63 mm
(17.8×7.3×2.5 in)
550x350x90 mm
(21.6x13.7x3.5 in)
Total weight
Arm+Body = 2.8 kg (6.2 lb)
Arm: 1.4 kg (3.1 lb)
Body: 1.4 kg (3.1 lb)
Arm+Body = 5.5 kg (12.1 lb)
Arm: 2 kg (4.4 lb)
Body: 3.5 kg (7.7 lb)
Working range:
External diameters
Ø 75 ÷ 200 mm
(Ø 2.95 ÷ 7.87 in)
Ø 137 ÷ 426 mm
(Ø 5.4 ÷ 16.7 in)
Internal diameters
Ø 61 ÷ 184 mm
(Ø 2.40 ÷ 7.24 in)
Ø 130 ÷ 391 mm
(Ø 5.1 ÷ 15.3 in)
Max scraping lenght
Ø max = 129 mm (5.1 in)
Ø min = 120 mm (4.7 in)
Ø max =150 mm (5.9 in)
Ø min = 160 mm (6.2 in)
EN
PS 180 –PS 400
EN
2
PARTS DESCRIPTION
1. scraper body
2. blade guide
3. blade
4. loading wheel
5. arm
6. adjusting handle for locking devices
7. pushbutton for fast sliding of scraper arm
8. scraper arm handle
9. adjusting wheel for telescopic arm
10. screw for scraper forward movement
11. fast button for adjustment of locking devices
12. locking devices
SAFETY INSTRUCTIONS
While using manual equipment, tools and saws, the principal requirements for reducing
the risk of injuries are the careful handling, the respect of the instructions for use and of
the safety laws in force.
Carelessness and the lack in respecting safety rules can be cause of injuries in the
workplace.
4
2
3
5
8
9
10
11
12
6
1
7
EN
PS 180 –PS 400
EN
3
Firmly tighten: check that the pipe is firmly tighten to a
support (we suggest RITMO
product “Inclinable pipe support” cod. 99601000 - fig. 2)
and that the scraper is firmly
locked in the pipe. A scarce clamping can make the
pipe or the support fall compromising
the scraping, an excessive clamping of the tool in the
pipe can ruin or brake the aluminum
clamps; in both cases the situation is dangerous for the
operator with the risk of injuries.
Tools maintenance: sharp and clean tools give better results and are safer; carefully read
the section about the instructions for the maintenance of this manual. Immediately replace
the worn, broken or lost parts; it is not admitted the use of a tool or a machine with
components which do not work properly or are missing; worn, broken or lost components
can be cause of risk for the operator: the tool can suddenly brake and compromise the
safety of the surrounding environment. Carefully place the tool in the special case; a
scarce attention may damage the ends of scraper arm, the clamps and the extensions. The
clamps, if damaged or dirty, may prevent extensions positioning or a good fixing.
Use suitable work garments: the tool has a little sharp blade: we suggest to wear suitable
protective gloves. Avoid to keep belts untied, rags jutting from the pockets, long hair and
beard untied: they may get caught in the moving parts endangering the operator and
compromising the scraping.
Keep workplace clean: untidy and dirty workplaces, because of their scarce efficiency,
are cause of injuries in workplaces: it is necessary to keep clean and tidy workplaces.
WARNING: the tool is supplied with a small blade which can cause injuries to the operator if
incorrectly handled.
ritmo S.p.A. is not responsible for damages or injuries to persons caused by the non reading
of this manual.
PREPARE THE PIPE
A correct scraping is extended from the edge of
the pipe, for a length a little longer than half the
length of the fitting. Before starting working it is
useful to mark on the pipe the limit of the
scraping, bringing the pipe near the fitting and
marking the line from which the pipe is
uncovered.
EN
PS 180 –PS 400
EN
4
//
1
2
3
4
5

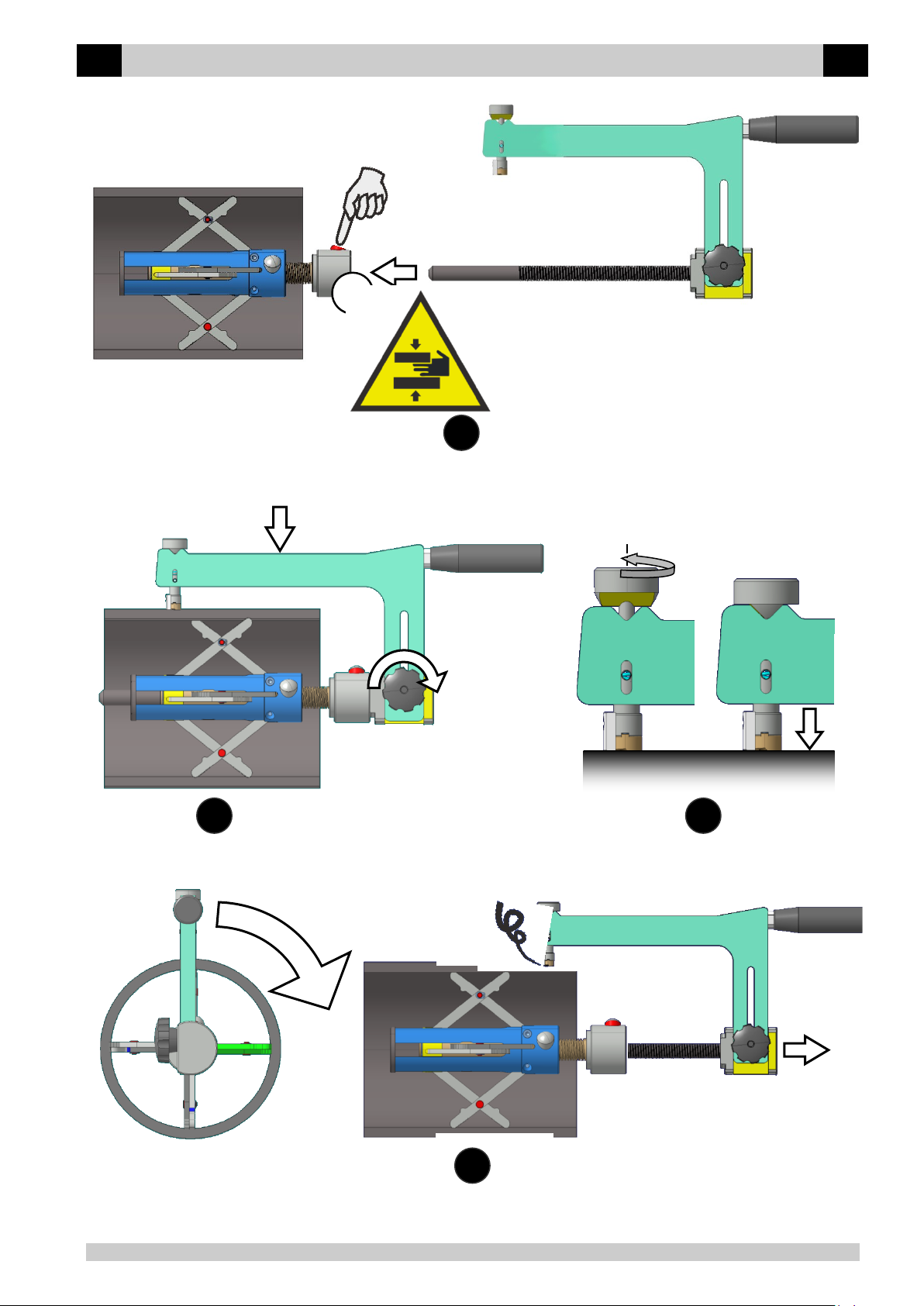

EN
PS 180 –PS 400
EN
5
6
7
8
9
EN
PS 180 –PS 400
EN
6
After scraping operation the end of the pipe has to be chamfered (we suggest to use RITMO “SME
1” chamfering tool for diameters 25160mm wth max. thickness=10mm and “SME 2 PLUS”for
diameters 40315mm with max. thickness=35mm ), and the internal part of the pipe’s end has to
be trimmed (we suggest the use of RITMO “Trimming knife”); now pipe is clean and ready to be
electrofused.
10
11
12
13
EN
PS 180 –PS 400
EN
7
MAINTENANCE
The pipescraper requires simple maintenance to follow constantly for maintaining the efficiency and
safety of the tool itself. The life of the tool and its reliability will be greater if the instructions will be
followed.
Keep tool clean paying
particular attention to
operating screws and to
loading wheel (side picture
). For clearing use petrol
or diesel, after wearing
safety gloves and mask.
After cleaning carefully
grease.
USE PROTECTIVE GLOVES
Check efficiency and integrity of blade.
For the replacement simply remove blade guide,
remove used blade and place a new one
following reverse procedure.
