OWNER'S MANUAL
CLIMATISEUR DE FENÊTRE
ROOM AIR CONDITIONER
MANUEL D'UTILISATION
IMPORTANT
IMPORTANT
• Please read the operating instructions and safety
precautions carefully and thoroughly before installing and
operating your room air conditioner.
• Please retain this owner's manual for future reference after
reading it thoroughly.
• Veuilez lire attentivement et en entier ce guide d'utilisation
et les mesures de s écurit é ci-incluses avant de proéder à
l'installation et au fonctionnement de votre climatiseur.
• Apr ès l'avoir lu au complet, veuillez conserver ce manuel du
propri étaire pour une r éférence ult érieure.
MODEL: HW500CM
H
S
ILG
NE S
IA
Ç
N
A
R
F
2Room Air Conditioner
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find the numbers on a label on the side of the
product.
Dealer's Name
Date Purchased
Staple your receipt to this page in the event you need it to
prove date of purchase or for warranty issues.
READ THIS MANUAL
PRECAUTION
Window-Type Air Conditioner Owner’s Manual
TABLE OF CONTENTS
Safety Precautions ..........................3
Before Operation ............................7
Introduction ................................... 8
Symbols Used in this Manual ..........8
Features .......................................... 8
Electrical Safety ............................. 9
Installation ....................................11
Window Requirements .................. 11
Size ................................................11
Location ......................................... 12
Clearance ......................................12
Preparation of Chassis ................. 13
Unit Installation ..............................14
Operating Instructions ................15
Location and function
of Controls......................................15
Additional Features........................ 16
Air Direction ...................................16
Drain Pipe.......................................16
Removal from Window....................16
Maintenance and Service ........... 17
Air Filter .........................................17
Cleaning the Air Conditioner.......... 17
How to Remove the
Front Grille .....................................17
Common Problems and
Solutions.........................................18
Troubleshooting.............................. 19
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips.If you review our chart of
Troubleshooting Tips first, you may not need to call
forservice at all.
• Contact an Authorized Service Center for repair or
maintenance of this unit.
• The air conditioner is not intended for use by young
children or invalids without supervision.
• Young children should be supervised to ensure that
they do not play with the air conditioner.
• If the power cord requires replacement, have an
Authorized Servicer install an exact replacement part.
• Installation work must be performed in accordance
with the National Electric Code by qualified nad
authorized personnel only.
• Contact the installer for installation of this unit.
Owner's Manual 3
Safety Precautions
Meanings of symbols used in this manual are as shown below.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
WARNING

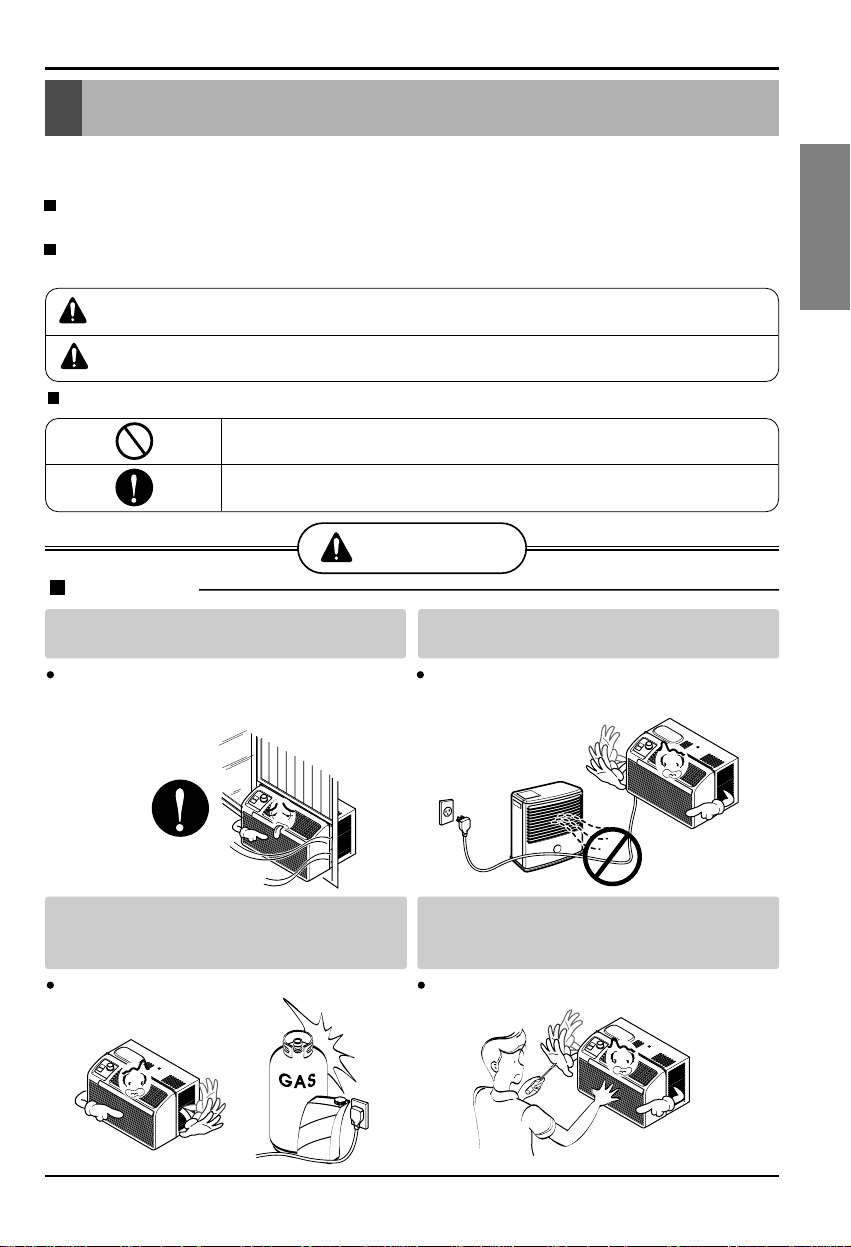

Installation
Be sure not to do.
Be sure to follow the instruction.
Safety Precautions
Gasolin
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
Incorrect operation due to ignoring instructions will cause harm or damage. The seriousnessy
the following indications.
Because of the weight of the product, it is recommended that you have a helper to assist in
the installation.
Always install the expansion panel(s).
Do not use the power cord near flammable
gas or combustibles such as gasoline,
benzene, thinner,etc.
Do not disassemble or modify products.
Do not place the power cord near a heater.
Improper assembly or installation may cause
incorrect operation, including injury, fire, and
electric shock hazards.
It may cause explosion or fire. It may cause failure and electric shock.
It may cause fire and electric shock.
ENGLISH
4Room Air Conditioner
Safety Precautions
ON

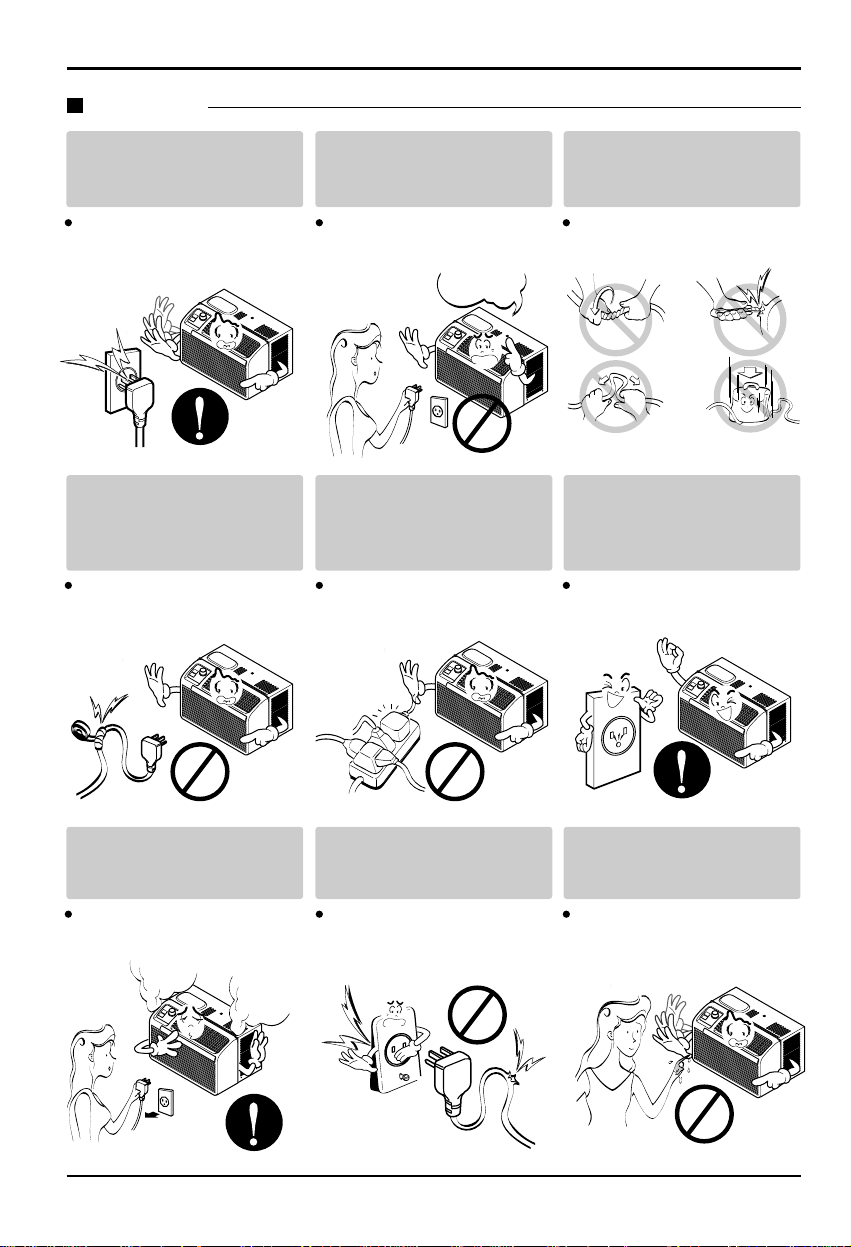

Operation
Plug in the power plug
properly.
Otherwise, it will cause electric
shock or fire.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
It will cause electric shock or
fire.
Do not damage or use an
unspeclfied power cord.
It will cause electric shock or
fire.
Do not modify power cord
length.
It will cause electric shock or
fire.
Use the air conditioner on a
single outlet circuit. (See page 7.)
Do not share the outlet with other
appliances.
It will cause electric shock or
fire.
Always plug into a
grounded outlet.
No grounding may cause
electric shock.
Unplug the unit if strange
sounds,odors,or smoke
come from it.
Otherwise it will cause fire and
electric shock accident.
Do not use the socket if it is
loose or damaged.
It may cause fire and electric
shock.
Do not operate with wet
hands or in damp
environment.
It will cause electric shock.
Owner's Manual 5
CAUTION
Safety Precautions
Installation
Never touch the metal parts
of the unit when removing
the filter.
They are sharp and may cause
injury.
Do not block the inlet or
outlet.
It may cause failure of
appliance or performance
deteriorate.
Ensure that the outer case
is not damaged by age or
wear.
If the outer case is damaged, it
must be repaired or replaced
immediately. Leaving it
damaged could result in the air
conditioner falling out of the
window, creating a safety
hazard.

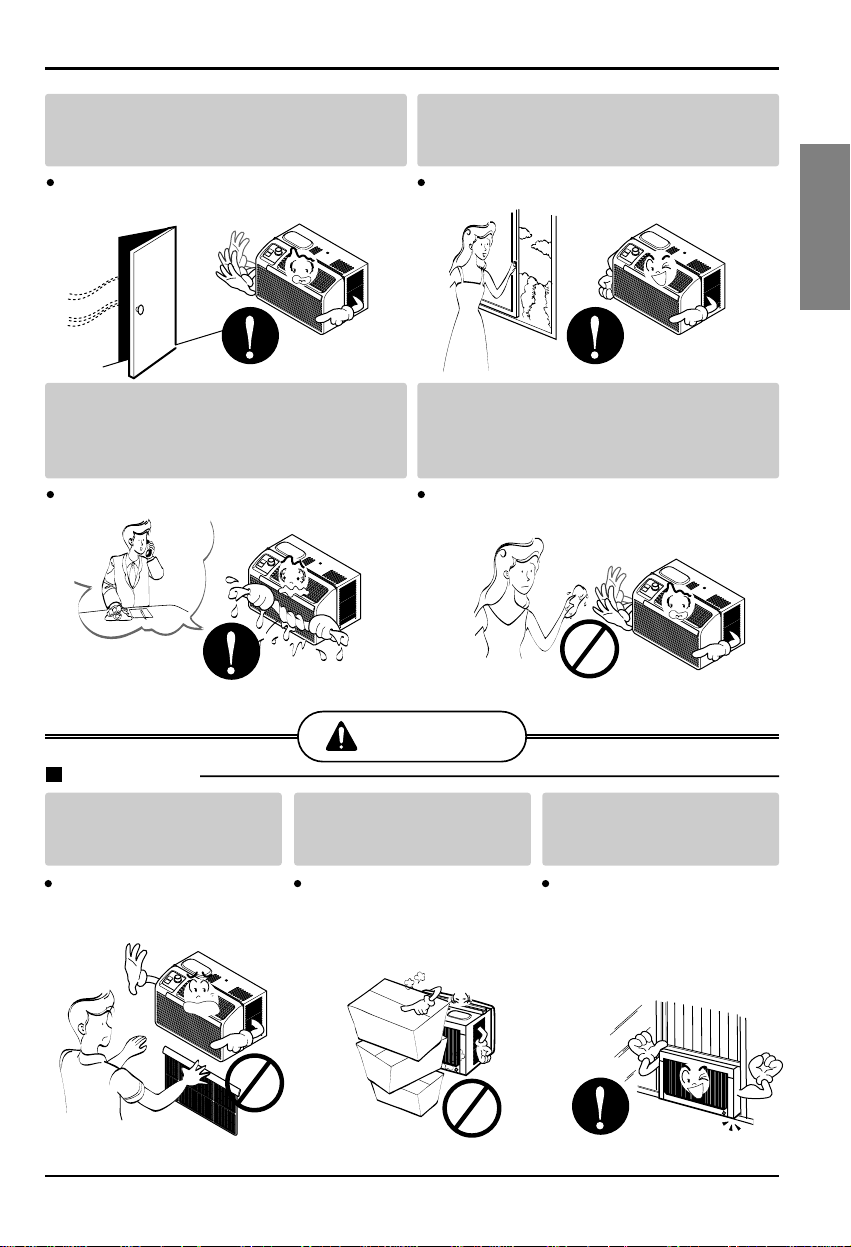

Close all doors, windows and other outside
openings to the room.
Ventilate before operating air conditioner
when gas goes out.
The air conditioner must be operated in a
enclosed area to be most effective
It may cause explosion, fire, and burn.
If water enters the product, turn off the
power switch of the main body of appliance.
Contact service center after taking the
opwer plug out from the socket.
Do not clean the air conditioner with water.
It will cause electric shock or failire of machine. Water may enter the unit and degrage the
insulation. It may cause an electric shock.
ENGLISH
6Room Air Conditioner

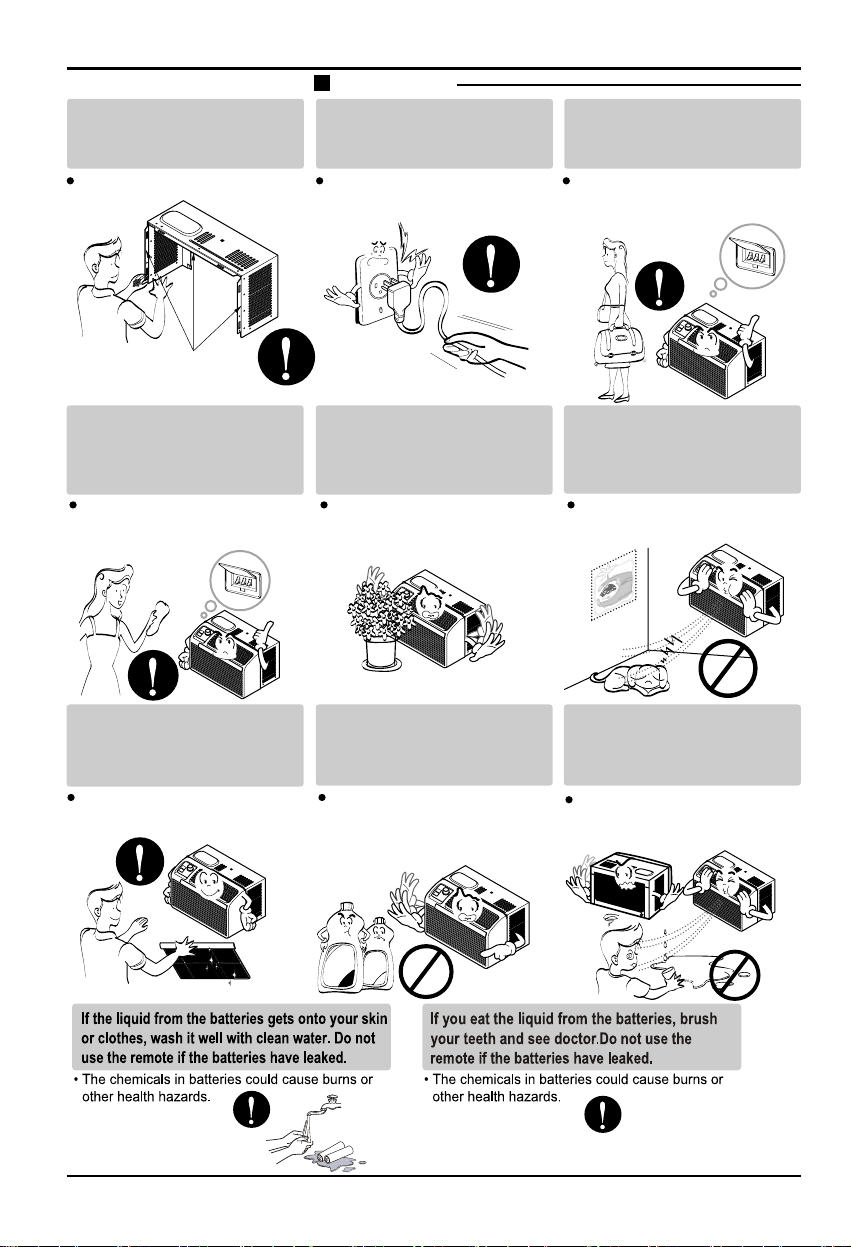

Safety Precautions
Wax
T
hinner
Sharp edges
Operation
Be cautious not to touch
the sharp edges when
installing.
It may cause injury.
Hold the plug by the head
when taking it out.
It may cause electric shock
and damage.
Unplug the air conditioner if
it will not be used for a long
period.
It will waste power consumption
in vain and it may cause
accident.
Unplug the air conditioner
before cleaning it.
Since the fan rotates at high
speed during operation, it may
cause injury.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
This could injury the pet or
plant.
Do not use this appliance for
special purposes suchas
pets, foods, precision
machinery, or objects of art.
It is an air conditioner, not a
precision refrigeration system.
Always insert the filter
securely.
Clean it every two weeks.
Operation without filters will
cause failure.
Use a soft cloth to clean. Do
not use wax, thinner, or a
strong detergent.
The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws.
Do not drink water drained
from air conditioner. Do not
direct airflow at room
occupants only.
It is not sanitary and could
cause liness or personal injury
hazard.
Owner's Manual 7
Before Operation
Before Operation
Preparing for operation
Usage
Cleaning and maintenance
Service
1. Plug in the power plug properly.
2. Use a dedicated circuit. Overloading the line could create a fire hazard.
3. Do not use an extension cord.See page 10 for more details.
4. Do not start/stop operation by plugging/unplugging the power cord.
5. If the power cord is damaged and requires replacement, have an Authorized Servicer
install an exact replacement part.
1. Being ew for an extended period of time could behazardous to your health.
Do not expose occupants, pets, or plants to directw for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when usedtogether
with stoves or other heating devices.
3. Do not use this air conditioner fposes (e.g.preserving precision devices, food, pets,
plants, and art objects). Such usagecould damage the items.
4. The air conditioner is a consumer comfort appliance, not a precision climatecontrol
system.
1. Do not touch the metal parts of the unit when remo.Injuries canoccur when handling
sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can destroy the
insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned off.
The fan rotates at a very high speed during operation.
There is apossibility of injury if the unit's power is accidentally triggered on while cleaning
inner parts of the unit.
For repair and maintenance, contact an Authorized Service Center. See thewarranty page
for details or call 1-888-LG-CANADA (542 2623).Have your model number andserial number
available.
ENGLISH
8 Room Air Conditioner
Introduction
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to
theair conditioner.
This symbol indicates special notes.
NOTICE
WARNING: This appliance should be installed in accordance with the
National Electric Code.
Introduction
Symbols Used in this Manual

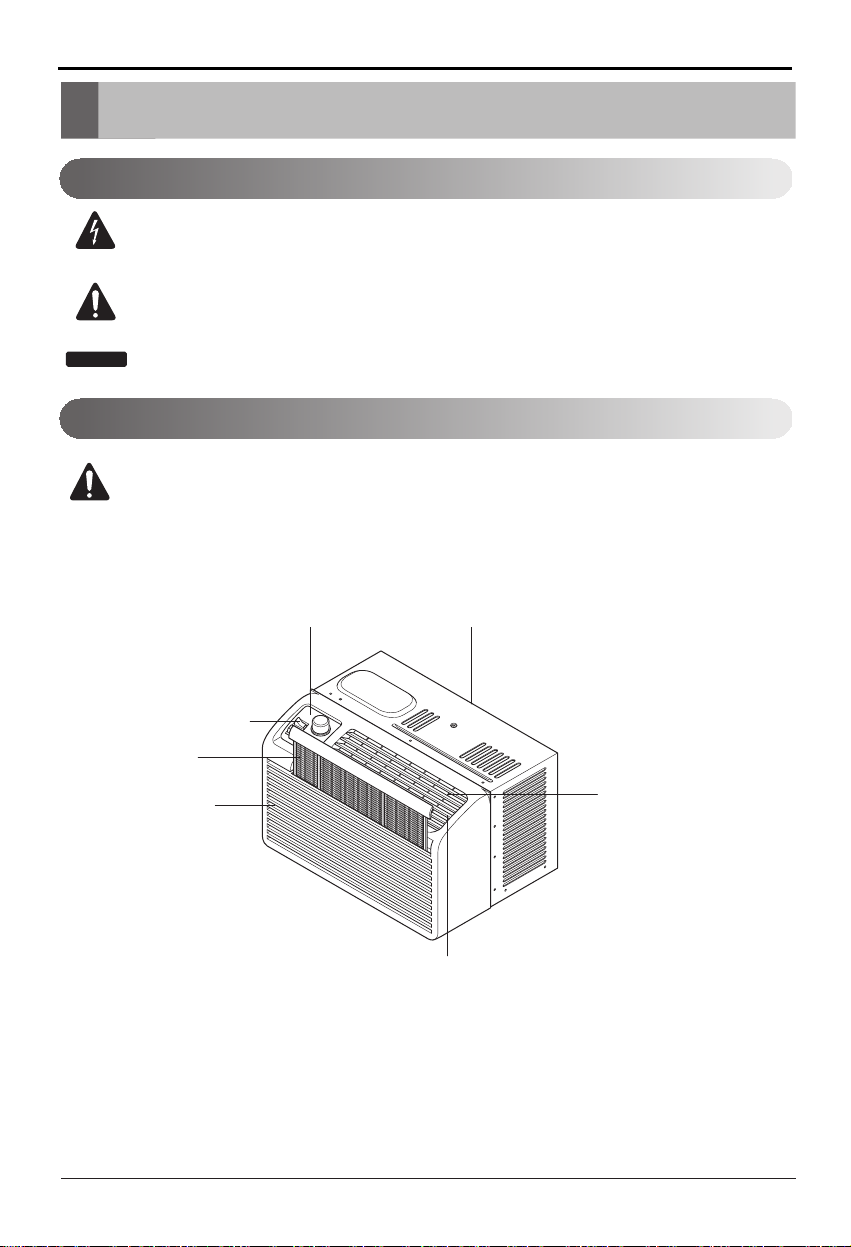

Features
CabinetKnobs
Front Grille
Air Filter
Rocket Switchs
Horizontal
Air Deflector
Cool Air Discharge
Owner’s Manual 9
ENGLISH
Electrical Safety
Electrical Safety

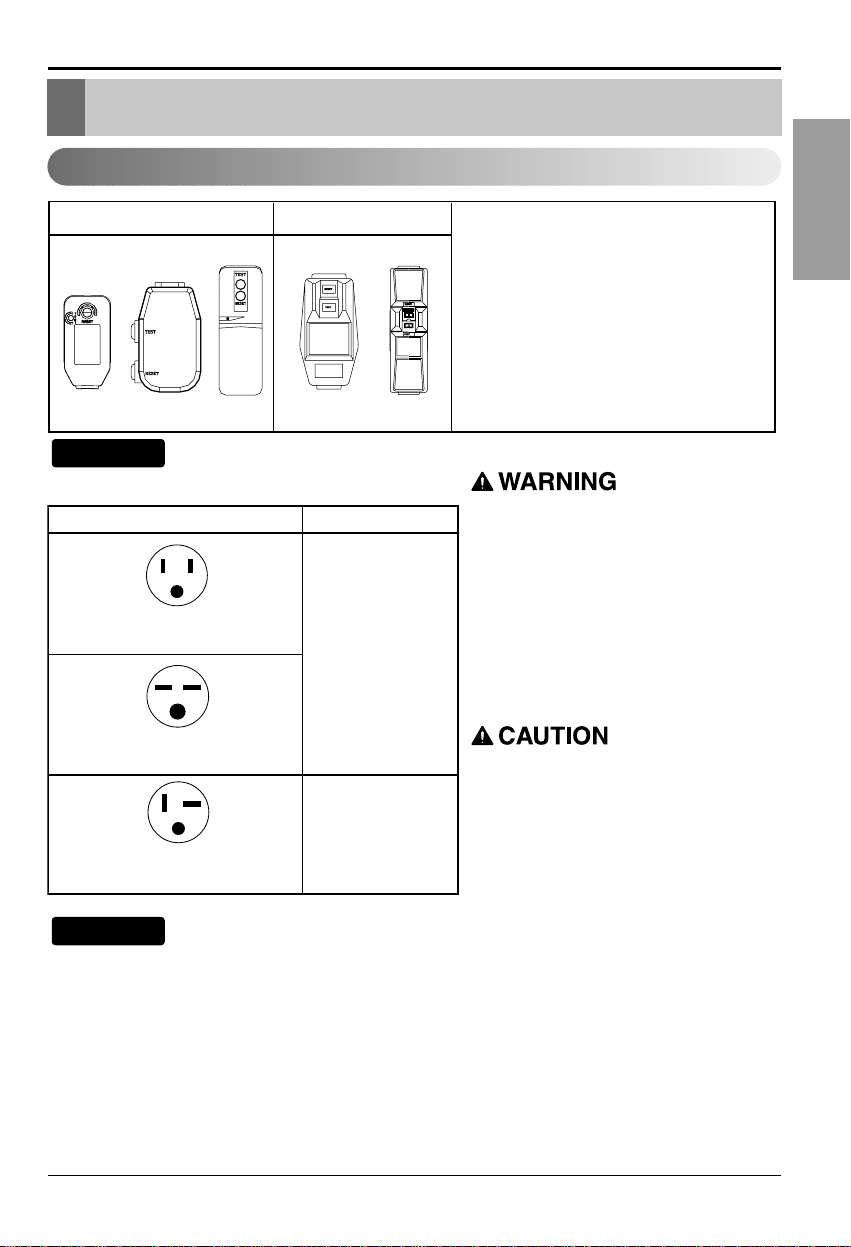

Electrical Data
115V~ 230V~
Power cord may include a current
interrupter device. A test and reset button is
provided on the plug case. The device
should be tested on a periodic basis by first
pressing the TEST button and then the
RESET button. If the TEST button does not
trip or if the RESET button will not stay
engaged, discontinue use of the air
conditioner and contact a qualified service
technician.
Use Wall Receptacle Power Supply
Standard 125V, 3-wire grounding
receptacle rated 15A, 125V AC
Standard 250V, 3-wire grounding
receptacle rated 15A, 250V AC
Use 15 AMP. time
delay fuse or 15 AMP.
circuit breaker.
Use 20 AMP. time
delay fuse or 20 AMP.
circuit breaker.
Standard 250V, 3-wire grounding
receptacle rated 20A, 250V AC
The shape may be different according to its model.
NOTICE
DO NOT USE AN EXTENSION CORD on 230, 208, and
230/208 Volt units.
All wiring should be made in accordance with local
electrical codes and regulations.
Aluminum house wiring may pose special problems.
Consult a qualified electrician.
NOTICE
Never push the test button during
operation
Otherwise this plug can damaged.
This device contains chemical, including lead,
known to the State of California to cause
cancer, and birth defects or other reproductive
harm.
Wash hands after handling.
Do not remove, modify or immerse this plug.
If this device trips, the cause it to be corrected
before further use.
The conductors inside this cord are
surrounded by shields, which monitor
leakage current.
These shields are not grounded.
Periodically examine the cord for any
damage. Do not use this product in the
event the shields become exposed.
Avoid shock hazard, this unit can not be
user serviced opening the tamper
resistant. Sealed portion of the unit
voids all warranties and performance
claims.This unit not intended for use as
an on-off switch.
10 Room Air Conditioner
Electrical Safety
Electrical Safety
IMPORTANT
(PLEASE READ CAREFULLY)
FOR THE USER'S PERSONAL SAFETY,THIS
APPLIANCE MUST BE PROPERLY GROUNDED
The power cord of this appliance is equipped with a
three-prong (grounding) plug. Use this with a standard
three-slot (grounding) wall power outlet to minimize the
hazard of electric shock.The customer should have the
wall receptacle and circuit checked by a qualified
electrician to make sure the receptacle is properly
grounded.
DO NOT CUT OR REMOVE THETHIRD (GROUND)
PRONG FROM THE POWER PLUG.
A. SITUATIONS WHEN THE APPLIANCE WILL BE
DISCONNECTED OCCASIONALLY:
Because of potential safety hazards, we strongly
discourage the use of an adapter plug. However, if you
wish to use an adapter, a TEMPORARY CONNECTION
may be made. Use UL-listed adapter, available from
most local hardware stores.
The large slot in the adapter must be aligned with the
large slot in the receptacle to assure a proper polarity
connection.
:
Attaching the adapter ground terminal to the wall
receptacle cover screw does not ground the appliance
unless the cover screw is metal, and not insulated, and
the wall receptacle is grounded through the house
wiring.The customer should have the circuit checked
by a qualified electrician to make sure the receptacle
is properly grounded.
Disconnect the power cord from the adapter, using one
hand on each. Otherwise, the adapter ground terminal
might break. DO NOT USE the appliance with a broken
adapter plug.
B. SITUATIONS WHEN THE APPLIANCE WILL BE
DISCONNECTED OFTEN.
Do not use an adapter plug in these situations.
Unplugging the power cord frequently can lead to an
eventual breakage of the ground terminal.The wall
power outlet should be replaced by a three-slot
(grounding) outlet instead.
USE OF EXTENSION CORDS
Because of potential safety hazards, we strongly
discourage the use of an extension cord. However, if
you wish to use an extension cord, use a CSA
certified/UL-listed 3-wire (grounding) extension cord,
rated at 15A, 125V.
Table des matières
Langues :
Autres manuels ritetemp Climatiseur
