80L to 400L Electric Storage Water Heaters

Models: RIN80E24

RIN80E36

RIN125E24

RIN125E36

RIN160E24

RIN160E36

RIN250E36

RIN315E36

RIN400E36

Carefully remove all packaging and

transit protection from the heater before

installation. Dispose of the packaging

responsibly using re-cycling facilities

where they exist.

Installation Details

Owner’s Information

Owner’s Manual

Version B: Update to new logo and reduce size of label

For advice, repairs and service, call:

1300 555 545

RIN0421 023335 Rev. E Jun 2013

Owner’s Manual

80L to 400L Electric Storage Water Heaters

Version B: Update to new logo and reduce size of label

Installation Details 1

Plumbing Connections 3

Electrical Connection 5

Specications 6

Operating Instructions 7

Safety Information 8

Service Information 9

Troubleshooting 10

Contents

RIN0421 023335 Rev. E Jun 2013

Owner’s Manual

80L to 400L Electric Storage Water Heaters

Version B: Update to new logo and reduce size of label

Installation Details

Installation Requirements

This water heater must be installed

by a licensed tradesperson, and in

accordance with:

• AS/NZS3500.4 “National Plumbing

and Drainage Code Hot Water

Supply Systems – Acceptable

Solutions”.

• AS/NZS3000.

• Local authority regulations.

• Outside Australia and New Zealand,

please refer to local plumbing and

building codes and regulations.

• Notice to Victorian customers from

the Victorian Plumbing Industry

Commission – this water heater

must be installed by a licensed

person as required by the Victorian

Building Act (1993). Only a licensed

person will give you a compliance

certicate, showing that the work

complies with all the relevant

Standards. Only a licensed person

will have insurance protecting their

workmanship for 6 years. Make sure

you use a licensed person to install

this water heater and ask for your

Compliance Certicate.

Water Supply Pressure

This water heater is designed for direct

connection to water supply pressures of:

80 Litre model – 800kPa

125 Litre model – 800kPa

160 Litre model – 800kPa

250 Litre model – 680kPa

315 Litre model – 680kPa

400 Litre model – 680kPa

Where the mains pressure can exceed

or uctuate beyond the pressure

shown above, a pressure limiting

device (complying with AS1357) must

be tted in the cold water inlet supply.

This device must be installed after

the isolating valve and set below the

pressure shown above. Note that

during periods of lower demand, water

pressure may increase.

Caution: This water heater delivers

hot water at temperatures exceeding

50°C. Refer to AS/NZS3500 and

local regulations regarding the need

for additional hot water delivery

temperature control.

Pool Heating

This water heater must not be used for

pool heating.

RIN0421 023335 Rev. E Jun 2013

Owner’s Manual

80L to 400L Electric Storage Water Heaters

Version B: Update to new logo and reduce size of label

Installation Details

Location

The water heater should be located as

close as possible to the most frequently

used hot water outlet. Adequate

access must be made for service to the

element, thermostat, relief valve and

anode. Ensure that the data plate is

clearly visible.

Note: All models are equipped with a

sacricial anode, accessible through the

top cover. Allow 50% of the height of

the water heater for clearance above to

replace the anode.

We recommend a plinth be installed

under the water heater where the

water heater is subjected to wet

conditions.

A properly drained overow tray must

be used where property damage could

occur from water spillage. (See AS/

NZS3500.4 for further details.)

When installing this water heater in a

roof area as a mains pressure unit, refer

to local regulations.

Note: The warranty does not cover

damage due to leakage of the water

heater.

RIN0421 023335 Rev. E Jun 2013

Owner’s Manual

80L to 400L Electric Storage Water Heaters

Version B: Update to new logo and reduce size of label

Plumbing Connections

Pressure & Temperature Relief

Valve

The Pressure & Temperature Relief Valve

is supplied loose with the water heater.

Please refer to the specications

table on page 6 for the valve ratings.

The PTR valve must be installed directly

into the top socket marked “RELIEF

VALVE”. The drain line from this valve

must run in a continuously downward

direction in a frost-free ambient position

with the discharge end left open to

atmosphere permanently.

The PTR Valve is not intended to enable

connection of the water heater to

supplementary energy sources such as

solar panels or slow combustion stoves

(refer AS/NZS 3500.4 for guidance on

these types of installations).

Open the PTR Valve for approximately

10 seconds by lifting the lever on the

valve to ensure water is relieved to waste

through the relief drain pipe. Lower lever

gently and check that it closes correctly.

The PTR Valve must not be tampered

with or removed. The water heater must

not be operated unless this valve is

tted and in working order.

The PTR Valve should be checked for

adequate performance or replaced at

intervals not exceeding 5 years, or less

in areas where local regulations apply.

Important: The PTR Valve and its

drain outlet pipe must not be sealed or

blocked. It is normal for the PTR valve

to leak a small amount of water during

heating cycles.

Danger

Failure to operate the relief valve easing

lever at least once every six (6) months

may result in a problem with the water

heater and in some cases the tank may

explode.

Warning: A separate drain line must be

run for this relief valve. It is not permitted

to couple drain lines from relief valves

into a single common drain line.

Note: Brass plugs are supplied with

the water heater to plug off the unused

ttings. Ensure that a sealing material is

applied to the plugs to prevent leaking.

Cold Water Connection

An approved isolating valve, non

return valve, line strainer (optional but

recommended), and union must be

tted between the supply main and

either of the RP¾/20 sockets marked

“Inlet” at the bottom of the water heater.

All ttings must be approved by the

relevant Authority. See the diagram on

page 4 for details.

Note for S.A. and W.A.: It is a state

requirement that a pressure relief valve

be tted on the cold water supply line

between the non return valve and the

water heater. See the diagram on page

4 for details.

RIN0421 023335 Rev. E Jun 2013

Owner’s Manual

80L to 400L Electric Storage Water Heaters

Version B: Update to new logo and reduce size of label

Plumbing Connections

Hot Water Connection

The hot water pipe should be connected

to either of the RP¾/20 sockets marked

OUTLET at the top of the unit. For the

most economical operation of the water

heater, it is recommended that all hot

water lines are insulated. Please check

local regulations regarding the use of

hot water supply pipework that are not

made of copper.

Building Flow and Return

Never install a building circulated ow

and return line with a Rinnai Electric

water heater on a timed or controlled

tariff.

If a ow and return line is required, we

recommend that you install a backup

storage water heater on a continuous

tariff. The ow and return line should

also include time control the building

circulation loop to help reduce energy

usage.

Temperature Protection

Water heaters can produce very hot

water. To reduce the risk of scald injury,

it is mandatory under the requirements

of Australian Standard AS/NZS3500.4

that a suitably approved temperature

control device be tted to the hot water

supply to outlets used primarily for

personal hygiene. This valve should be

checked at regular intervals to ensure its

operation and settings remain correct.

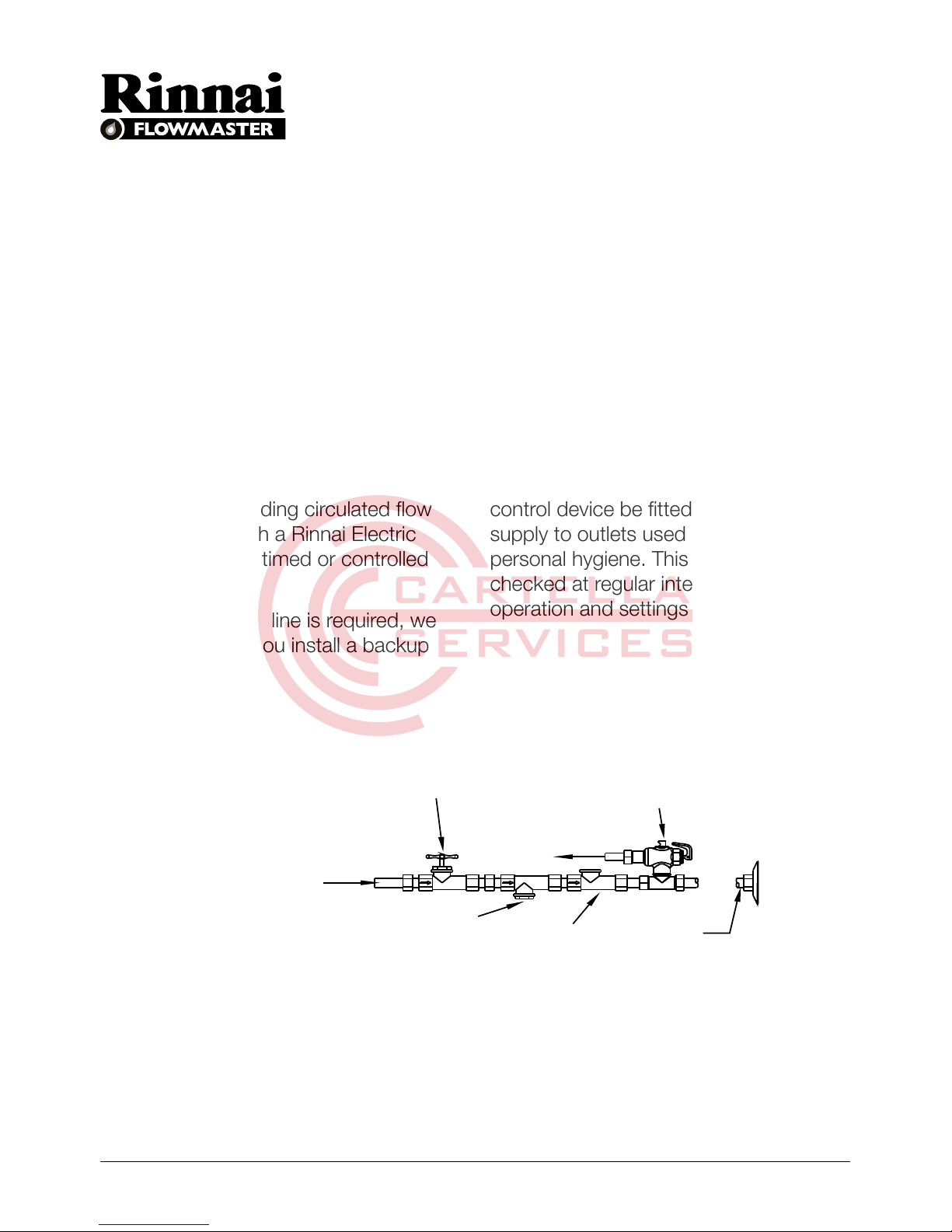

Note: a combined isolating valve/non-return valve/line strainer may be used.

Expansion valve only required where local regulations demand.

Union

Connection

Non-return

Valve

Line

Strainer

Cold Water

Inlet

Drain

Expansion

Valve

Isolating Valve

(Spindle Vertical)

Inlet Connections

RIN0421 023335 Rev. E Jun 2013

Owner’s Manual

80L to 400L Electric Storage Water Heaters

Version B: Update to new logo and reduce size of label

Electrical Connection

This water heater is designed for

single phase 240V A.C supply only.

The electrical connection must

comply with Local Supply Authority

Regulations and AS/NZS3000.

For models pre-wired with a exible

lead, if the supply cord is damaged, it

must be replaced by the manufacturer,

its service agent, or similarly qualied

person in order to avoid hazard.

For models not pre-wired with a exible

lead, connections are made at the

terminal block inside the water heater,

and a means for disconnection must

be incorporated in accordance with the

wiring rules.

Entry to the connection area is through

the hole beneath the element cover,

designed to accept a 20mm conduit.

The element cover may be removed by

undoing the two screws on the cover

and sliding the cover downwards to

disengage the top edge. Ensure that the

conduit entry is well sealed to achieve

correct weatherproong.

Note: This water heater is tted with

a thermostat and over-temperature

energy cut-out. Under no circumstances

should the water heater be operated

without both these devices being in the

circuit. Replacement must be carried

out only by a qualied electrician or the

manufacturer.

Danger: The operation of the thermal

cut-out indicates a possibly dangerous

situation. Do NOT reset the thermal

cutout until the water heater has been

serviced by a qualied person.

Caution: Water heater must be lled

with water before turning on the

electricity supply.

Electrician: Press the reset button on

thermostat to ensure over-temperature

cut-out is set.

When supply wiring has been connected,

supply wires must be kept lower than the

terminal block.

RIN0421 023335 Rev. E Jun 2013

Owner’s Manual

80L to 400L Electric Storage Water Heaters

Version B: Update to new logo and reduce size of label

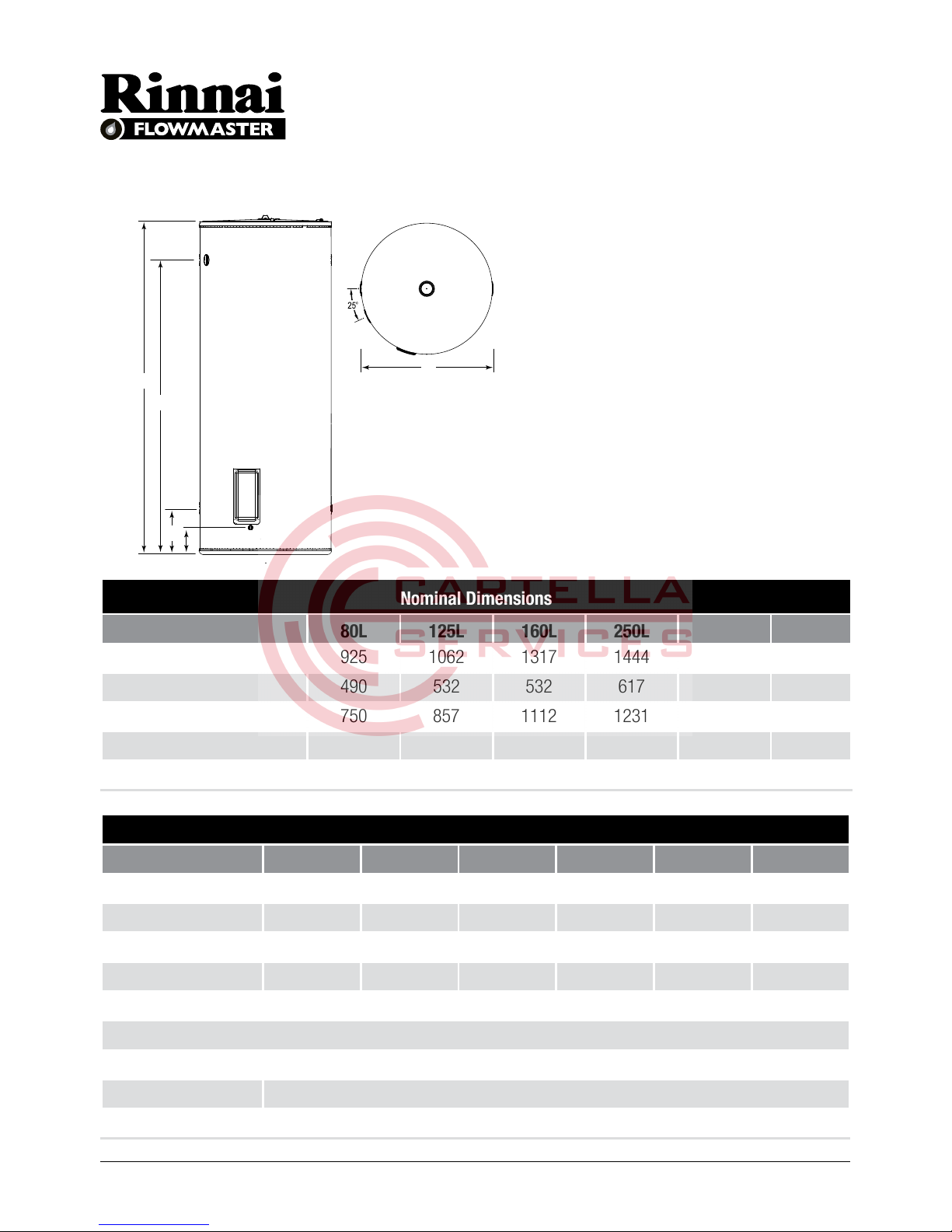

Specifications

Tank Size 80L 125L 160L 250L 315L 400L

Storage Capacity (L) 90 128 164 259 324 416

Hot Water Delivery (L) 80 125 160 250 315 400

Twin Element Boost – – – – – –

Net Weight Empty (kg) 40 48 59 88 103 114

Element(s) Sizes (kW) 2.4, 3.6 2.4, 3.6 2.4, 3.6 3.6 3.6 3.6

Relief Valve:

Pressure (kPa) 1000 1000 1000 850 850 850

Temperature (°C) 99

Power Rating (kW) 10kW

Nominal Dimensions

Tank Size 80L 125L 160L 250L 315L 400L

Total Height (A) 925 1062 1317 1444 1754 1703

Total Diameter (B) 490 532 532 617 617 705

Outlet Height (C) 750 857 1112 1231 1541 1466

Inlet Height (D) 175 206 206 215 215 240

Electrical Entry (E) 80 116 116 125 125 150

Specifications

RIN0421 023335 Rev. E Jun 2013

Owner’s Manual

80L to 400L Electric Storage Water Heaters

Version B: Update to new logo and reduce size of label

Safety

This appliance is not intended for use

by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience and

knowledge, unless they have been given

supervision or instruction concerning

use of the appliance by a person

responsible for their safety.

Children and animals should be

supervised to ensure that they do not

interfere with the appliance.

Filling The Water Heater

Open all hot water taps. Open isolating

valve at the cold water inlet slowly and

allow water heater to ll until water ows

through the system. Close each hot

water tap after the air is expelled from

its line. As noted previously power is not

to be turned on until the water heater is

lled with water.

Water Quality

Your Rinnai water heater has been

manufactured to suit water conditions of

most Australian metropolitan supplies.

Please note that harsh water supplies

can have a detrimental effect on the

water heater and its life expectancy. If

you are unsure about your water quality

you can obtain information from your

local water supply authority.

The water heater is designed for use

in areas where the Total Dissolved

Solids (TDS) content of the water

supply is less than 2500 mg/L. In areas

where the TDS exceeds 600mg/L it

is possible that the magnesium alloy

anode (supplied in the heater) may

become over-reactive. To alleviate this,

the magnesium alloy anode should be

replaced with an aluminium alloy anode,

available from your local Rinnai supplier.

Water can also be very corrosive, the

measure of this is the saturation index.

If the water saturation index is greater

than 0.40, an expansion control valve

should be tted. If the index is greater

than 0.80, the water heater installed

should be a Hard Water Model. Please

consult our Service Department for

advice if required.

Caution

If the water heater is left in an operating

condition and unused for two weeks or

more, a quantity of hydrogen (which is

highly ammable) may accumulate in the

top of the water cylinder. To dissipate

this gas safely it is recommended that

a hot tap be turned on for several

minutes at a sink, basin or bath, but not

a dishwasher, clothes washer or other

appliance. During this procedure there

must be no smoking, open ame or

any other electrical appliance operating

nearby. If hydrogen is discharged

through the tap it will probably make an

unusual sound as with air escaping.

Where the water heater is not

installed in accordance with the listed

advice, the water heater will not be

covered by the Terms of Warranty.

Operating Instructions

RIN0421 023335 Rev. E Jun 2013

Owner’s Manual

80L to 400L Electric Storage Water Heaters

Version B: Update to new logo and reduce size of label

Safety Information

Warning

For safe performance, this water heater

is tted with:

1. Combination Thermostat and over-

temperature energy cut-out.

2. Combination Pressure &

Temperature Relief Valve.

These devices must not be tampered

with or removed.

The water heater must not be operated

unless each of these devices is tted

and in working order. The element(s)

cover should be removed only by an

electrician.

The electrical power supply switch must

be turned off and the fuse removed or

the circuit breaker isolated at the main

electrical supply switchboard before the

water heater electrical cover is removed.

Open the PTR Valve for approximately

10 seconds by lifting the lever on the

valve to ensure water is relieved to waste

through the relief drain pipe. Lower lever

gently and check that it closes correctly.

The PTR Valve must not be tampered

with or removed. The water heater must

not be operated unless this valve is

tted and in working order.

The PTR Valve should be checked for

adequate performance or replaced at

intervals not exceeding 5 years, or less

in areas where local regulations apply.

Important

The PTR Valve and its drain outlet pipe

must not be sealed or blocked. It is

normal for the PTR valve to leak a small

amount of water during heating cycles.

Danger

Failure to operate the relief valve easing

lever at least once every six (6) months

may result in a problem with the water

heater and in some cases the tank may

explode.

Autres manuels pour RIN80E24

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Rinnai Chauffe-eau

Rinnai

Rinnai V75i Manuel utilisateur

Rinnai

Rinnai DD1 Manuel utilisateur

Rinnai

Rinnai INFINITY 26i Manuel utilisateur

Rinnai

Rinnai INFINITY Manuel utilisateur

Rinnai

Rinnai Infinity 26 Touch Manuel utilisateur

Rinnai

Rinnai REU-V3237WC Manuel utilisateur

Rinnai

Rinnai V53De Manuel utilisateur

Rinnai

Rinnai ANS Z21.10.3 Manuel utilisateur

Rinnai

Rinnai HJ Cooper LCUS00934010 Instructions d'utilisation

Rinnai

Rinnai REU-VR2626W Series Manuel utilisateur

Rinnai

Rinnai Continuum Series Manuel utilisateur

Rinnai

Rinnai Infinity VT16 REU-VR1620WG Manuel utilisateur

Rinnai

Rinnai Circ-Logic RU80i Manuel utilisateur

Rinnai

Rinnai c199i Manuel utilisateur

Rinnai

Rinnai Circ-Logic RU80i Manuel utilisateur

Rinnai

Rinnai Sensei RU199i Manuel utilisateur

Rinnai

Rinnai NIPPON 600MP Manuel utilisateur

Rinnai

Rinnai RH180 Mode d’emploi

Rinnai

Rinnai RH180 Manuel utilisateur

Rinnai

Rinnai HDC 1600i Low NOX Manuel utilisateur

Rinnai

Rinnai RLX94i Manuel utilisateur

Rinnai

Rinnai Infinity 20 External Fiche technique

Rinnai

Rinnai TANKLESS WATER HEATER V53E Fiche technique

Rinnai

Rinnai Circ-Logic RU80e Manuel utilisateur

Manuels Chauffe-eau populaires d'autres marques

Kenmore

Kenmore 153.582400 Manuel utilisateur

Applimo

Applimo Edel AIR Manuel utilisateur

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Manuel utilisateur

clage

clage E-Mini Series Manuel utilisateur

Toyotomi

Toyotomi Oil Miser OM-180 Manuel utilisateur

Bradford White

Bradford White EF Series Manuel utilisateur

Eccotemp

Eccotemp 40-H Manuel utilisateur

Dimplex

Dimplex ECSd125-580 Mode d’emploi

Dux

Dux 32FCR6N Manuel utilisateur

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Guide de dépannage

Noritz

Noritz N-132M Manuel d'instructions

TESY

TESY GCV7/4S 10047 Fiche technique

A.O. Smith

A.O. Smith Gphe 50 Manuel utilisateur

Koryo

Koryo KWHZF15Y Manuel utilisateur

Pentair

Pentair PSC-14-4-02 Manuel utilisateur

GE 40M06AAG Instructions de montage

Thermor

Thermor AEROMAX SPLIT 2 Manuel utilisateur

American Hometec

American Hometec AHQ-B03X Manuel utilisateur
