IB35ETRN

IB35ETRLC

Gas Radiant Space Heater

Owners Operation and Installation Manual

Do not store or use gasoline or other flammable vapors

and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in

your building.

• Immediately call your gas supplier from a neighbor’s phone.

Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified

installer, service agency or the gas supplier.

This appliance is only for use with the type of gas indicated on

the rating plate.

This appliance is not convertible for use with other gases.

INSTALLER: MUST LEAVE THIS MANUAL WITH THE UNIT AFTER INSTALLATION

OWNER: RETAIN THIS MANUAL SAFELY, FOR FUTURE REFERENCE

HOME OWNER / INSTALLER

FOR YOUR SAFETY

THIS MANUAL MUST BE READ IN ITS

ENTIRETY BEFORE OPERATING HEATER

WARNING: If the information in these instructions are not

followed exactly, a fire or explosion may result causing

property damage, personal injury or loss of life.

LIMITEDWARRANTY

RINNAIFIREPLACEHEATER

WHAT ISCOVERED?

This Warranty covers any defects in materials or workmanship, subject to the terms stated below. This

Warrantyextends to theoriginal purchaserand subsequenttransferees, butonly while theproduct remainsat

thesite of the original installation. ThisWarranty only extendsthrough the first installation ofthe product and

terminates if the product is moved or reinstalled at a new location.

HOWLONG DOES COVERAGE LAST?

Item PeriodofCoverage

All Partsand Components 2 Years from Date of Purchase

WHAT WILL RINNAI DO?

Rinnaiwillrepair orreplacethe product orany part orcomponentthat isdefectivein materialsorworkmanship,

exceptassetforthas follows. Rinnai willpayreasonableshippingcosts, provided youobtainpriorauthorization

fromanAuthorizedRinnaiDistributor. Rinnaiwillnotpaylaborchargesassociatedwiththerepairorreplacement

oftheproductoranypartorcomponent.AllrepairpartsmustbegenuineRinnaiparts. Allrepairsorreplacements

mustbe performedby anindividual orservicing companythathas beenauthorized by Rinnai or itsdistributor.

Replacementof the productor replacement ofthe heat exchanger may beauthorized by Rinnaionly. Rinnai

does not authorize any person or company to assume for it any obligation or liability in connection with the

replacement of a product or heat exchanger. If Rinnai determines that repair of a product is not possible,

Rinnaiwill replace the product witha comparable product, at Rinnai’s discretion.

HOW DO I GET SERVICE?

YoumustcontactanAuthorized DistributororInstallerfor therepairofa defectiveproduct underthisWarranty.

Failureto contactanAuthorizedDistributoror Installerwill voidthe Warranty. For thename oftheAuthorized

Distributoror Installernearest you, please contactyour localHVAC dealeror gas service technician, visitthe

Rinnaiwebsite(www.rinnai.us),callRinnaiat1-800-621-9419orwritetoRinnai,103InternationalDrive,Peachtree

City, Georgia 30269.

Proof of purchase is required. You can show proof of purchase with a dated sales receipt, or by completing

andmailingtheenclosedWarranty registrationcardwithin30days ofpurchasingtheproduct. Pleasecomplete

theenclosed Warranty registrationcard andmail itto Rinnaiatthe addressshown onthe card. Receiptof this

cardby Rinnaiwill constituteproof-of-purchase for this product. However,return ofthis Warrantyregistration

card is not necessary in order to validate this Warranty.

WHAT IS NOT COVERED?

ThisWarranty does notcover anyfailures or operatingdifficulties due toaccident, abuse, misuse,alteration,

misapplication,forcemajeure, improperinstallation, impropermaintenanceor service,or for anyother causes

other than defects in materials or workmanship. This warranty does not apply to any product whose serial

numberor manufacturedatehas beendefaced.

Rinnai is not liable for any special, incidental, indirect or consequential damages that may arise, including

damage to person or property, loss of use, or inconvenience. Some states do not allow the exclusion or

limitation of incidental or consequential damages, so the above limitation may not apply to you.

LIMITATION ON IMPLIED WARRANTIES

Any implied warranties of merchantability and fitness arising under state law are limited in duration to the

period of coverage provided by this limited Warranty, unless the period provided by state law is less. Some

states do not allow limitations on how long an implied Warranty lasts, so the above limitation may not apply

to you.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to

state.

WARNING

IMPROPERINSTALLATION,ADJUSTMENT,ALTERATION,SERVICEOR

MAINTENANCECANCAUSEPROPERTYDAMAGE,PERSONALINJURYOR

LOSSOFLIFE.

INSTALLATIONANDSERVICEMUSTBEPERFORMEDBYAQUALIFIED

INSTALLER,SERVICEAGENCYORTHEGASSUPPLIER.

Inbuilt Fire ETR

Electronic Timer Remote

Table of Contents

Limitedwarranty ............................................................................................................2

Contacts ........................................................................................................................3

Specifications ................................................................................................................4

Dimensions ...................................................................................................................4

Importantpoints /usageand installationmusts ...............................................................5

Technicalspecifications .................................................................................................7

Foryoursafety read before operatingheater..................................................................8

Controlpanellayout........................................................................................................9

Operation.......................................................................................................................9

Location.........................................................................................................................13

Venting ..........................................................................................................................15

Gasconnection..............................................................................................................15

Loginstallation...............................................................................................................16

Testingand commissioning ............................................................................................17

Maintenanceinstructions................................................................................................18

Wiring diagram ..............................................................................................................20

PCBlayout.....................................................................................................................20

Wiringdiagram-ladder ...................................................................................................21

Troubleshooting ............................................................................................................21

Error codes....................................................................................................................22

Exploded diagrams........................................................................................................23

Partslist.........................................................................................................................25

Installationnotes ............................................................................................................27

Installation/ commissioningchecklist .............................................................................31

Installerdetails ...............................................................................................................31

CONTACTS

Thismanual appliestothe followingmodelsonly:

IB35ETRBN/US IB35ETRSN/US

IB35ETRBL/US IB35ETRSL/US

America Corporation

103International Drive

PeachtreeCity

Georgia 30269

1-800-621-9419

www.rinnai.us

Model: IB35ETRBN/US,IB35ETRSN/US (NG)UnitedStates

IB35ETRBL/US,IB35ETRSL/US (Propane)United States

Description: Freestandingradiant/convector,glass-fronted,ceramiclogspace

heaterwith forcedconvectionandnaturaldraft fluesystem

GasControl: Electronic controlvalve

Burners: Emberbedflame and heatburner

WarmAir Discharge: Topfrontlouvres

Flue: Naturaldraft. Approved4” B ventsystem

Ignition: Electronicspark

PowerSupply: 120V. 60Hz

Rating Plate Location: Bottom right hand side door, inside

Weight: 119 lb

SPECIFICATIONS

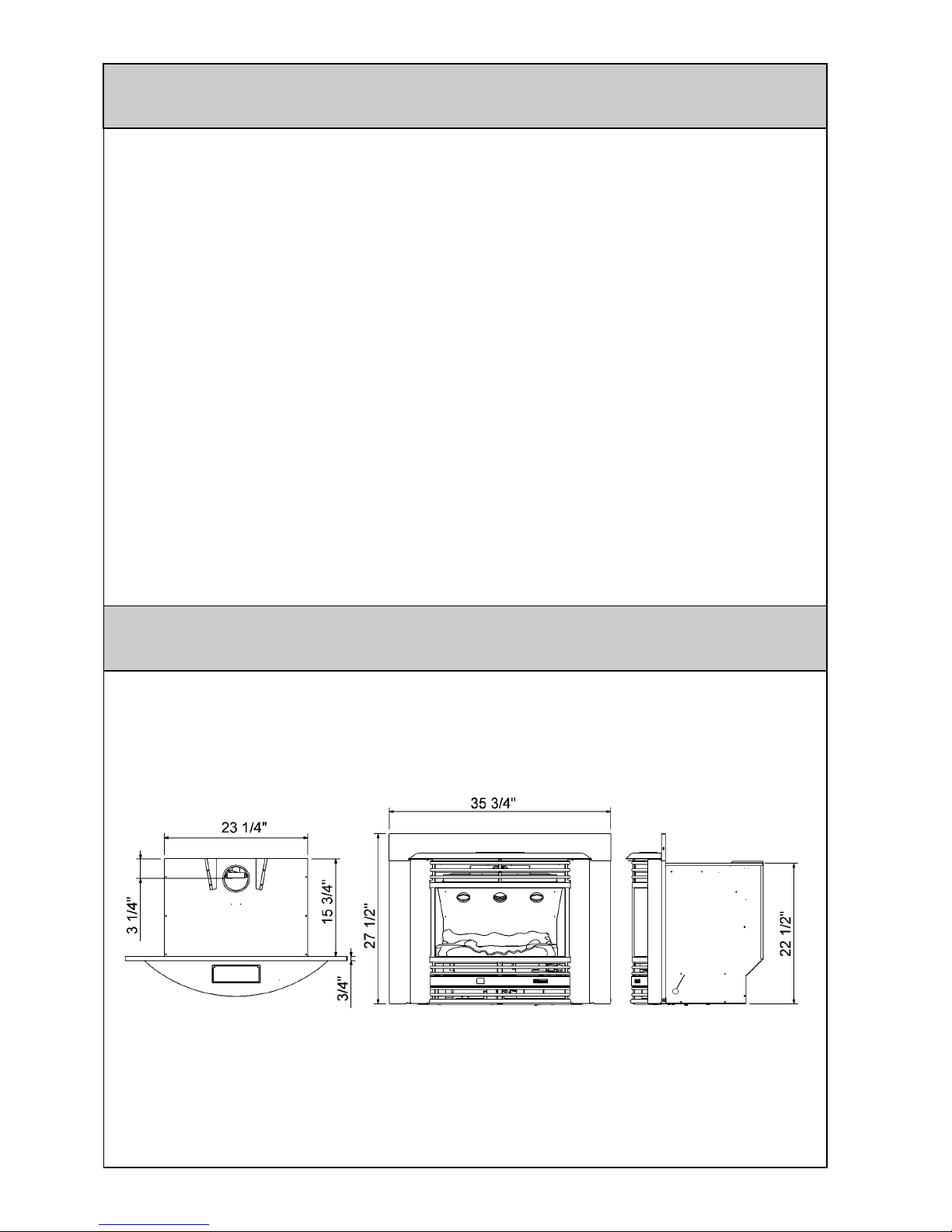

DIMENSIONS

Gas inlet

3/8”MNPT

7 Read these rules and the instructions

carefully. Checkalllocalcodes. Failure

tofollowthesecouldcauseamalfunction

oftheheater resulting in death,serious

bodilyinjury and/orpropertydamage.

8 This appliance is only for use with the

typeof gasindicated onthe ratingplate.

Thisappliance isnotconvertibleforuse

withother gases.

9 WARNING: Any change to this heater

oritscontrols can bedangerous.

10 If a gas leak is suspected, turn heater

off,turngassupplyvalveoffatappliance

connector valve. Open windows to

ventilateareaimmediatelyandcontact

yourdealeror gascompany.

11 DO NOT PLACE CLOTHING OR

FLAMMABLE MATERIALS,

GASOLINEANDOTHERFLAMMABLE

VAPORSAND LIQUIDS,ONORNEAR

THEHEATER.

12 Do not spray aerosols when the heater

is in operation.

13 YOUNG CHILDREN SHOULD BE

CAREFULLY SUPERVISED WHEN

THEYAREINTHESAMEROOMWITH

THEHEATER.

14 LPG containers must not be installed

indoors.

15 Do notuse thisappliance ifanyparthas

been under water. Immediately call a

Unpackthe heaterandcheck for damage(DONOTINSTALLDAMAGED HEATER). If the

heater is damaged, contact your supplier for advice. Before installing the heater, check the

labelfor thecorrect gastype(seeratingplate, bottomrighthandsideof pillar). Referto local

gasauthorityfor confirmationofthegas typeifyouare indoubt.

Included in the carton

Customeroperation information.

IMPORTANT

Beforeusingthisproduct,pleasereadthismanualcarefullytoensureproperuseoftheproduct:

1 Theinstallation mustconformwith local

codes,or intheabsence oflocalcodes,

the National Fuel Gas Code, ANSI

Z223.1, or the Canadian Installation

Code, CAN/CGA -B149.

2 Forinformationongastypeseethedata

plateon theheater.

3 Thisheater must notbe installed where

curtainsorother combustible materials

couldcome intocontact withit. Insome

casescurtainsmay needrestraining.

4 If you move, check the gas type in the

areawhereyouaremovingto. Thelocal

gas authority will be able to advise on

localregulations.

5 This heater discharges a large volume

of warm air to provide even heat

distribution. If the air in the room

contains cooking vapor or cigarette

smoke, and the heater is used on a

carpet, the surface of the carpet may

become discolored. In addition, some

nyloncarpetscontaindyeswhichmaybe

affectedbythe warmairflow. Somesoft

vinyl surfaces are also subject to

distortion, or discoloration by warm air.

Topreventdiscolorationofcarpets,etc.,

a mat should be placed in front of the

appliance, extending about 30” in front

ofit.

6 Thisheatermustbeinstalledonahearth

atleast 2”thickand thewidth anddepth

ofthe heater.

IMPORTANTPOINTS/USAGEANDINSTALLATION MUSTS

Diagramshows

minimum

clearances from

combustible

materials

qualified service technician to inspect

theroom heaterandto replaceanypart

ofthecontrolsystemandanygascontrol

whichhas beenunder water.

16 Adequateclearancesforaccessibilityfor

purposes of servicing and proper

operationshouldbe provided.

17 Adequate clearances around air

openingsintothe combustion chamber

shouldbeprovided.

18 Do not install in areas where curtains,

drapes, clothing, or other moving

flammables are within 15 inches of this

unit.

23 The drafthoodon the applianceshould

be installed in the same atmospheric

pressurezoneasthecombustionairinlet

tothe applianceandshall belocatedso

that the relief opening is accessible for

checkingvent operation.

24 The appliance,wheninstalled, must be

electricallygroundedinaccordancewith

local codes or, in the absence of local

codes, with the National Electrical

Code,ANSI/NFPA70, or the Canadian

Electrical Code, CSA C22.1

25 A gasappliancemustnotbe connected

to a chimney flue serving a solid fuel

burningappliance.

26 Do not restrict the warm air discharge

byplacingarticles infrontof heater.

27 This appliancemust notbe usedfor any

purposeother thanheating.

28 Do not allow anyone to post articles

throughthelouvres.

29 Do not allow anyone to sit or lean

againsttheappliance.

30 DUETOHIGHTEMPERATURES,THE

APPLIANCE SHOULD BE LOCATED

OUT OF TRAFFIC AND AWAY FROM

FURNITUREANDDRAPERIES.

31 CHILDRENANDADULTSSHOULDBE

ALERTED TO THE HAZARDS OF

HIGH SURFACE TEMPERATURES

ANDSHOULDSTAYAWAYTOAVOID

BURNSORCLOTHINGIGNITION.

32 CLOTHING OROTHERFLAMMABLE

MATERIALSHOULDNOTBEPLACED

ONORNEAR THEAPPLIANCE.

33 INSTALLATIONANDREPAIRSHOULD

BEDONEBYAQUALIFIEDSERVICE

PERSON. THEAPPLIANCESHOULD

BE INSPECTED BEFORE USE AND

AT LEAST ANNUALLY BY A

PROFESSIONALSERVICE PERSON.

MORE FREQUENT CLEANING MAY

BE REQUIRED DUE TOO

EXCESSIVELINTFROMCARPETING

19 Periodic examination of the venting

systemisrequired.

20 The flow of combustion and ventilation

airshouldnot beobstructed.

21 A manufactured home (USA only) or

mobile home OEM installation must

conform with the Manufactured Home

Constructionand SafetyStandard,Title

24CFR, Part 3280, or, when such a

standardisnot applicable,theStandard

for Manufactured Home Installations,

ANSI/NCSBCSA225.1 or Standardfor

Gas Equipped Recreational Vehicles

and Mobile Housing, CSA Z240.4.

22 The appliance and its appliance main

gasvalvemustbedisconnectedfromthe

gas supply piping system during any

pressure testing of that system at test

pressuresinexcessof1/2psi(3.5kPa).

Theappliancemustbeisolatedfromthe

gas supply piping system by closing its

equipment shutoff valve during any

pressuretestingofthegassupplypiping

systematpressuresequaltoorlessthan

½ psi (3.5 kPa).

12”

RIGHT

36”

CEILING

36”

FRONT

12”

LEFT

TECHNICALSPECIFICATIONS

BEDDINGMATERIAL,ETCETERA. IT

IS IMPERATIVE THAT CONTROL

COMPARTMENTS, BURNERS AND

CIRCULATING AIR PASSAGEWAYS

OF THE APPLIANCE ARE KEPT

CLEAN.

34 The glass window shall be replaced as

one piece as supplied by the

manufacturer. See log and glass

installationonpage 17.

35 Donotsubstituteglass,glowing embers

orlogs. Useonly glass,glowing embers

andlogs suppliedbymanufacturer.

36 Caution:Donotoperateunitwith broken

glass.

37 WARNING: DO NOT OPERATE

APPLIANCE WITH THE FRONT

REMOVED,CRACKEDOR BROKEN.

REPLACEMENT OF THE GLASS

SHOULD BE DONE BY A LICENSED

ORQUALIFIED SERVICE PERSON.

Natural Gas Propane

Gas Input Rate: Btu/hr Btu/hr

Pilot: 200 200

Low: 11,000 11,000

High: 32,000 32,000

WC WC

Min: 7" 10"

Max: 10.5" 13"

Gas Connection:

Flue Termination:

Fan:

Combustion System:

Ignition System:

Operation:

Temperature control: Electronic thermostat High~Low / Off

Flame picture select option

Up / Down buttons

Temperature range: Low = 50°F, 60°F~80°F, High 97°F

Safety Devices:

Powersurge - 3 amp fuse

Room overheat - Automatic cut off at 104°F after 10 minutes

Fan delay Micro computer timer

Combustion Method:

Flue Type:

Heat transfer:

InstallationType:

Flue Requirement:

Flame failure- flame rod

Over heat - thermistors, thermal fuse

Inbuilt

Manufacturers minimum, 10 ft vertical.

Naturallyaspirated burner

Approved B vent system

Directradiationand forced convection

oca

es may

ave a greater

requirement and must be followed

Minimum permissible

gas supplypressure for

purpose of input

adjustment

3/8" MNPT

Finger touch control buttons or remote control

An approved 4" vent cap must be fitted to all installations

90 Watt 2 speed tangential

Multi portburnerand ceramic logs

Continuous spark electronic ignition

A This appliance is equipped with an

ignition device which automatically

ignitesthepilot. Do not try to light the

pilotby hand

B. BEFOREOPERATINGsmellallaround

the appliance area for gas. Be sure to

smell next to the floor because some

gasis heavierthanairandwill settleon

thefloor.

WHATTODOIF YOUSMELLGAS

• Donottry tolightany appliance

• Donot touchanyelectrical switch

• Donotuse any phoneinyour building

• Immediatelycallyourgassupplierfrom

STOP Read the safety information

above.

•To turn the unit on (Refer todiagram

below)

WARNING: If you do not follow these instructions exactly, a fire or explosion

may result causing property damage, personal injury or loss of life.

FOR YOUR SAFETY READ BEFORE OPERATING

OPERATING INSTRUCTIONS

TO TURN OFF GAS TO APPLIANCE

TurnofftheappliancebyoperatingtheOn/

Offbuttonandturnoffthepoweratthewall

switch.

Disconnect the electric plug. This will

isolate the gas supply and prevent the

solenoidvalve fromopening.

a neighbour’s phone. Follow the gas

suppliersinstructions.

• Ifyoucannotreachyourgassuppliercall

thefiredept.

C.Use only your hand to push the gas

control buttons.Neveruse tools. If the

buttons will not activate by hand, don’t

try and repair it, call a qualified service

technician. Force or attempted repair

mayresultin a fireoran explosion.

D. Donotusethisapplianceifanyparthas

been under water. Immediately call a

qualified service technician to inspect

the appliance and to replace any part

ofthecontrolsystemandanygascontrol

whichhas beenunder water.

If the appliance does not light it will

automaticallyturnoff.

To re-attempt ignition, press the On / Off

buttonagain.

•To adjust the heat

Press the “ “ and “ “ buttons to

increase and decrease the room

temperaturesetting.

• To turn the unit off

PresstheOn/Offbutton.Theappliancewill

turnoff.

Ifthe appliancewillnot operate;follow the

instructions“toturnoffthegastoappliance”

and call your service technician or gas

supplier.

Donot attempt tolightthe pilotbyhand.

Waitforfiveminutestoclearoutanygas.

Then smell for gas, including near the

floor. If you smell gas, STOP! Follow

“B”inthesafetyinformationabove. Ifyou

don’tsmellgas, go tothenext step.

PresstheOn/Offbutton. Thisoperates

theignition sequence.

Foryourconvenience thecontrolson yournewFlameFirearesituatedunderthecoveronthe

top right-hand side of the fire and are accessed by simply lifting the lid. All necessary

adjustmentstothe operationofyour fire canbemade withthesecontrols.

OPERATION

CONTROLPANELLAYOUT

• TURNING ON

Press the ON/OFF button to operate the

unit. TheONindicatorwillglowgreen. The

spark generator will be heard before the

burnerignitesand theONindicator glows

red, indicating that the burner is alight.

Warm air can be felt coming from the

louvres. Thefanwillcomeonautomatically

after4 minutes.

If the unit does not ignite on initial use

this may be due to air remaining in the

gas supply line. The spark generator

willonly continue for 15 seconds.After

this it will be necessary to press the

ON/OFF button OFF, then ON again.

• TURNING OFF

SimplypresstheON/OFFbuttontoswitch

off the unit. The ON indicator will go out.

Theconvectionfanwillcontinuetooperate

for several minutes after the burner has

goneoutin order to cooltheappliance.

Do not turn off the heater by

unplugging it from the wall. Do not

unplugthe heaterwhile theconvection

fan is running.

• ROOM TEMPERATURE

ADJUSTMENT

The room temperature and preset

temperatures are only displayed and

adjustablewhile theheater isrunning.

Press the “ “ button to increase the

temperature setting or “ “ button to

decrease the temperature setting. The

temperaturescanbe preset to:

a) [L]low (50°F)

b) [61°F]to[79°F]in 1°F steps

c) [H](97°F)

Once the pre-set temperature has been

reachedtheburnerswillcyclebetweenhigh

andlow(orhighand pilot only depending

onthe autooffsetting).

• LOCK

The LOCK function will help prevent

accidentaloperationof thecontrols.

LOCK is activated by pressing the button

and the LOCK indicator will glow. To

deactivate the LOCK press and hold the

button for 3 seconds until the indicator

goesoff.

DuringnormaloperationtheLOCKmaybe

activated and all controls, other than the

OFF switch, will be locked. Deactivating

theLOCKreleases thecontrols.

If the LOCK is activated while the unit is

turnedOFF,thenallfunctionswillbelocked

includingtheON/OFF function. Iftheunit

isturnedOFF whiletheLOCKisactivated,

it cannot be turned ON again until the

LOCK is deactivated.

• FLAME

To operatetheFLAME function,press the

FLAME button. This function will

automaticallyoverride thethermostatand

setthe unit toadefault MediumHighheat

settingfor fullvisual flameeffect.

• AUTO OFF

AUTO OFF is activated by pressing the

button and the AUTO OFF indicator will

glowwhenon.

When the AUTO OFF function is on and

theroomtemperaturereachesor exceeds

the pre-set temperature then the burners

willreduce topilotonly.

WhentheAUTOOFFisoffthentheburners

willreduce tothe front(ember) burnerand

pilots.

•SETTING THE CLOCK

When the appliance is first plugged in or

afterapowerfailure,theDigitalDisplaywill

show --:--.

Press the SET TIMES button once, the

Clock indicator will flash. Press and hold

the“ “or“ “button, theminuteswill

beginto countupor downuntilthey reach

00, the time will now change by one hour

increments.

Releasethebutton whenthecorrect hour

showson theDigitalDisplay.Confirm that

youhaveselectedAM or PM asrequired,

a small indicator on the left hand side of

the Digital Display indicates the AM/PM

setting.

Use the buttons again to set the minutes.

Scroll up or down using the buttons until

thecorrecttime is reached.

Pressthe TIMERSETbutton fivetimesto

lock in the time. The CLOCK and TIMER

indicators will go out.Asmall indicator on

thedigitaldisplaywillflashtoshowthatthe

clock is operating.

•TIMERS / PREHEAT

Thisheaterhastwoprogrammabletimers,

these allow you to set a start and finish

time. Thetemperatureispreseteachtime

thetimersare activated.

There is also a preheat function that

measuresthetemperatureoftheroomand

estimates the time it will take to bring the

room up to the preset temperature by the

programmedstarttime.

This means that the heater may start

heating an hour or more before the

programmedstarttime.

•PROGRAMMING THE ON / OFF

TIMERS

Beforeprogramming theTimersyoumust

ensure that the clock has been set to the

correcttime.

Press the SET TIMES button twice. The

digital display will showAM 6:00 and the

TIMER1 -ONindicator willflash.

Set the desired start time the same way

asforsetting the clock. Beawarethatthe

heatermaystart up much earlierthanthe

programmedstart timedueto thepreheat

function,as explainedearlier.

Press the SET TIMES button again, the

TIMER1- OFFindicatorwill flash.

Set the desired stop time the same way

asforsetting the clock.

Press the SET TIMES button once to

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Rinnai Chauffage au gaz

Rinnai

Rinnai Avenger 25 Manuel utilisateur

Rinnai

Rinnai Avenger 25 Manuel utilisateur

Rinnai

Rinnai Energysaver ES38 Guide de démarrage rapide

Rinnai

Rinnai Convector 417 Manuel utilisateur

Rinnai

Rinnai RHFE-950ETR Manuel utilisateur

Rinnai

Rinnai RHFE-1250ETR Manuel utilisateur

Rinnai

Rinnai RHFE-950ETR Manuel utilisateur

Rinnai

Rinnai 556FAIII Manuel utilisateur

Rinnai

Rinnai 2001 Manuel utilisateur

Rinnai

Rinnai RSEP1S25P Manuel utilisateur

Rinnai

Rinnai Brivis StarPro SP623UN Manuel utilisateur

Rinnai

Rinnai RHEPM8020N Manuel du propriétaire

Rinnai

Rinnai Brivis CC315 Series Manuel utilisateur

Rinnai

Rinnai 314 Manuel utilisateur

Rinnai

Rinnai Symmetry Premium Flat Manuel utilisateur

Rinnai

Rinnai Avenger 25 Plus Manuel utilisateur

Rinnai

Rinnai RIBF2N Manuel utilisateur

Rinnai

Rinnai FC510 Manuel utilisateur

Rinnai

Rinnai brivis StarPro SP4UN Manuel utilisateur

Rinnai

Rinnai REH-6T Guide de démarrage rapide

Rinnai

Rinnai RHFE-1004T Manuel utilisateur

Rinnai

Rinnai Compact 2 Manuel utilisateur

Rinnai

Rinnai Brivis StarPro SP5 Series Manuel utilisateur

Rinnai

Rinnai Granada MkII Manuel utilisateur

Manuels Chauffage au gaz populaires d'autres marques

Superior

Superior BGE18NV Manuel utilisateur

Dru

Dru Room-sealed atmospheric gas-fired heating... Manuel utilisateur

klover

klover TKR 35 Manuel utilisateur

Rothenberger Industrial

Rothenberger Industrial 035984 Manuel utilisateur

New Buck Corporation

New Buck Corporation 34 Manuel utilisateur

Hargrove

Hargrove Timberland Glow Guide de démarrage rapide

Kinder

Kinder Cameo BF Manuel utilisateur

Qlima

Qlima GH 438 B-2 Manuel

Desa

Desa 125-R Manuel utilisateur

Gasmate

Gasmate AH100 Series Manuel utilisateur

Medallion

Medallion MBP20TLB Guide de démarrage rapide

Clarke

Clarke DEVIL 910SS Manuel utilisateur

Superior

Superior BGE18NR Manuel utilisateur

Brant Radiant Heaters

Brant Radiant Heaters QTD Series Instructions d'installation

L.B. White

L.B. White Therma Grow HW220 Manuel

Sealey

Sealey LP35.V5 Manuel utilisateur

Italkero

Italkero Falo Evo Manuel utilisateur

Desa

Desa 30LP Manuel utilisateur
