Ring Floodlight Cam Mode d’emploi

Installing and

Setting Up Your

Ring Floodlight Cam

This is so exciting…

You are about to set up the

world’s most advanced ﬂoodlight.

Start by watching the installation

videos intheRing app.

Next, readthis manual and keep it

handy during installation.

This manual isforinformational purposesonly. Working with electricity can

be dangerousunless proper safety precautionsare taken. If you are not

comfortable orare inexperienced with the processes and tools described

in this manual, we recommend that you hire a licensed electrician.

Screwdriver

Use the Phillipsbit for installingthe

mounting bracket and the socket bit

to tighten the screw cap covers.

PhillipsBit

Socket Bit

Mounting Bracket

This bracket screws into your

junction box before attachingto

your Floodlight Cam.

Before you begin

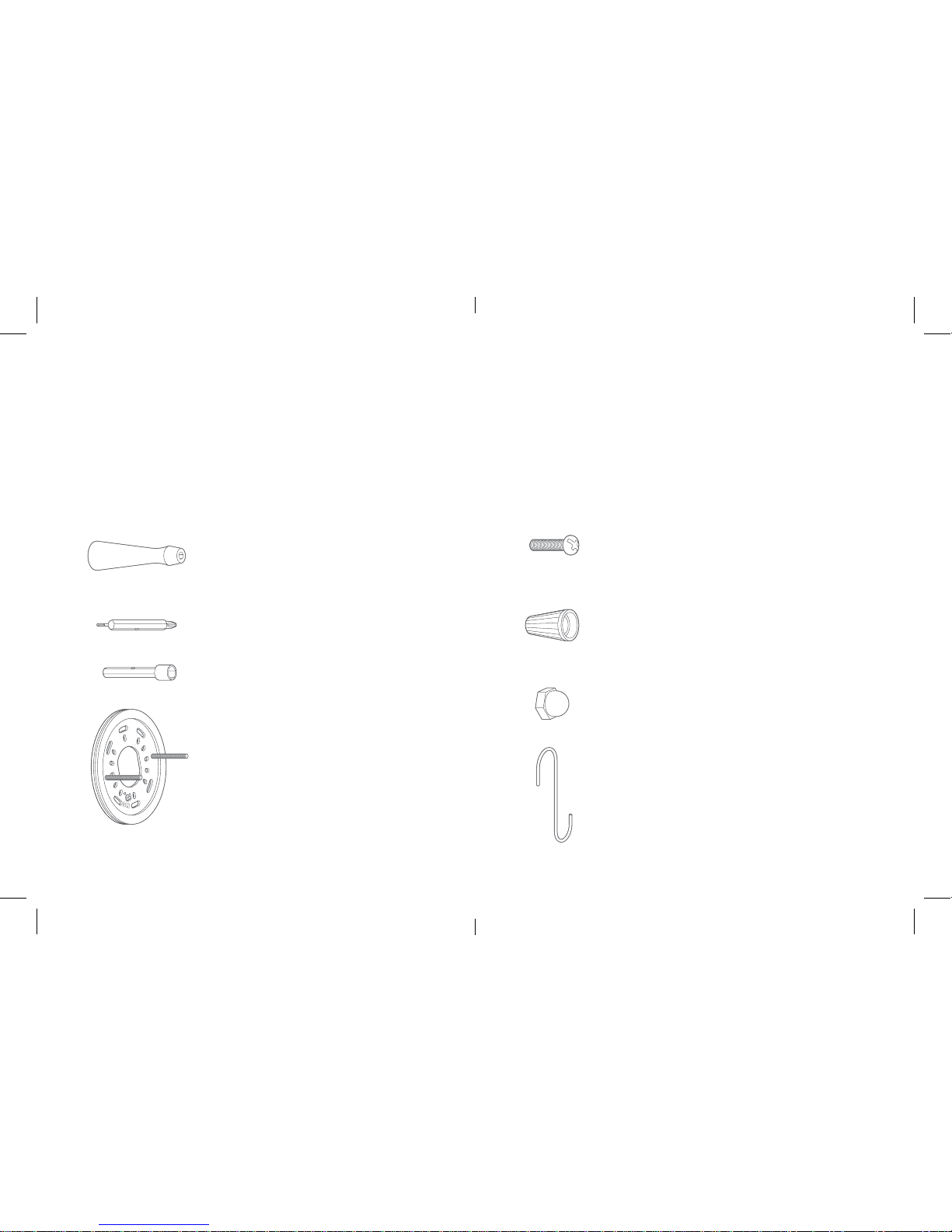

Check out all thestuin the box.

These instructions assume you’re replacing an existing

ﬂoodlight and/or have a junction box where Floodlight

Cam can be mounted. If you don’t have a junction box,

then you’llneed to hire an electrician to install one.

Bracket Screw (5)

Use 2 to 4 ofthese to attach the supplied

bracket to yourjunction box.

Wire Nuts (3)

Use these to connect Floodlight Cam’s wires

to your existing wires.

Screw Cap Covers (2)

Use these to cover the ends ofthe posts on

the mounting bracket afterinstallation.

Hook

Hang your Floodlight Cam while connecting

the wires.

How it all ﬁts together

Junction Box

(not included)

Mounting

Bracket

Screws

Light

Adjustment

Collar

Mounting

Posts

Wire

Nuts

Light

Adjustment

Knob

Motion Detector

(for lights)

Camera

Adjustment

Collar

Screw

Cap

Covers

30 feet (10 Meters)

Parallel to ground

9 feet

(3 Meters)

How installation

height aects motion

detection

When mounted at 9 feet o

theground, with the motion

detector parallel to the ground,

the motion detection range for

activating the ﬂoodlights is up to

30 feet.

8 9

WARNING: Risk ofelectrical shock

• Disconnect power at the fuse or circuit breaker

before installing.

• Verify that the supply voltage is correct. Connect

ﬁxture to a 100 VAC~240 VAC 50/60 Hz power

source.

• Properly ground ﬁxture.

• Always follow code standards when installing wired

connections.

CAUTION: Risk of ﬁre

• Do not installnear combustible orﬂamable surfaces

NOTICE

• Do not connect this light ﬁxture to a dimmer switch

or timer.

Step 1– Shut power o

at the breaker

If you don’t know where your

breaker is or how to turn o

power to your ﬂoodlight circuit,

hire alicensed electrician.

1110

Step 2 - Prep your

Floodlight Cam for

installation

A Loosenthe knobs on the light

ﬁxtures to rotatethem out of

the way and allow access to

the mounting screws.

B Rotatethe camera 180

degrees since Floodlight Cam

ships with the camera upside

down on the ﬁxture.

Do not remove your Floodlight Cam from the ball

socket on the base.

1312

Floodlight Cam must be installed on a junction box. If

you don’t have an existing junction box, you’ll need to

hire a licensed electrician to installone.

Step 3 - Remove your

existing ﬂoodlight

A With power o at the

breaker, remove your existing

ﬂoodlight from the junction

box it’s attached to and

disconnect the wires.

B If there is a bracket attached

to your junction box, remove

that as well.

Inspect your junction box to

make sure water cannot get

into it.

1514
