Riland Multipro 200SP Manuel utilisateur

Multipro 200SP

WELDING MACHINE

USER MANUAL

Meet a better way of welding!

For your own and other people’s safety, please read the manual carefully before

operating. And the user manual must always be available near the welding machine.

Announcement

The contents of this manual are updated irregularly for updating of product. The

manual is only used as operation guide, except for other promises. No warranties of

any kind, either express or implied are made in relation to the description, information

or suggestion or any other contents of the manual.

Version

Version YF-TAE-0129, A1. Released on August 16, 2022.

The images shown here are indicative only. If there is inconsistency between

the image and the actual product, the actual product shall govern.

CONTENTS

1. SAFETY WARNING........................................................................................................................................... 3

2. PRODUCT DESCRIPTION...............................................................................................................................8

3. TECHNICAL PARAMETERS........................................................................................................................... 9

4. INSTALLATION INSTRUCTION....................................................................................................................10

5. PANEL FUNCTION ILLUSTRATION............................................................................................................13

6. ATTENTION & PREVENTIVE MEASURES................................................................................................19

7. POTENTIAL OPERATING PROBGLEMS.................................................................................................. 20

8. DAILY MAINTENANCE...................................................................................................................................21

9. DAILY CHECKING........................................................................................................................................... 22

10. TROUBLESHOOTING AND FAULT FINDING........................................................................................... 24

11. NITIAL PROBLEMS DIAGNOSE..................................................................................................................25

12. OPERATION PARAMETER RECOMMENDATION................................................................................... 27

13. CIRCUIT DIAGRAM........................................................................................................................................ 29

SAFETY WARNING

Security Definitions

It indicates that neglecting safety warnings may result in serious accidents,

even death or serious injury.

It indicates that neglecting safety warnings may result in minor injury to

personnel or property damage.

It indicates that neglecting safety warnings may result in equipment failure or

damage.

Personal Protection Precautions

Personnel with professional qualifications or relevant knowledge and skills are requested to

install, operate, maintain and repair the power source.

Installation, inspection and repair of power source must be carried out by electricians, and

temporary construction points should be connected by electricians.

Supervisors shall be provided for working in high altitude or narrow places, such as boxes,

boilers, cabins, etc.

Personal protective equipment, such as protective masks, overalls, insulating gloves and

insulating shoes, should be worn when working.

Those who use cardiac pacemakers shall not approach the power source in use and welding

workplaces without the permission of a physician.

Installation Operation Precautions

The power source shall not be used for pipeline thawing, battery load or motor

start-up.

Beware of Electric Shocks

Before welding, the yellow-green grounding wire in the power line must be grounded and the

insulation of the welding cable must be ensured.

During welding operation, do not touch live parts such as workbench, welding parts, earth

clamp, electrode holder or welding torches.

Rubber insulation pads should also be laid on the ground near the operating table for welding

operations with high no-load voltage and in wet working places.

In the welding process, do not open the machine house and side cover.

Do not touch the electrically charged parts.

Do not use cables with insufficient cross-section, damaged insulation sheaths or exposed

conductors.

Maintenance operation should be carried out after 5 minutes of disconnection of the power

supply until the power indicator is completely turned off, otherwise there is a risk of electric

shock.

Turn off all input power when transferring work place, replacing fuse, repairing or not using the

equipment.

Beware of welding fume and harmful gases

When welding steel plates with coatings or coatings, harmful fumes and gases will be produced.

Full ventilation or exhaust facilities should be used to keep fumes and toxic gases away from

the breathing area. If necessary, wear breathing protection tools.

When working in narrow places, such as boxes, boilers, cabins, etc., pleaseacceptthe

inspection of supervisors. In order to prevent hypoxia, we should fully ventilate and wear

respiratory protective equipment.

Keep ventilation system of welding machine unblocked. The minimum distance between power

source and surrounding place should be greater than 0.5m. Do not cover the inlet and outlet of

equipment to ensure smooth circulation of cooling air.

Welding Sparks May Cause Fire or Explosion

Corresponding protective measures should be taken in the welding area to avoid fire caused by

welding mars.

Do not carry out welding operations in degreasing, cleaning and spraying areas.

Do not weld gas-filled pipes, sealing grooves (boxes) and other devices, otherwise explosions

or fires are likely to occur.

Do not weld near flammable gases or devices with flammable substances, otherwise explosion

or fire may occur.

When not welded, make sure that any component in the wire circuit does not contact the

workpiece or the earth, otherwise it may cause overheating and fire.

When the welding operation is stopped, remove the electrode in the welding pliers or cut off the

welding wire in the nozzle of the welding torch.

Electrical Base Field May be Dangerous

Those who use cardiac pacemakers shall not approach the power source in use and welding

workplaces without the permission of a physician.

It is strictly forbidden to place or wrap welded cables around the body.

Do not place the body between the welding wire and the workpiece cable. If the welding wire

cable is on the right side of the body, the workpiece cable should also be on the right side of the

body.

Arc Rays May Cause Burns

When welding or supervising welding, please wear protective appliances with adequate

shading.

Protective barriers are set around the welding site to prevent arc or welding spatter from

injuring others.

Avoiding Electromagnetic Interference

Users should ensure that the welding power supply and other equipment in the environment do

not produce electromagnetic interference, otherwise corresponding shielding and protection

measures should be taken.

According to the manufacturer's suggestion, the power source should be connected to the main

power supply line.

The length of welded cables should be shortened as far as possible to make them close to each

other and to the ground.

Safety of all metal assemblies assembled by welding and the assemblies connected with them

should be confirmed.

The yellow-green grounding wire in the power line must be grounded, and the workpiece must

be well connected with the ground clamp.

Users should be responsible for the interference caused by welding.

Noise Produced during Welding can Easily Cause Hearing Loss

In order to avoid the harm of noise to you and others, please wear the prescribed protective

equipment.

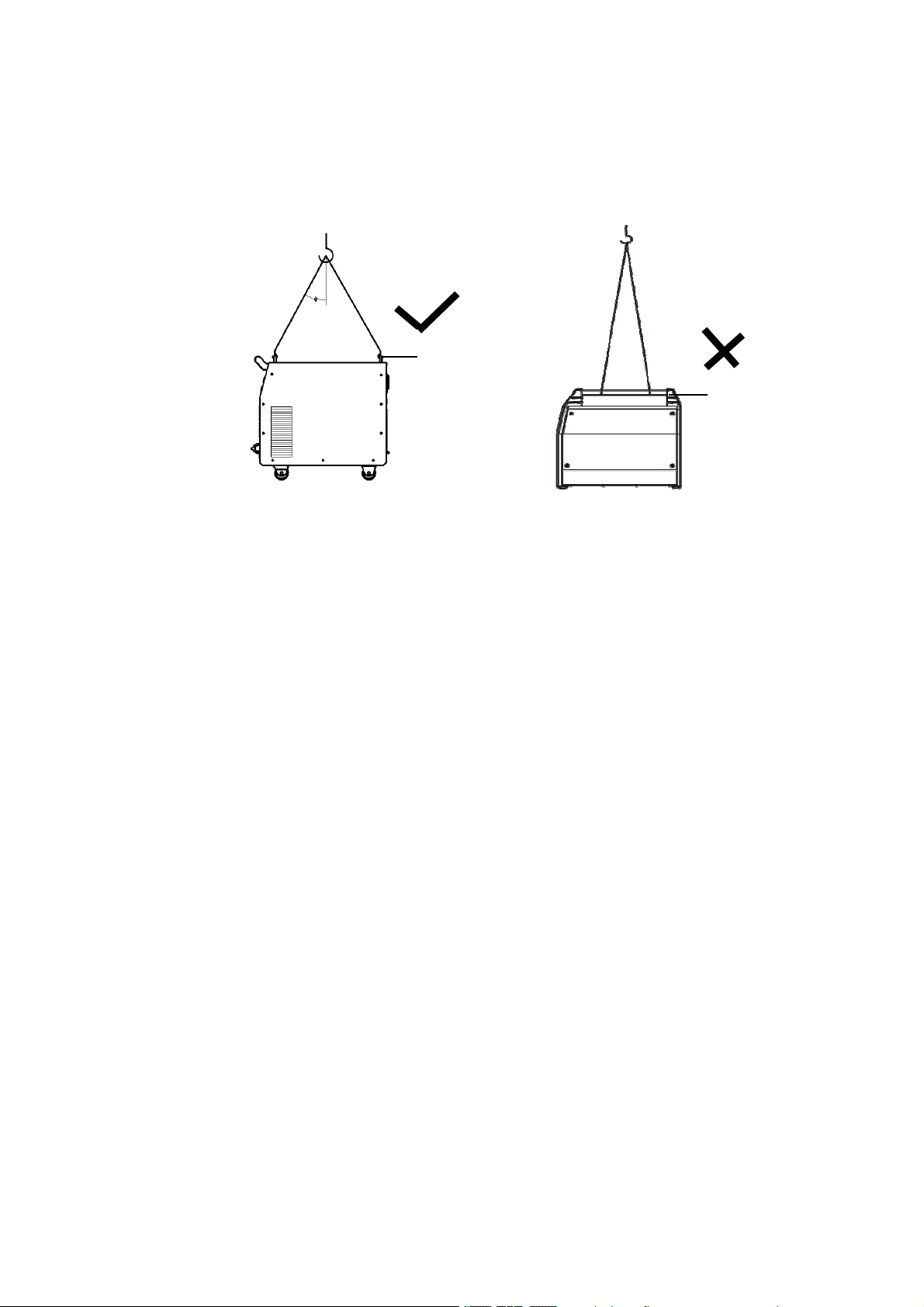

Cautions for Hoisting

The power source with strap or handle is prohibited from using strap or handle for lifting.

When lifting power source with lifting forklift truck, in order to prevent dumping, please fork-fit

and fix it from side.

When lifting power source with crane, the cable should be tied to the suspension ring, and the

angle between the cable and the vertical direction should not exceed 15 degrees.

When the power source with cylinder and wire feeder is hoisted, the two equipments should be

unloaded from the power supply first. When moving the power source on the ground, it is

necessary to fix the cylinder with a strap or chain to prevent dumping and injuring people.

If the wire feeder is hoisted by lifting lugs for welding, it is necessary to ensure that it is firm and

insulated.

Rings

Handle

PRODUCT DESCRIPTION

The welding machine applies the most advanced inversion technology in the world.

The principle of inversion is to transform the power frequency of 50Hz/60Hz into direct current and

invert it into high frequency (50KHz) through high-power device IGBT, then perform voltage-drop and

commutation with the output high-power D.C power supply via Pulse Width Modulation (PWM).

Since the switch power inversion technology is adopted, the weight and volume decrease greatly while

the conversion efficiency increased by more than 30%

The welding machine has the functions of MMA, TIG and MIG. It adopts full digital panel display, which

can realize synergic adjustment of feeding speed and welding voltage as well to regulate the welding

parameters easily.

Our CO2gas shielded welding machine is equipped with unique electronic reactor circuit, which can

precisely control the short-circuiting transfer and mixed transfer resulting in better performance than

other machines. Compared with silicon-controlled welding machines and tapped welding, our products

have the following advantages: stable wire feed rate, portable, energy-saving, electromagnetic noise

free. Besides, our products spatter less, easier arc starting, deep welding pool, high duty cycle etc.

This equipment is portable with full function of MMA and plasma cutting having merits of

high-efficiency; power-saving etc .It is especially suitable for family usage and need of different metals

or techniques demand.

Thank you for choosing our products. Please feel free to propose your valuable suggestions; we will

make efforts to perfect our products and service.

WARNING！

The machine can cause radio interference. The operator shall take preventative

measures to mitigate them.
