Rightline Gear 100A21 Manuel utilisateur

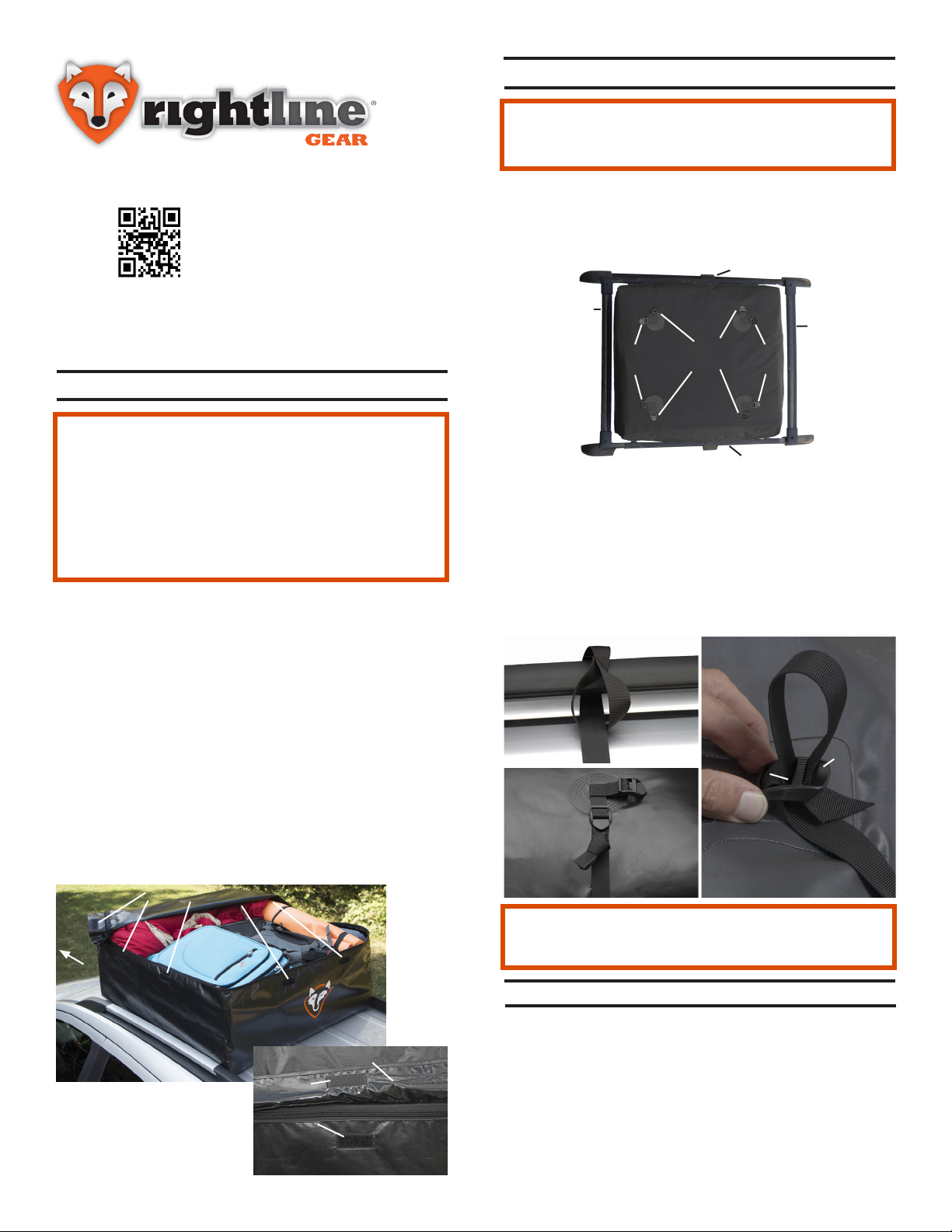

2-Unzip the carrier and place it on top of the vehicle with

its non-zippered end facing front.

3-Load your gear within the shape of the carrier (Fig 1).

Place sharp edged items in the middle and softer items

around them.

WARNING: DAMAGE MAY OCCUR TO THE CARRIER

IF EXCESS MATERIAL FLAPS IN THE WIND.

TO ELIMINATE EXCESS MATERIAL, PACK THE CARRI-

ER FULL. IF UNABLE TO PACK FULL, FILL THE FRONT

CORNERS OF THE CARRIER AND PULL THE EXCESS

MATERIAL DOWN OVER THE SIDES. HOLD THE EX-

CESS MATERIAL SECURELY IN PLACE WITH THE CAR-

RIER’S STRAPS.

4-Close the zipper as you ll the carrier from the front to

the rear.

2-Attach each strap by wrapping it around the rack,

threading its end through its loop, and pulling tight (Fig 5).

3-Thread the straps up through slot A and down through

slot B of the buckles (Fig 6) and tighten the straps evenly.

Pack The Carrier

Attach The Carrier - WITH A Roof Rack

The correct attachment of this product is critical and

beyond the control of Rightline Gear. The safe use

and long life of this product depends entirely on

your good judgment and following these directions.

Fig 1

Fig 2

1-Decide if you will be attaching the straps to the roof

rack side rails or cross bars. If side rails, the straps will

connect to the side buckles (Fig 4). If cross bars, the straps

will connect to the front and rear buckles (Fig 4).

Ace 2 Car Top Carrier RR 100A21

1-Clean the vehicle’s roof of all dirt and debris.

NOTE: REQUIRES SPACE UNDER THE ROOF RACK

SIDE RAILS OR CROSS BARS FOR THE CARRIER’S

ATTACHMENT STRAPS TO PASS THROUGH.

Fig 6

4-Tie off the strap ends so they don’t ap in the wind (Fig

7). Make sure to re-tighten the straps after a few miles

and check them regularly throughout the trip.

Fig 7

Hook-&-Loop Closures

Hook-&

-Loop

Closures

Protective Flap

Front

Fig 4

Fig 5

Side

Buckles Rear

Buckles

Front

Buckles

Front

Side Rail

Cross

Bar

Cross

Bar

www.rightlinegear.com/setup.html

Set Up

Video:

5-Fold the protective ap down to secure the hook-&-loop

closures (Fig 1 and Fig 2). Make sure the hook-&-loop clo-

sures on the zipper ap completely overlap those on the

carrier. If it is difcult to secure the closures, the carrier is

over packed.

NOTE: IF A STRAP MAKES NOISE WHILE DRIVING,

LOOSEN THE STRAP, RE-POSITION IT SLIGHTLY,

AND RE-TIGHTEN IT.

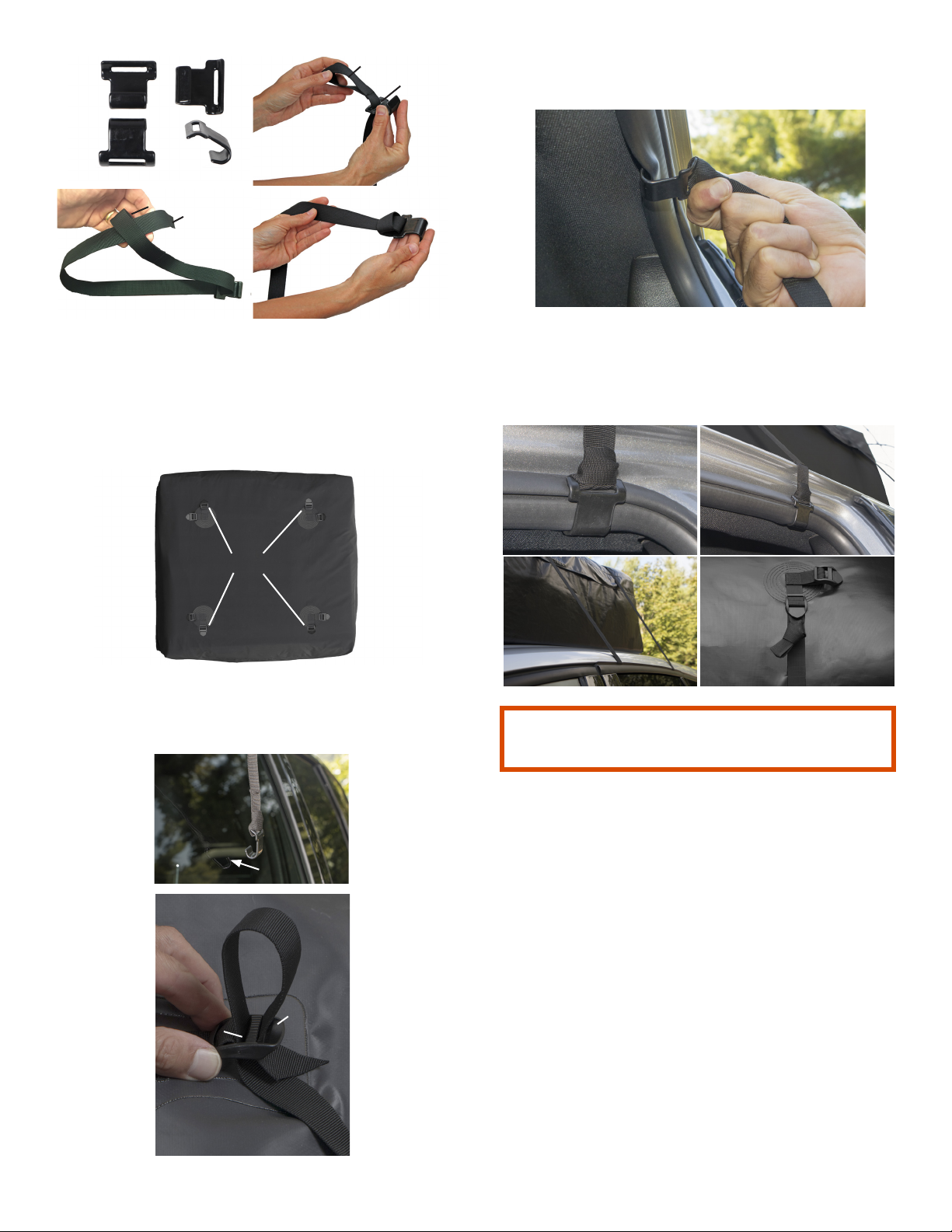

2-Run a strap’s loop through the backside of a Car Clip

(Fig 9).

Attach The Carrier - WITHOUT A Roof Rack

1-Purchase the Rightline Gear Replacement Car Clips

(Fig 8).

3-Thread the strap’s end through its loop (Fig 10).

4-Pull the strap’s end to tighten the strap around the Car

Clip (Fig 11).

7-Hold the straps with the Car Clips facing towards the

vehicle (Fig 13). Thread the straps up through slot A and

down through slot B of the buckles (Fig 14).

9-Tighten the straps evenly (Fig 16 and Fig 17) and shut

the vehicle’s doors over the clips/straps (Fig 18).

Fig 18

Fig 17

6-Line up the side buckles with the doors of the vehicle

(Fig 12). If a 4-door vehicle, (1) strap will attach to the

door frame weather molding in each of the (4) doors. If

a 2-door vehicle, (2) straps will attach to the door frame

weather molding in each of the (2) doors.

1 Year Manufacturer’s Limited Warranty

www.rightlinegear.com/product-warranty.html

5-Repeat steps 1-3 for the other (3) straps.

Fig 13

8-Open the vehicle’s doors and hook the Car Clips under

the door frame weather molding (Fig 15).

Fig 16

Fig 15

10-Tie off the strap ends so they don’t ap in the wind

(Fig 19). Make sure to re-tighten the straps after a few

miles and check them regularly throughout the trip.

Fig 11

Fig 10

Fig 19

Fig 12

Side Buckles

Loop

NOTE: IF A STRAP MAKES NOISE WHILE DRIVING,

LOOSEN THE STRAP, RE-POSITION IT SLIGHTLY,

AND RE-TIGHTEN IT.

Strap End

Fig 14

Front

Fig 8 Fig 9

Car Clip

Loop
