Ricoh B889 Manuel utilisateur
B889 - Fan Fold Unit
1
Slide 1
B889: FD6500A (Fan Folder)
B890-17/-27: FD6500B (Fan Fold Unit)
.
PURPOSE OF THE SECTION
The mechanisms of the optional Fan Fold Unit will be explained.
In the ‘video’ folder of this course, there are four videos to illustrate how the
Fan Fold Unit works. There is also a .doc file that contains a commentary.
Please use these for your training.
B889 - Fan Fold Unit
2
Slide 2
OVERVIEW
.
.
B889 - Fan Fold Unit
3
Slide 3
Model Details
The FD6500A can be installed with the B286 and
D046/D049.
When installing with D046/D049, it is necessary to
install the Bridge Unit BU6500 (D407).
B890-17/-27: FD6500B (Fan Fold Unit) must be
connected with B890-57 (Transport and Cross
Unit).
The Manual Feeder and Bridge Unit (connected to
the Fan Fold Unit) are assembled at the factory.
For details on the Transport & Cross Fold Unit,
refer to B890: Folder FD6500B (Cross Folder)
.
B889 - Fan Fold Unit
4
Slide 4

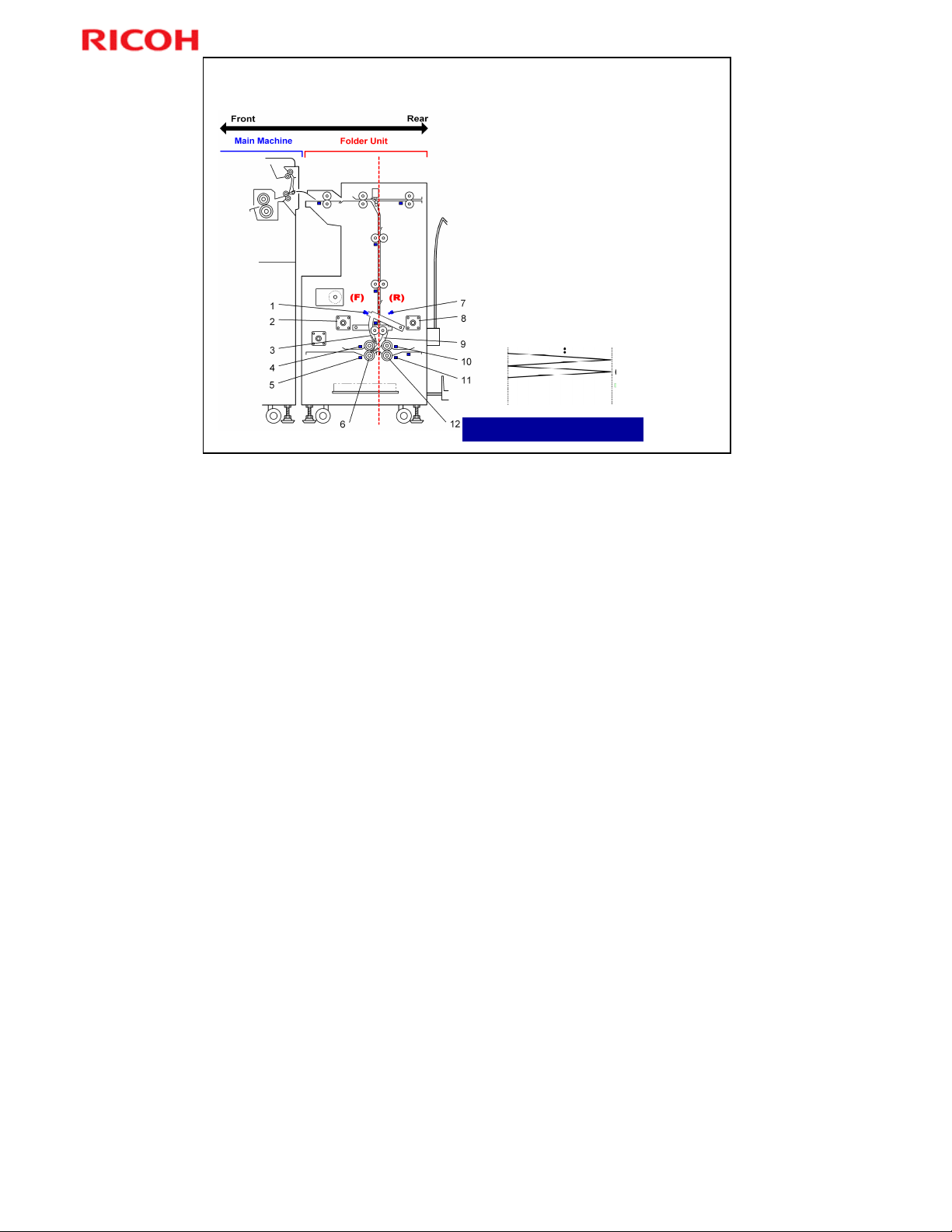

What is the Fan Fold Unit?
The Fan Fold Unit
receives output from the
copier, folds it, and feeds
it out to the exit at the
bottom rear of the unit.
Outputs can also go
straight through without
folding, and are fed out at
the top exit.
Example of Folded Output
.
B889 - Fan Fold Unit
5
Slide 5
Optional Manual Feeder
An optional manual feeder unit can be attached to the top of the
Fan Fold Unit.
Outputs made previously (or even on another machine) can be
fed from this manual feeder through the Fan Fold Unit, and these
outputs will be folded.
Main Machine Manual Feeder
Fan Fold Unit
.
B889 - Fan Fold Unit
6
Slide 6
Fan Fold Unit
Heater Switch Power Switch
Exit for Straight-
Through Output
Tray for Straight-
Through Output
Exit for Folded Output
Tray for Folded Output
Heater Switch: Turn this on manually when humidity is high, to prevent paper
from wrinkling. The heater remains on even after the Fan Fold Unit is
switched off.
Tray for Folded Output: the capacity of this tray is 1 copy only. Each copy
must be removed immediately, before the next copy is fed out.
B889 - Fan Fold Unit
7
Slide 7
Turning on the Power
The power on/off sequence is important.
To turn the Fan Fold Unit on
1. First, switch on the Fan Fold Unit.
2. Next, switch on the main machine.
The Fan Fold Unit must be turned on first. Otherwise, the
Fan Fold Unit will not recognize the main machine.
To turn the Fan Fold Unit off
1. First, switch off the main machine.
2. Next, switch off the Fan Fold Unit.
The main machine must be switched off first.
Switching off the folder first will cause an alarm. If this
occurs:
» 1. Switch the Fan Fold Unit on again.
» 2. Switch off the main machine.
» 3. Switch off the Fan Fold Unit.
.
B889 - Fan Fold Unit
8
Slide 8
Operation Modes
If the manual feeder is installed, there are three
operating modes.
Full operation mode
System offline mode
Independent offline mode
.
B889 - Fan Fold Unit
9
Slide 9
Full Operation Mode
The main machine and Fan Fold Unit are both powered on
and online.
If the Online indicator is not lit, press the Online/Offline
button to put the folder online.
Paper feeds from the main machine.
A junction gate inside the Fan Fold Unit determines
whether the paper goes straight through, or down to the
folder mechanism.
.
B889 - Fan Fold Unit
10
Slide 10
System Offline Mode
The main machine and Fan Fold Unit are both powered on,
but the folder is offline.
If the Online indicator is lit, press the Online/Offline button
to take the folder offline.
Each unit can be used independently of the other.
To use the folder in this mode, feed the paper from the
manual feeder.
.
