Ricoh MP CW2201sp Manuel utilisateur

Copy

CIP Training

MP CW2201SP

CIP Training

Copy

MP CW2201SP

3. Copy

This chapter describes frequently used copier functions and operations. For information not included in

this chapter, see Copy/ Document Server available on our website.

Basic Procedure

To make copies of originals, place them on the original table. For details, see page 60 "Placing

Originals on the Original Table".

To specify output locations for originals, see "Output Locations for Originals", Paper Specifications and

Adding Paper.

To copy onto paper other than plain paper, specify the paper type in User Tools according to the weight

of the paper you are using. For details, see "System Settings", Connecting the Machine/ System

Settings.

To get the output basket ready, see page 29 "Setting the Output Basket".

When Using the Copy Application

About how to use the application's screen, see page 43 "[Copy] Screen".

When Using the Copier (Classic) Application

1. Press [Home] ( ) at the bottom of the screen in the center.

2. Flick the screen to the left, and then press the [Copier (Classic)] icon.

3. Make sure that no previous settings remain.

When there are previous settings remaining, press [Reset].

4. Specify the output location for originals.

If the rear original stackers are installed, originals are ejected onto the original stackers. If the

rear original stackers are not installed, originals are ejected onto the original output guides.

5. Select an original orientation that matches the orientation of your originals.

6. Make desired settings.

7. Enter the number of copies with the number keys.

The maximum copy quantity that can be entered is 99.

CIP Training

Copy

MP CW2201SP

8. Place the original on the original table.

The original feeds into the machine automatically, and copying starts.

If [Press Start Key] is selected for [Feed Start Method], copying starts after you press [Start].

9. When the copy job is finished, press [Reset] to clear the settings.

3. Copy

CIP Training

Copy

MP CW2201SP

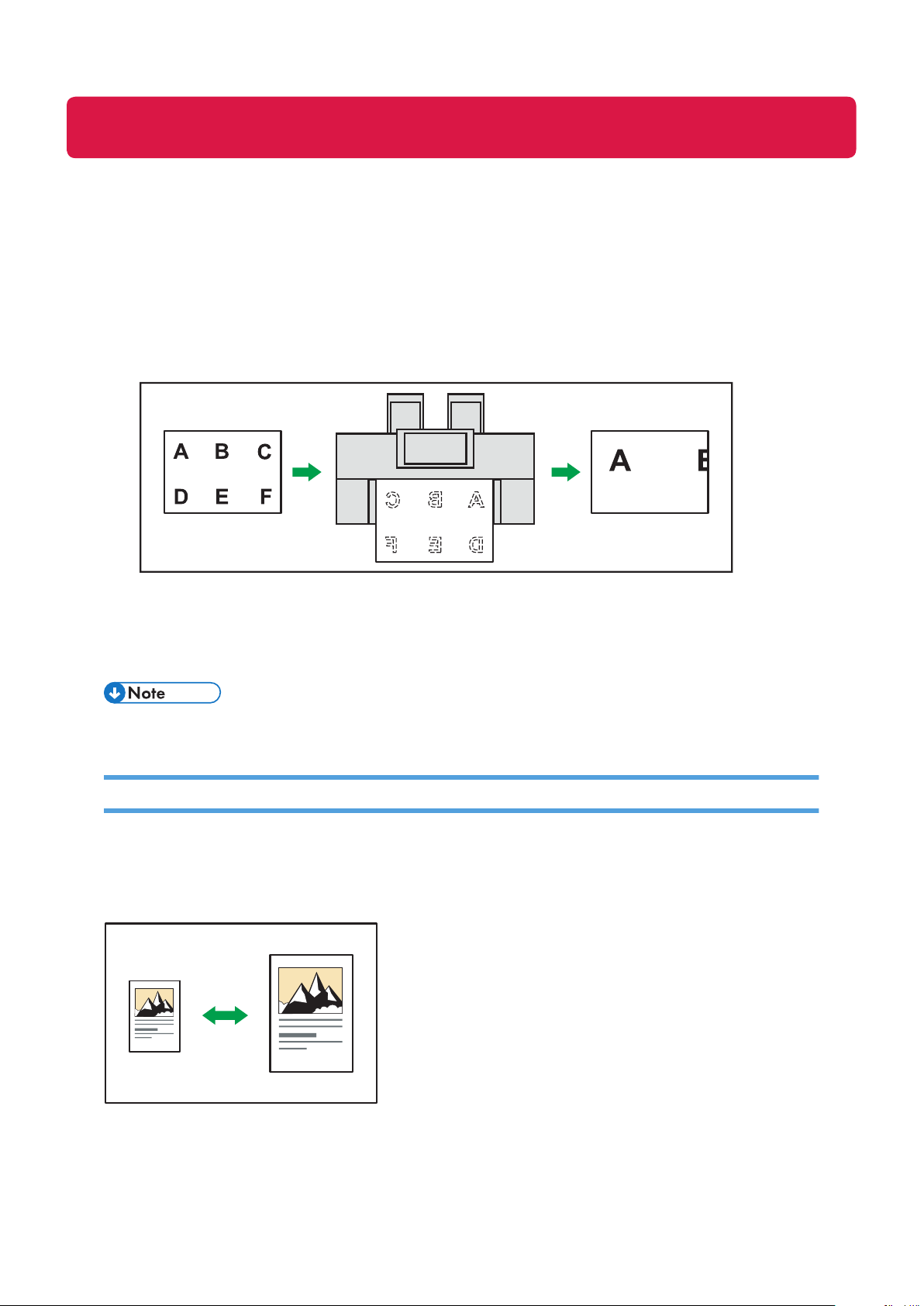

Reducing or Enlarging Originals

This section describes methods of reducing or enlarging images by specifying a reproduction ratio, or a

paper size.

Base Point

The upper right corner is the base point.

CPH016

In addition to the functions described in this section, advanced reduce/enlarge copy functions are also

available. For details about these functions, see "Advanced Reduce/Enlarge Copying", Copy/

Document Server.

• The reproduction ratio is between 25.0 and 400.0%.

Preset Reduce / Enlarge

This function allows you to reduce or enlarge images by selecting a preset ratio.

You can register up to three frequently used reproduction ratios other than the preset reduce/enlarge

ratios.

CKN004

Reducing or Enlarging Originals

CIP Training

Copy

MP CW2201SP

When Using the Copy Application

About how to use the application's screen, see page 43 "[Copy] Screen".

When Using the Copier (Classic) Application

1. Press [Reduce / Enlarge].

2. Select a ratio, and then press [OK].

3. Place the original, and start scanning.

Zoom

You can specify the reproduction ratio in increments of 0.1%.

3. Copy

CIP Training

Copy

MP CW2201SP

CKN007

When Using the Copy Application

About how to use the application's screen, see page 43 "[Copy] Screen".

When Using the Copier (Classic) Application

To specify a reproduction ratio, enter the ratio using the number keys or specify the ratio with [ ]

or [ ].

This section describes how to enter the ratio using the number keys.

1. Press [Reduce / Enlarge].

2. Press [Number keys].

Reducing or Enlarging Originals

CIP Training

Copy

MP CW2201SP

3. Enter the desired ratio with the number keys, and then press [ ].

4. Press [OK] twice.

5. Place the original, and start scanning.

Auto Reduce / Enlarge

The machine automatically detects the original size and then selects an appropriate reproduction ratio

based on the paper size you select.

CKN008

•

This is useful to copy different size originals to the same size paper.

To ensure the print result you require is produced, specify the original orientation before using Auto

Reduce / Enlarge. Make sure that the original orientation setting matches the actual orientation of your

original. For details, see "Original Orientation", Copy/ Document Server.

The original sizes and orientations you can use with this function are as follows:

(mainly Europe)

A0 , A1 , A2 , A3 , A4 , B1 JIS , B2 JIS , B3 JIS , B4 JIS

(mainly North America)

• Engineering

3. Copy

CIP Training

Copy

MP CW2201SP

E (34 × 44) , D (22 × 34) , C (17 × 22) , B (11 × 17) , A (81/2× 11)

• Architecture

E (36 × 48) , D (24 × 36) , C (18 × 24) , B (12 × 18) , A (9 × 12)

• Others

81/2× 12 , 81/2× 13 , 81/2× 14 , 11 × 14 , 11 × 15 , 12 × 141/2, 30 × 21 ,

30 × 42

When Using the Copy Application

About how to use the application's screen, see page 43 "[Copy] Screen".

When Using the Copier (Classic) Application

1. Press [Auto Reduce / Enlarge].

2. Select the paper size.

3. Place the original, and start scanning.

User Auto Reduce / Enlarge

When the original is placed, the machine automatically enlarges or reduces the image to fit the paper

size specified in advance.

•

Using User Tools allows you to specify how much each original is enlarged or reduced.

Reducing or Enlarging Originals

CIP Training

Copy

MP CW2201SP

You can select the following combinations:

(mainly Europe)

Original size Copy size

A0 A0, A1, A2, A3, A4, B1 JIS, B2 JIS, B3

JIS, B4 JIS

B1 JIS

B2 JIS

B3 JIS

B4 JIS

(mainly North America)

Original size Copy size

Engineering E (34 × 44) E (34 × 44), D (22 × 34), C (17 × 22),

B (11 × 17), A (81/2× 11)

D (22 × 34)

C (17 × 22)

B (11 × 17)

A (81/2× 11)

Architecture E (36 × 48) E (36 × 48), D (24 × 36), C (18 × 24),

B (12 × 18), A (9 × 12)

D (24 × 36)

C (18 × 24)

B (12 × 18)

A (9 × 12)

3. Copy
