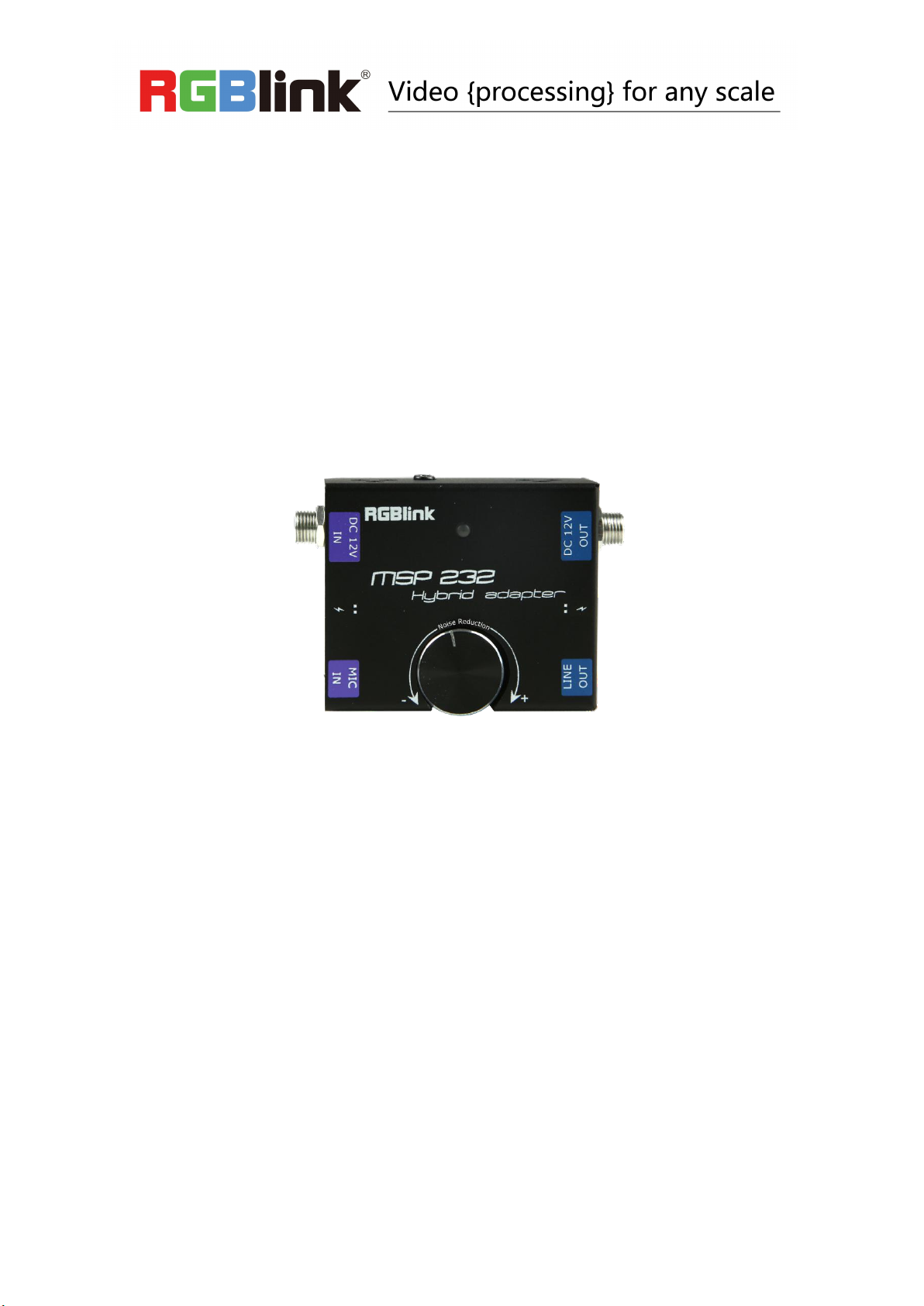

RGBlink MSP 232 Manuel utilisateur
●Mic to line level pre-amp
●Variable impedance
●Txtend microphone compatibility &
device support
●Dual USB power outputs
●Convenient DC power thru
MSP 232
Quick Start
© Xiamen RGBlink Science & Technology Co., Ltd.
2/9
Content
PRODUCT INTRODUCTION.................................................................................................................. 3
PACKING CONFIGURATION..................................................................................................................4
HARDWARE ORIENTATION.................................................................................................................. 5
Front Panel.................................................................................................................................. 5
Interface Panel.............................................................................................................................6
USE YOUR PRODUCT............................................................................................................................7
Connection.................................................................................................................................. 7
Power：...............................................................................................................................7
Audio:.................................................................................................................................. 8
CONTACT INFORMATION............................................................................................................. 9
© Xiamen RGBlink Science & Technology Co., Ltd.
3/9
PRODUCT INTRODUCTION
The MSP 232 is a converter of microphone to line level pre-amp. It is developed
based on mini's requirement for the microphones without power supply.It is also
developed with function of noise reduction.
The development of MSP 232 is composed of two parts, one is for microphone to
linear audio, the other is for DC power,which is divided into 12V and USB 5V, and
USB 5V power supply supports most intelligent devices in the market.
RGBlink offers solutions to demanding technical problem. Any application questions, or required
further information, please contact with our customer Support Engineers.

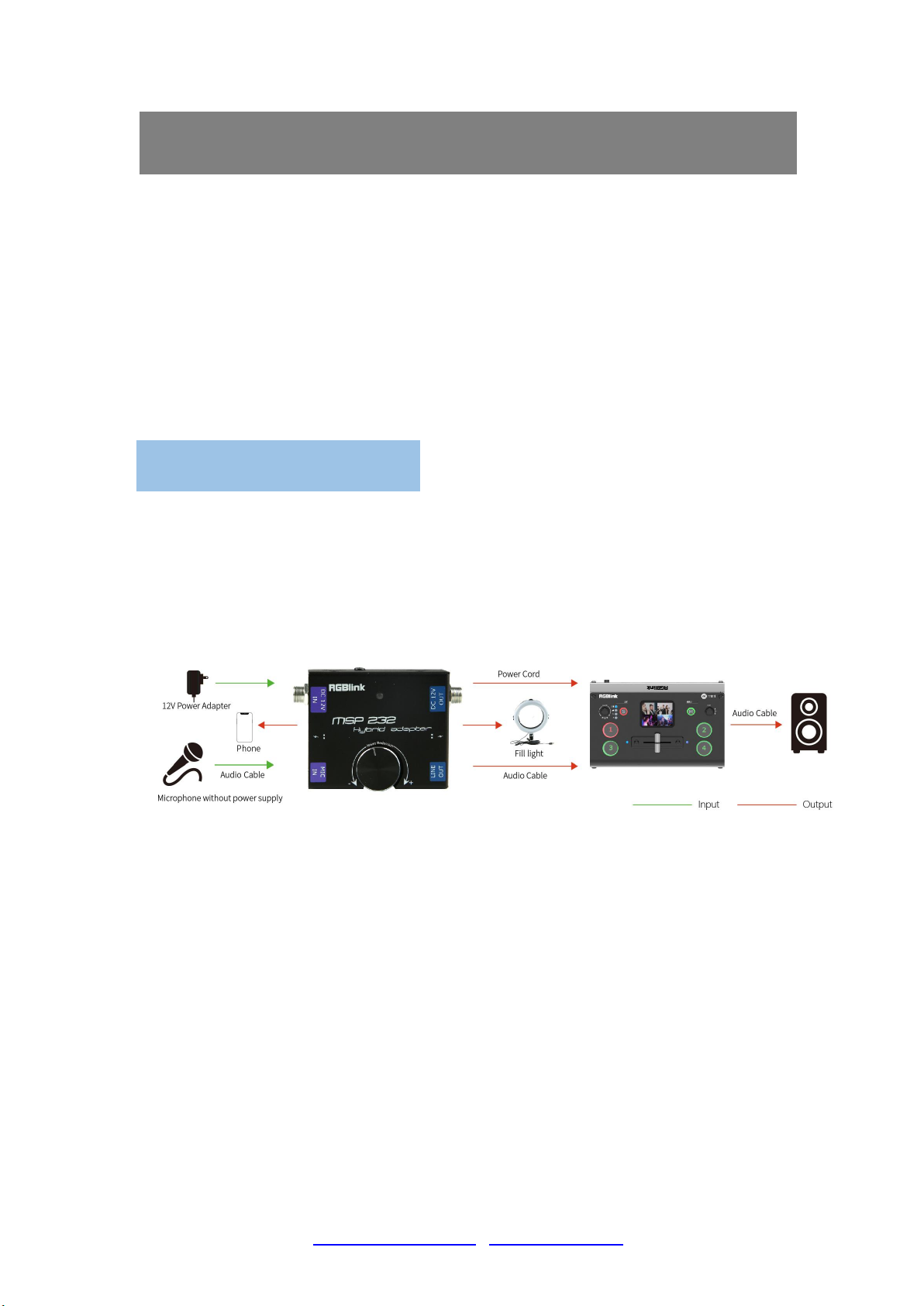

System Connection Diagram
MSP 232 System Connection
© Xiamen RGBlink Science & Technology Co., Ltd.
4/9

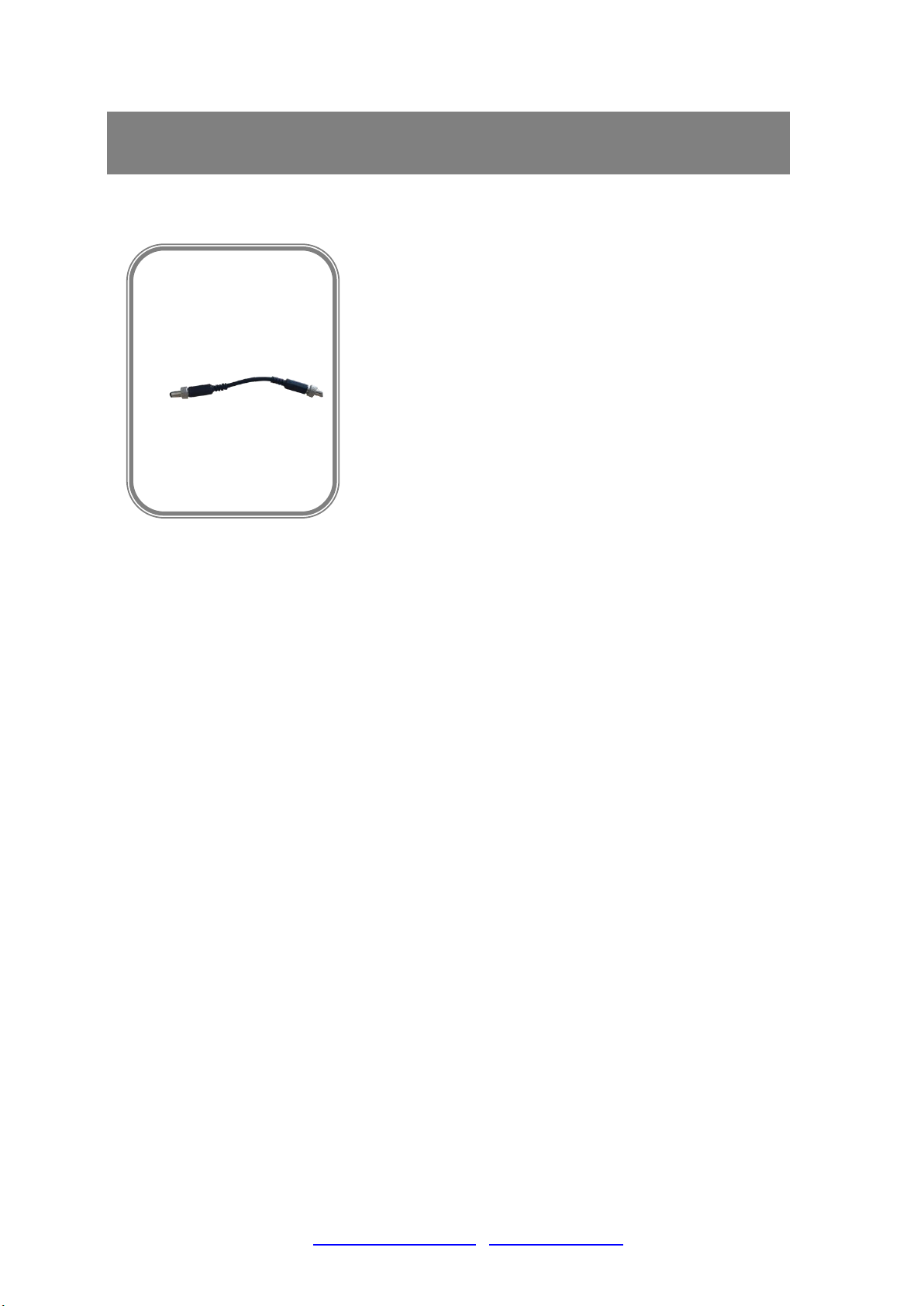

PACKING CONFIGURATION
Power Switch Cable
© Xiamen RGBlink Science & Technology Co., Ltd.
5/9
HARDWARE ORIENTATION

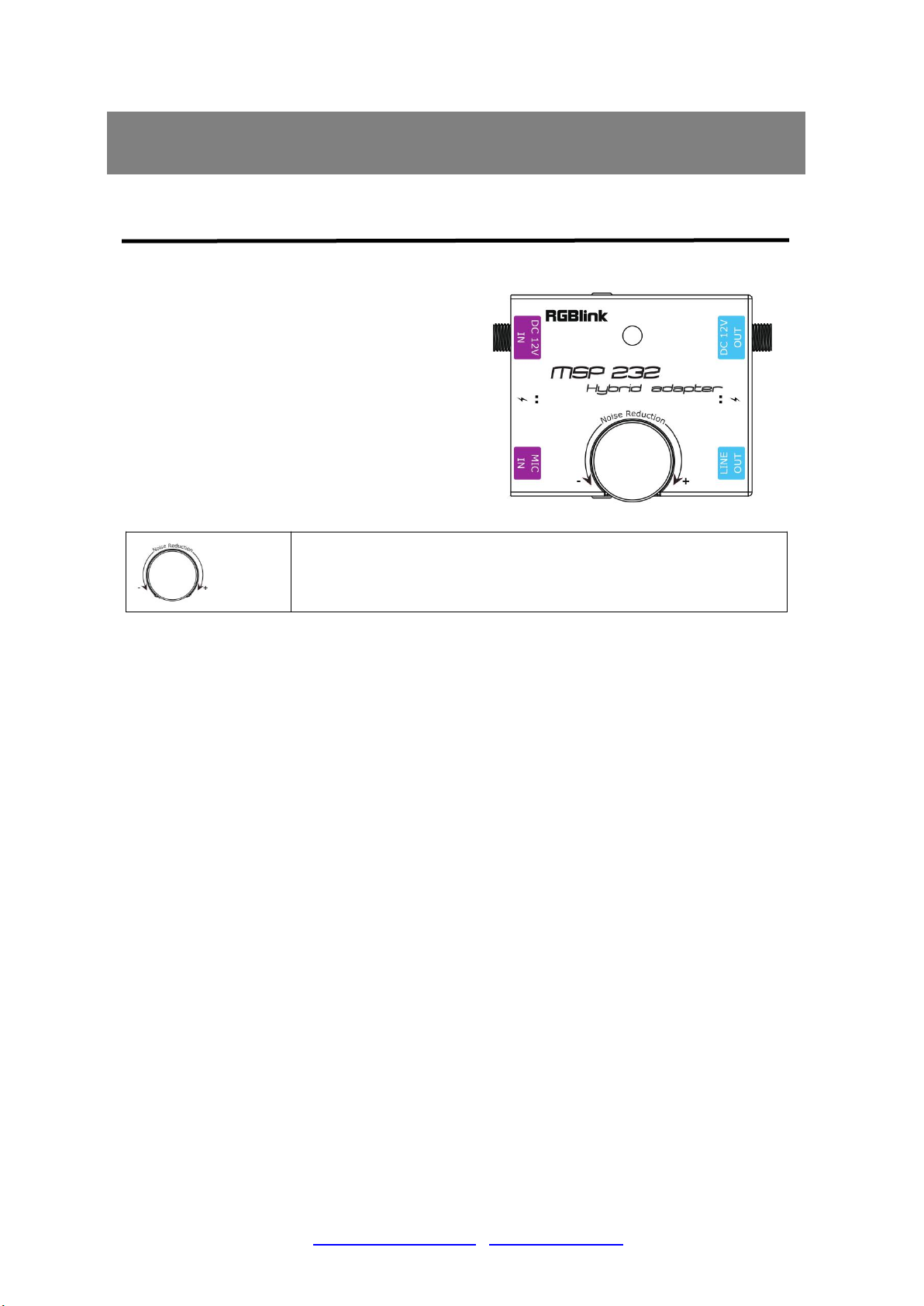

Front Panel
Rotate the knob to adjust noise reduction
© Xiamen RGBlink Science & Technology Co., Ltd.
6/9

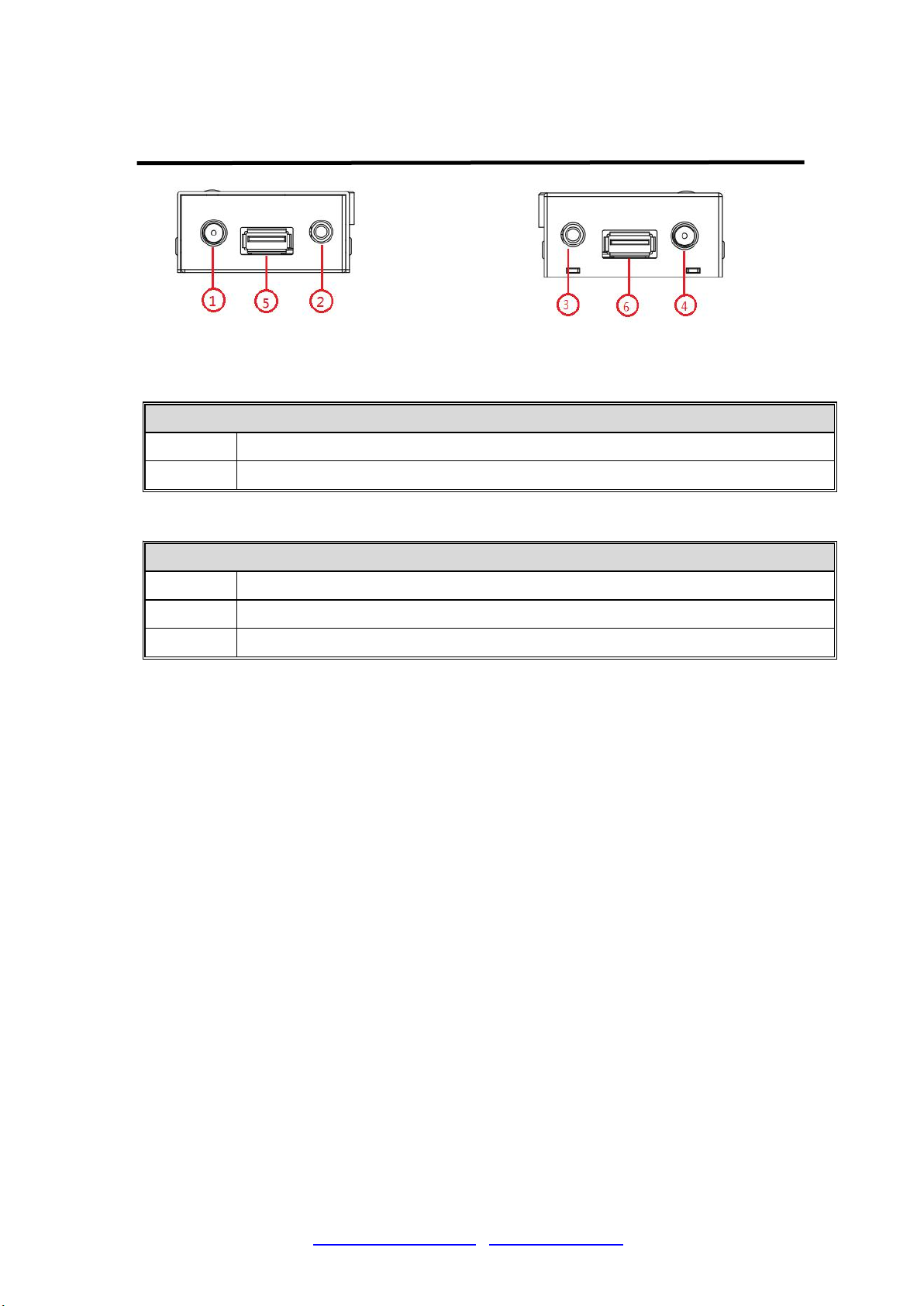

Interface Panel
INPUT CONNECTORS
1
12V/1A Power jack
2
3.5mm Audio jack
OUTPUT CONNECTORS
3
3.5mm Audio jack
4
12V/1A Power jack
5/6
USB Power Supply
Left View
Right View
© Xiamen RGBlink Science & Technology Co., Ltd.
7/9

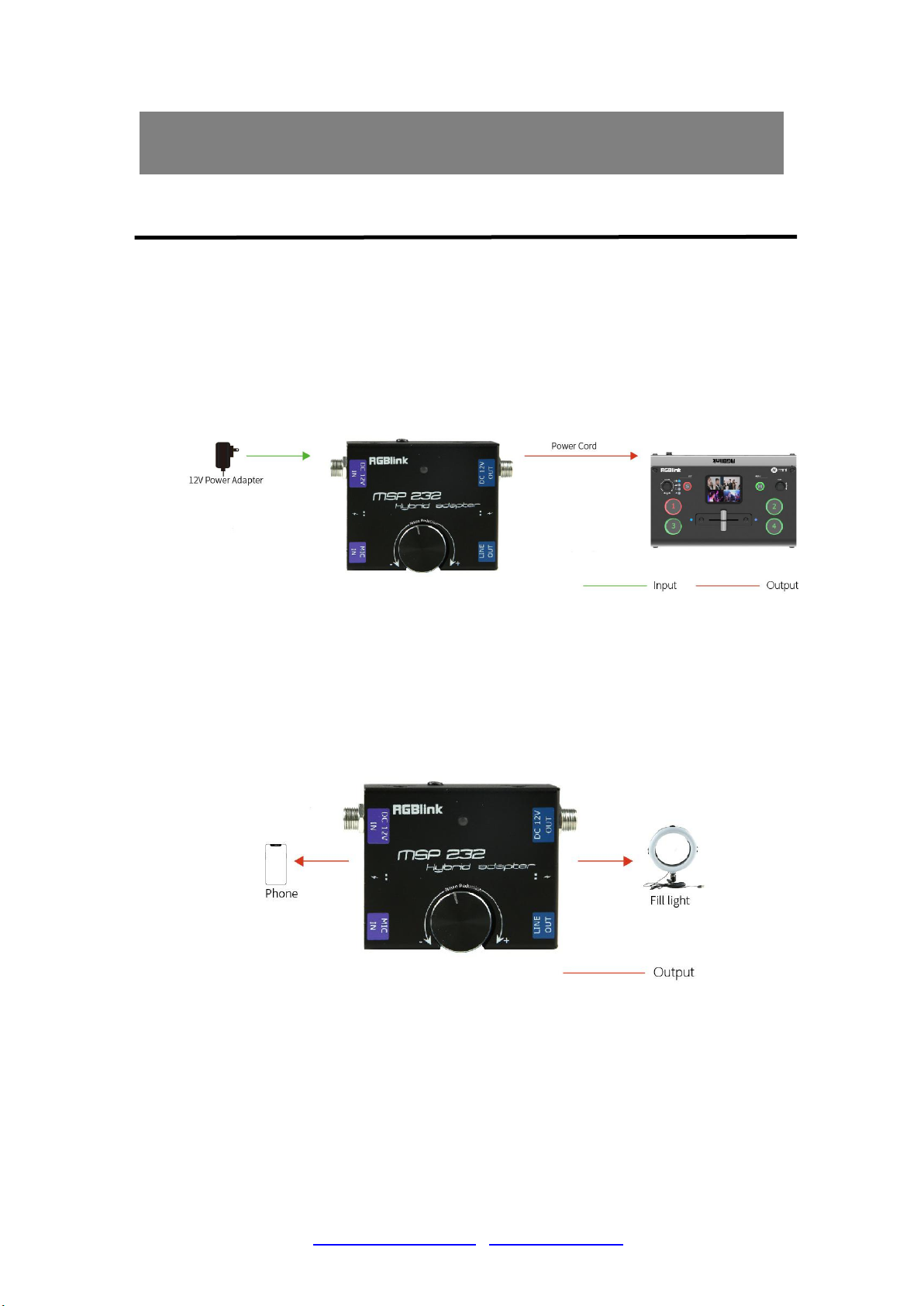

USE YOUR PRODUCT
Connection
Power：
Connect MSP 232 input power jack with 12V/1.5A adapter,and connect MSP 232
output power jack and mini/mini+ or other devices supported 12V/1.5A with 6CM
power switch cable.As shown in the figure below:
Two USB power output:5V/1A(per port),5V/500mA(MAX).It can supply power to
phone,fill light or other devices supported 5V/500mA.As shown in the figure below:
© Xiamen RGBlink Science & Technology Co., Ltd.
8/9

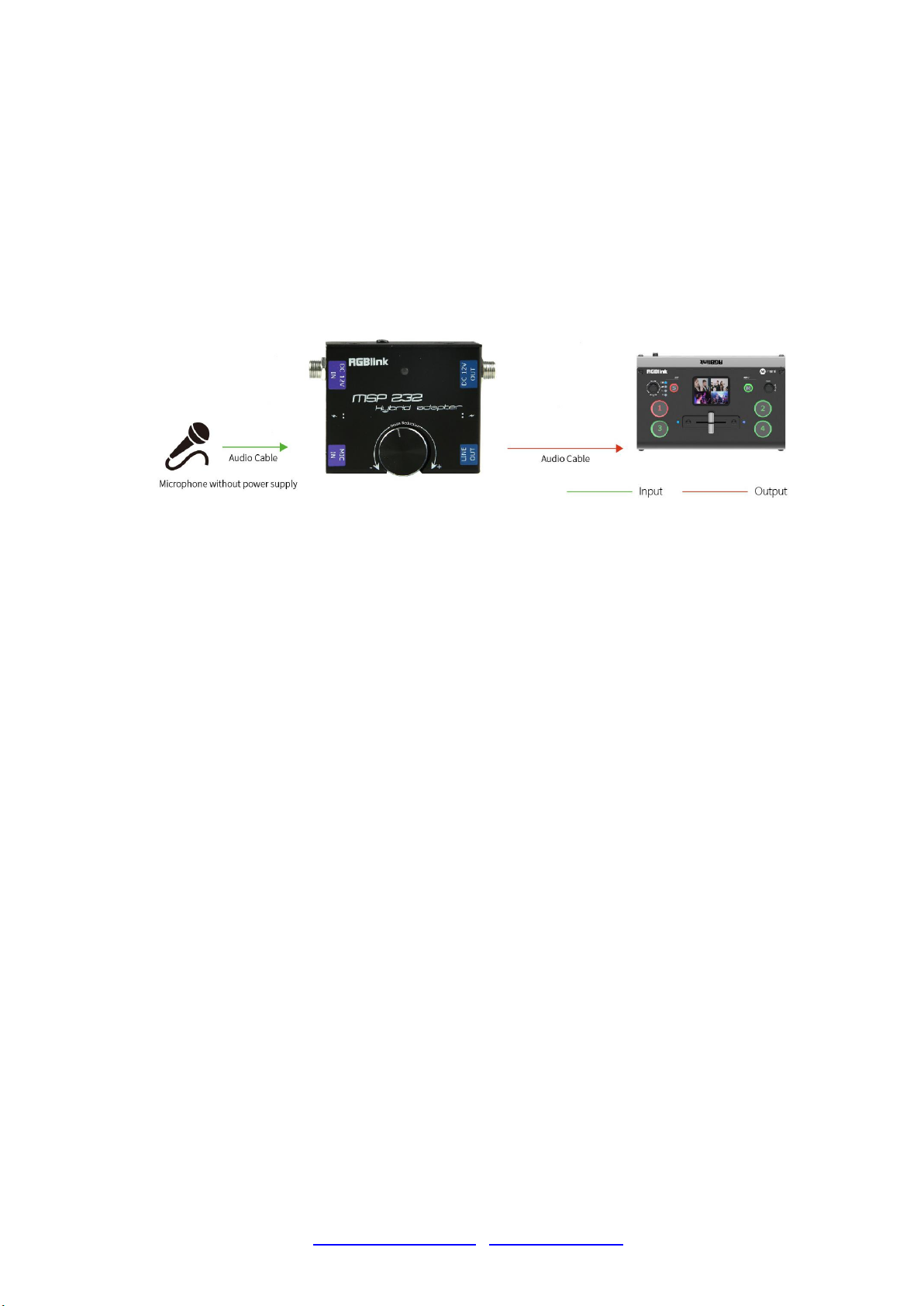

Audio:
Connect MSP 232 audio input jack and microphone without power supply with
3.5mm audio cable,and also connect audio output jack and mini or other devices
with audio cable.As shown in the figure below:
© Xiamen RGBlink Science & Technology Co., Ltd.
9/9
CONTACT INFORMATION
Warranty:
All video products are designed and tested to the highest quality standard and backed by full 3
years parts and labor warranty. Warranties are effective upon delivery date to customer and are
non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty
related repairs include parts and labor, but do not include faults resulting from user negligence,
special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages.
The customer shall pay shipping charges when unit is returned for repair.
Headquarter: S601~605 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,
Fujian Province, P.R.C
● Tel: +86-592-5771197
● Fax: +86-592-5788216
● Customer Hotline: 4008-592-315
● Web:
~ http://www.rgblink.com
~ http://www.rgblink.cn
● E-mail: support@rgblink.com
