RGBlink Mini Manuel utilisateur

●4 HDMI inputs, 1 HDMI output

●6 images multi-view, switch between preview and program

●2.1 inch TFT full color screen

●Support MIC and LINE audio input, multi-channel mix audio

●Image scaling & croping

●Support PIP,PBP

●Support T-Bar switch

●LOGO overlay

●Support PC and APP control

●Optimized heat dissipation performance

●Integrated design, compact and portable

Quick Start

Ph: +86 592 5771197 |[email protected] |www.rgblink.com

1/22

CONTENTS

Product Introduction...................................................................................................................................................2

Packing Configuration................................................................................................................................................. 3

Hardware Orientation................................................................................................................................................. 4

Front Panel.......................................................................................................................................................... 4

Interface Panel.....................................................................................................................................................5

Use Your Product......................................................................................................................................................... 6

MENU.................................................................................................................................................................. 6

Input............................................................................................................................................................ 7

HDMI........................................................................................................................................................... 7

USB3.0 ........................................................................................................................................................ 8

Audio........................................................................................................................................................... 8

Logo Overlay................................................................................................................................................9

IP Setting......................................................................................................................................................9

Language................................................................................................................................................... 10

Fan Control................................................................................................................................................ 10

Factory Reset............................................................................................................................................. 11

Info.............................................................................................................................................................11

S Button............................................................................................................................................................. 12

MIX............................................................................................................................................................ 12

MODE........................................................................................................................................................ 12

PIP..............................................................................................................................................................13

Switch Source.................................................................................................................................................... 13

XPOSE mini Operation.......................................................................................................................................15

YouTube Streaming............................................................................................................................................19

Contact Information.................................................................................................................................................. 21

Ph: +86 592 5771197 |[email protected] |www.rgblink.com

2/22

Product Introduction

Introducing new mini.

With all the features of the preceding model including the unique built in LCD preview display, the mini

streaming switcher features four HDMI high-definition inputs, a configurable HDMI output and USB3.0

streaming output to connect with virtually any laptop or streaming platform.

PIP picture in picture receives a boost in this new release, with dual fully scalable video windows in any position

possible.

Make use of audio from multiple sources with mix including Line and TRRS connectors as well as supporting

headphone/mic combinations.

mini is powered via standard USB-C port for even greater compatibility and mobile live flexibility.

With industry leading hardware performance and reliability, along with superior heat management and

dissapation, mini is the must have mini streaming switcher.

mini is light and robust at only 480gm thanks to an all new impact resistant, precision pressure cast ABS

housing.

System Connection Diagram

mini System Connection Diagram

Ph: +86 592 5771197 |[email protected] |www.rgblink.com

3/22

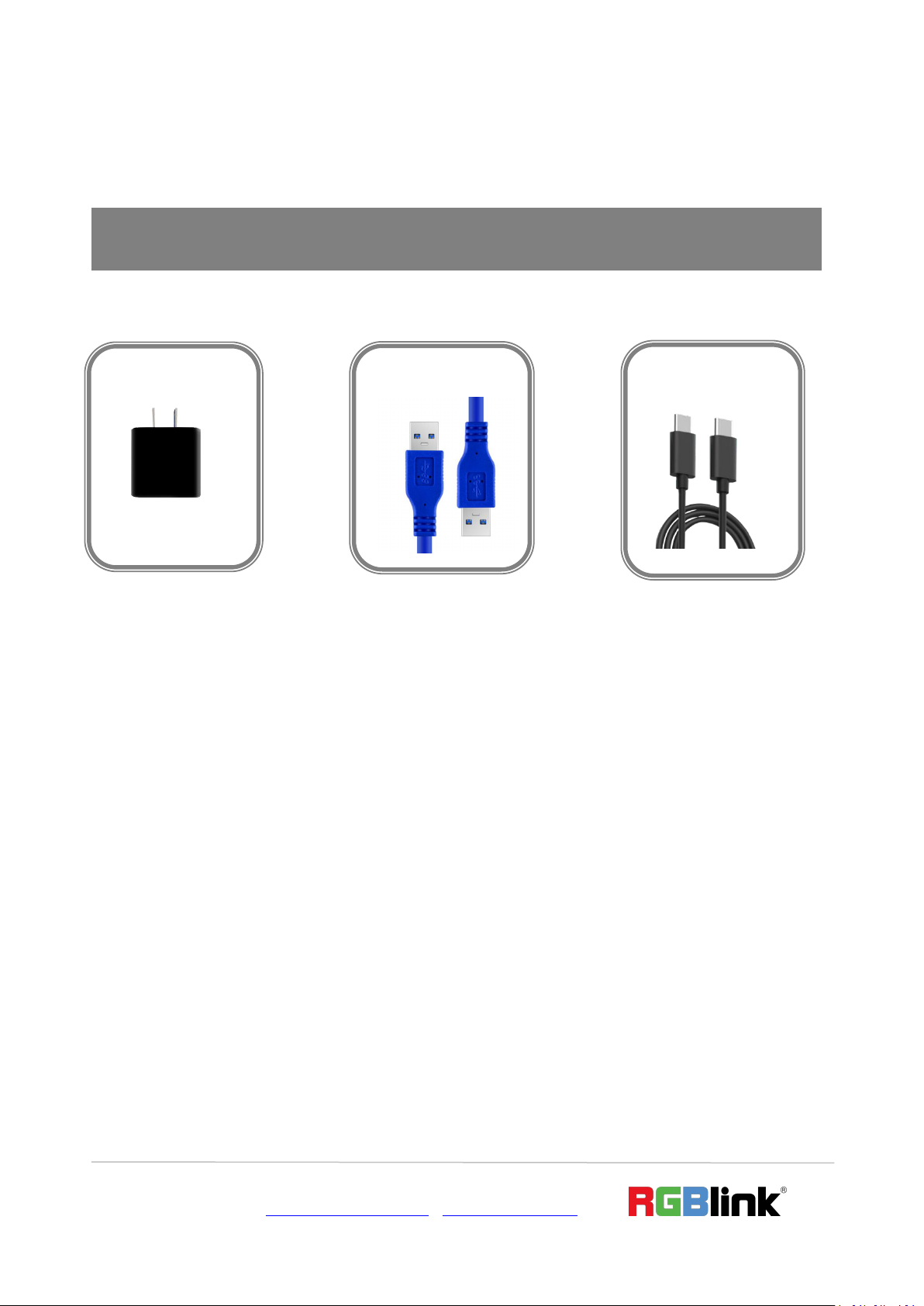

Packing Configuration

Power Adapter

USB3.0 Cable

Type-C cable

Ph: +86 592 5771197 |[email protected] |www.rgblink.com

4/22

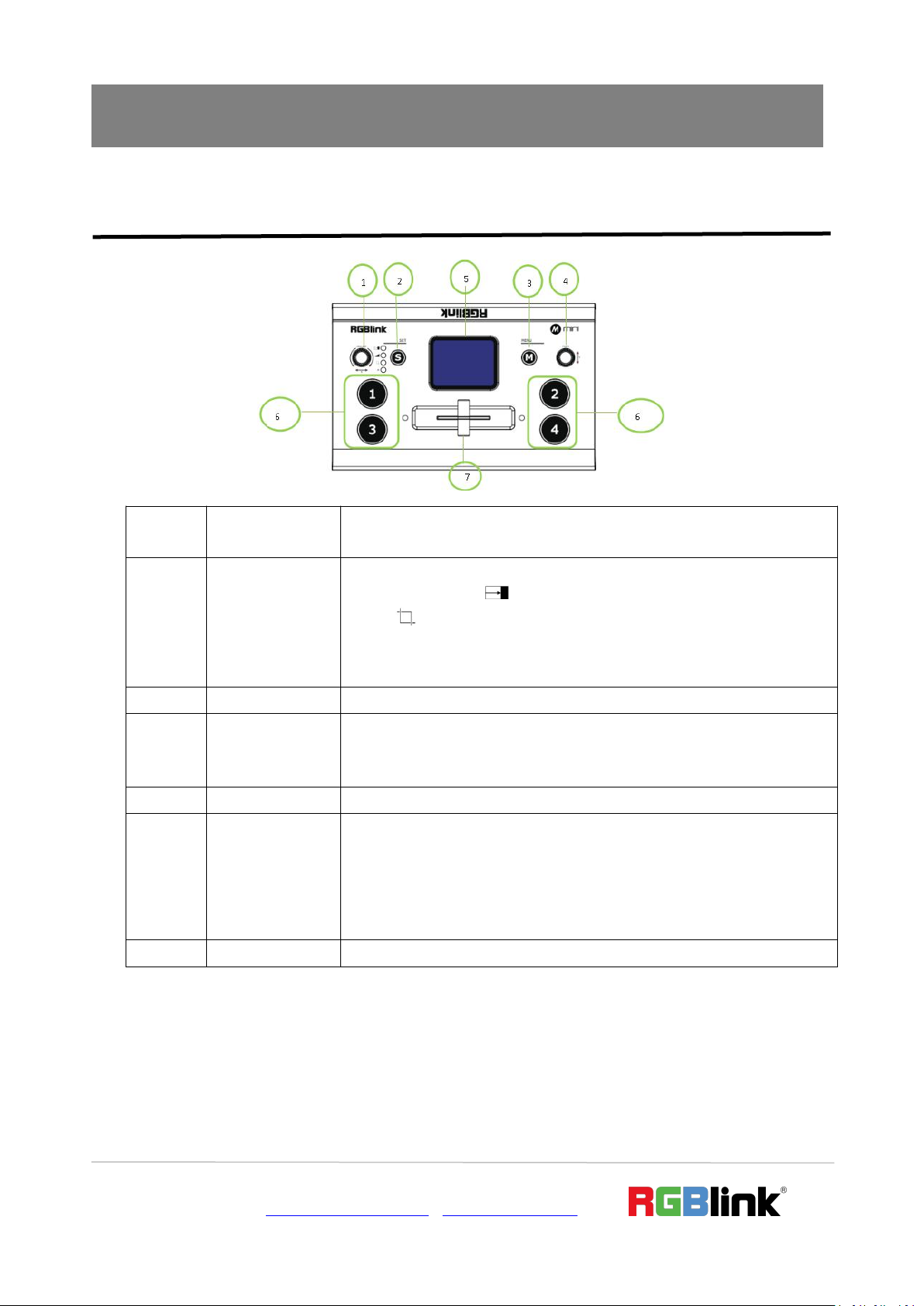

Hardware Orientation

Front Panel

VOLUME/X

Turn the knob to adjust volume or select items and attributes

Control camera left-right spinning when it is in PTZ setting

Shortcuts

For shortcut & selection of features

1. Transition Effect ( ),

2. PIP( ),

3. Volume Control

M(menu)

Menu and back button

PUSH/Y

Y:turn knob to select menu item, push to confirm

PUSH:Push knob to quickly switch HDMI Out between 6-Picture PVW

and PGM when 2.1 inch TFT is under the state of previewing

TFT Display

To display 4 inputs and menu

1,2,3,4

For signal switching and visual status

1. red: is on air (PGM),

2. static green: signal is standing by,

3. flashing green: ready to be switched,

4. no light: input source is not supported

T-Bar

Manual switch, push to left end or right end to switch signal to PGM

Ph: +86 592 5771197 |[email protected] |www.rgblink.com

5/22

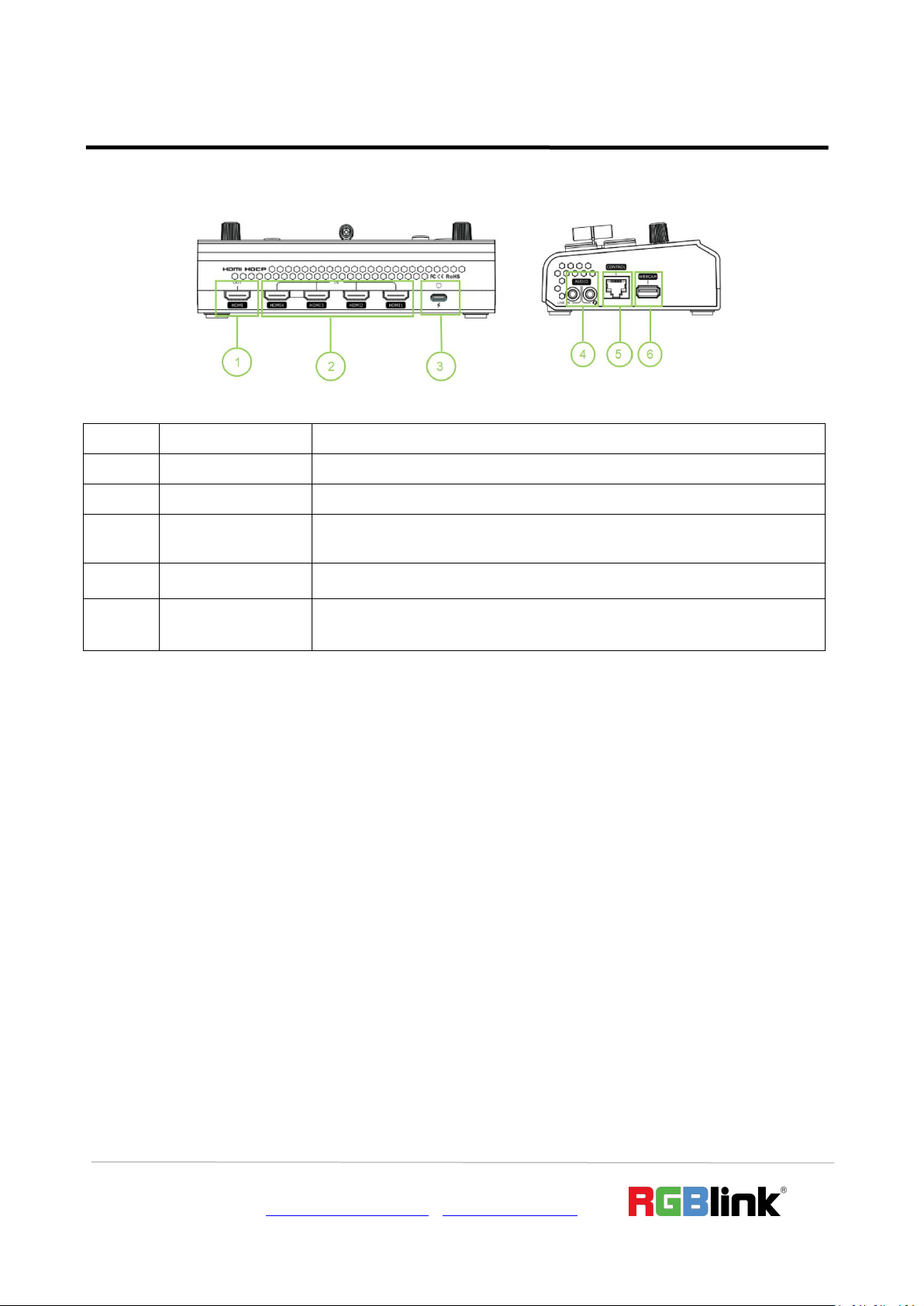

Interface Panel

HDMI OUT

1 HDMI output port, connect to display to show multi-view

HDMI IN

4 HDMI inputs, connect to input source from HD camera or PC

Type-C

1 type-C power interface

AUDIO IN/OUT

AUDIO In, analog audio input port, connect to microphone with power

AUDIO OUT, analog audio output port, connect to loudspeaker

LAN

Communication port to link dedicated software for control

USB

USB 3.0 output, capture signal via third party streaming software and push

to live broadcasting websites

Ph: +86 592 5771197 |[email protected] |www.rgblink.com

6/22

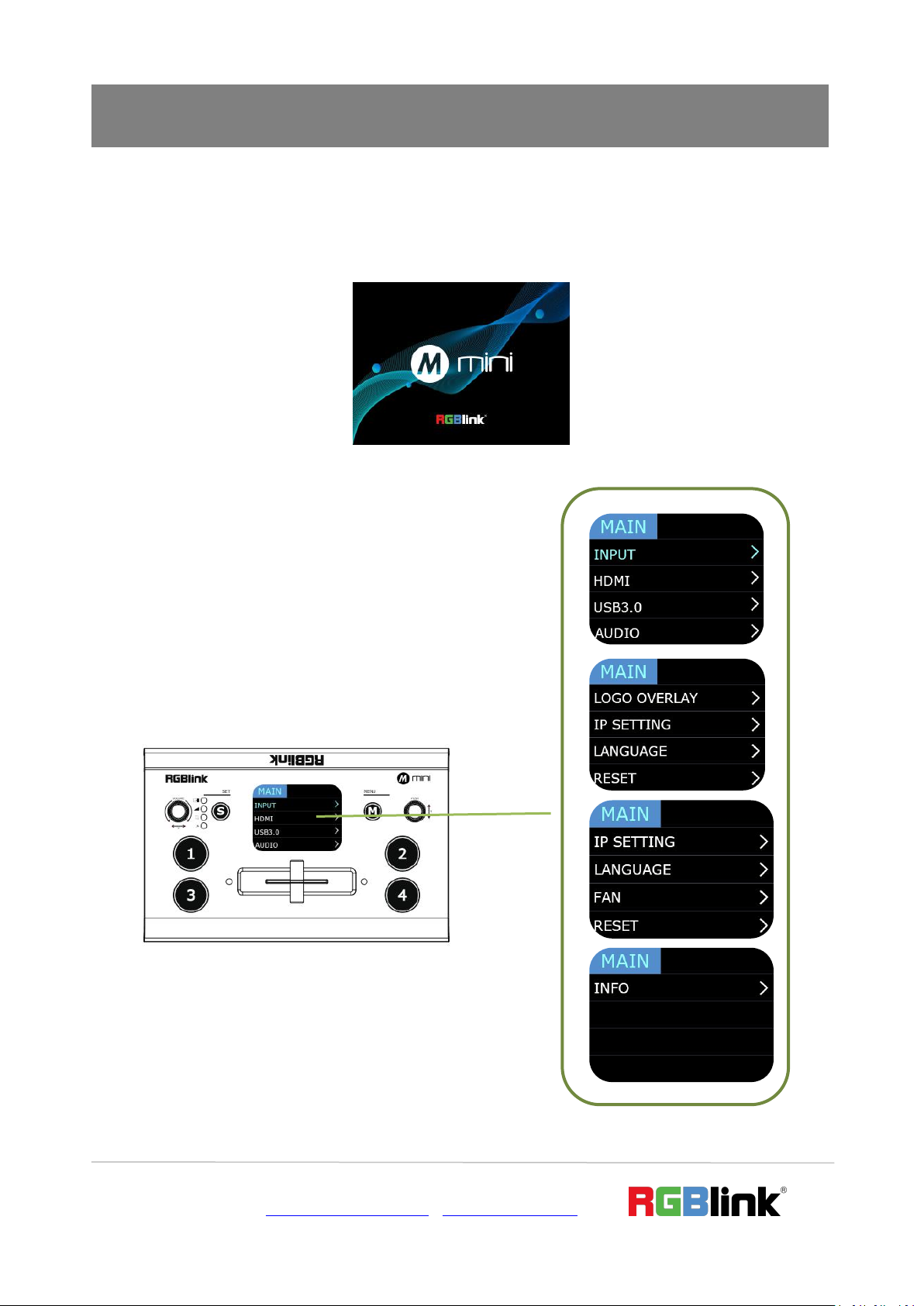

Use Your Product

Main Menu

When mini is power on, the native TFT display show starting up page.

After mini is powered on, push button M to enter the

main menu. Main Menu include:INPUT, HDMI,

USB 3.0. AUDIO, LOGO OVERLAY, IP SETTING,

LANGUAGE, FAN, RESET, INFO

Ph: +86 592 5771197 |[email protected] |www.rgblink.com

7/22

Input

HDMI

1.Push

「M」

button(MENU) to enter main menu

and select first menu item<INPUT>,push「Y」

knob to enter <INPUT>menu.

2.The input menu displays the information of the

input signal source.

If there is no input source, it displays: NO

INPUT.

1.Push MENU and select the second menu item

<HDMI>

Push「Y」knob to enter <HDMI> menu.

2.Rotate 「Y」knob to select PVW output and

PGM output for HDMI.

Output：PVW or PGM

Format：1920×1080@60

Ph: +86 592 5771197 |[email protected] |www.rgblink.com

8/22

USB3.0

Audio

1.Push MENU, rotate and push「Y」knob to enter

the third menu item<USB3.0>

2.Rotate 「Y」knob to select PVW output and

PGM output for HDMI.

Output：Choose PGM or PVW

Format：1920×1080@60

1.Push MENU,rotate and push 「Y」knob to

enter the fourth menu item<AUDIO>

2.Rotate 「Y」knob to select

Input

Input: MIC, LINE or OFF

Volumn: 1-100

HDMI 1/2/3/4

HDMI 1/2/3/4: MIC, LINE or OFF

AFV: ON/OFF

Volumn: 1-100

Column:ON/OFF

Ph: +86 592 5771197 |[email protected] |www.rgblink.com

9/22

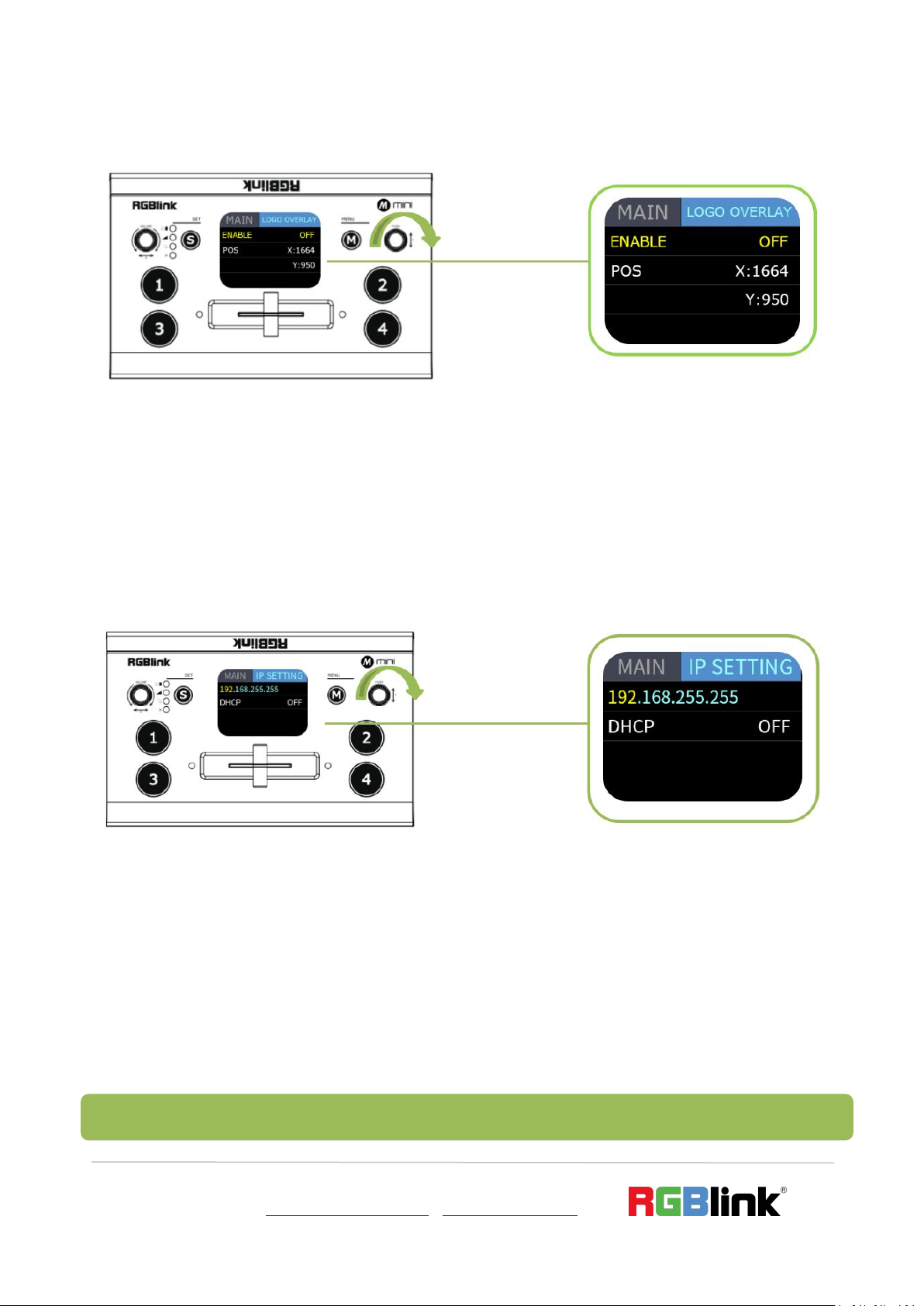

Logo Overlay

IP Setting

1.Push MENU,rotate and push 「Y」knob to enter

the fourth menu item<LOGO OVERLAY>

2.Rotate 「Y」knob to select

Enable: ON/OFF

POS: set the position of overlay

Push MENU, rotate and push「Y」knob to enter the

sixth menu item<IP SETTING>

SET IP Address Manually

Select each segment with the「Y」knob, then

press to enter and set the value of each segment

by pressing the knob again.

Set IP Address Automatically

Use this setting if yournetwork/router has a D

HCP server

Select DHCP and set to ON,manual setting is di

sabled, and the IP Address for mini is set from

the network.

Note: After setting IP address manually, please restart the device.
