RF SOLUTIONS QUANTAFOB Series Manuel utilisateur

QUANTAFOB

Remote Control System

DS QUANTAFOB-2

Applications

• General Purpose Remote Switching

• Electric Gates

• Roller Shutter Doors

• Garden Lighting.

Features

• Up to 100m Range

• 433MHz FM Technology

• 1 –4 Channels each 1000W

• Waterproof Receiver (IP68)

• High Security RF Protocol

• 4 Changeover Relays 5A @ 230Vac

• Outputs Momentary or Latching

• Any Switch Map to Any Relay

• Systems supplied ’ready to Go’

• FCC Certified and CE Compliant

Description

A versatile general purpose Remote Control System for many different applications.

Housed in a rugged IP68 weatherproof enclosure, The new QUANTAFOB system is ideally

suited to any remote switch requirement. Each receiver has 4 relays, using the ‘easy-

learn’ process each relay can be controlled from any switch on any transmitter. Addi-

tional transmitters may be added to the system using the same ‘easy-learn’ process.

Installation is by screw terminals to the power supply and the output relay contacts. The

output relays are activated by the button press on the transmitter encoder.

QUANTAFOB

Systems Part Numbers

Part Number Description Power Supply Frequency

QUANTAFOB-4S1 1 ch System 12-30Vac/dc 433

QUANTAFOB-4S2 2 ch System 12-30Vac/dc 433

QUANTAFOB-4S3 3 ch System 12-30Vac/dc 433

QUANTAFOB-4S4 4 ch System 12-30Vac/dc 433

Custom Systems

Fobbers can be customised with logo, colour or

complete custom plastic housing for unique Brand-

ing

Part Number Description Range* Frequency

FOBBER-4T1 1 Sw 100m 433

FOBBER-4T2 2 Sw 100m 433

FOBBER-4T3 3 Sw 100m 433

FOBBER-4T4 4 Sw 100m 433

FOBBER-4T6 6 Sw 100m 433

FOBBER-4T8 8 Sw 100m 433

QUANTAFOB

Relay Outputs

The receiver provides 4 changeover relay switches each capable of switching up to 1.2KW (5A @

230V). Each relay is independent and separately controlled, and can therefore be used to switch most

voltages either ac or dc.

Each output relay provides an isolated switch. Connections are Common (COM), Normally Open (NO)

and Normally Closed (NC).

Installation

Below is a simple example showing one possible way to wire a relay in order to provide switched power to

an external load:

When the relay is energised the ‘COM’ connects to ’NO’ and power is applied to the Load.

1. Open the enclosure by removing fixing screws from the enclosure

2. Remove the antenna and slide out the circuit board.

3. Connect the power supply screw terminals 12-32V ac or dc to the supply terminals.

4. Wire your desired connections to the relay switches

5. Once wiring is complete, use the handheld QUANTA transmitter to switch the outputs on and off.

6. As supplied, the transmitter will operate the outputs - Sw 1 to output 1, Sw 2 to output 2 etc.

7. Change the output functions to latching, / Momentary Operation.

COM

Relay Connections when

Transmitter NOT Operating

COM

Relay Connections when

Transmitter OPERATING

Relay

LOAD

12V

COM

Supply

Terminals

Receiver

QUANTAFOB

Link Pins

LK1

LK2

Learn Switch

Link Positions Relays

LK1 LK2 RLY 1 RLY 2 RLY 3 RLY 4

Fitted Fitted 1/2 sec Mom 1/2 sec Mom 1/2 sec Mom 1/2 sec Mom

Fitted Open Mom Mom Latch Latch

Open Fitted Mom Mom Mom Mom

Open Open Latch Latch Latch Latch

Configuring Receiver Relay Outputs

Receivers can be used for many applications. The link pins LK1 and LK2 set the action of the

relays

1/2 sec Mom = Relay will operate for half a second no matter how long a transmitter switch

is operated

Mom = Relay will operate for as long as transmitter switch operated

Latch = Relay will toggle ON/OFF on each transmitter button press

QUANTAFOB

With this system, you can pair together any individual transmitter

button with any receiver relay output. Without opening either enclo-

sure.

All you need is a magnet.

1. Briefly (less than 1 second) place the transmitter next to the

receiver in the position shown and then remove it.

2. The receiver will buzz once (One beep means the receiver

unit is ready to allocate a transmitter to relay switch 1)

3. Press the button on the transmitter which you wish to

pair

4. The receiver will beep twice to confirm pairing

5. Repeat for any additional transmitter switches

NOTE: Each receiver has a maximum memory for up to 28 pairings,

these can be from any buttons on any transmitters!

NOTE: The switch that is operated by the magnet is on the left of

the antenna.

Advanced Note: It is possible to select relay outputs 2-4, by re-

peating step 3 and counting the number of beeps. 2 beeps for relay

2, 3 for 3 and 4 f or 4.

Advanced operation - Pairing a transmitter button with a

1. Hold the magnet in the position shown for ~5 seconds.

2. The receiver will sound a long ’Beep’ to confirm erased

Advanced operation - Erasing receiver memory with a

QUANTAFOB

Advanced Operation - Pairing a transmitter button using the internal learn

switch

To pair a new transmitter switch follow this procedure

Open the receiver enclosure and extract the Circuitboard assembly

Note!: Any transmitter button can be configured to operate any of the receiver relays.

1. Select the receiver output relay to learn to:

2. Briefly press the receiver Pairing switch (S2) once

3. The Learn LED will flash once to indicate relay 1 is selected

4. After the LED stops flashing, press the Learn switch again to select the next re-

lay channel

5. Repeat step 4 until the required relay is selected.

6. Press the button on the transmitter you want to learn to the chosen relay.

7. The Learn LED will flash to indicate Pairing is complete.

Pairing a Transmitter to a Receiver

The only limitation is that each receiver has a maximum memory for up to 30 pairings,

these can be from the same or any number of transmitters.

Erasing Receivers Memory

1. Press and hold the receiver Learn Switch for approx 10 seconds.

2. When the Learn LED turns ON all memory is erased

NOTE: You cannot erase individual Tx encoders

QUANTAFOB

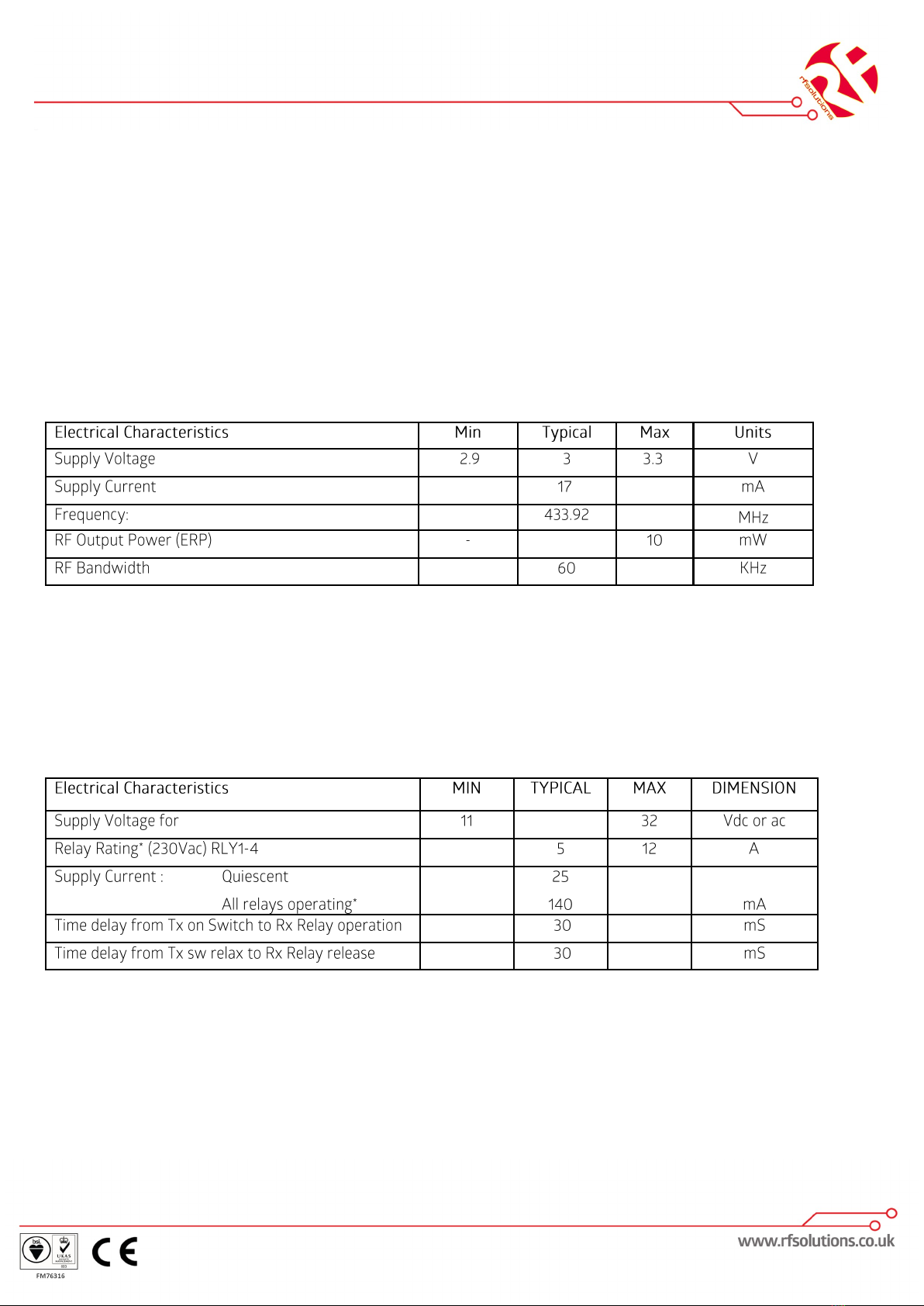

Technical specifications

Transmitters: FOBBER Transmitter

Enclosure Rating: Standard IP68

Battery Type: CR2032 (supplied)

Battery Life: 2 years @ approx. 50 1/2second presses p/day

Dimensions: 90 x 54 x 27 mm

Changing the Battery: Remove the 2 enclosure screws. replace battery, taking care of contacts and the bat-

tery polarity

Receiver Unit

Enclosure Rating: IP68

Dimensions: 130 x 112 x 42 mm (not including antenna)

Operating Temperature:-10 to +50o Celsius.

*The relay contacts in this unit are for functional use only and must not be used for isolation purposes

QUANTAFOB

Disclaimer:

Whilst the information in this document is believed to be correct at the time of issue, RF Solutions Ltd does not accept any liability whatsoever for its accuracy, adequacy or

completeness. No express or implied warranty or representation is given relating to the information contained in this document. RF Solutions Ltd reserves the right to make

changes and improvements to the product(s) described herein without notice. Buyers and other users should determine for themselves the suitability of any such information or

products for their own particular requirements or specification(s). RF Solutions Ltd shall not be liable for any loss or damage caused as a result of user’s own determination of

how to deploy or use R F Solutions Ltd’s products. Use of RF Solutions Ltd products or components in life support and/or safety applications is not authorised except with ex-

press written approval. No licences are created, implicitly or otherwise, under any of RF Solutions Ltd’s intellectual property rights. Liability for loss or damage resulting or

caused by reliance on the information contained herein or from the use of the product (including liability resulting from

negligence or where RF Solutions Ltd was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict RF Solutions Ltd’s liability

for death or

personal injury resulting from its negligence.

RF Solutions Ltd. Recycling Notice

Meets the following EC Directives:

DO NOT

Discard with normal waste, please recy- cle.

ROHS Directive 2002/95/EC

Specifies certain limits for hazardous substances.

WEEE Directive 2002/96/EC

Waste electrical & electronic equipment. This product must be disposed of through a licensed WEEE collection point. RF Solutions

Ltd., fulfills its WEEE obligations by membership of an approved compliance scheme.

Waste Batteries and Accumulators

Directive 2006/66/EC

Where batteries are fitted, before recycling the

product, the batteries must be removed and

disposed of at a licensed collection point.

Environment Agency producer registration num-

ber: WEE/JB0104WV.

50.00

59.00 46.00

82.00

10.00

All Dimensions in mm

Mechanical Dimensions

RED Directive

This product meets the requirements of directive 2014/53/EU.

Full declaration is available at:-

https://www.rfsolutions.co.uk/certification-i59
