Revo RECBP600-1 Manuel utilisateur

Dimensions

CAUTION

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER

NOT USER SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

TV System NTSC PAL

Number of Pixels H768 752

V494 582

Scanning Frequency H15.734KHz 15.625KHz

59.94Hz 50Hz

Horizontal Resolution Color : 600 TV Lines

Image Pick-UP Device

Scanning System 2:1 Interlace

S/N Ratio (AGC Off) More Than 50dB

Min. Sensitivity 0 Lux - at F : 1.2 (30m Range)

Gamma Correction 0.45 Approx.

Gain Control Automatic

Video Output NTSC Video 1.0Vp-p/75

Lens 2.8~12mm

arifocal DC

arifocal DC Auto Iris lens

Power Source DC12V / AC24V Dual Power Voltage

Power Sonsumption Max 5Watt

Operating Temp.

Dimensions (mm) 76mm x126mm (Camera oniy)

Cable BNC / DC Jack Cable

Weight/g 1100g

Installation

Specifications

Features

secure the sun shield to the top of the camera

’

Wrench

Model Number : RECBP600-1

AC 24V / DC 12V / NTSC

REVO AMERICA

700 FREEPORT PARKWAY SUITE 100 COPPELL,

TX 75019 U.S.A TEL: 1-866-625-REVO(7386)

IR Bullet camera

3 DNR & Sense-up (Max256)

33pcs White IR LEDs

Externally adjustable lens

600 TV Lines of Resoution

D-WDR for clear vivid pictures where strong back-lighting occurs

Cable concealed in bracket

3 axis for both wall and ceiling mount bracket

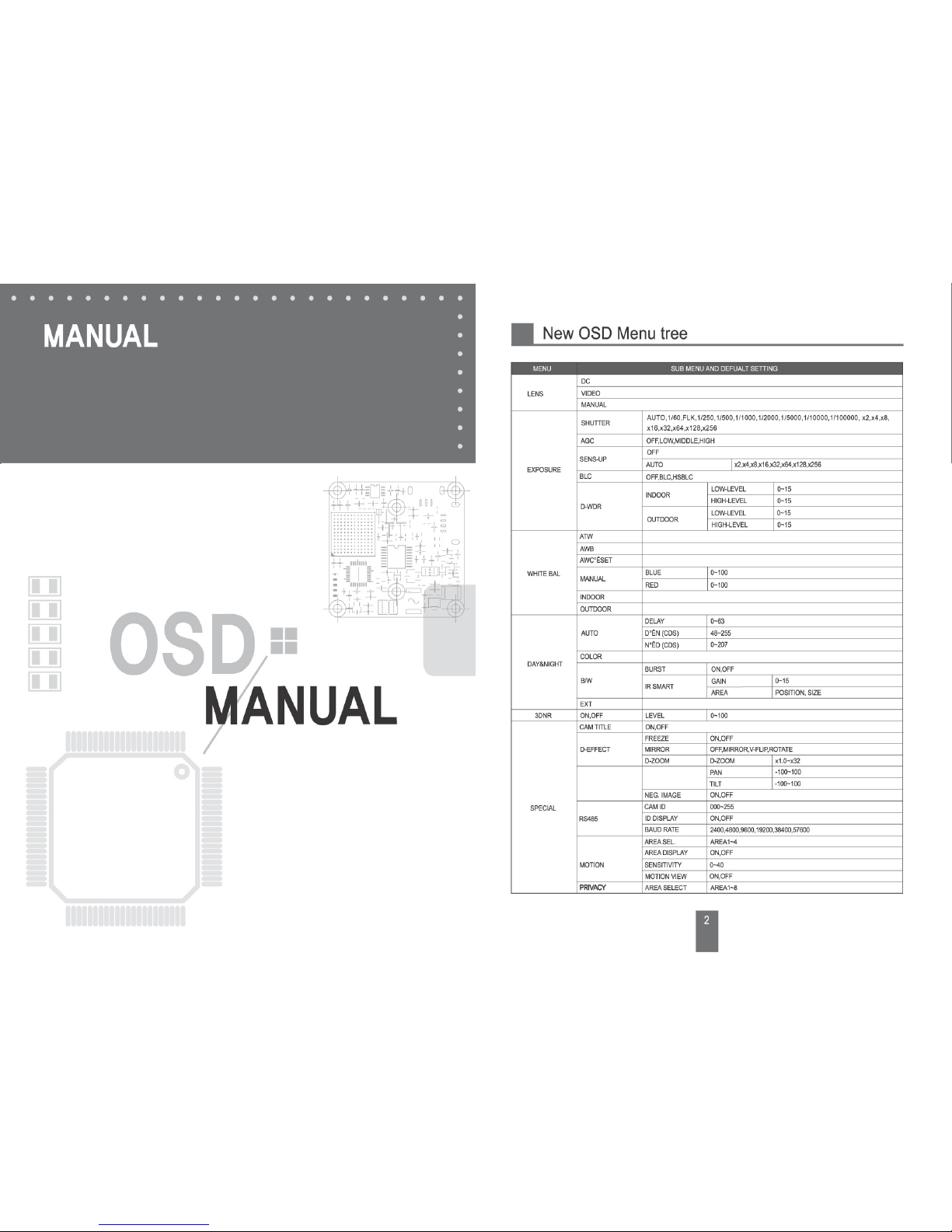

Built in OSD

Weatherproof IP-66 Compliant

1/3” Sony Super HAD II Color CCD

L- PIN

SPEC CONTACT TYPE

TRIGGER_DVR

EXT_SENSOR

SENSOR_IN

ALARM_OUT

GND GND

COM

NO : NORMAL

NC : MAGNETIC CONTACT ONLY

GND

1. Trigger out.

2. Ext_Sensor

3. Sensor_5V

4. Siren (Alarm out)

5. GND

1 2 3 4 5

PIR SENSOR LIGHTING CAMERA with white LED

Alarm out (Lamp, Siren)

•Built-in PIR sensor turns the white

LEDs on and trigger external devices

(Siren, Lamp) simultaneously when

motion is detected. Only during night

time.

Relay

It features

•The built-in PIR sensor turns the white LEDs

on when motion is detected at night

•Image stays in color mode even at night

•Sudden intense lighting to deter intruders

•Enforced security functions(See below diagram)

•Trigger out feature to save space on the HDD

•Energy saving

PIR sensor

Sensor input (Magnetic, PIR)

•Remote sensor activates the white

LEDs on the camera and other devices

simultaneously when an event occurs.

Only during night time

Trigger alarm out (DVR)

•PIR sensor detects motion and triggers

event recording on the DVR (day &

night time)
