Preface

Contents

Welcome to Revo 4

Benefits of DAB radio 4

Pico+™ overview and key features 4

Warranty 4

Warranty registration 4

Controls and Connections 5

Powering Pico+™ 5

DAB Operation 6

Change display mode 7

Show signal strength 7

Finding and adding new stations 7

Removing ‘unavailable’ stations 7

Menu Options 8

To change station order 8

Memory Card Management 9

USB File Copy 9

Delete 9

Format 9

Free Space 9

Manual Tuning 10

Set DRC 10

Display software version 10

TimeShift™ Features 11

Pausing Live Radio 11

Rewind/Forward Live Radio 11

Recording Live Radio 11

FM Operation 12

Station presets 12

M-Port™ 13

Charging + Weatherproofing 14

Pico+™ Battery Information 14

Charging Pico+™ 14

Charge Management Circuit 14

Pico’s Splashproof Design 14

How Waterproof is Pico+™? 14

Trouble-shooting 15

Technical Specification 16

Accessories and Spares 17

Benefits of DAB Radio

Clear, interference free digital sound

Many more stations, much more choice

No frequencies, select by station name

No re-tuning

Text information via LCD screen

Pico+™ Overview

Pico+™ combines high quality DAB and FM

radio reception in a splashproof casing, with

the convenience of internal battery power.

Pico+™ can also be used as a high quality

speaker system for your iPod™(or other

MP3 player of external sound source).

Pico+™ has the ability to pause, rewind and

record live radio broadcasts. Add an SD

card to store and play MP3 files downloaded

from your PC or Apple Mac.

Warranty

Revo Technologies Ltd warrants to the

purchaser that this product will be free

from parts and manufacturing defects in

the course of normal use for a period of

two years from the date of purchase.

This warranty does not apply in cases of

accidental damage, where the case has

been removed, wear and tear, negligence,

modification or inappropriate use.

Should you encounter problems with this

product, please contact your supplier or

alternatively see page 2 of this guide for

technical support contact details.

Warranty Registration

It is a warranty condition that you register

your purchase by either completing the

warranty card enclosed with your radio or

alternatively registering online at

www.revo.co.uk/register

Thank you for buying our Pico+™ DAB Digital Radio, we feel sure that it will

provide you with years of enjoyment and reliable service.

This guide has been designed to quickly get you up-and-running and listening

to DAB digital radio, offer guidance on the more complex features of this

product and provide information on safety, warranty and registration.

Welcome to Revo DAB

Controls and Connectors

Powering Pico+™

Your Pico+™ radio can be powered from the mains using the power adaptor supplied, or

from it’s internal battery pack.

To power from the mains, insert the power adaptor plug into the DC power socket on the

rear of Pico+™. Pressing the button will switch Pico+™ on.

Only use the power adaptor supplied. Replacements can be purchased from our website

www.revo.co.uk, or alternatively call us on 01555 666 161.

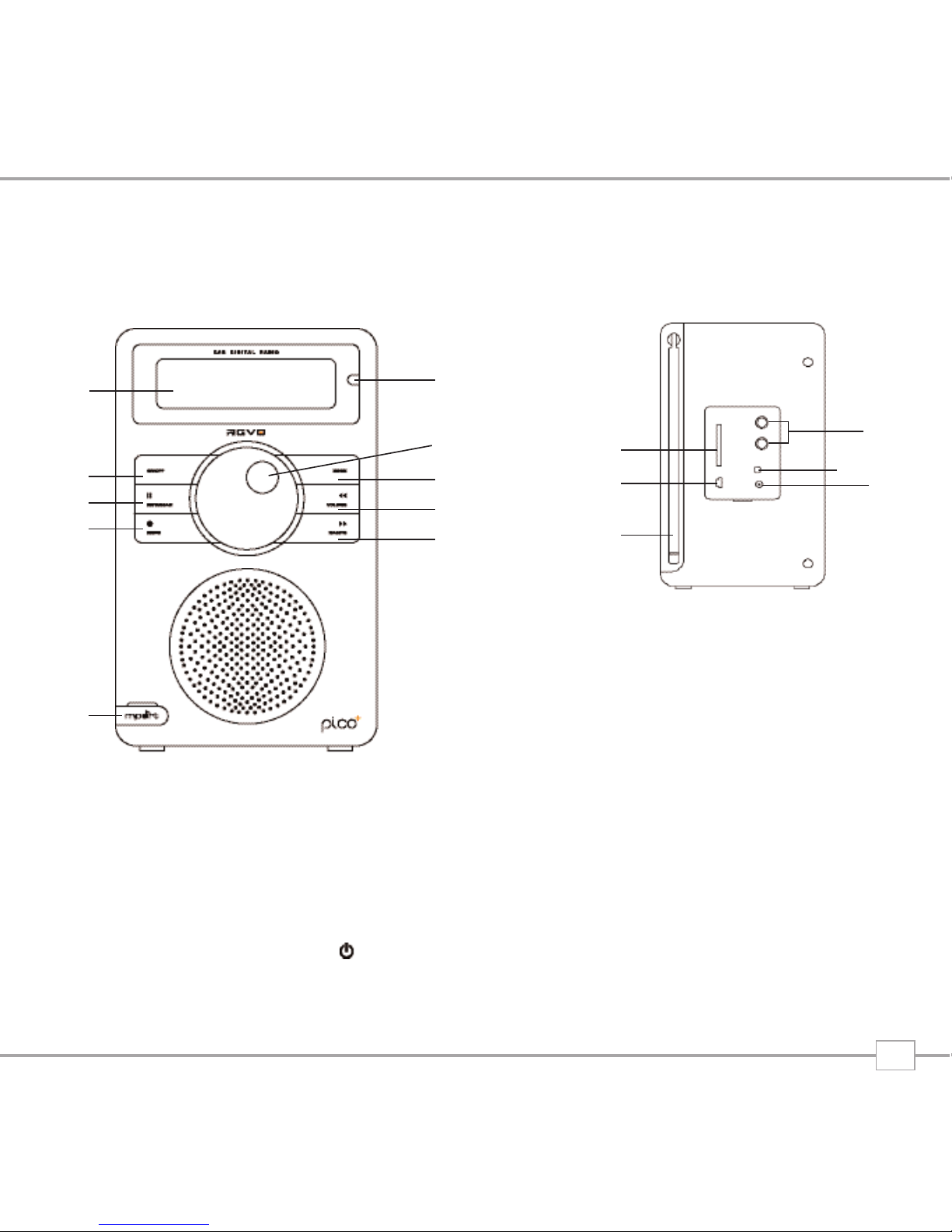

1. LCD Screen

2. Power

3. Info/Scan + Pause

4. Menu + Record

5. M-Port

6. Remote Control Sensor

7. Scroll Wheel

8. Function

9. Volume + Rewind

10. DAB/FM/MP3 + Forward

1. Telescopic Antenna

2. USB Connector

3. SD Card Slot

4. Stereo Line-Out

5. 3.5mm Headphone Socket

6. DC Power Socket

3. 4.

10.

5. 6.

Extend the telescopic antenna found on

the rear of Pico+™.

Press the ON/OFF button to switch on

your radio.

If this is the first time Pico+™ has been

used, press and hold the SCAN button.

Pico+™ will now scan for DAB stations in

your area and store them in memory.

When the station scan has been

completed, stations will be displayed in

numeric then alphabetic order. The first

station in the list will be selected.

If no DAB signal is found, it may be

necessary for you to relocate your radio.

Alternatively, visit www.ukdigitalradio.com/

coverage to check that DAB coverage is

available in your area.

The top line of Pico+’s LCD screen shows

the name of the station currently selected.

Turn Pico+’s scroll wheel to cycle through

the available stations. Press the scroll

wheel to select the chosen station.

To change Pico+’s volume level, press the

VOLUME button and then rotate the

SCROLL WHEEL. The numeric volume

level will be displayed on Pico+’s screen.

DAB Operation

To Change the Display Mode

Pico+™ has seven different display modes.

Press the INFO/SCAN button to cycle

through each mode.

These display modes are explained in the

table below:

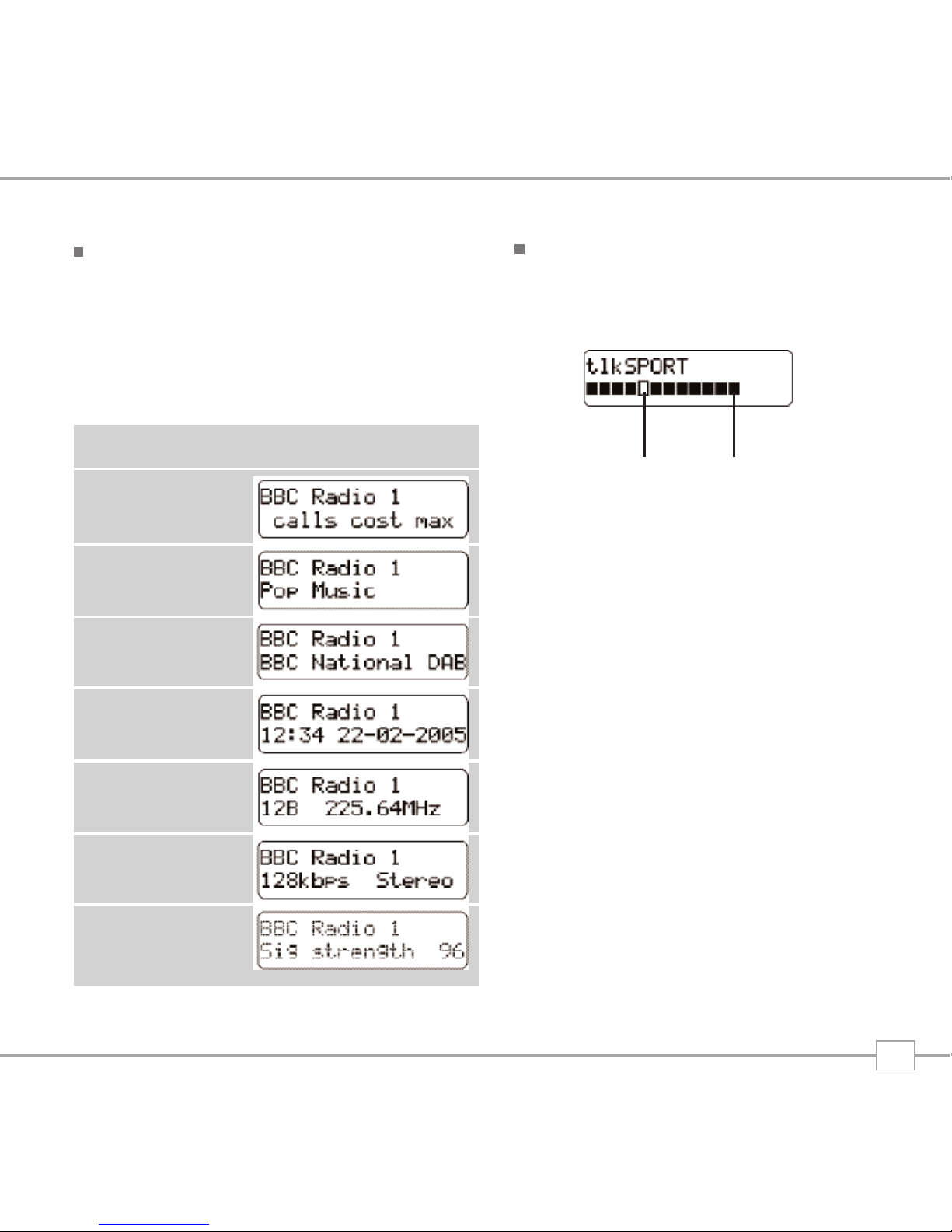

Normal display

with scrolling text

Display option Example

Type of broadcast

Broadcaster

Time and date

Station name and

frequency

Data rate and

stereo/mono

Signal strength

To Show the Signal Strength

Press the scroll wheel.

The display shows a signal bar with the

strength of the current station:

The indicator on the signal bar shows the

minimum acceptable signal level.

Stations with a signal strength below this

level will not provide a steady stream of

good quality audio.

Finding and Adding New

Stations

As time passes, new stations will become

available in your area. To add them to your

station list simply press and hold the SCAN

button for at least two seconds.

Removing ‘Unavailable’ Stations

To remove ‘unavailable’ stations from Pico+’s

station list, ie. those that display a ? before

the station name, see the ‘Menu Options’

section on page 8.

Strength of signal

Minimum signal level

Pico+™ has a number of functions that are accessed through the MENU button.

The following table describes the options

available under the ‘Station Order’ menu:

To change station order

Press MENU, then turn Pico+’s scroll wheel

until the name of the option is displayed:

Press the scroll wheel to select your choice.

To specify the order in which

stations are displayed

Select the Station order option.

The top line of the display shows the

currently selected station order and allows you

to change it.

Turn the scroll wheel to step between the

station order options:

Press the scroll wheel to select the current

option.

Menu Options

Fav station Lists the most frequently

selected stations first.

Alphanumeric Displays all stations in

alphanumeric order.

Active station Lists active stations

[ones that are currently

broadcasting] before

inactive ones.

Prune stations Remove inactive stations

from the station list.

Station order Description

Memory Card Management

Press MENU, then turn Pico+’s scroll

wheel until ‘Memory Card’ is displayed.

Press the SCROLL WHEEL to select.

The following options will be available:

USB File Copy

Used to transfer MP3 files to Pico+™ and

for transferring recorded radio broadcasts

(in MP2 format) from Pico+™ to your

PC/Mac. Please note, an SD card must be

in place to use this feature.

To transfer files between Pico+’s SD card

and your PC/Mac, connect your computer

to Pico+™ using a suitable USB lead.

Select USB File Copy from the Memory

Card menu. On a PC, a mass storage

device icon named “Pico+” will appear on

your desktop (this is the SD card located

inside Pico+™). An empty folder named

“TRACKS” is located on this device.

You can now drag and drop MP3 files to this

folder, or transfer files in the opposite direction

- from Pico+’s SD card to your computer.

On an Apple Mac computer the procedure

is the same, though Pico+’s SD card will

appear on your desktop as “Untitled”.

Please remember that in order to access

Pico+’s SD card for any reason, Pico+™

must be in USB File Copy mode.

Delete

Used to delete MP3 files or recorded radio

broadcasts on the SD card. Follow on-

screen instructions.

Format

Use this function to prepare your SD card

for use with Pico+™.

Free Space

Shows the amount of available memory on

your SD card.

IMPORTANT:

It is essential that you format your SD card

beforeattempting to record or drag files to it.

To use manual tuning

Select the Manual tune option.

The display shows the current station number

and frequency:

Press <or >to step between the stations

and press SELECT to select the current

station.

If there is a station corresponding to this

station number and frequency the display will

show the station name, and a tuning meter

showing the signal strength.

To set the dynamic range control

Pico+™ includes a dynamic range control that

automatically boosts the volume of quieter

sounds for listening in noisy environments.

Select the DRC value option.

The display shows the current DRC value and

allows you to adjust it:

The DRC value can be switched between

the following options:

To display the software

version number

Press the MENU button then use the

<and > buttons to scroll across to SW

VERSION. The software version number

is displayed on the top line of the display.

You should specify this when speaking to

Revo Technical Support.

DRC 0 Dynamic Range Control is

switched off

DRC 1/2 Dynamic Range Control is

set to half normal level.

DRC 1 Dynamic Range Control is

switched on; the default

setting recommended for

noisy environments.

DRC Description

Table des matières

Autres manuels Revo Radio

Revo

Revo AXiS X3 Manuel utilisateur

Revo

Revo Uno Dab+ Manuel utilisateur

Revo

Revo iBlik RadioStation Manuel utilisateur

Revo

Revo Pico DAB Manuel utilisateur

Revo

Revo Pico Wi-Fi Manuel utilisateur

Revo

Revo Superconnect Manuel utilisateur

Revo

Revo Uno Manuel utilisateur

Revo

Revo Pico IR Manuel utilisateur

Revo

Revo Uno DAB Manuel utilisateur

Revo

Revo AXIS XS Manuel utilisateur

Revo

Revo Mondo Wi-Fi Manuel utilisateur

Revo

Revo BLIK Wi-Fi Manuel utilisateur

Revo

Revo iBlik DAB+ Manuel utilisateur

Revo

Revo Pico RadioStation Manuel utilisateur

Revo

Revo Supersignal Manuel utilisateur

Revo

Revo blik Manuel utilisateur

Revo

Revo Blik DAB+ Manuel utilisateur

Revo

Revo Blik DAB+ Manuel utilisateur

Revo

Revo Pico RadioStation Manuel utilisateur

Revo

Revo Pico Wi-Fi Manuel utilisateur

Revo

Revo pixis ir Manuel utilisateur

Revo

Revo Uno 2 DAB Manuel utilisateur

Revo

Revo PiXis RS Manuel utilisateur

Revo

Revo Superconnect Manuel utilisateur

Manuels Radio populaires d'autres marques

EisSound

EisSound KBSound iSelect Manuel utilisateur

Midland

Midland 1001LWX Manuel utilisateur

Konig

Konig HAV-SR41 Manuel utilisateur

Roberts

Roberts exprssion Manuel utilisateur

VDigi

VDigi DD3.0 Manuel utilisateur

Radio Shack

Radio Shack 21-1863 Manuel utilisateur

Roberts

Roberts Stream 207 Manuel utilisateur

Sony

Sony Walkman SRF-M97 Manuel utilisateur

Stanley

Stanley FatMax FMC770 Manuel utilisateur

auna

auna DAB-Radio 10026947 Manuel utilisateur

SOUNDMASTER

SOUNDMASTER UR190 Manuel utilisateur

HYT

HYT TC-320 Manuel utilisateur

auna multimedia

auna multimedia Yellowstone 10026851 Manuel utilisateur

B-Tech

B-Tech GMRS-V2 Manuel utilisateur

Weierwei

Weierwei VEV-V8 Manuel utilisateur

SOUNDMASTER

SOUNDMASTER DAB750 Manuel utilisateur

Telefunken

Telefunken TF-1505 Manuel utilisateur

Makita

Makita LXRM03 Manuel utilisateur

Revo pico+ Manuel utilisateur

Manuels Radio populaires d'autres marques
