Owner’s Manual

HSGP1051-M8_OM 9/12/08 12:09 PM Page 1

Revel®Concerta™

M8 Owner’s Manual

Table of Contents

3 Introduction

3 Placement

4 Wall-Mounting the Satellites

4 Speaker Connections

5 Operation

5 Maintenance and Service

6 Specifications

HSGP1051-M8_OM 9/12/08 12:09 PM Page 2

Introduction

Revel®Concerta™M8

The Revel®Concerta™M8 satellite loudspeaker continues

the longstanding Revel commitment to accurate sound

reproduction. The proprietary transducers utilizing

Micro Ceramic Composite (MCC) diaphragms, precision

dividing networks, sophisticated high-frequency

waveguides and rigid enclosures all combine to deliver

uncompromising performance in any stereo or

multichannel home theater system. In addition, these

speakers are magnetically shielded for safe placement

near a CRT television.

Unpacking the Speaker

If you suspect damage from transit, report it immediately

to your dealer and/or delivery service. Keep the shipping

carton and packing materials for future use.

Placement

Stereo

Before deciding where to place your speakers, survey

your room and think about placement, keeping the

following points in mind, using Figure 1 as a guide:

• For best results, place the speakers approximately

6'– 8' apart.

• Position each speaker so that the tweeter is

approximately at ear level.

• Generally, bass output will increase as the speaker

is moved closer to a wall or corner.

• Refer to the “Home Theater” section if you also plan

to use the speakers for home theater reproduction.

Figure 1: This overhead view shows typical positioning

in stereo applications.

Home Theater

For front-channel use, place one speaker on the left and

another on the right, along either side of the television

monitor. Since the speakers are magnetically shielded,

you can place them without worrying about the field

distorting a CRT monitor. For surround-channel use,

place speakers on the included brackets or on

bookshelves alongside the listening position. Final

placement depends on room acoustics, availability

of space, and your listening preference (Figure 2).

In 6- or 7-channel configurations, place the rear

channel(s) behind the listening position, as shown

in Figure 2.

Note: The Revel Concerta M8 is ideally suited for

use with a subwoofer. Contact your Revel dealer

for recommendations on subwoofer models for

your application.

Figure 2: This overhead view shows a typical home

theater plan. Left/right rear channels are for a

7-channel system. The center rear channel is for a

6-channel system.

Listening Position

Center Channel

(above or below video screen)

Left

Front

Channel

Right

Front

Channel

Subwoofer

Right

Surround

Channel

Left

Surround

Channel

Left

Surround

Channel

Right

Surround

Channel

Center

Surround

Channel

Listening Position

Left

Channel

Right

Channel

HSGP1051-M8_OM 9/12/08 12:09 PM Page 3

Speaker Connections

Wiring and Polarity

First, turn off all audio-system power. Use high-quality

speaker wire to make your connections. 18-Gauge

speaker wire with polarity coding is recommended.

For longer distances, 16-gauge or heavier wire is

recommended. The side of the wire with a ridge or

other coding is usually considered positive polarity (+).

Also, consult the owner’s manuals that were included

with your amplifier or receiver to confirm connection

procedures. Observe polarities when making speaker

connections, as shown in Figure 4. Connect each

+ terminal on the back of the amplifier or receiver

to the respective + (red) terminal on each speaker.

Connect the – (black) terminals in the same way.

Important! DO NOT reverse polarities (+ to – or

– to +) when making connections. Doing so

will cause poor imaging and diminished bass

response. Be certain that positive and negative

wire strands are completely isolated to avoid

short circuits that may damage your equipment.

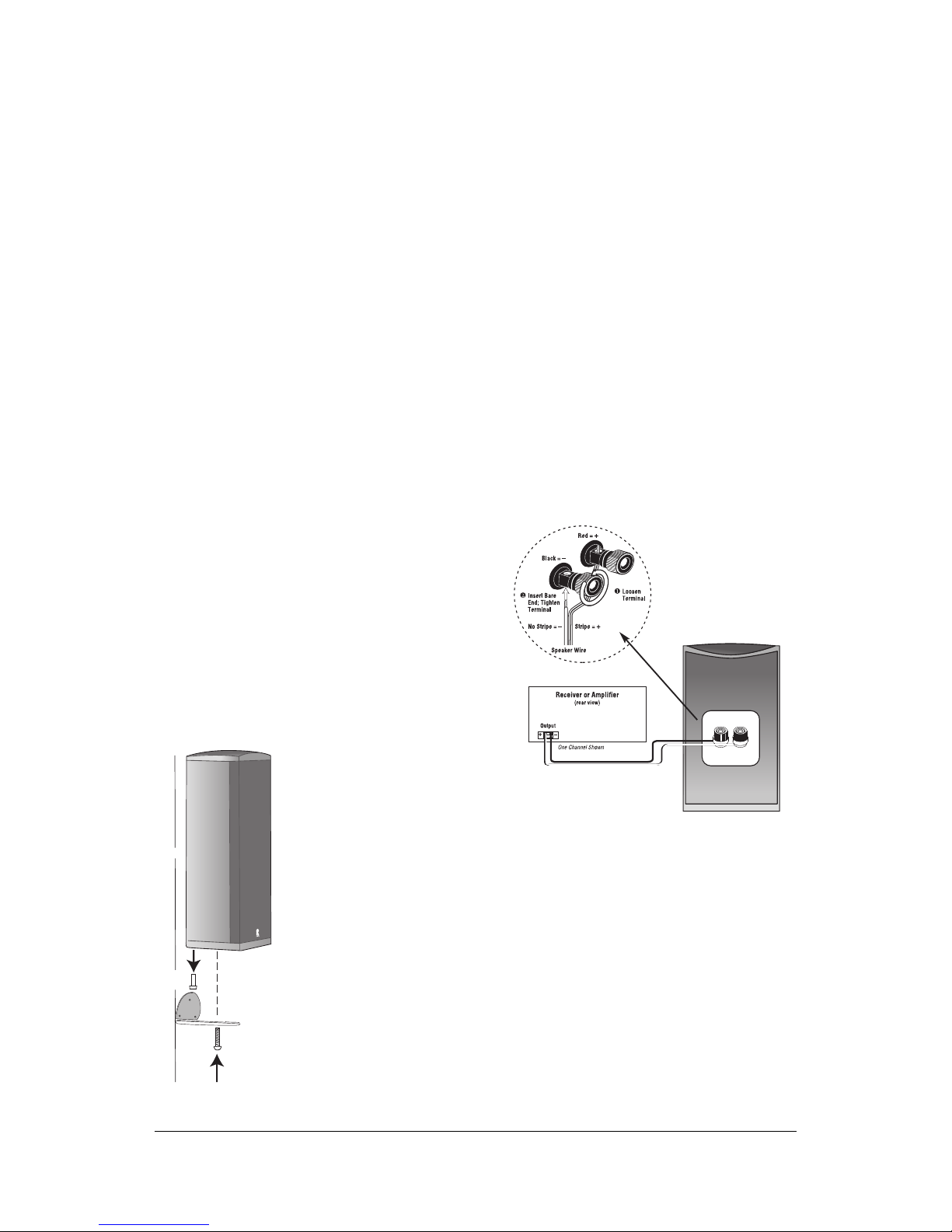

Figure 4: Wiring diagram shows polarity connections

for one channel of an audio or home theater system.

Wall-Mounting

the Satellites

Revel Concerta M8 satellites are designed to be used

on a bookshelf or tabletop, or they can be mounted

on the wall. A wall bracket is included with the M8.

Each speaker bracket will require three 1-1/2", #10

wood screws; each screw should be fastened to

a wall stud. If a wall stud is unavailable, install an

anchor appropriate for a 1-1/2", #10 screw.

Note: The customer is responsible for the

correct selection and use of mounting hardware

(available through hardware stores) that will

ensure the proper and safe wall-mounting of

the speakers.

Step One

Place bracket against the wall and mark the positions

on the wall where you would like to place the

mounting screws.

Step Two

Place the bracket against the wall and fasten three

1-1/2", #10 wood screws through the bracket’s screw

holes into the wall. If a wall stud is not available, use an

appropriate anchor.

Step Three

Remove rear foot, place the speaker on the bracket and

insert the provided 1/4"-20 screw through the bottom

of the bracket into the threaded insert on the bottom

of the satellite (Figure 3).Turn satellite to desired angle

and tighten.

Figure 3: Bracket on wall.

(wall)

(Remove

foot)

(Insert screw

through bracket

into speaker)

– +

HSGP1051-M8_OM 9/12/08 12:09 PM Page 4

Operation

Surround Modes

When using the system in a Dolby®Digital or DTS®home

theater system, make sure the receiver or processor is

set to “Small” for all M8 loudspeakers.

Some receivers/processors offer a choice of crossover

frequencies. Select 110Hz as the crossover frequency for

all M8 loudspeakers in the system.

Some Dolby Digital-equipped receivers/processors offer

different setup options for each source or surround

mode, e.g., CD-stereo, DVD, Dolby, Pro Logic.

®In each

case, follow your equipment’s instructions to ensure that

the subwoofer output is turned on and that the speakers

are set to “Small” or to a crossover frequency of 110Hz

in each mode.

Maintenance

and Service

The satellite enclosure may be cleaned using a soft cloth

to remove fingerprints or to wipe off dust.

All wiring connections should be inspected and cleaned

or remade periodically. The frequency of maintenance

depends on the metals involved in the connections,

atmospheric conditions and other factors, but once

per year is the minimum.

If a problem occurs, make sure that all connections

are properly made and clean. If a problem exists in one

loudspeaker, reverse the connection wires to the left

and right speakers. If the problem remains in the same

speaker, then the fault is with the loudspeaker. If the

problem appears in the opposite speaker, the cause is

in another component or cable. If your M8 loudspeaker

should ever need service, please contact your local

dealer or distributor, or visit www.revelspeakers.com

for the location of a service center.

HSGP1051-M8_OM 9/12/08 12:09 PM Page 5

Revel®Concerta™M8

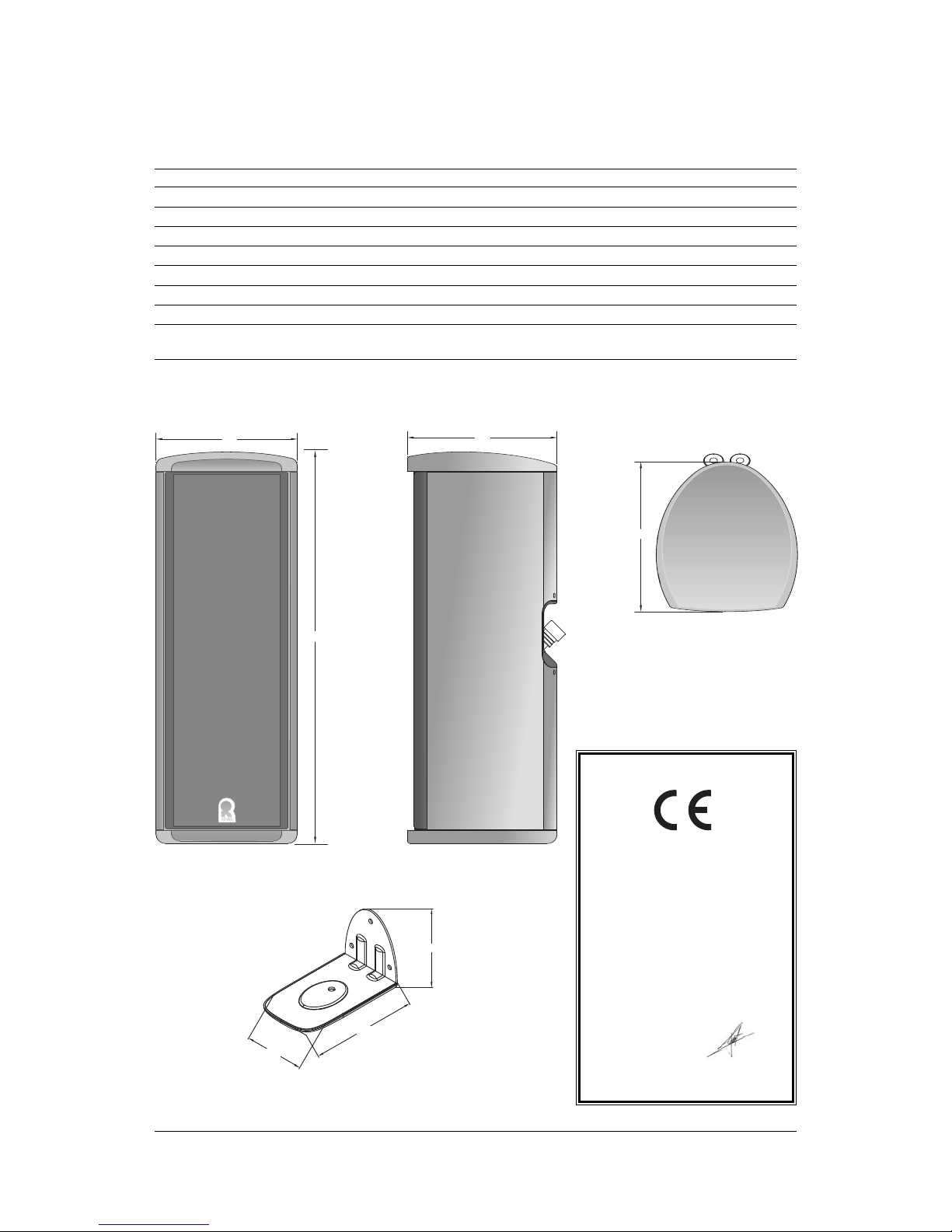

Frequency Response (±3dB) 110Hz – 21kHz

Recommended Amplifier Power Range 10 – 125 Watts

Sensitivity (2.83V @ 1m, 2πanechoic) 88dB

Nominal Impedance 8 Ohms

Crossover Frequency 2-Way high-order at 2.2kHz

Low-Frequency Drivers Dual 3" (76mm) woofers with Micro Ceramic Composite (MCC) cones

LF Extension –3dB @ 110Hz, –6dB @ 100Hz, –10dB @ 90Hz

High-Frequency Driver 1" (25mm) tweeter with waveguide and Micro Ceramic Composite (MCC) dome

External Dimensions 11-5/8" x 4-1/4" x 4-1/2"

(H x W x D) (296mm x 107mm x 113mm)

Weight (Net) 3.45 lb (1.6kg)

Specifications

Declaration of Conformity

We, Harman Consumer Group, Inc.

2, route de Tours

72500 Ch

teau du Loir

France

declare in own responsibility that the product described

in this owner’s manual is in compliance with technical

standards:

EN 61000-6-3:2001

EN 61000-6-1:2001

Laurent Rault

Harman Consumer Group, Inc.

teau du Loir, France 8/08

4.45

4.20

11.64

4.45

2.8

4.5

2.6

HSGP1051-M8_OM 9/12/08 12:09 PM Page 6

A valid serial number is required for warranty coverage.

This Revel warranty protects the original retail purchaser for

a period of five (5) years (parts and labor) from any failure

as a result of original manufacturing defects, so long as:

1. The Revel products were purchased within the 50

United States, its territories or Canada.

2. The dealer from whom the Revel products were

purchased was authorized to sell such products at

the time of the original purchase.

3. The original, dated Bill of Sale is presented whenever

service is required during the warranty period.

The balance of this warranty is transferable only if the used

product is purchased from an authorized Revel dealer. This

warranty is only valid for service within the United States,

its territories and Canada; please contact an authorized

Revel dealer for warranty and service information.

Any Revel product not performing satisfactorily may be

returned to the factory for evaluation. Return authorization

must first be obtained by either calling or writing Customer

Service prior to shipping the product. The customer is

responsible for shipping charges to the factory.

Customer Service will pay return shipping charges within

the United States only in the event that the product is

found to be defective, as mentioned above. There are

other stipulations that may apply to shipping charges.

There is no other express warranty on this product. Neither

this warranty nor any other warranty, express or implied,

including implied warranties of merchantability and fitness,

shall extend beyond the warranty period. No responsibility

is assumed for any incidental or consequential damages,

so that the above exclusion or limitation may not apply.

This warranty provides specific legal rights. Other states

may provide additional rights. This warranty is applicable in

the United States, its territories and Canada. Outside of the

United States, its territories and Canada, please contact an

authorized Revel dealer for warranty and service information.

The information this document contains is subject to change

without notice. In the event that there are differences between

this warranty and the provisions of any advertisements,

documentation, product brochures or packaging cartons,

the terms of this warranty will prevail.

For customer service and product shipment information,

go to www.revelspeakers.com.

Limited Warranty

HSGP1051-M8_OM 9/12/08 12:09 PM Page 7

www.revelspeakers.com

250 Crossways Park Drive, Woodbury, NY 11797

8500 Balboa Boulevard, Northridge, CA 91329

516.594.0300

Technical Support: 516.682.3744

Part No. ML-80323-01

Revel, the Revel logo and Concerta are trademarks

of Harman International Industries, Incorporated,

in the United States and/or other countries.

Dolby and Pro Logic are registered trademarks of

Dolby Laboratories.

DTS is a registered trademark of DTS, Inc.

Features, specifications and appearance are subject

to change without notice.

HSGP1051-M8_OM 9/12/08 12:09 PM Page 8

Table des matières

Autres manuels REVELL Intervenants

REVELL

REVELL W283 Manuel utilisateur

REVELL

REVELL Performa S30 Manuel utilisateur

REVELL

REVELL M16 Halftrack Manuel utilisateur

REVELL

REVELL Ultima Salon Manuel utilisateur

REVELL

REVELL Concerta IC65 Manuel utilisateur

REVELL

REVELL M55XC Manuel utilisateur

REVELL

REVELL Concerta M10 Manuel utilisateur

REVELL

REVELL Performa F32 Manuel utilisateur

REVELL

REVELL W126Be Manuel utilisateur

REVELL

REVELL F208 Manuel utilisateur

REVELL

REVELL I20 Manuel utilisateur

REVELL

REVELL W970 Manuel utilisateur

REVELL

REVELL C263 Manuel utilisateur

REVELL

REVELL Performa C32 Manuel utilisateur

REVELL

REVELL Concerta F12 Manuel utilisateur

REVELL

REVELL Performa M22 Manuel utilisateur

REVELL

REVELL Ultima Gem Manuel utilisateur

REVELL

REVELL Performa C52 Manuel utilisateur

REVELL

REVELL I20 Manuel utilisateur

REVELL

REVELL Performa F30 Manuel utilisateur

REVELL

REVELL Performa S30 Manuel utilisateur

REVELL

REVELL C363 Manuel utilisateur

REVELL

REVELL Performa C30 Manuel utilisateur

REVELL

REVELL Ultima Studio Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
