Installation and Operating Instructions
These instructions should be retained in a safe place for future reference.

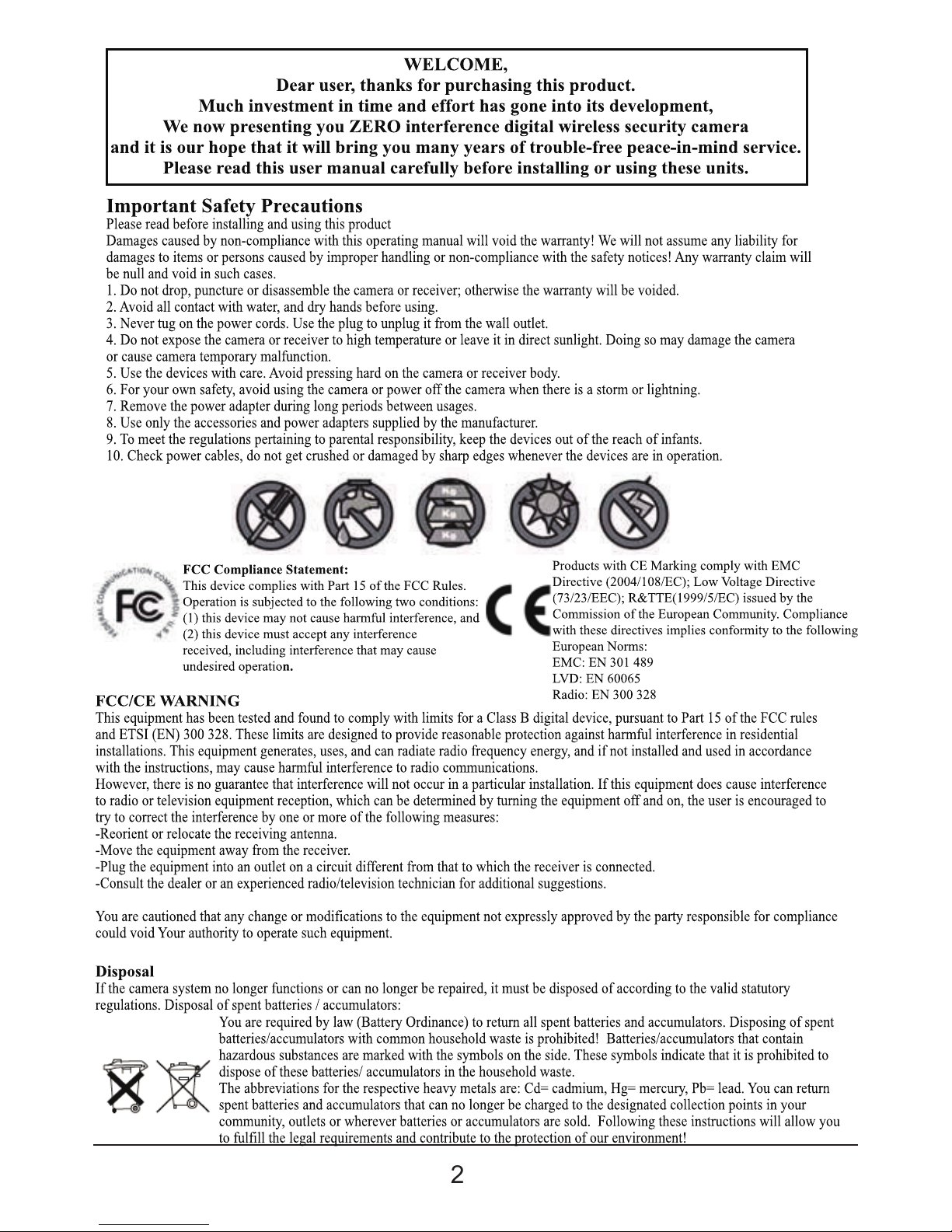

2
3
CONTENTS
1. INTRODUCTION—3
2. KIT CONTENTS—6
3. INSTALLATION—8
3.1 Contents and Connections 8
3.2 Powering up the system 9
3.3 Setting the Camera Channel (Optional) 10
3.4 Pairing the Camera to Receiver (Optional) 10
3.5 Camera Installation 11
4. MONITOR PANEL INTRODUCTION—12
5. SYSTEM INTRODUCTION—13
5.1 Icon Functions 13
5.2 System Menu 14
6. System Operation —16
6.1 Camera Setup 16
6.2 Recorder Setup 19
6.3 Event List 21
6.4 System Setup 23
6.5 Alarm Buzzer 26
6.6 Pan Tilt Zoom 27
6.7 Memory Card Overwrite 28
7.1 Sec24 Media Player Introduction 29
7.2 Installation 30
7.3 Playback Recorded File(s) 33
7.4 Channel Disable / Enable Select 35
8. System Conguration—36
9.Product Specication—37
10.Total Recording Time for Memory Cards (32GB max.)—37
4
1. INTRODUCTION
The Digital Wireless Colour Camera Recordable CCTV Kit is a wireless security system
designed to view and capture video clips of any motion viewed by the wireless camera and
store them in on a memory card. The wireless camera supplied is colour, weatherproof and
suitable for day/night use for the protection of your home or ofce, etc.
Please read before you start:
Always use discretion when installing CCTV survillance equipment especially
when there is perceived policy. Enquire regarding local regulations applicable to
the lawful installation of video recording/surveillance. Third party consent may be
required.
WIRELESS DEVICES OPERATING RANGE:
Ensure the signal reception viewed from the wireless camera is the best possible
reception (i.e. no interference lines viewed on the TV) between the camera and
receiver. If necessary reduce the distance between the camera and receiver to
improve overall system performance.
The Wireless Colour Camera Recordable CCTV Kit operating on a secure digital
2.4GHz frequency can greatly reduce interference from products such as wireless
routers, cordless phones, microwave ovens, concrete walls, large scale metal
objects, and furniture.
5
PLANNING YOUR LAYOUT:
SAFETY AND INSTALLATION TIPS:
DVR
• keep away from heat sources and high temperature places
• Avoid direct sunlight
• Avoid humid places
• avoid vibration
• Install in a ventilated environment
• The supplied 2GB memory card can be replaced with up to a 32GB capacity one if
required.
NOTE:
The camera has an open eld RF operating range of up to 150m.
TV/Monitor
Receiver
Front Door
Camera 2
Camera 1
Max 5m
Max 5m
Ensure the distance from camera to power
outlet does not exceed the length of the
camera power adapter cable
15mm diameter
cable hole
(to allow camera
cable and connector
to pass through)
6
Camera(s) and DVR
NIGHT VISION:
Do not attempt to open the units with the power adaptor plug connected to avoid any risk
of personal injury.
When installing CCTV camera(s), always follow manufacturer's advice when using power
tools, steps, ladders, etc. and wear suitable protective equipment (e.g. safety goggles)
when drilling holes. Before drilling holes through walls check for hidden electricity cables
and water pipes. The use of cable/pipe detector is advisable.
It is also advisable to avoid exposing any cameras to extreme weather conditions (e.g,
under a gutter which is prone to any water leaks). When installing any cameras with this
unit, it is advisable to use cable conduit to protect any video/power extension cables
from being exposed externally and to prevent/reduce the chances of the cables being
tampered with. After drilling any hole though an external wall for a cable, ensure the hole
is sealed up around the cable using a sealant to prevent drafts.
To prevent a re or electrical shock hazard, do not attempt to open the housing while
the unit is exposed to rain, water or wet conditions. There are no user serviceable
parts inside. Refer servicing to qualified service personnel. Avoid pointing the
camera(s) directly at the sun or any bushes, tree branches or moving objects that might
unnecessary cause the DVR to record due to winds for example. The system also
provides "Masking" function, and the user may screen out motion detection area in parts
of the picture which motion detection is not required.
The camera has built-in infra-red LEDs to allow you to view at night for 24hrs
surveillance. The LEDs will automatically activate at night and the picture viewed will turn
to black and whit. The night viewing range is up to 5-8m.
7
A
1 x 7" LCD Monitor (Receiver)
1 x Digital Wireless Cameras
B
C
2 x 5V/1A Power Adapter for Camera and Receiver
D
1 x Camera Stands
E
1 x Fixings Pack
F
1 x Video Playback PC Software(CD-ROM)
G
1 x AV Cable for TV Output
H
I
1 x Camera Antennas
1 x Manual
Tools Required:
Electric drill No.2 Philips screwdriver
5mm masonry drill bit Hammer
15mm masonry drill bit Bradawl
2. KIT CONTENTS
8
AB
Digital Wireless Camera
C
5V/1A Power Adapter for
Camera and Receiver
D
Camera Stand
Fixings Pack Video Playback PC
Software (CD-ROM)
EF
G
AV Cable
H
I
Camera Antenna
Manual
Digital Wireless Receiver
Digital Wireless Colour Camera
Recordable CCTV Kit CWD3
Installation and Operating Instructions
These instructions should be retained in a safe place for future reference.
9
3. INSTALLATION
3.1 Contents and Connections
TV / MONITOR
Receiver
Power Supply
Adaptor
WIRELESS CAMERA
Camera Power
Supply Adaptor
WIRELESS
RECEIVER
Screw the Camera Bracket
clockwise on to the lower
body of the Camera
Turn power
on here
Video Signal
to Input
Connect to
DC 5V/1A port
on Wireless
Receiver
to Wireless Cammera
Connect to
3.5mm Phone
Jack on Wireless
Receiver
Wireless
Receiver
Connector Cable
Connect to Audio Input on TV
Yellow = Video
White = Audio
10
3.2 Powering up the system
Trouble Shooting
Insert the memory card into the DVR if not already tted
Press and Hold power key for one second to power hold the power. Press and hold the power
key for two seconds to power off the system.
After system power on, adjust the camera viewing position again if necessary.
PROBLEM SOLUTION
No camera picture The power supply adaptor
for the monitor camera(s)
is not plugged in.Camera
out of range. Locate
camera closer to the
receiver.
Poor picture quality Clean the camera lens.
A white image appears at night The camera's infra-red
LEDs shine invisible light
that reflects of surfaces
such as glass causing
w h i t e l i g h t . P l a c e t h e
camera on the other side of
windows to try to improve
the night vision or place in
a well lit area.
