“When You Need More Than Staples.”

Toll Free: 800-658-8788

Fax: 801-927-3037

[email protected]

Model ECO-S Binder

2:1 Pitch

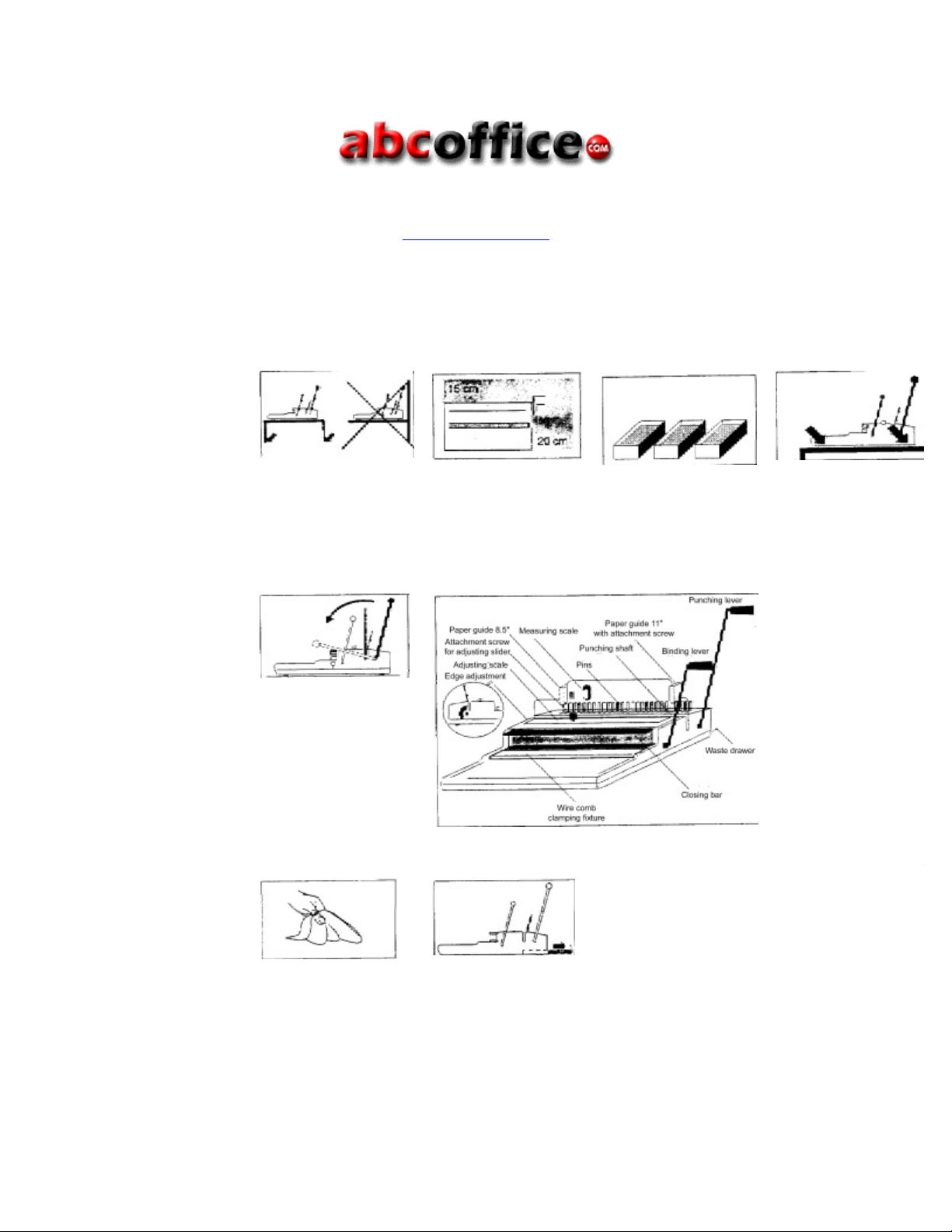

Set up

Choose stable surface

Place machine on a stable

surface.

Shelves are not recommended.

Place requirement.

Keep working space free:

Right 8” (20 cm)

Left 6” (15 cm)

Have binding elements

near work area.

Store binding elements in the

special boxes.

Size: 24 x 36 cm

9.5” x 14.2”

Protect sensitive

furniture surface.

The machine stands on soft

plastic feet.

Some surfaces may discolor

after a time.

Operation

Before first use:

Punch scrap paper to clean the

rust preventative from the

punch dies.

Field of application:

Punch:

Paper:

Max 30 pages 20 # stock for

comfortable punching:

15-20 pages

Cardboard

Max thickness 1.5 mm

Plastic Foil

Max 2 pages for 0.3 mm

thickness

Max. binding thickness 28 mm

(1-1/8”)

Approx. 280 pages 20 # stock.

Maintenance

The machine

and the

parts Cleaning:

Wipe with a dry or moist

cloth. Do not use solvents,

sticker may detach.

Empty drawer from

time to time

Pull out drawer at the back

and empty out the paper-

shavings.

Measure

Determination of the

diameter

Put the back on the edge

against the measuring scale.

Read the diameter of the

binding element (e.g. 3/8”)

Adjust

Scale for adjusting the

diameter

Release attachment screw,

determine scale, adjust

diameter, tighten attachment

screw

Adjust distance edge to

according diameter turn

knob

Turn knob index to the according

diameter (e.g. 3/8”) bigger 0 –

bigger edge.

Adjust format 11” Paper

guide right

Pull pins

Screw down the right paper guide,

pull 5 pins from left (21 loops).

Adjust format 8.5” Paper

guide left

Pull pins

Screw down the left

paper guide,

pull 5 pins from left and 5 pins from

the right (16 loops).

Insert

Lay binding element in

front of the clamping

fixture

Small loops on top, facing

rear.

Press down clamping fixture

Press back edge and front side will

open.

Push binding element

under the clamping fixture.

Clamping fixture holds binding

element during insertion of the

punched paper.

Release clamping fixture

possibly adjust binding

element vertically.

Prepare

The seam of the closed

binding element should

be inside the book

Not outside the covers

Set the book upright,

binding side to the top,

place the back cover in front

The front cover should be behind

the back cover.

Jog the book

Turn the book over, covers

are underneath

Take pages from the top

Punch

Punch max 30 pages 20#

stock, for comfortable

punching: 15 –20 pages

Punch plastics and thicker covers

separately.

Insert paper into punching

slot, slide the paper against

the paper guide

Adjust 11” format at the right

side, paper must stand evenly, if

not align it again

Adjust 8.5” format at the left

side.

Press punching level

forward until it stops,

then return to original

position.

Hold the machine with the other

hand.

Insert

Remove punched paper

from the punching slot. Insert paper onto the

binding element

For thicker books, repeat steps five and six until all

pages are punched.

Adjust

Press clamping fixture After the paper had been

placed on the binding

element, remove the paper

with the element from the

clamping fixture.

Hold the paper that it does not

slide out of the binding element.

Put binding element under

the closing bar. Binding element must

stand vertically at the

back of the closing bar

With opening of the binding

element to the book.

Press binding lever

forward until it stops and

back again

For bigger diameters use more

force.

Proper bind Binding under closed:

Adjust closing bar a little

deeper

Release attachment screw and

move it slightly to the left. Fix

attachment screw. Press binding

lever again.

Binding over closed:

Adjust closing bar a litter

higher

Release attachment screw and

move it slightly to the right. Fix

attachment screw. Close next

book.

Ready

Turn back cover over Ready
