User Manual

FlexiPanels®Advance HMI

FP4 Series

FlexiPanels®Advance HMI

Page 2of 17

Table of Contents

INTRODUCTION ...................................................................................................................................................3

BEFORE YOU START..............................................................................................................................................3

SAFETY PRECAUTIONS..........................................................................................................................................4

PRODUCT OVERVIEW ...........................................................................................................................................5

INSTALLING FP4 PRODUCTS ........................................................................................................................................5

PANEL GUIDELINES ................................................................................................................................................................ 5

PANEL CUTOUT DIMENSIONS .................................................................................................................................................. 5

PRODUCT DIMENSIONS .......................................................................................................................................................... 5

MINIMUM CLEARANCES ......................................................................................................................................................... 7

MOUNTING FP4 PRODUCTS.................................................................................................................................................... 7

CONNECTING POWER............................................................................................................................................................. 7

GROUNDING ......................................................................................................................................................................... 7

PRODUCT SPECIFICATIONS ...................................................................................................................................8

PRODUCT NOMENCLATURE /ORDERING PART NUMBER ...................................................................................................8

DISPLAY SPECIFICATIONS............................................................................................................................................8

CPU, MEMORY AND POWER SUPPLY............................................................................................................................9

POWER RATING..................................................................................................................................................................... 9

COMMUNICATION INTERFACES .................................................................................................................................. 10

RS232 /RS422 /RS485 PORT ............................................................................................................................................ 10

ETHERNET PORT ..................................................................................................................................................................12

USB DEVICE PORT ............................................................................................................................................................... 12

USB HOST PORT ................................................................................................................................................................. 12

YTYPE CABLE...................................................................................................................................................................... 13

SD CARD SLOT .................................................................................................................................................................... 13

ACCESSORIES ........................................................................................................................................................ 14

PROGRAMMING CABLE ........................................................................................................................................................ 14

COMMUNICATION CABLE......................................................................................................................................................14

DEFAULT PRODUCT SETTING .............................................................................................................................. 15

ENVIRONMENTAL SPECIFICATIONS AND APPROVALS ....................................................................................................... 15

REVISION HISTORY............................................................................................................................................. 16

NOTES ............................................................................................................................................................... 17

FlexiPanels®Advance HMI

Page 3of 17

Introduction

FP4 Advance HMI series is a powerful, feature rich and versatile HMI product range with a

complete range of screen size starting with compact 4.3” WQVGA TFT color display, covering

most popular screen sizes in the industry (7”, 10.1”, 12.1”), till dynamic 15” XGA TFT color screen.

These HMIs are powered by FlexiSoft® programming software and supports a powerful FlexiSoft®

runtime for efficient performance. IEC61131-3 logic programming environment support give a

unique edge to these products.

All the products are compliant to EMC directive 2014/30/EU and LVD directive 2014/35/EU and

suitable for installation in hazardous locations, because they are listed for UL Class I Div. 2.

This user manual gives detailed information regarding the hardware specifications, operating

conditions, installation, mounting and wiring. All the information published in this manual is

produced and governed by Renu Electronics Pvt. Ltd. and is protected by Indian Copyright Act.

Before you start

FlexiPanels®FP4 series products are general purpose human machine interface devices,

suitable for a variety of industrial applications across various industries. However, Renu

Electronics is not responsible or liable for any indirect or consequential damage resulting from

the use of this product.

The user should check and confirm the suitability of the product before using in any specific

application.

The diagrams and examples in this manual are included for illustration purpose only. Renu

Electronics assume no responsibility or liability regarding actual use based on these diagrams

or examples.

Reproduction of the contents of this manual, in any form (in part or in whole), is strictly

prohibited.

Following table shows various symbols that may be used in this manual to provide information

regarding safety, precautions and usage of the product:

WARNING: Indicates circumstances that may cause an explosion in hazardous

environment, which may lead to injury or death, damage or economic loss

CAUTION: Indicates specific precautions to be taken by user during installation,

operation and maintenance of the product

ATTENTION

ATTENTION: Indicates important information regarding application and functions of

the product

FlexiPanels®Advance HMI

Page 4of 17

Safety Precautions

This section of the manual provides information which is critical regarding safety and therefore

the user is advised to go through the information in detail before installing the product. User may

contact Renu Electronics technical support team at support@renuelectronics.com for any

specific question(s) related to safety.

WARNING: EXPLOSION HAZARD

Do not disconnect equipment unless power has been removed or the area is known

to be nonhazardous.

Substitution of any component may impair suitability for Class I, Division 2.

Secure any external connections that mate to this equipment by using screws, sliding

latches, threaded connectors or any other means provided with this product.

If this product contains batteries, they must only be changed in an area known to be

nonhazardous.

CAUTION: GENERAL PRECAUTIONS

Do not use this product for emergency stop. A separate physical switch, outside the

product must be used for any emergency stop operations.

Do not use the external power supply source that does not comply with the specified

power requirements of the product, it may cause malfunction or permanent damage

to the product.

Do not attempt to open, dismantle or modify the p

roduct, doing so will void the

warranty.

This product is supplied as open-type equipment and it must be mounted within an

enclosure, suitably designed for specific environmental conditions.

When used in Class I, Division 2 hazardous location, the product must be mounted

in a suitable enclosure with proper wiring method that complies with the governing

electrical codes.

The USB port is intended for temporary local programming purpose only and not

intended for permanent connection. If you connect or disconnect the USB cable with

power applied to this product or any other device on USB network, and electrical arc

can occur, which could cause explosion in hazardous location installations.

Make sure that connectors are securely tightened to properly seal the connections

against leaks.



Do not place the product in direct sunlight. Prolonged exposure to sunlight may

degrade the LCD and housing.

FlexiPanels®Advance HMI

Page 5of 17

Product Overview

This section of the manual provides an overview of FP4 series products, its front and back view,

installation details, dimensional details, mounting method and details.

Installing FP4 products

FP4 series products are designed for front panel mounting. Before installing the products, user should

review the panel guidelines, panel cutout dimensions, product dimensions and minimum clearances.

Panel Guidelines

The panel must be at least 2mm (12gauge), so that it can provide the required support and proper sealing

against water and dust. The panel surface must be flat, without any imperfection, to maintain adequate

seal and IP rating.

Maximum panel thickness allowed is 6mm (±0.2mm).

Panel Cutout Dimensions

The panel must be at least 2mm (12gauge), so that it can provide the required support and proper sealing

against.

Model

Height (mm)

Width (mm)

FP4043T

111

FP4043TN

111

FP4070T

127

175

FP4070TN

127

175

FP4101T

178

256

FP4101TN

178

256

FP4121T

225

293

FP4121TN

225

293

FP4151T

285

386

FP4151TN

285

386

ATTENTION

ATTENTION: Panel cutout

Before making panel cutout, disconnect all electrical power from the panel.

Make sure that area surrounding the panel cutout is clear.

Make sure that metal cutting does not enter any component already installed in the

panel.

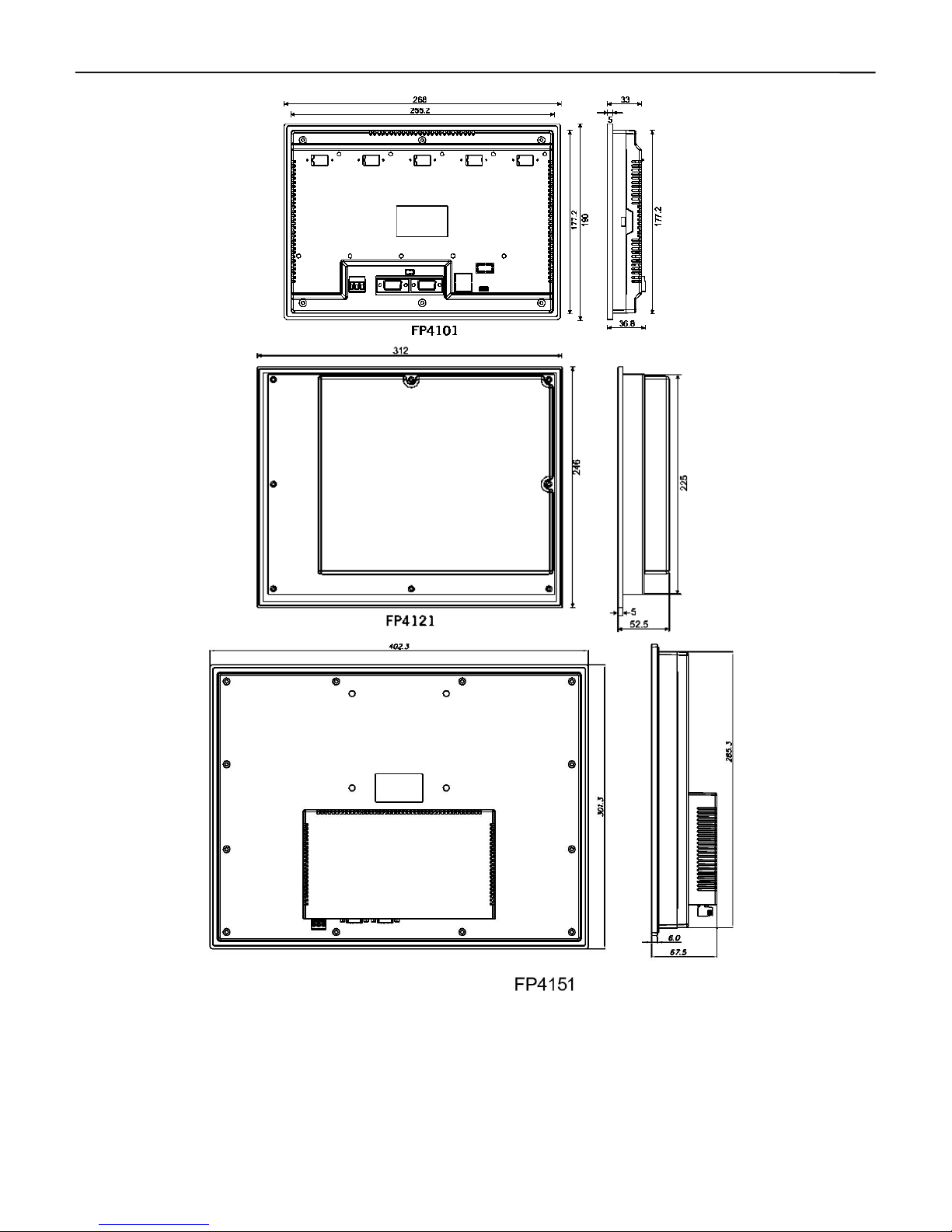

Product Dimensions

This section of the manual provides dimensional details of FP4 series products. All the dimensions shown

below are measured in mm.

FlexiPanels®Advance HMI

Page 6of 17

FlexiPanels®Advance HMI

Page 7of 17

Minimum Clearances

Maintain clearance from enclosure walls, wires and other adjacent devices. Keep 2” space on all sides

for adequate ventilation. Plan for adequate space around the product and inside the enclosure for

ventilation and cabling. Take into consideration the heat produced by other devices in the enclosure. The

ambient temperature around this product must be -10° to 60°C.

Mounting FP4 Products

FP4 series products must be installed on the front panel, using the clamp accessories shipped with the

product. Before mounting, make sure that sealing gasket is properly positioned. This gasket forms a

compression type seal. Do not use sealing compounds. Then, place the unit in the panel cutout and

tighten the mounting screws evenly (torque 0.4Nm) to maintain water and dust resistance.

ATTENTION

ATTENTION: Mounting FP4 on Panel

Do not push LCD display when pushing the unit into the panel as it may damage the

display.

Connecting Power

FP4 series require 24VDC power supply. Follow the steps mentioned below to connect the power:

Make sure that terminal is not connected to power source

Secure the 24VDC power wires

Secure the functional earth ground wire to the functional earth ground terminal screw on terminal

block

Apply 24VDC power to the terminal

Grounding

The optimum method for grounding electronic equipment is to ground it separately from other high-power

systems and to ground more than one unit of electronic equipment with a single-point ground. Following

marked terminal is provided with the unit for grounding:

FlexiPanels®Advance HMI

Page 8of 17

Product Specifications

This section of the manual provides detail specifications of FP4 series products, ordering part numbers,

operating conditions, environment and approvals.

Product Nomenclature / Ordering Part Number

FP4 series has 5 models, depending on display size and each model has two variants, based on Ethernet

and SD Card slot support. Detail part number or ordering information is as follows:

Display Specifications

FP4 series products support high quality color TFT display range.

Size: 4.3” WQVGA color TFT with 4-wire analog resistive touch screen

Resolution: 480 x 272pixels

Brightness: 400cd/m2

Backlight life: 30,000Hrs.

Size: 7” WVGA color TFT with 4-wire analog resistive touch screen

Resolution: 800 x 480pixels

Brightness: 350cd/m2

Backlight life: 30,000Hrs.

Size: 10.1” WVGA color TFT with 4-wire analog resistive touch screen

Resolution: 1024 x 600pixels

Brightness: 350cd/m2

Backlight life: 50,000Hrs.

Size: 12.1” SVGA color TFT with 4-wire analog resistive touch screen

Resolution: 800 x 600pixels

Brightness: 500cd/m2

Backlight life: 70,000Hrs.

Size: 15” XGA color TFT with 4-wire analog resistive touch screen

Resolution: 1024 x 768pixels

Brightness: 400cd/m2

Backlight life: 50,000Hrs.

FlexiPanels®Advance HMI

Page 9of 17

CPU, Memory and Power Supply

Power Rating

Unit

Voltage

Current

Wattage

FP4043

24VDC

140mA

3.36W

FP4070

24VDC

320mA

7.68W

FP4101

24VDC

330mA

7.92W

FP4121

24VDC

420mA

10.08W

FP4151

24VDC

800mA

19.2W

ATTENTION

ATTENTION: Logging to External memory

The Ethernet models of FP4 series supports SD card slot, which can be used to log

the data directly on SD card. MicroSD HC card with capacity between 4GB to 32GB

is supported. Supported speed classes are as follows:

While inserting or removing SD card, the device power must be turned off.

The user must take periodic backup of logged data to avoid loss of data.

CPU: 32-bit RISC processor

eMMC: 4GB

RAM: 512MB

User

Application

Up to 1GB that includes user

application, data log, alarms,

retentive memory and logic

memory

Power Supply:

24VDC (±15%) with isolation

RTC:

Built-in, date and time function

FlexiPanels®Advance HMI

Page 10 of 17

Communication Interfaces

This section of the manual gives detail information regarding various communication interfaces supported by

FP4 series products, including communication interfaces between FP4 and other RENU or any third-party

device, interfaces for programming and monitoring.

RS232 / RS422 / RS485 Port

FP4 products support DB9 female port for RS232 / RS422 / RS485 communication. 4.3” and 7” models

support one DB9 female port and 10.1”, 12.1” and 15” models support two DB9 female ports.

Pin number

Signal

TX+(RS422/RS485)

TXD(RS232)

RXD(RS232)

RX+(RS422/RS485)

GND

TX-(RS422/RS485)

RX-(RS422/RS485)

7” model support one terminal block port (COM 1).

Pin number

Signal

RX-

TX-

RX+

TX+

GND

RXD

TXD

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Renu Electronics Panneau de contrôle

Renu Electronics

Renu Electronics WP2 Lite Series Manuel utilisateur

Manuels Panneau de contrôle populaires d'autres marques

RDZ

RDZ PC-HRX Manuel utilisateur

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Manuel technique

Efka

Efka Variocontrol V810 Manuel utilisateur

Cebora

Cebora 208-10 Manuel utilisateur

AMX

AMX AutoPatch CP-15 Manuel utilisateur

Satel

Satel CA-6 KLED-S Manuel utilisateur

Evolution

Evolution IQ plus 800 Manuel utilisateur

Fagor

Fagor 8040 TCO CNC Manuel utilisateur

Trane

Trane ComfortLink II XL950 Control Manuel utilisateur

AKO

AKO PROCool AKO-17635-2 Manuel utilisateur

ABB

ABB 6136/30M-101 Manuel utilisateur

Telikou

Telikou BK-603 Belt Pack Manuel utilisateur

Mapei

Mapei Mapeheat Thermo Touch Manuel utilisateur

Bosch

Bosch D9412GV4 Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Manuel utilisateur

Sminn

Sminn BOX L VF1L EI Manuel utilisateur

Balboa

Balboa TP600 Manuel utilisateur

Nice

Nice HSCU1 Caractéristiques techniques
