RENDER ALARMS Euro ONE Manuel utilisateur
“Your security, above all else”
t: 01642 230695
f: 01642 252399
RENDER
ALARMS
Euro ONE
User Manual
EURO User Manual
You’ve Made the Right Choice
Page 1
Contents
Introduction 1-5
Using EURO Panel with Code or Tag 6-7
Intelligent Setting 9
Silencing the Alarm 10
Setting Individual Areas 12-15
Chime Facility 16
Omitting Inputs 17-18
Keypad Hold Up/Personal Attack 19
Manager Menu 20
Omitting 24 hr Inputs 22
Changing Date & Time 21
Change/Add Codes or Tags 23-27
Review History Log 28
SMS Phonebook 29
Walk Testing Detectors 30
SMS Messaging System 31-32
Testing your Sounder 34
Dial Out Menu 33
Allow Engineer Menu 34
Block Remote Set 35
Perform Anti-Code Reset 35
Troubleshooting 38-39
Service & Codeholder Records 40-41
Disclaimer 42
Note the specification of EURO panels may vary
between models, and some facilities in the
manual may not be available. Check with your
installer for full details. This equipment may be
used in systems installed to a lower grade,
which will be agreed with your installation
company. There are no user serviceable parts
contained in this product. This manual is for
use with panels fitted with version 7 software.
©Castle Care-Tech 2009 (RINS1302) Issue 2
EURO User Manual
You’ve Made the Right Choice
Page 2
Using your EURO Alarm System just
couldn’t be easier!

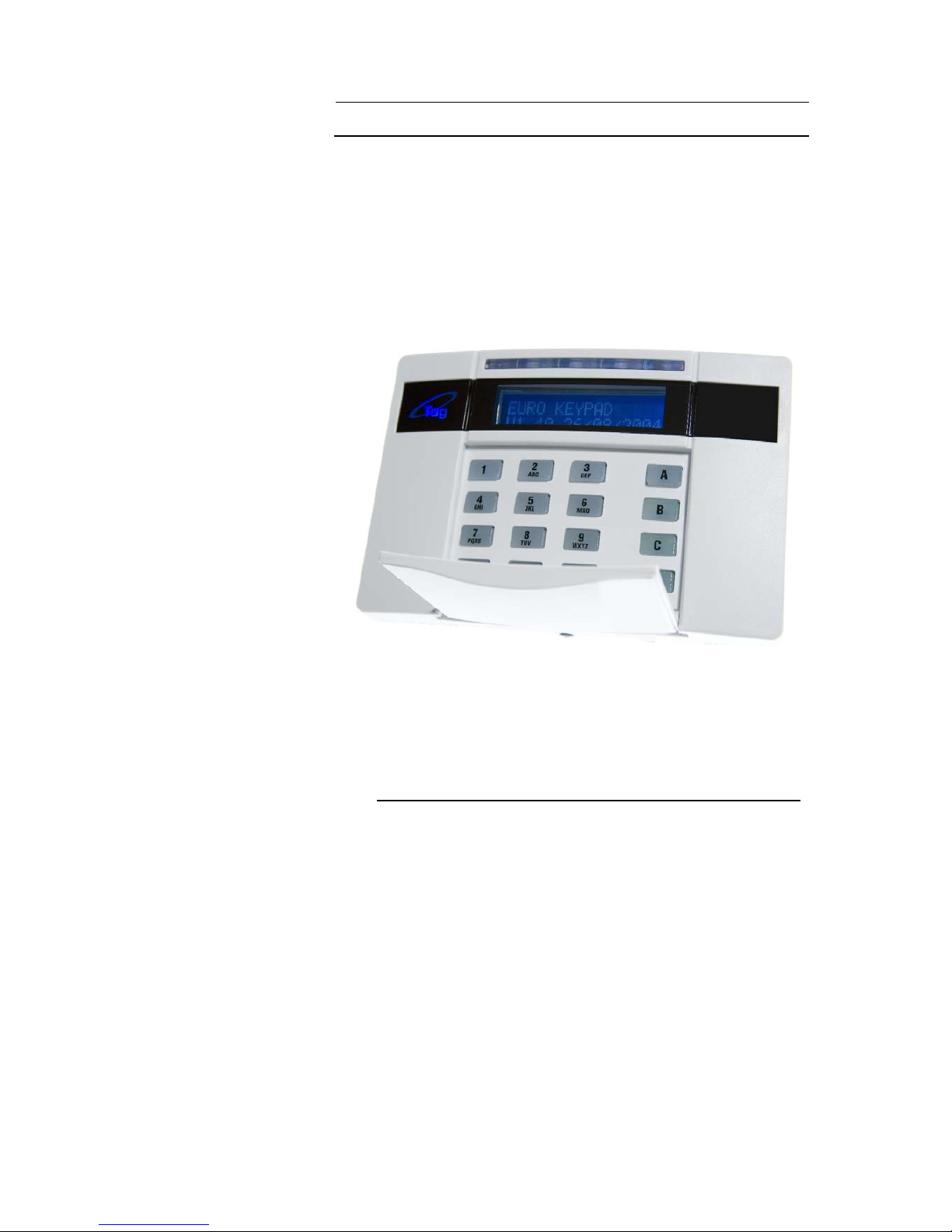

This is the Keypad from where you
control your Alarm System*
*Please note that Keypad design may differ from that shown.
Note:
For your security, the keypad becomes disabled
for 90 seconds after 30 incorrect key-presses, or
after 6 attempts to present invalid tags. It will
subsequently be disabled again after 7 further
incorrect key-presses or after another invalid tag
is presented. Once a correct code or tag has been
registered, the keypad is returned to normal
operation.
EURO User Manual
The Euro Keypad
Page 3
The display gives you any
important messages. It will alert
you if you need to call your alarm
installation engineer.
The 10 digit numeric keypad is
where you use your PIN code.
The A B C D keys help simplify use,
and will illuminate to highlight your
choice of security cover, or flash if
there is a problem.
This is where you present your
Tag
.
Euro 1
Ti
me:
15
:
02
MAINS
FAIL
EURO User Manual
Warning Indications
Page 4
All setting points (Keypads or Tag
Readers) have LEDs to clearly indicate
what is happening.
The ‘Alert’ LED will flash if there is
information available to you. Enter your
code to see the information. After a code
has been entered, one of the following
LEDs will light: Alarm, tamper or fault. The
relevant detail of the problem will be
shown on the display. To clear the display,
press the ‘Yes’ key (or the display will
clear automatically after 3 minutes.)
The ‘Alarm’ LED will flash after code entry
if an alarm occurs.
The ‘Tamper’ LED will flash after code
entry if the wiring or equipment is
tampered with.
The ‘Fault’ LED will light after code entry
to indicate if a technical fault occurs.
The ‘Unset’ LED will light for 5 seconds if
the panel is completely Unset (steady) or if
some areas remain Set (flashing). It will
also illuminate during the setting
procedure, turning off once set.
Alert Alarm Tamper Fault Unset
EURO User Manual
Using Tags
Page 5
The EURO high security proximity tag
(or card) will set or unset your alarm
system with the minimum of fuss or
complexity.
The tag contains NO batteries and is
completely maintenance free.
Just touch the tag to the illuminated
logo to use.
The Keypad will BEEP to acknowledge
the tag.
Security Checks
Before you set your system:
You must ensure all doors and
windows are securely closed and any
pets or people are excluded from areas
protected by movement sensors.
Close Doors & Windows
Exclude Pets and People
EURO User Manual
Leaving the Building
Page 6
If you are leaving the building, go
to your keypad and key in your PIN
code, or present your tag.
The Exit Tone Starts
The appropriate area (ABCD) keys
will illuminate.
(If flexi-set is enabled you will be able to
choose which areas you set, see page 13)
Leave by agreed Exit Route
Close and Lock the Final Exit
Door
Finally, press the ‘Push to Set’
button (if fitted) that is mounted
externally by the final exit door.
The Exit Tone will cease
EURO is now SET
SETTING
[009]
OFFICE
If your exit is timed,
you will see the above
screen.
If you use a Push-to-
Set button, or final-
door-set, you will see
the screen below.
E
uro
1
Ti
me:
15
:
02
Leave via
Exit Route
EURO User Manual
Entering the Building
Page 7
To enter the building you
must
use the agreed entry route and
go straight to the keypad.
The Entry Tone will be sounding
“beep – beep – beep –“
Key in your PIN code, or present
your tag.
The Entry Tone will cease
To indicate that the system has
unset, the unset LED will
illuminate for five seconds.
EURO is now UNSET
ENTRY [010]
TIME
**
ENTRY [020]
TIME
EURO User Manual
Using an External Proximity
Reader
Page 8
Setting your EURO panel with the
External Proximity Reader
Present a valid tag to the reader and then
remove it.
The GREEN LED will come on
Present the same tag to the reader, and then
remove it. The exit time will start on the
control panel.
The RED LED may be programmed to
illuminate under certain actions (for example
when the system is set).
Unsetting your EURO panel with the
External Proximity Reader
Present a valid tag to the reader and then
remove it.
The GREEN LED or RED LED (if
programmed) will be displayed.
Present the same tag to the reader, and then
remove it. The exit time will start on the
control panel.
The RED LED will extinguish, and after 25
seconds the GREEN LED will extinguish.
EURO User Manual
Intelligent Set
Page 9
If you wish to set your EURO panel and
stay in the building (e.g. set the alarm
at night), the EURO’s intelligent
operating system will realise which level
of security you require and will set only
part of the system.
You will NOT need to press a Push-
to-Set button if you set only part of
a system.
If intelligent set is not installed on your
system, you may part set the system as
described on pages 12-13.
To Part Set EURO go to the keypad and
enter your PIN code or present your Tag.
The appropriate
A B C D
keys will
illuminate
Exit tone will start
Leave the protected area and retire to
the un-protected area (e.g. upstairs).
EURO will detect you have gone upstairs
and set the appropriate areas
accordingly.
After a pre-set time the exit tone will
cease.
Your EURO panel is now Part Set
