Remotec ZXT-600 Manuel utilisateur

ZXT-600

AC MASTER

INSTALLATION GUIDE

Table of Contents

Introduction..........................................................................................2

Product Overview.................................................................................3

Key Descriptions......................................................................................................... 3

Features..................................................................................................................... 4

Z-Wave Glossary........................................................................................................ 4

Get Started ............................................................................................6

Step 1 Apply Power to ZXT-600.................................................................................. 6

Step 2 Include ZXT-600 to a Z-Wave Gateway ............................................................ 6

Step 3 Setup Automatic Status Report Association to Gateway .................................. 7

Step 4 Setup Air Conditioner IR code .......................................................................... 7

Other Setup Options through Configuration ..................................14

Support for Association Groups .................................................................................. 17

Reset to Factory Default......................................................................18

Mounting ..............................................................................................18

Required tools and supplies........................................................................................ 18

CAUTION .................................................................................................................... 18

Mounting Location Tips.............................................................................................. 19

Mounting the ZXT-600 ............................................................................................... 19

Technical Specifications ......................................................................20

WARRANTY............................................................................................21

Regulatory information.......................................................................22

IC Notice.................................................................................................23

Warnings................................................................................................23

Caution...................................................................................................23

Introduction

ZXT-600, AC Master, is a Z-Wave plus compliant Z-Wave-to-IR Bridge

to control split air conditioner by receiving Z-Wave command and

translating to Infrared command. With its comprehensive built-In

and cloud-stored IR database (library). ZXT-600 can control dierent

brands and models of air conditioners worldwide.

ZXT-600 is a security enabled Z-Wave plus device. A security Enabled

Z-Wave Plus Controller must be used in order to fully utilize the

product.

ZXT-600 is a Z-Wave slave device, it depends on gateway to setup

particular AC brand with correct IR code. Dierent gateway has dif-

ferent user interface for setup.

Product Overview

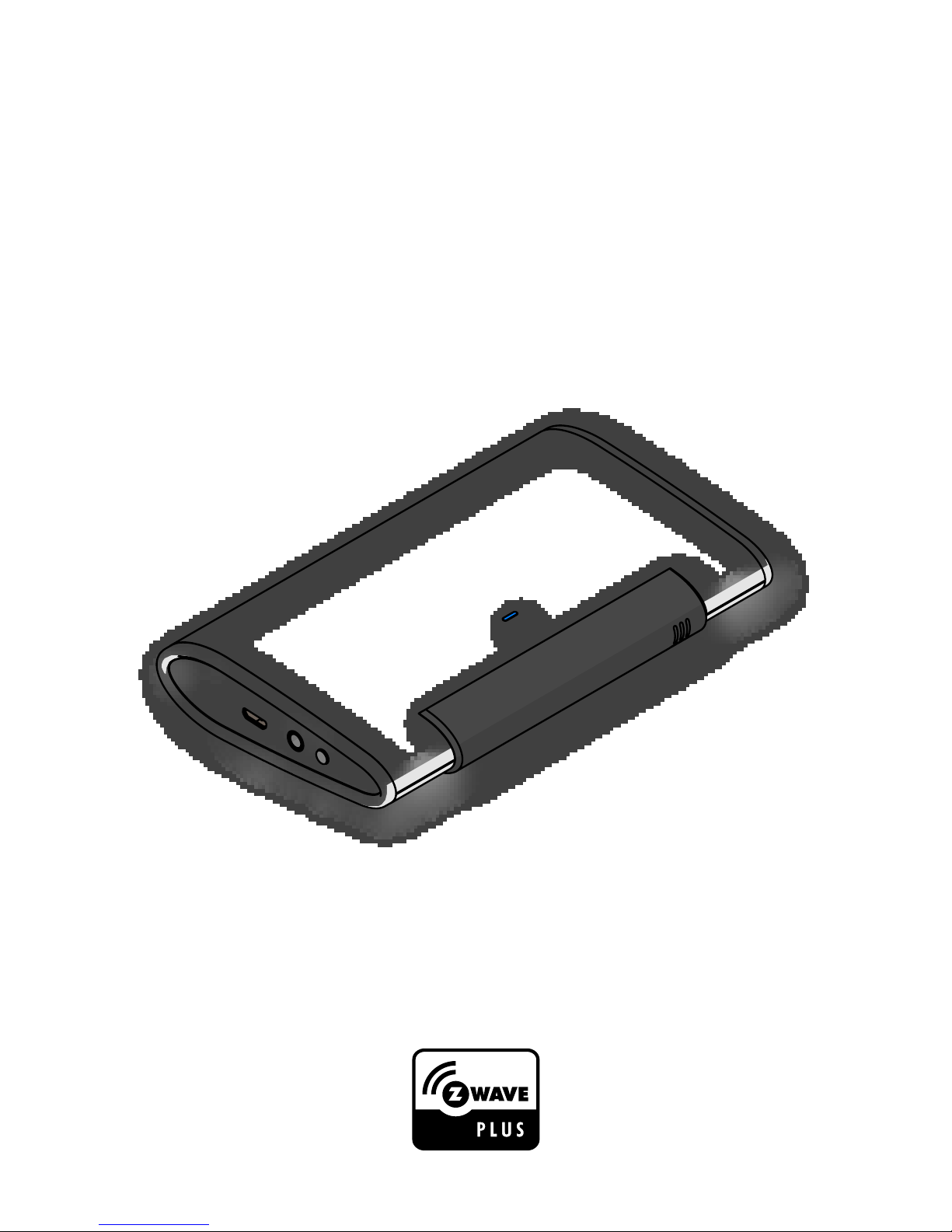

Key Descriptions

Micro USB

External IR Port

"PROG" Button LED Indicator

Temperature Sensor

QR CODE

BACK LABEL

Features

Z-Wave Glossary

• Working as a Z-Wave thermostat

• Support classic inclusion and NWI

• Built-in air conditioner IR codes, as well as cloud-based IR code

library

• IR learning back up

• Built-in temperature sensor for room temperature report

• Working on battery (2x AA batteries) or USB power

Device or Node Devices and nodes are all terms to describe an indi-

vidual Z-Wave device. These are all interchangeable

when setting up your Z-Wave network.

Inclusion Add a Z-Wave device to the network.

Exclusion Remove a Z-Wave device from the network.

Remove To take a device out of a group, scene or association

group while that device still exists in the same Z-Wave

network.

Network Wide

Inclusion (NWI)

Network Wide Inclusion (NWI) enables both end-user

friendly, Plug and Play like Z-Wave network instal-

lation as well as professional installation scenario

where the inclusion process, in terms of time will be

reduced signicantly. NWI is a feature supported by

a new frame type named Explorer which enables the

Z-Wave protocol to implement Adaptive Source Rout-

ing.

Z-Wave Network A collection of Z-Wave devices is controlled by prima-

ry and secondary controllers operating on the same

system. A Z-Wave network has its own unique ID code

so that controllers not in the network cannot control

the system.

Primary Controller The rst controller is used to set up your devices and

network. Only the Primary Controller can be used to

include or remove devices from a network. It is rec-

ommended that you mark the primary controller for

each network for ease in modifying your network.

FLiRS Mode FLiRS is abbreviation for "Frequently Listening Rout-

ing Slave".

FLiRS mode is targeted for battery operated applica-

tions and will enter sleep mode frequently in order

to conserve battery consumption. The response to

Z-Wave command is not as quick as Always Listening

Device. Normally there is 1-2 seconds latency.

Always

Listening Mode

Always Listening Mode is targeted for AC power op-

erated applications and it can act as a repeater, which

will re-transmit the RF signal to ensure that the signal

is received by its intended destination by routing

the signal around obstacle and radio dead spots. The

response to Z-Wave command is immediate.

Association Association is used to organize nodes in different

groups allowing the device to identify the nodes by

a group identier. The groups can also be copied to

other devices.

Get Started

• Open the box

• ZXT-600 AC Master x 1pc

Step 1 Apply Power to ZXT-600

• 2x AA batteries or micro USB

• ZXT-600 will detect the rst applied power source to decide what

Z-Wave device role it will be in after included into the Z-Wave

gateway: battery= sleeping device (FLiRS mode). USB power =

always awake device (Always Listening mode), refer to Z-Wave

Glossary for more information.

• Once the ZXT-600 is included into a Z-Wave network, the working

mode (sleeping or awake) cannot be changed, unless it is exclud-

ed and re-apply the power.

• ZXT-600 can be included and operated in any Z-Wave network

with other Z-Wave certified devices from other manufacturers

and/or other applications. All non-battery operated nodes within

the network will act as repeaters regardless of Vendor to increase

reliability of the network.

Step 2 Include ZXT-600 to a Z-Wave Gateway

Step Procedure / Description Status Indicator

Refer to your primary controller to enter

into the Inclusion Mode or Exclusion

Mode

When it is prompted to enter it, please

triple click the “PROG” button within 1

second.

Green Indicator ashes

TWICE then stay o

Notes:

1. It is recommended to perform the Remove (Exclude) procedure before per-

forming an Add (Include) procedure.

2. Red Indicator ashes TWICE then stay off to represent the Add / Remove pro-

cess failed, please repeat the above step again.

3. If the Add (Include) process fails, try Remove (Exclude) and /or resetting the

AC Master to Factory Default and repeat the above step.

Step 3 Setup Automatic Status Report Association to Gateway

Step 4 Setup Air Conditioner IR code

• The UI of set up the IR code varies from dierent gateways. If gate-

ways have dedicated UI for the IR code setup please refer to the

gateway UI and ignore the below steps.

• If your gateway does not have dedicated UI for ZXT-600 IR code

setup, but support Z-Wave thermostat Command Class and Con-

guration Command Class. You may refer to below steps to setup

the IR code using the conguration options in your gateway

Please consult your Gateway suppiler for more detail. Normally, User

can ignore this step during the setup.

ZXT-600 supports 1 association group

Association Group #1

Association Group #1 (max. 1 node) is default to associate with the

primary controller (Gateway/Hub/Controller) for AC Master Status

change report, refer to below for report details:

• Current Room Temperature (report in precision of 0.5°C or 1°F) (It

will be according to Conguration Parameter 39 setting to decide

the trigger level)

• Current Battery Level (Only apply in Low Battery Warning hap-

pened)

• Device Reset Locally Notication (Only report when the AC Master

has been triggered the RESET TO DEFAULT)

Step Procedure / Description Status Indicator

Refer to your primary controller user

manual, enter to the browser page that

can input the Conguration parameter.

Input parameter number “27” and param-

eter value (Please use QR Code scanner to

scan the QR code label (refer to product

overview page), then it will reach to our

Code Finder Webpage to obtain the Code

Number). Then complete the Configura-

tion process.

Green Indicator will

turn on.

If fail, Red Indicator will

ash TWICE.

Go back to the control page of AC Master

on the gateway’s Browser and try the

function such as (Cool, Temperature Set).

If the Air Conditioner does not respond

to the command you set on the Gate-

way (Cool, Heat, Auto, Temperature Set,

etc….), repeat Step 2 and 3 to Select the

next IR Code on the search list.

Green Indicator ashes

ONCE every time if

receives a command

from Gateway

Important Information

• Dierent brand or model of air conditioner has dierent function.

For example, some air conditioner only support temperature set

from 18°C - 30°C, if user set 17°C on gateway, AC Master will not

respond.

• There are more than 1 code for each brand, some does not

support Heat, if User selected a code that does not support

Heat but Original air conditioner supports Heat Function, please

continue to try next code until the correct one is selected.

• You can record down your Device Code for future reference after

setting up the AC Master correctly.

AC Device programmed to your AC Master

Code Number :
