REMO Electronics BAS-2301 WiFi Manuel utilisateur

Wi-Fi Flat Antenna

REMO BAS-2301 WiFi

USER MANUAL

Thank you for choosing our Flat Antenna REMO BAS-2301 WiFi! It has been developed

by a team of engineers determined to continue with the tradition of excellence

and innovation of REMO-Electronics products. Wi-Fi Flat Antenna REMO BAS-2301 WiFi

is made of high-quality materials in accordance with thoroughly detailed design.

BAS-2301 WiFi can be installed on any mast with a diameter up to 50 mm or

wall bracket. The antenna is connected to the WiFi router or WiFi adapter via cable

RG-58A/U with RP-SMA connector.

Wi-Fi Flat Antenna REMO BAS-2301 WiFi improves the signal strength, as well

as steadiness and accuracy of data transmission. The antenna REMO BAS-2301 WiFi

is compatible with Wi-Fi adapters and Wi-Fi routers operating in the frequency

range 2.4 Ghz (IEEE802.11b/g/n), with RP-SMA connector.

Electrical Data

Frequency: 2400-2500 MHz

Gain: 15 dBi

VSWR: <1.5:1

Polarization: Vertical

Horizontal Beamwidth: 40°

Vertical Beamwidth: 35°

Nominal Impedance: 50 Ohms

F/B Ratio: >20 dB

Max Input Power: 100 W

Lightning Protection: DC Ground

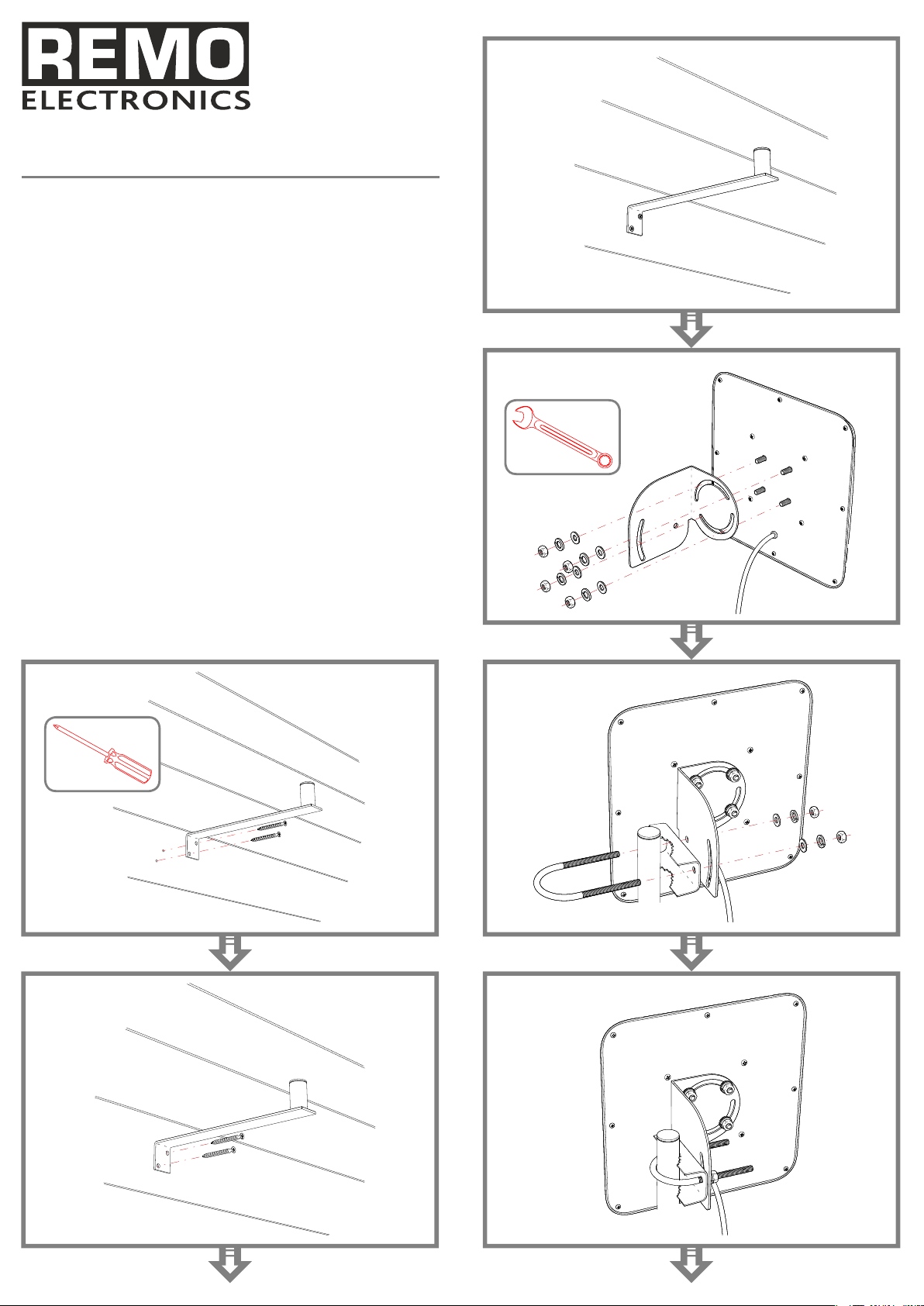

Step 2

Step 1

Step 6

Step 5

Step 4

Step 3

Mechanical Data

Connector: SMA-Male

Dimensions: 9.5x9.5x3.3in

Weight: no more than 2.2 lb

Reector Material: Aluminum Alloy

Radome Material: Weatherproof ABS

Mounting Method: Mast or Wall Bracket

Mast Size: Ø20-Ø50mm

Rated Wind Velocity: 210km/h

Operating temperature: -40~+65C

Step 8

Step 7

Step 9

Step 10

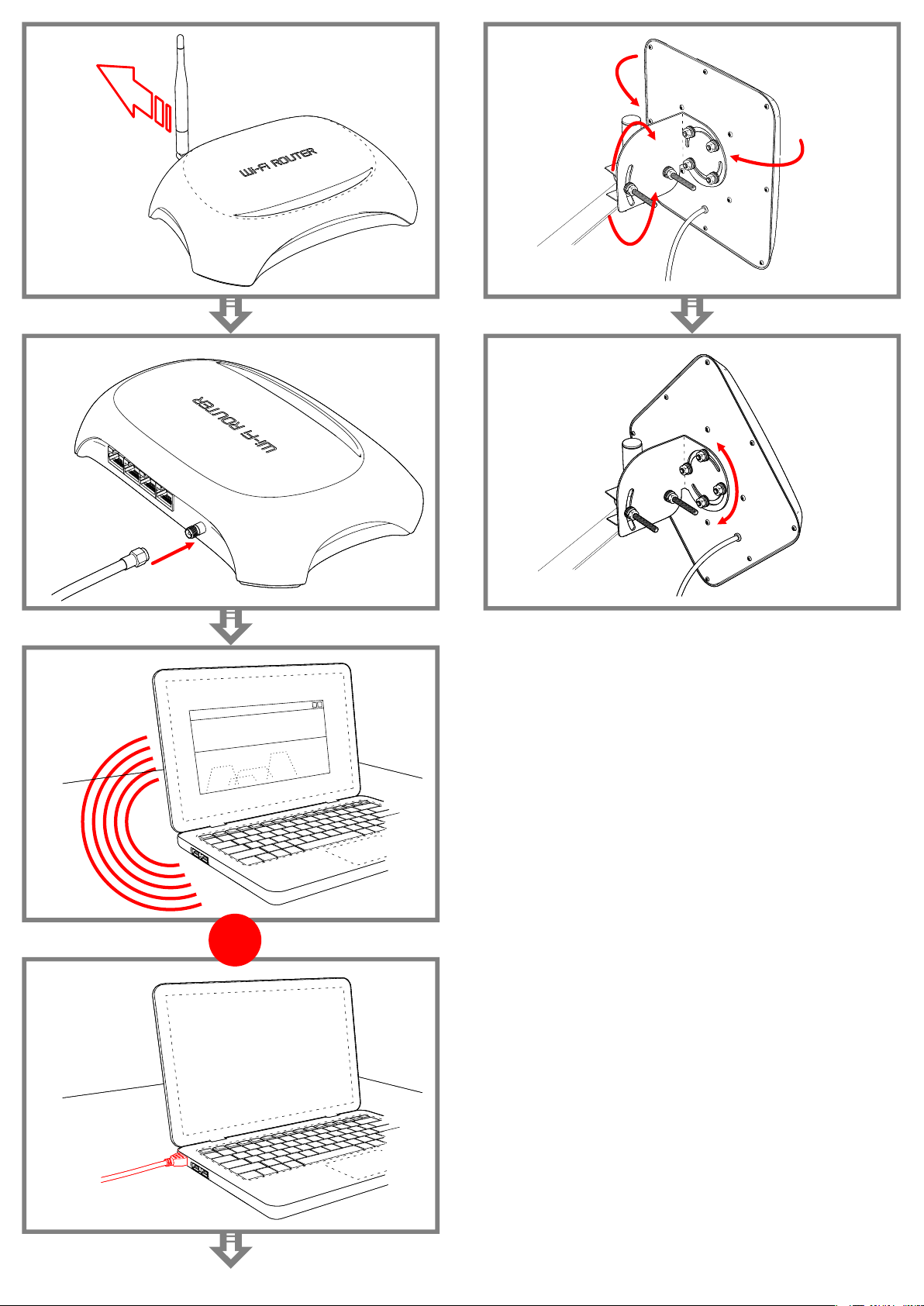

Find max signal

Remove antenna

Connect cable

Connect to AP

via WiFi

Connect to AP

via Ethernet

Finish

AB:CD:EF:LM

v.1.4_20191007

This product comes with one year warranty against any defects in labor or materials.

REMO-Electronics guarantees this product is free from defects in material and workmanship for a

period of one year from date of purchase. Our obligation under this warranty is limited to repair or

replacement of any parts or workmanship that prove to be defective upon inspection.

This warranty does not apply to normal wear and tear as well as to damages resulting from

shipment, alteration or misuse of the product.

Manufacturer:

REMO-Technologii, LLC., P.O.Box 500, Saratov, 410052, Russia

+7 845 249 5233; info@remo-electroniсs.com;

www.remo-electronics.com

In order to gain maximum signal, we recommend to use special utilites, which are able to scan

WiFi network and display detailed information for wireless network.

For example, you can choose the following utilities (for installation on portable or stationary PC):

for Windows:

WirelessNetView (www.nirsoft.net/utils/wireless_network_view.html)

NetSpot (www.netspotapp.com/netspot-windows.html)

Free Wi-Fi Scanner (lizardsystems.com/wi--scanner/)

for Linux:

LinSSID (sourceforge.net/projects/linssid/)

iwScanner (kuthulu.com/iwscanner/index.php)

Attention! These utilities can be presented as a demonstration and have the status of Shareware

Trial Version with a limited trial period of use. Shareware programs may restrict commercial use,

and periodically remind the user about payment.

In Box:

Antenna with cable - 1 pc.

Wall Bracket - 1 pc.

Antenna Bracket - 1 pc.

Support Bracket - 1 pc.

U-shaped threaded rod - 1 pc.

Set of nuts and washers - 1 pc.

pc.Set of screws and dowels (for concrete walls) - 1

User Manual - 1 pc .
