Rehasense SPACE I Manuel utilisateur

lssue 12/2018

SPACE

User’s manual

SPACE

Indoor Rollator

more than mobility

lssue 12/2018

SPACE

1 General Information

Dear Customer,

This user manual contains a description of the medical device and important guidelines to ensure

correct and safe use of the product. It is important to read this manual carefully prior to use. It is

especially important to read the safety requirements and follow these.

REHASENSE continuously develops its products and reserves the right to change the specifications

and functions of products without notice.

If you have any queries please contact your dealer or Rehasense directly. Contact information is

located on the last page of this manual.

2 Intended usage, Indications & Contra indications

Intended usage: The rollator has been designed as a tool to assist walking for people who have

mobility problems, for example with standing or walking independently. Thanks to this rollator these

people can stand and walk easily and they can fulfil most of their daily tasks and routines without

assistance from others. Any other usage is prohibited. The device is designed for indoor use only.

Indications: The device is specifically designed for individuals who, due to a wide variety of possible

health problems, require additionalstable support during walking.

Contraindications: The device must not be used outdoor, it shouldn’t be used by users who have

serious problems with body balance or whose muscle strength is too low to be able to stand and walk,

even with the extra support of a rollator. The need and possibility of usage of a rollator by the user

should always be assessed and indicated by a doctor or physiotherapist.

3 Delivery & general product description

The rollators are supplied in boxes and come folded, for easier transportation.

The contents are:

•

1 complete folded rollator incl. basket

•

1 removable tray

•

1 handy netbag

•

1 user‘s manual

SPACEl is a four wheel, light weight rollator with a foldable frame. The product is made of aluminium,

so it is very light and easy to store or transport. The rollator offers great manoeuvrability, stability and

its push handle is height adjustable for a good user fit.The product consists of a powder coated

foldable structure frame made of aluminum tubing and. It is also equipped with a fabric shopping bag

and plastic tray which allows the user to carry small items. The rollator is equipped with 6 inch wheels

for indoor use.

4 Security requirements

Make sure that this users manual is read by all people who use the device. The manufacturer does not

take any responsibility for damages and/or injuries caused by the fact that the user’s manual has not

been followed.

Limitations for usage

•

The device must not be loaded with more than 110 kg.

lssue 12/2018

SPACE

•

The device’s bag has a load limitation of 5 kg.

•

The device is designed to be used indoor only and on flat, smooth surfaces.

•

The device is not intended to seat on it.

•

The brakes MUST be in the locked position BEFORE leaving the rollator unattended.

Avoiding accidents

•

Use the device onlyfor the purpose it is intended for.

•

Use the device only in good technical condition.

•

Avoid making constructive changes to the device, unless you have the manufacturer’s written

acceptance for such

modifications.

•

During different adjustments which are possible on the device, the user must take care not to

trap their fingers or other body parts between two moving elements of the device

•

The device must only be used on a stable surfaces.

•

All wheels MUST be in contact with the floor at ALL TIMES during use. This will ensure the

rollator is properly balanced and should avoid accidents.

•

When using the rollator in a stationary position the hand brakes MUST be locked.

Be careful when you see this symbol on the device. Fingers or other body parts

of a user and/or assistant can be trapped between the device’s parts during

folding, unfolding or adjusting of the device. Be extremely careful when adjusting

the device. Observe the dimensions of gaps between the device’s elements to

avoid trapping your fingers or other body parts.

5 Product details

Brake handle

Push handle

Brake cable Handle profile

for

height

adjustable

Removable tray push handle

Basket

Locking knob

for

push handle

height

adjustment

Folding hinge Frame locking button

(pull here to fold)

Turning wheel

Rear wheel with

brake

lssue 12/2018

SPACE

6 Usage

Looking at the picture above the device should be prepared for use in an instinctive way.

However we recommend you follow the steps below:

Initial Check

- Take the device out of the box and check (using the picture above) that nothing is missing. If

you discover at this stage that some part is missing or damaged do not continue to assemble

the product. Contact your supplier of the product right away.

Opening of the rollator

- Hold the push handle in both hands in front of you so the rear wheels are on the

floor. Push it down so the frame opens all the way.

- Find the red frame locking button on the basket frame. Lock it on the main

frame until you hear a “click”sound of the locking mechanism.

- Try to pull the frame parts back up together to fold the frame. If this is

impossible to do the frame is opened and secured correctly. See the OPEN

position in the picture above.

•

After unfolding or assembling the rollator always ensure that the frame halves are securely

locked so that the frame does not move anymore.

•

Always ensure that push handle is securely locked in the main support tube with the two

locking knobs to prevent the accidental sliding in of the push handle tubes when forced.

•

Always test to see that accessories are properly and safely locked in place BEFORE using.

•

Failure to follow these warnings can result in personal injury.

Folding

- Push the red locking button which connects the basket frame with

the main frame.

- Lift the bag’s frame to pull the main frame halves together and to

fold the rollator.

lssue 12/2018

SPACE

Adjusting the height of the push handle

- Release the handle’s 2 locking knobs.

- Make adjustments to your desired height.

- Tighten the 2 knobs.

•

Both sides of the push handle should be adjusted to the same height.

•

The correctly adjusted handle should be at the height of the user’s hips.

Using the hand brakes

- TO STOP THE ROLLATOR simplypull the brake handle up towards the hand grip.

- TO REMAIN STATIONARYhold the brake handle in the “UP”position.

- TO START MOVING release the brake handle. It will drop down automaticallyand the brakes

will be released.

•

You should always engage the brakes when you don’t plan to move the device.

•

Never leave the device unattended without the brakes engaged!

•

Never leave the device on slopes without the breaks engaged!

Locking/Unlocking the hand brakes

-To lock the brakes push the brake handle down until you can hear the “click”sound.

-To unlock the brakes pull the brake handle up until you feel wheels free to roll.

•

When using the rollator in a stationary position, the hand brakes MUST always be locked.

7 Cleaning

General:

•

Clean the device regularly and keep it clean.

•

Lighter dirt and dust can be removed with a wet cloth.

•

Larger parts of dirt can be removed with a non-corroding, mild washing agent and warm

water.

•

Do not use harsh abrasives or bleach based cleaners, as this may cause damage or

discolouration.

•

Dry parts with a soft cloth.

Wheels:

•

Clean wheels with warm water and a mild cleanser. Dry with a clean rag.

•

Lubricate with multi-purpose oil periodically or if wheels begin to squeak.

8 Label

The product label is placed on one of the bottom tubes of the cross frame. It includes important

information about the product: name, serial number, production date, item number, shopping bag’s

max load, product width, size and manufacturer’s data. The label should be never removed from the

device.

lssue 12/2018

SPACE

9 Technical data

Max. load

110

Max. load of the bag

Total weight with shopping bag

5,2

Length opened

Height folded (lowest)

Width

Length folded

Height of hand grip (adjustable)

86 –97

Brakes

1 maneuver brake on 2 rear wheels with parking function

Wheels (diameter x width)

4x 150 x 27 mm –Black SOFT PU tire

10 Transport description

The rollator is a product easy to fold, making it convenient for transportation. If it is necessary to

transport it we recommend to fold it as stated in the description above. The rollator should be

transported in a way that it is stable and there is no risk of sudden and dangerous movements of the

transported device.

11 Maintenance

•

Ensure that every part of the rollator is secure at ALL times.

•

Check all screws for tightness. If not, tighten if necessary.

•

Replace any broken, damaged or worn items immediately.

12 Reuse

The walker is suitable for re-use. Before passing on to another user it must be subject to an inspection

by the specialist dealer.

The following points have to be checked:

•

Visual inspection of the frame

•

Secure seating of nuts and bolts

•

Condition of the plastic elements

•

Condition of wheels and ball bearings

•

Effectiveness and condition of the brakes

When one of the parts is damaged or broken it must be replaced by a new. It is recommended to

replace the wheels whenever a change. All loose bolts and nuts must be tightened. The product must

be thoroughly cleaned and disinfected prior to reuse.

WARNING! It is forbidden to re-use the rollator when the frame is bent or broken.

The instruction manual must accompanythe rollator with every change.

13 How to dispose the product

The device should not be disposed with normal garbage. It should be delivered to the disposal station

for re-use or recycling.

lssue 12/2018

SPACE

14 Warranty

The manufacturer offers a 2 year guarantee for errors in production. The guarantee is not valid by

miss-intended use of the product.

In case of technical problems please contact your dealer.

You can also contact Rehasense® directly.

Dealer

Rehasense® Europe

Manufacturer

Rehasense Sp. z o.o.

Sulejowska 45

97-300

Piotrk

Trybunalski

Poland

www.rehasense.com

info@rehasense.com

Table des matières

Autres manuels Rehasense Aide à la mobilité

Rehasense

Rehasense SERVER Manuel utilisateur

Rehasense

Rehasense Platform 1000G Manuel utilisateur

Rehasense

Rehasense 740005 Manuel utilisateur

Rehasense

Rehasense NAVIGATOR Manuel utilisateur

Rehasense

Rehasense Platform 1000M Manuel utilisateur

Rehasense

Rehasense Space LX Manuel utilisateur

Rehasense

Rehasense PFD04076 Manuel utilisateur

Rehasense

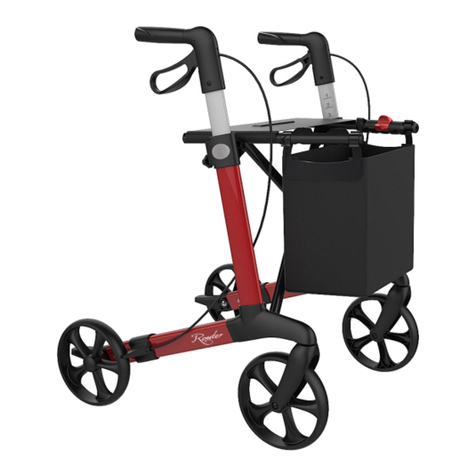

Rehasense ROUTER Manuel utilisateur
