Regency LES STATIONS LRDDS7135 Manuel utilisateur
Any problems or questions call Regency Ofce Furniture at 1-866-816-9822
IMPORTANT NOTICE:
● Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
● Check to be sure that you have all parts and hardware.
● Remove all wrapping materials, including staples & packing straps before you start to assemble.
● Do not tighten all screws/bolts until completely assembled.
● Keep all hardware parts out of reach of children.
Desk Instruction for the following Items
LES STATIONS-LRDDS7135-SRDRT2BF INSTRUCTIONS
You will need 2 person(s) for this assembly.
You will need a Phillips Head Screwdriver.
Hardware :
A: Large Corner Brackets(10) • B: Wood Screws(60) • C: Cam Pins(13) • D:Cam Covers(13)
Parts :
E: Left Desk Leg F: Right Desk Leg • G: Desk Modesty • H: Desktop
I: Transaction Top
EG H
STEP 1a : Insert 5 Cam Pins(C) into the Left Desk Leg(E) and Right Desk Leg(F).
STEP 1b : Insert 3 Cam Pins(C) into Desk Modesty(G).
Fig. 1a
F
ABCD
1a
E
c
c
c
c
c
F
c
c
c
cc
1b
G
c c c
I
Figure 1a: To open
Cam, point arrow
toward Cam Pin hole.
To lock Cam, turn
clockwise.

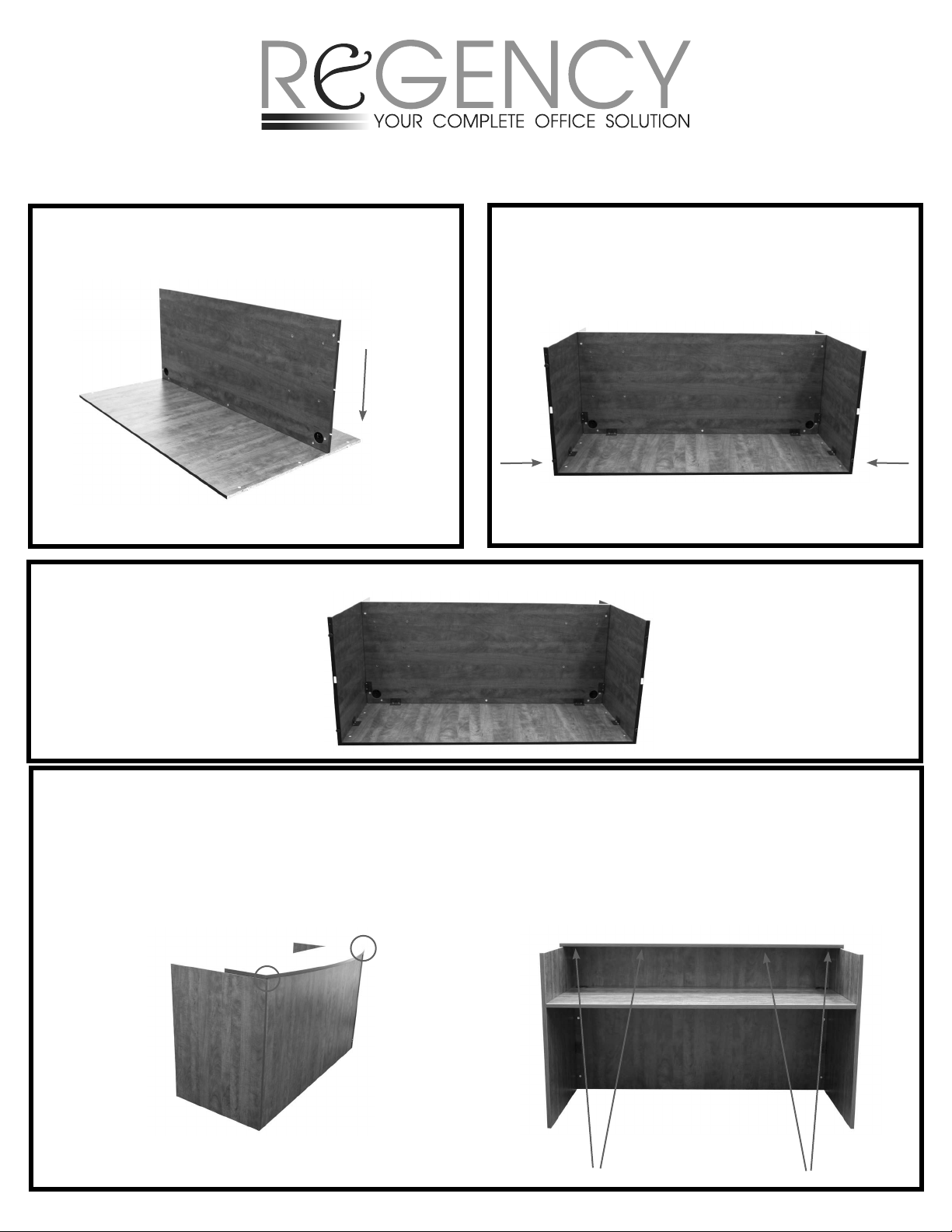

STEP 2 : Attach Desktop(H) to Desk Modesty(G) by
inserting and locking cam pins. See g 1a.
STEP 4 : Screw into place 6 Large Corner Brackets(A) exactly as shown in the image below using 36 small wood screws(C)
Use 6 small wood screws per bracket.
LES STATIONS-LRDDS7135-LRDRT4724-SRDRT2BF INSTRUCTIONS
You will need 2 person(s) for this assembly.
You will need a Phillips Head Screwdriver.
H
G
STEP 3 : Attach the Left Desk Leg(E) and Right Desk
Leg(F) to (H,G) by inserting and locking cam pins.
See g 1a.
KL
H
G
A
A
A
A
A
A
OPTIONAL (FOR RECEPTION DESK ONLY! DO NOT USE TRANSACTION TOP WITH LES SET UP)
HOW TO ATTACH RECEPTION DESK TRANSACTION TOP
STEP 5a : Attach Transaction Top(I) by aligning the corners of (I) ush with the corners of the Desk.
STEP 5b :Secure by attaching 4 Large Corner Brackets(A) using 6 Small Wood Screws(B) each Bracket.
Place 2 Large Corner Brackets(A) to the underside of the Transaction Top(I)/Desk Modesty(G).
Also secure 2 Large Corner Brackets(A) to the underside of both the left and right side of Transaction Top/Legs
STEP 5a
STEP 5b
AA
I
Any problems or questions call Regency Ofce Furniture at 1-866-816-9822
Return Instructions for the following items
LES STATIONS-LRDRT4724 INSTRUCTIONS
You will need 2 person(s) for this assembly.
You will need a Phillips Head Screwdriver.
Hardware :
A: Small Corner Brackets(3) • B: Large Corner Brackets(2) • C: Wood Screws(54) • D: Cam Pins(7)
E: Dowel Rods(2) • F:Cam Covers(12) • G:Large Cam Caps(3) • H:Medium Cam Caps(2) • I:Small Cam Caps(3)
J:Flat Brackets(4)
Parts :
K: Return Leg L: Return Top • M: Return Modesty
AE
K
BCDFGHIJ
L M STEP 1 : Place 2 Cam Pins(D) into the Return Modesty(M).
Attach Return Top(L) to Return Modesty(M) by inserting and
locking cam pins. See g 1a.
DD
M
L
M
STEP 2 : Place 5 Cam Pins(D) in Return Leg(K) as shown
below and attach to (L,M) by inserting and locking cam
pins. See g 1a.
K
DD
D
D
D
K
L
M
STEP 3 : Place 5 cam Pins(D) in Return Leg(K) as shown
below and attach to (L,M) by inserting and locking cam
pins. See g 1a.
KL
M
K
D D
D
D
D
TO BUILD A RIGHT RETURN PROCEED TO STEP 2. TO BUILD A LEFT RETURN PROCEED TO STEP 3.
Any problems or questions call Regency Ofce Furniture at 1-866-816-9822
LES STATIONS-LRDDS7135-LRDRT4724-SRDRT2BF INSTRUCTIONS
You will need 2 person(s) for this assembly.
You will need a Phillips Head Screwdriver.
STEP 5 : Attach return to desk by aligning them in the
orientation of your choice (Left or Right Return). Connect
them by attaching 2 Flat Brackets(J) to the underside of
the desktops and also connect the desk leg to the Return
Modesty(M) with 2 Flat Brackets. Use 6 screws(C) per
bracket.
JJ
STEP 4 : Screw into place 3 Small Corner Brackets(A)
exactly as shown in the image below using 18 wood
screws(C).
aa
a
TO FINISH INSTALLATION PLACE ALL CAM CAPS AND COVERS.
K
L
M
COMPLETE
LEGACY ESSENTIAL STATION SHELL
COMPLETE
RECEPTION DESK SHELL
You have now nished the set up of your unit.
1.) If you have pedestals please use the included instructions to attach them.
2.) If you are setting up a grouping of Legacy Essential Stations build all shells before proceeding to the assembly of
the Top Caps(ESTC) and End Trim(ESET). Once all shells have been built please use the included instructions to
attach .
