Regency Grandview G800EC Series Manuel utilisateur

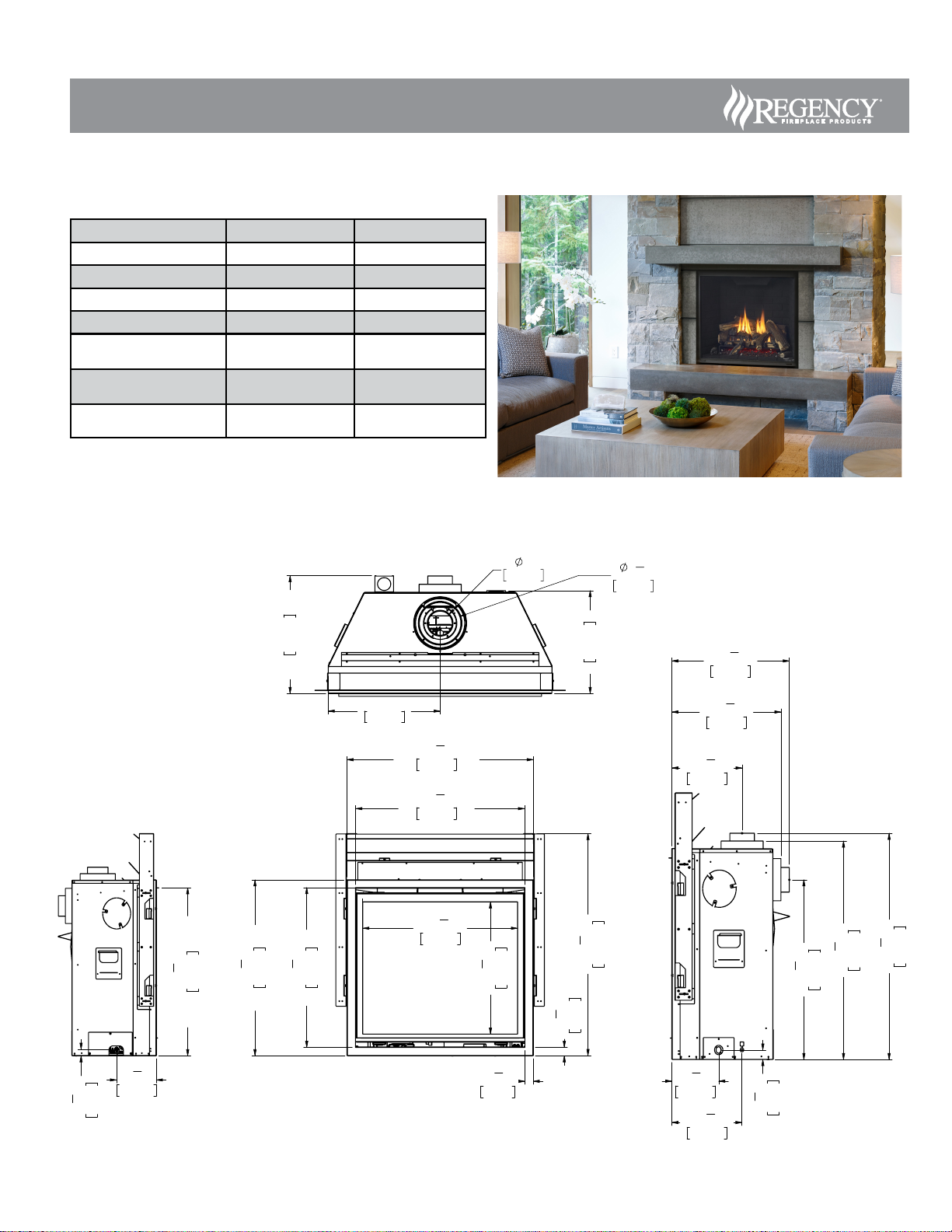

Grandview G800EC Gas Fireplace

Model G800EC-NG G800EC-LP

Fuel Type Natural Gas Propane

Minimum Supply Pressure 5” W.C. (1.25 kPa) 11” W.C. (2.73 kPa)

Manifold Pressure - High 3.8” W.C. (0.94 kPa) 10.5” W.C. (2.62 kPa)

Manifold Pressure - Low 1.1” W.C. (0.27 kPa) 2.9” W.C. (0.72 kPa)

Orice Size -Altitude 0-4500 ft. #42 DMS #53 DMS

Minimum Input

Altitude 0-4500 ft. (0-1372m)

15,000 BTU/h

(4.54 kW)

21,000 BTU/h

(4.54 kW)

Maximum Input

Altitude 0-4500 ft. (0-1372m)

27,000 BTU/h

(8.33 kW)

25,500 BTU/h

(8.33 kW)

Vent Sizing 4” Inner / 6-5/8” Outer 4” Inner / 6-5/8” Outer

42 7

1088mm

35 7

913mm

OUTSIDE FINISH

30 7

783mm

CLEAN FRONT

32 5

827mm

CLEAN FRONT

41mm

33 7

862mm

OUTSIDE FINISH

41mm

29 7

759mm

25 1

648mm

36 3

924mm

35 1

892mm

18 7

480mm

17 1

446mm

192mm

39mm

28 7

734mm

11 1

287mm

11 1

287mm

ELECTRICAL

INLET

101mm

170mm

18"

457mm

19"

481mm

NON COOL WALL

16 7/8"

429mm

COOL WALL

195mm

32mm

32 1

823mm

FIREPLACE OPENING

GAS INLET

Grandview® G800EC Gas Fireplace | P. 1

Clearance / Framing and Venting Conﬁgurations

The G800EC is designed to allow for unique installation options—depending on the desired ﬁnish.

Please review the options and follow the speciﬁc clearance, framing, and ﬁnishing options for that application.

The applications are as follows:

Cool Wall application: combustible materials can be installed right up to the ﬁreplace opening with this option.

Clean Front application: non-combustible required when installing materials right to the ﬁreplace opening with this option.

Outside Finish application: non-combustible materials required and the unit is ﬁnished to the edge of the ﬁreplace or with either a ﬁnishing trim or faceplate..

See descriptive diagrams on the next page.

Cool Wall Clearances ............................................................4

Cool Wall Mantel Clearances ...............................................5

Cool Wall Mantel Leg Clearances .........................................5

Cool Wall Application—Framing ............................................6

Chase Vent Installation ..........................................................7

Clean Front Installation—Clearances ....................................8

Clean Front Installation Mantel Clearances ...........................9

Clean Front Installation—Mantel Leg Clearances .................10

Non-Combustible Requirements: ...........................................10

Clean Front Installation—Framing (non Cool Wall) ................11

Clean Front Finishing.............................................................12

Optional Clean Front Trim Install Instructions: .......................12

Outside Finish Installation—Clearances ................................13

Outside Finish Installation—Mantel Clearances ....................14

Outside Finish Installation—Mantel Leg Clearances .............14

Outside Finish Installation—Clearances ................................15

G800EC Gas Fireplace

Grandview® G800EC Gas Fireplace | P. 2

Venting ...............................16-22

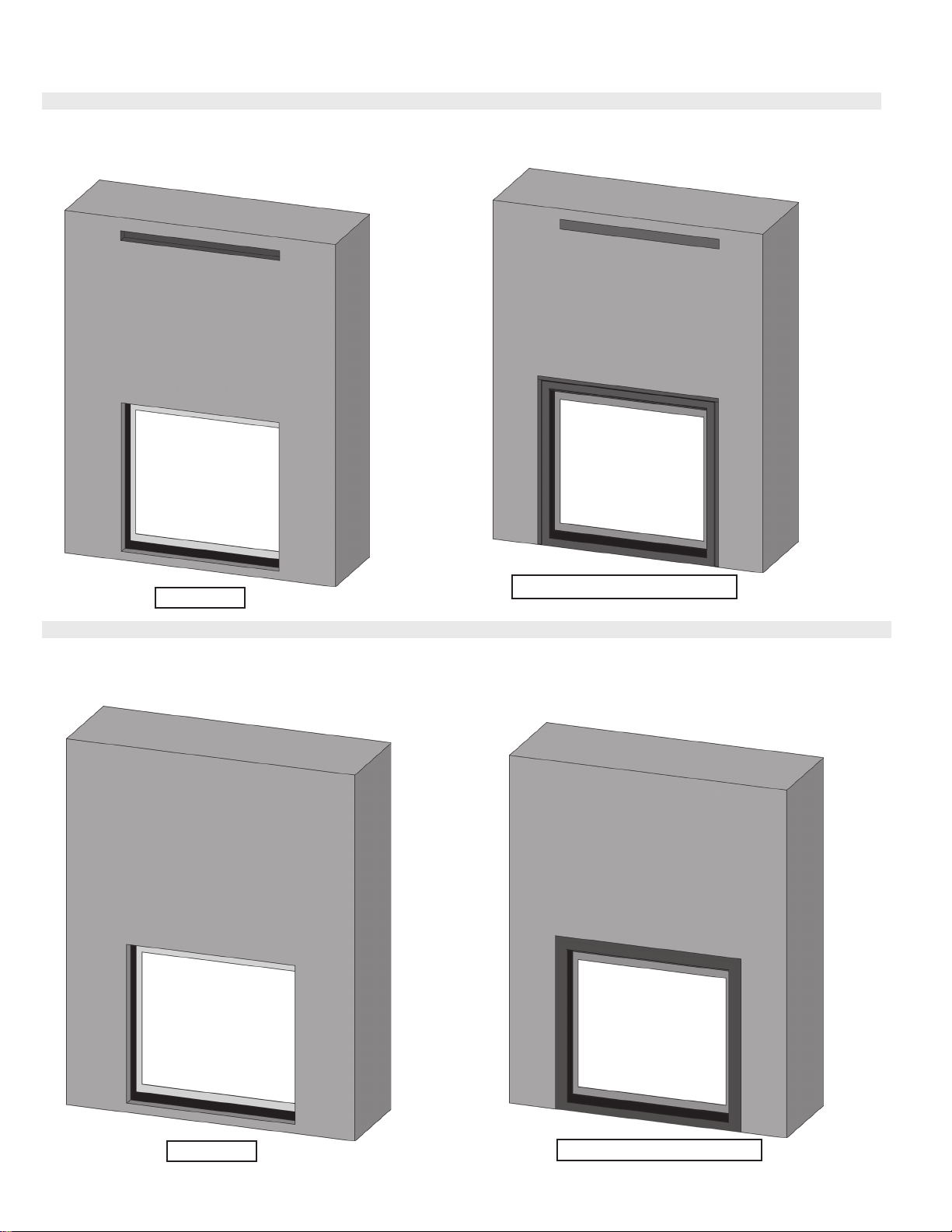

Cool Wall Install (Combustible Finishing)

Standard Install (Non-Combustible Finishing)

Clean Front

Standard Install:

• Non-vented chase

• Non-combustible board required

• Combustible framing

Cool Wall Install:

• Vented chase

• Combustible material can be used all around the ﬁreplace

• Combustible framing

Clean Front

Clean Front Outside Finish w/ Finishing Trim

Outside Finish w/ Faceplate

Grandview® G800EC Gas Fireplace | P. 3

Caution Requirements

The top, back and sides of the ﬁreplace are deﬁned by

standoffs. The metal ends of the standoff may NOT be

recessed into combustible construction.

WARNING

Fire hazard is an extreme risk

If these clearances (air space) to combustible materials are not adhered to. It is of

greatest importance that this replace and vent system be installed only in accordance

with these instructions.

Cool Wall Clearances

The clearances listed below are minimum distances unless otherwise stated:

A major cause of chimney related ﬁres is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance

that this ﬁreplace and vent system be installed only in accordance with these instructions.

Minimum Vent Clearances

to Combustibles

G800EC Clearance Requirements—Cool Wall Installations

Clearance: Cool Wall - Clean Front Measured From:

A: Mantel Height (min.) **0" (0mm) Top of Fireplace Opening

B: Sidewall 6" (152mm) Side of Fireplace Opening

C: Ceiling 47-1/2" (1207mm) Top of Fireplace Opening

D: Mantel Depth (max.) 14" (356mm) Front of Fireplace Opening

E: Alcove Width 84" (2134mm) Wall to Wall (Minimum)

F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)

G: Convection Air Outlet 66"sq Top/Front of Enclosure

H: Convection Air Outlet Opening Offset 0-2" *Top of Chase Enclosure

K: Chase Enclosure (Min.) 80" From Base of Appliance Floor

L: Clearance to Sprinkler Head (Min.) 36" (914mm) Perpendicular From Chase Grill

Notes: 0" No Hearth Required

IMPORTANT - *A minimum of 66 square inches of open area, not lower than 0"-2" from top of enclosure, required

for all cool wall installations — this can be achieved by having an open area in front. See manual for details.

** An extra 3/4" (19mm)of mantel height is required when using a faceplate.

Horizontal Top 2" (51mm)

Horizontal Side 1-1/2 " (38mm)

Horizontal Bottom 1-1/2" (38mm)

Vertical Vent 1-1/2" (38mm)

Alcove

Side view

Chase grill

Sprinkler

Grandview® G800EC Gas Fireplace | P. 4

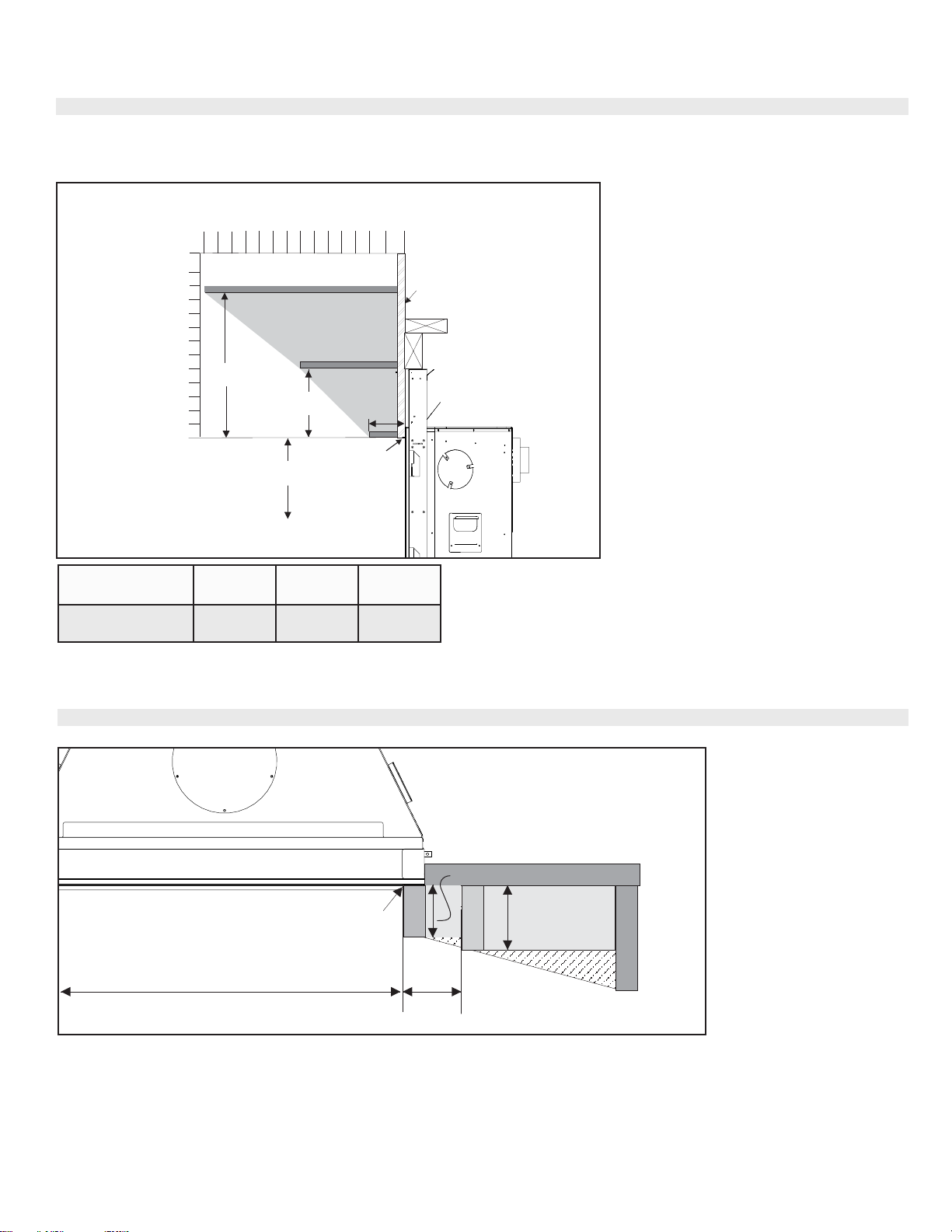

Cool Wall Mantel Clearances

Note: Ensure the paint that is used on the mantel and the facing is "High Quality" or the paint may discolour.

Due to the extreme heat this ﬁreplace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in

the diagram below.

Mantel Clearances

G800EC

ABC

From Top of Fireplace

Opening

32-1/2"

(826mm)

10"

(254mm)

(127mm)

Combustible

Mantel Clearances

12 64

810

Top of

Fireplace

Opening

To Floor

Inches

C2”

7”

14”

Mantel leg

Allowable mantel leg

projection

TopView

Side opening

of ﬁreplace

Mantel leg

2" (51mm)

3" (76mm)

1-3/4"

(44mm)

32-1/2" (826mm) overall ﬁreplace width

Cool Wall Mantel Leg Clearances

See framing dimensions on next page.

Note: If Faceplate or FinishingTrim is being installed, leave 3 3/8" clearance from from top of ﬁreplace opening for installation

and removal.

Grandview® G800EC Gas Fireplace | P. 5

Cool Wall Application—Framing

Framing Dimensions Description Cool Wall Cool Wall

with Finishing Trim or Faceplate

M Framing Width 36-1/2" (927mm) 37-1/2" (952mm)

N* Framing Height 43" (940mm)

O Framing Depth 16-7/8" (427mm)

P Corner Facing Wall Width 42-1/2" (1035mm)

Q Corner Facing Wall Width 60" (1524mm)

R Framed Chase Ceiling Enclosure 80" (2032mm)

S (Rear Vent) Vent Centerline Height - Rear 29" (737mm)

S (Top Vent) Vent Centerline Height - Top 44" (1118mm)

T Gas Connection Height 1-1/2" (38mm)

U Gas Connection Inset 6-3/8" (162mm)

V Gas Connection Width 3" (76mm)

W Clearance to Corner of Unit 2-3/4" (70mm)

* Important: Framing height requires consideration of the hearth depth. Dimension N = N + the thickness of the installed hearth.

Combustible header

Top Vent Rear Vent

Corner=Top Vent Only

IMPORTANT: Corner applications are vented from the top

only - rear venting cannot be used.

Grandview® G800EC Gas Fireplace | P. 6

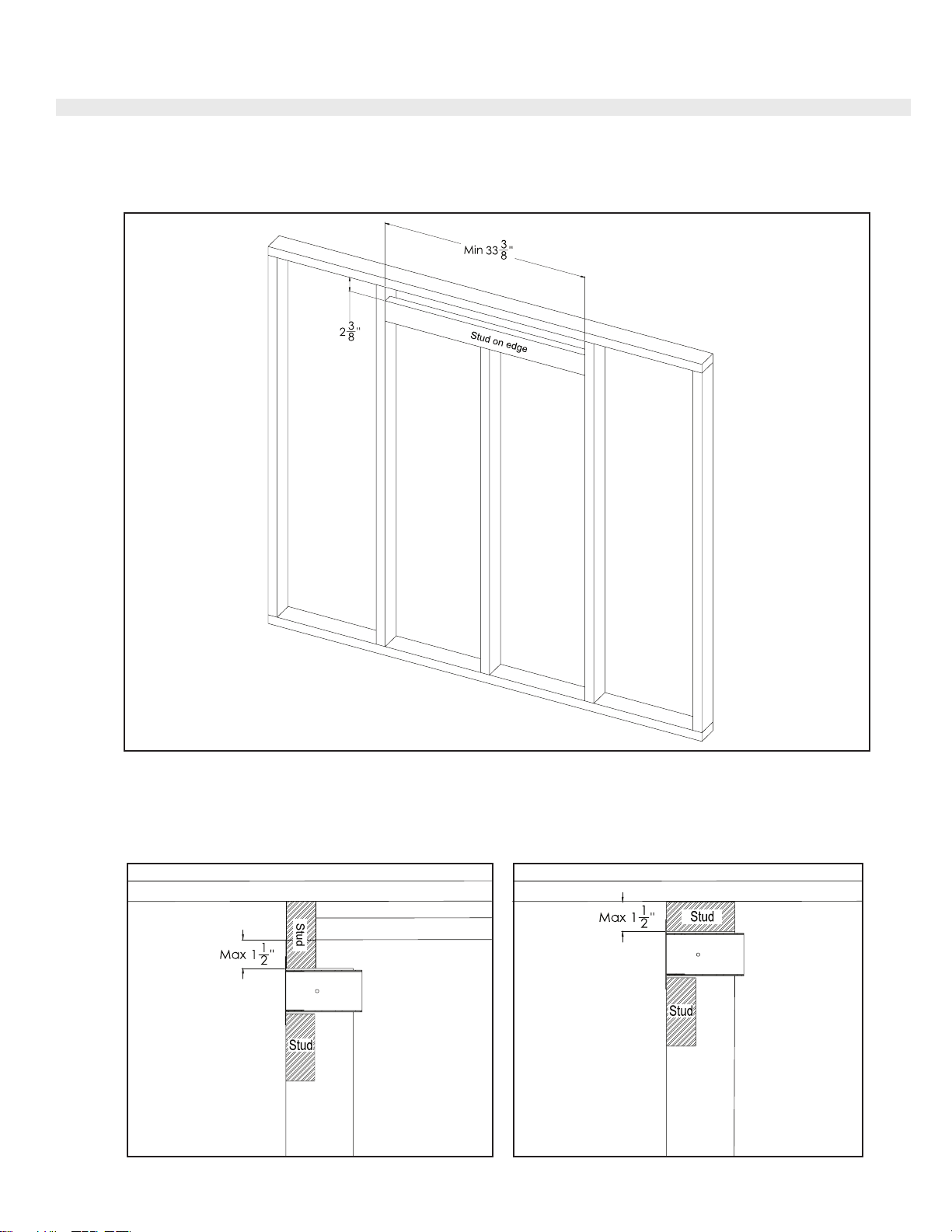

Chase Vent Installation—Cool Wall

09.04.19920-150

G800EC

Ceiling

Top of chase enclosure

Ceiling

Side View

Framed Opening must be at least 2 3/8” tall, and at least 33 3/8” wide to accomodate the Chase vent. The top of the Chase vent opening

must be 1.5” or less from the top of the chase enclosure. Fasten the Chase vent with screws and construction adhesive.

If the chase vent is not being used, a minimum 66in2 opening in the enclosure is required to maintain safe operating tempera-

tures. This can be achieved in a number of ways including a reveal at the top of the chase.

Grandview® G800EC Gas Fireplace | P. 7

Caution Requirements

The top, back and sides of the ﬁreplace are deﬁned by

standoffs. The metal ends of the standoff may NOT be

recessed into combustible construction.

WARNING

Fire hazard is an extreme risk

if these clearances (air space) to combustible materials are not

adhered to. It is of greatest importance that this replace and vent

system be installed only in accordance with these instructions.

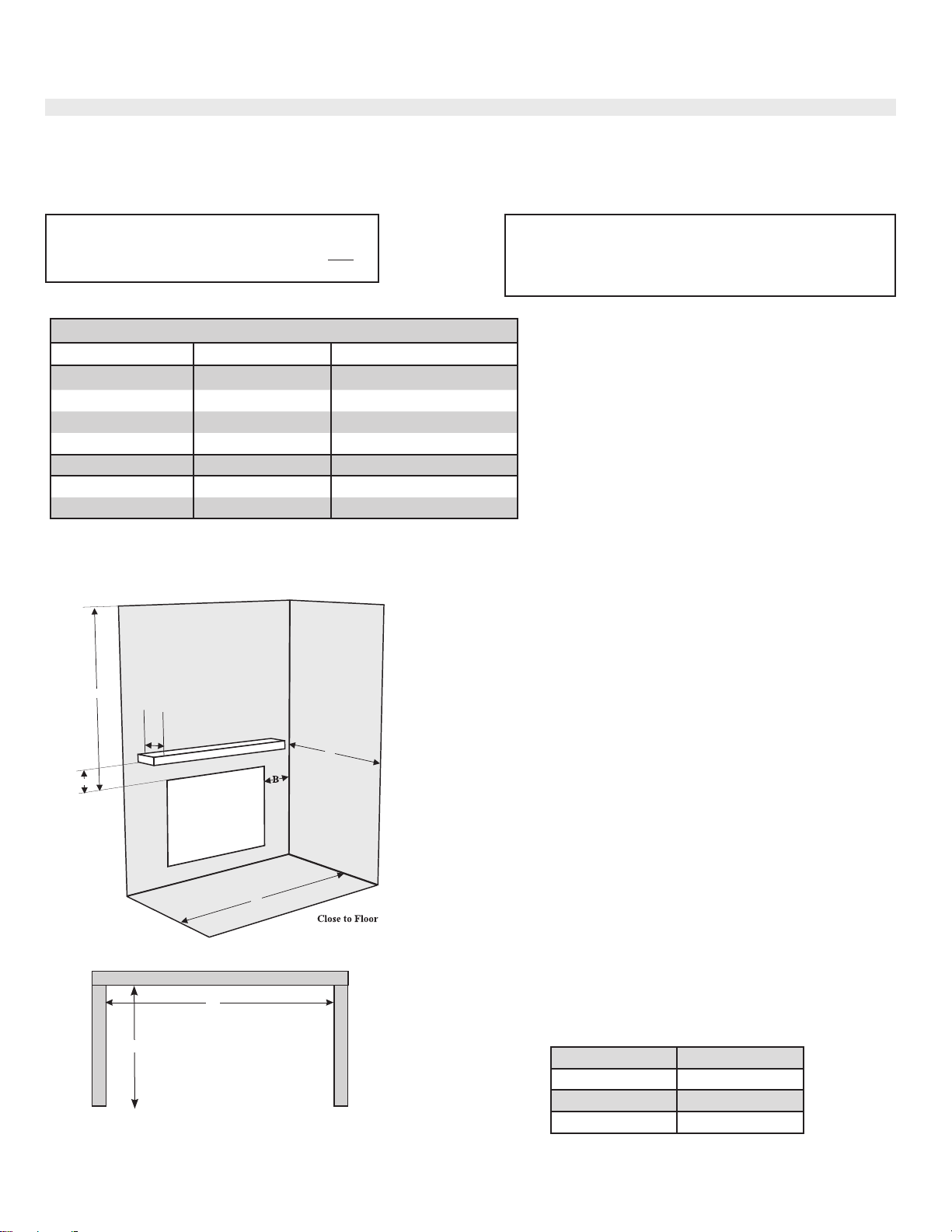

Clean Front Installation (non-Cool Wall)—Clearances

The clearances listed below are minimum distances unless otherwise stated:

A major cause of chimney related ﬁres is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance

that this ﬁreplace and vent system be installed only in accordance with these instructions.

Minimum Vent Clearances

to Combustibles

G800EC Clearance Requirements

Clearance: Dimension Measured From:

A: Mantel Height (min.) 11-1/2" (292mm) Top of Fireplace Opening

B: Sidewall 25" (635mm) Side of Fireplace Opening

C: Ceiling 36-1/2" (927mm) Top of Fireplace Opening

D: Mantel Depth (max.) 19" (483mm) Front of Fireplace Opening

E: Alcove Width 84" (2134mm) Wall to Wall (Minimum)

F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)

Notes: 0" No Hearth Required

Horizontal Top 2" (51mm)

Horizontal Side 1-1/2 " (38mm)

Horizontal Bottom 1-1/2" (38mm)

Vertical Vent 1-1/2" (38mm)

Alcove

Grandview® G800EC Gas Fireplace | P. 8

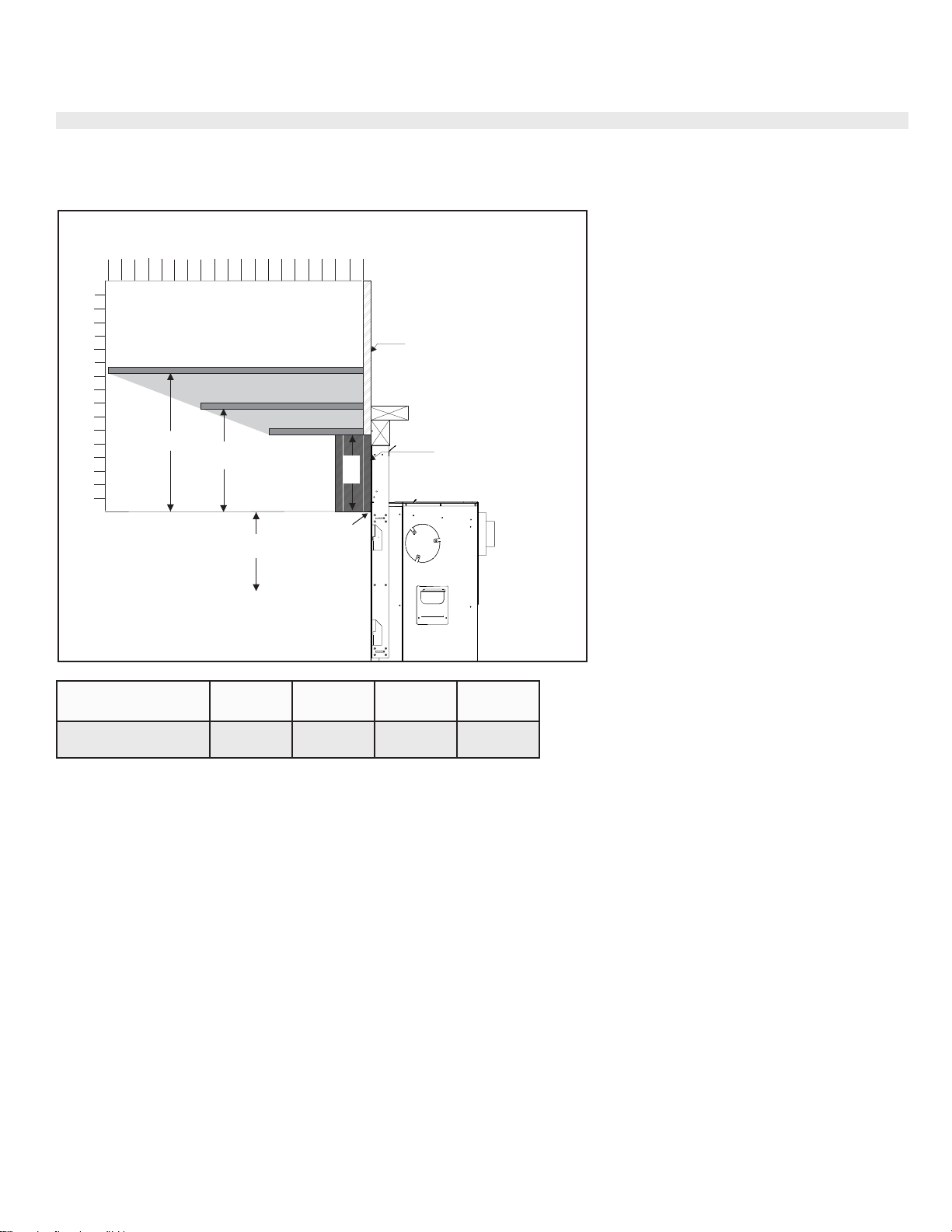

Clean Front Installation (non-Cool Wall)—Mantel Clearances

Due to the extreme heat this ﬁreplace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in the

Diagram on the right.

Note: Ensure the paint that is used on the mantel and the facing is "High Quality" or the paint may discolour.

Mantel Clearances

G800EC

ABCD

From Top of Fireplace

Opening

32-1/2"

(826mm)

20-1/2"

(597mm)

15-1/4"

(470mm)

11-1/2"

(292mm)

Combustible

Mantel Clearances

12 64

810

Top of

Fireplace

Opening

19"

12"

To Floor

Inches

Non-Combustible

Material Min.11-1/2"H (292mm)

Material Min. 2"D (51mm)

Grandview® G800EC Gas Fireplace | P. 9

Clean Front Installation (non-Cool Wall)—Mantel Leg Clearances

Clean Front Installation (non-Cool Wall)—Non-Combustible Requirements:

32-3/4"

832mm

NO FACING OR

FINISHING MATERIAL

IN THIS AREA

No Combustible

Materials in this Area

37-1/2"

[953mm]

11-1/2"

[292mm]

[76mm]

30-7/8"

[784mm]

1-5/8" (41mm)

See framing dimensions on next page.

Allowable mantel leg projection

TopView

Side opening

of ﬁreplace

Mantel

Mantel leg

(38mm)

4-1/4"

(108mm)

Leg

(76mm)

6-7/8" (175mm)

32-1/2" (826mm)

Overall Fireplace width

1-1/2"

(38mm)

(51mm)

Grandview® G800EC Gas Fireplace | P. 10

Autres manuels pour Grandview G800EC Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Regency Cheminée intérieure

Regency

Regency Excalibur P90 Zero Clearance Guide de démarrage rapide

Regency

Regency Classic F1150 Manuel utilisateur

Regency

Regency I1205S Guide de démarrage rapide

Regency

Regency City CV60EPV-NG Guide de démarrage rapide

Regency

Regency HZ33CE-NG Guide de démarrage rapide

Regency

Regency Greenfire GF1500NG Guide de démarrage rapide

Regency

Regency City CB72EPV-LP Guide de démarrage rapide

Regency

Regency Alterra CI1200 Guide de démarrage rapide

Regency

Regency B41XTCE-NG11 Manuel utilisateur

Regency

Regency Bellavista B36X Guide de démarrage rapide

Regency

Regency Panorama PG33NG4-R Guide de démarrage rapide

Regency

Regency Plateau PTO30CFT Manuel utilisateur

Regency

Regency Bellavista B41XT-NG1 Guide de démarrage rapide

Regency

Regency Cascades I1150 Guide de démarrage rapide

Regency

Regency Energy E33-NG10 Guide de démarrage rapide

Regency

Regency Greenfire GF1500L-NG Guide de démarrage rapide

Regency

Regency GEM54-NG Guide de démarrage rapide

Regency

Regency Ei33 Manuel utilisateur

Regency

Regency Grandview G800C Guide de démarrage rapide

Regency

Regency Liberty LRI6E-NG11 Guide de démarrage rapide

Regency

Regency Horizon HZ30E-NG10 Guide de démarrage rapide

Regency

Regency Greenfire GF900L Guide de démarrage rapide

Regency

Regency Energy E33-NG10 Guide de démarrage rapide

Regency

Regency Horizon HZ42STE-NG Guide de démarrage rapide

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
