Owner’s Manual
Top of Stairs Gate
MODEL NO: 1230 & 1235
READ ALL INSTRUCTIONS BEFORE ASSEMBLY
AND USE OF GATE.
KEEP INSTRUCTIONS FOR FUTURE USE.
Regalo International, LLC.
3200 Corporate Center Drive, Suite 100
Burnsville, MN 55306-9803, USA
Toll Free: 866-272-5274
Made in China
...........................................................................
www.regalo-baby.com
• To prevent serious injury or death, securely install gate or
enclosure and use according to manufacturer’s instructions.
• Never use with a child able to climb over or dislodge the gate or
enclosure.
• Never leave child unattended.
• Use only with the locking/latching mechanism securely engaged.
• Do not use if any components are missing or damaged.
• This product will not necessarily prevent all accidents.
• Adult supervision is required at all times.
• Adult assembly required.
• Check gate daily to ensure that all hardware and mountings are
tight and secure.
Contact Regalo for questions and replacement parts.
For questions about the use of your gate, call our customer care line 866-272-5274
Regalo International, LLC.
3200 Corporate Center Drive, Suite 100
Burnsville, MN 55306-9803, USA
Made in China
NOTE:
If hardware mounting to a surface other than drywall or wood, please
consult with a professional about installation.
Model #1230
Manufacturer recommendations:
-For Children ages 6 months to 24 months.
-For use in doorways and openings between 28” and 42’’
NOTE: Depending on the shape, dimensions and mounting components
utilized in your doorway or opening, the maximum and minnimum length
of this gate may increase and/or decrease slightly.
Model #1235
Manufacturer Recommendations:
-For children ages 6 months to 36 months
-For use in doorways and openings between 34” and 54”
NOTE: Depending on the shape, dimensions, and mounting components
utilized in your doorway or opening, the maximum and minnimum length
of this gate may increase and/or decrease slightly.

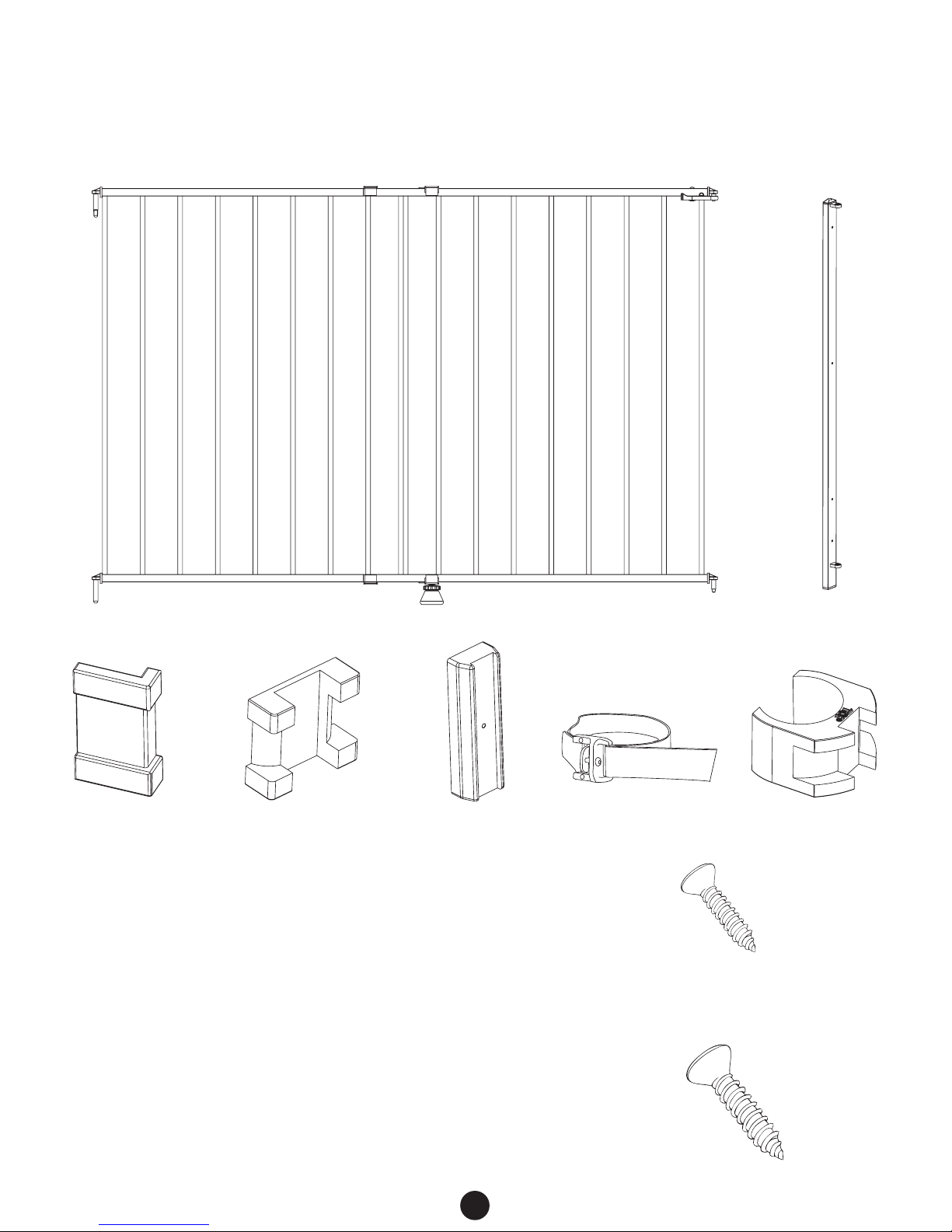

Check to make sure you have all of the parts shown :
A. B.
C. D. E. F. G.
H.
I.
A. Gate Door Assembly
B. Mounted Level Pole (x2)
C. Banister Corner Protectors (x8)
D. Bottom Banister Adapter (x2)
E. Plastic Wall Spacer (x6)
F. Hook and Loop Strap & Attached Buckle (x4)
G. Top Banister Adapter (x2)
H. 1.5” Wall Mount Screws (x6)
I. 2.5” Wall Mount Screws (x6)
1

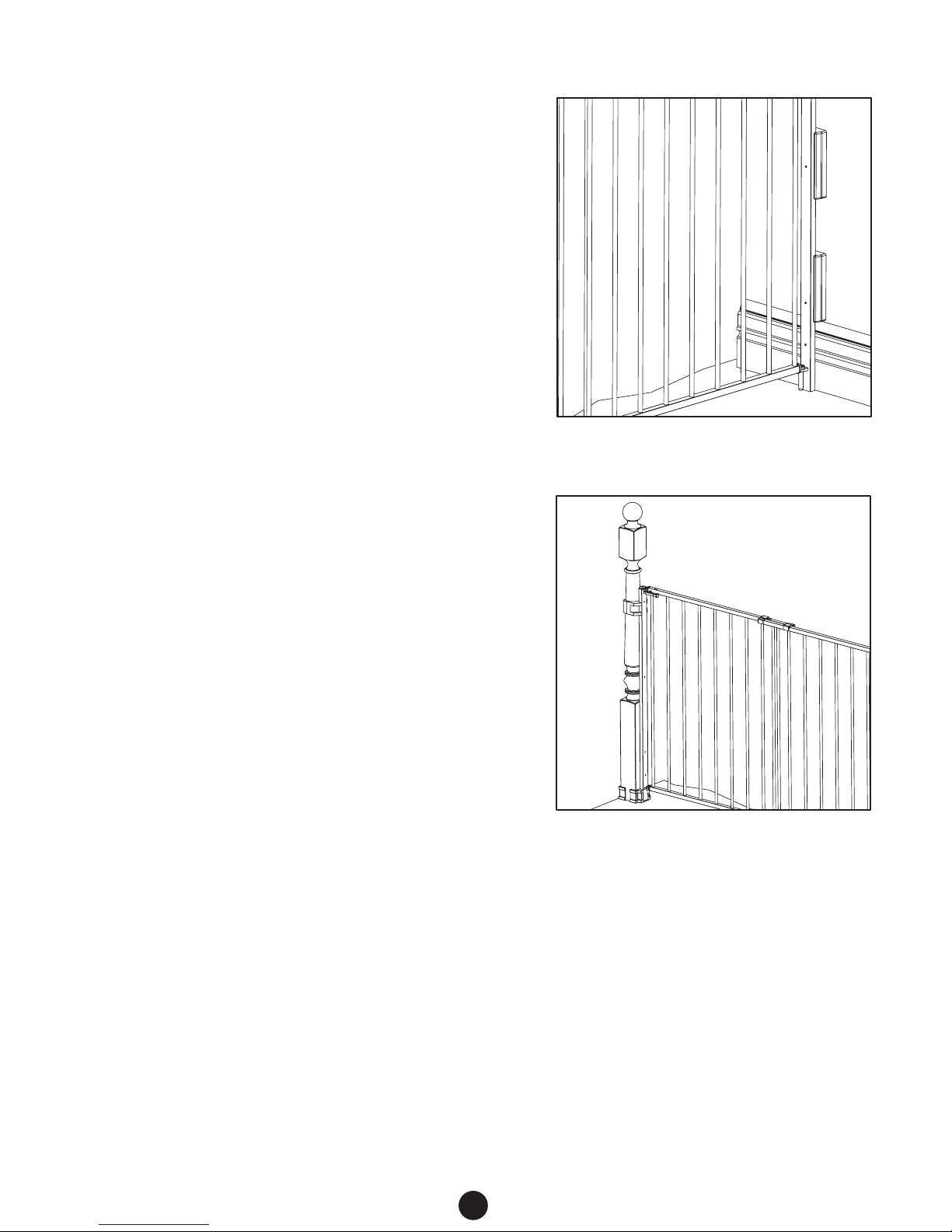

Installation Options :
Option A1
Option A2
Mounting to Wall WITHOUT
Baseboard see page 3
Mounting to Wall WITH
Baseboard see page 4
Option B Mounting to Banister Post
see page 5
2
Option A1: Mounting to a wall without a baseboard
3
Step 1.
**Note: IMPORTANT!! When fastening the Mounted Level Poles to your wall make sure that
you are fastening the screws into a stud in the wall, OR that you use the appropriate wall anchors.
Consult a profesional if you are unsure about safely mounting your Mounted Level Poles.
Place one of the Mounted Level Poles up against the wall so that it is level and straight. The
bottom of the Mounted Level Pole should be resting on the oor. Use the built in bubble
level to ensure proper placement.
Step 2.
Use 3 of the 1.5” Wall Mount Screws to fasten the Mounted Level Pole to the wall through 3 of
the pre-drilled holes. If you are fastening your Mounted Level Pole to drywall or similar
material, ensure you are making contact with a supporting stud behind the drywall.
Step 3.
Repeat steps 1-2 if installing the second Mounted Level Pole to an opposing wall without a
baseboard. If the opposing wall has a baseboard, see page 4. If fastening the second
Mounted Level Pole to a banister, see page 5.
Step 4.
Once both Mounted Level Poles are securely mounted on both sides of the opening, see page 6.
Wall Stud
Drywall
1.5” Wall Mount Screw
Mounted Level Pole
Bubble Level

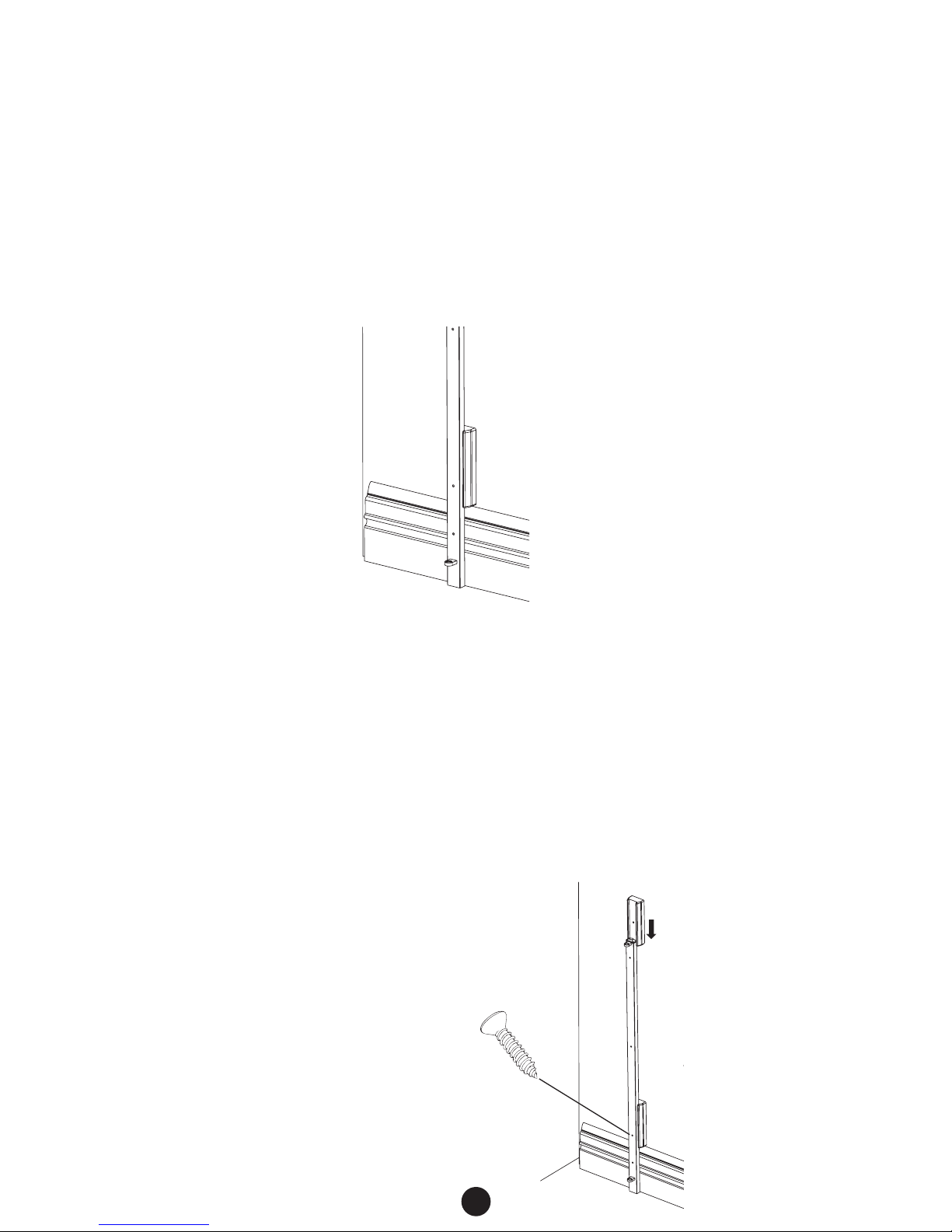

Option A2: Mounting to a wall with a baseboard
4
**Note: IMPORTANT!! When fastening the Mounted Level Poles to your wall make sure that
you are fastening the screws into a stud in the wall, OR that you use the appropriate wall anchors.
Consult a profesional if you are unsure about safely mounting your Mounted Level Poles.
Step 1.
Begin by taking one of the Plastic Wall Spacers and placing it against the wall just above the
basebaord where you want the gate to be positioned. Then, place the Mounted Level Pole
within the groove of the Plastic Wall Spacer, making sure the bottom of the Mounted Level
Pole is resting on the oor.
Step 2.
Align the bottom pre-drilled screw hole in the Mounted Level Pole with the hole in the Plastic
Wall Spacer. Use one of the 2.5” Wall Mount Screws to fasten the Mounted Level Pole and the
Plastic Wall Spacer to the wall. If you are fastening your Mounted Level Pole to drywall or
similar material, ensure you are making contact with a supporting stud behind the drywall.
Do not fully tighten the Wall Mount Screw yet.
Step 3.
Slide a second Plastic Wall Spacer from the top the top of the Mounted Level Pole downward
until the middle pre-drilled screw hole aligns with the hole in the second Plastic Wall Spacer.
Using the built in bubble level, ensure that the Mounted Level Pole is straight and level before
using a 2.5” Wall Mount Screw to fasten both components to the wall.
Do not fully tighten the Wall Mount Screw Yet.
Plastic Wall spacer
Mounted Level Pole
Option B: Mounting to a banister
5
Step 4.
Repeat Step 3, aligning a third Plastic Wall Spacer with the top pre-drilled hole in the
Mounted Level Pole. Now, go back and fully tighten all three Wall Mount Screws. Repeat
Steps 1-4 if you are installing the second Mounted Level Pole to a wall with a baseboard. If
the opposing wall has no baseboard, see page 3. If fastening the second Mounted Level Pole
to a banister, see Option B below.
Step 5.
Once both Mounted Level Poles are securely mounted on both sides of the opening, see page 6.
Step 1.
Slide the Top Banister Adapter on to the banister post and place the
Bottom Banister Adapter and Bottom Corner Protectors as shown.
Step 2.
Place the Mounted Level Pole into the appropriate grooves with the bottom resting on the oor.
Use the built in bubble level to ensure the Mounted Level Pole is lecel and straight.
Mounted Level Pole
Bubble Level
Thread strap around banister post
and through the buckle side of the
strap.
Using the hex key provided in the hardware kit, insert the key into the screw and
rotate it clockwise until the screw is snug. This will tighten the strap and secure the gate
to the banister post.
Repeat the above steps for other banister post mounts.
NOTE: The buckle can be rotated to any point around the banister post so that it is out of sight.
Pull the strap so that it is tight and
fold it over to connect the hook
side of the strap to the loop side.
6
Step 3.
Secure the Hook and Loop Straps & Attached Buckles around the Top and Bottom Banister
Adapters
NOTE: Locking Tabs are only at the top of banister posts. See detailed instructions below.
Once correclty positioned, pull the strap tight around the banister
post and lock it in place by closing the Locking Tab.
7
Step 1.
Attaching Your Gate
With the Mounted Level Poles securely attached in their designated positions, connect
the gate by inserting its Top and Bottom Hinge- Side End Pins into the corresponding
holes in the in the Monted Level Pole.
NOTE: To detache the gate, squeeze the Release Tabs at the at bottom of the Top
Hinge-Side End Pin.
Step 2.
Slide the gate to the closed position by expanding it across the length of your opening.
Insert the Upper and Lower Latch-Side End Pins into the corresponding holes in the
second Mounted Level Pole.
Step 3.
With your gate in the locked position, adjust the Gate Foot by turning it clockwise until it
just touches the oor surface. This will help stabalize the gate in its position. Lock the
foot in place by rotating the Locking Wheel until its tight againts the foot.
Release Tabs
Top Hinge-Side
End Pin
Locking Wheel
Gate Foot
