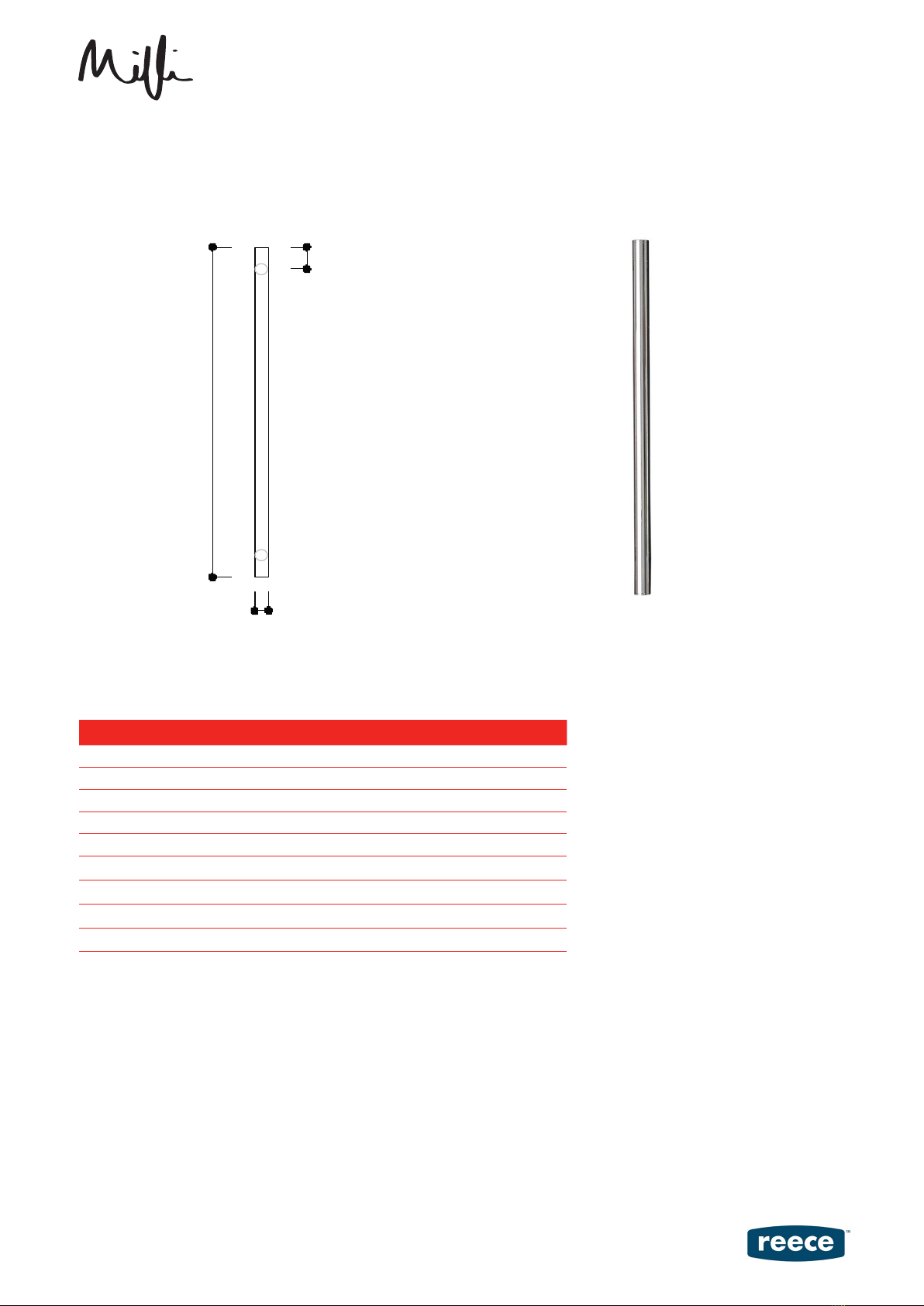

MILLI PURE VERTICAL SINGLE HEATED

TOWEL RAIL 900X38 - CHROME

900

CLEANING RECOMMENDATIONS

We recommend the use of a soft dry cloth.

This product should not be cleaned with abrasive materials or cleaning agents.

Damage caused by improper treatment is not covered by the product warranty - refer

to warranty conditions.

SPECIFICATIONS

Recommended use Domestic, hotel and commercial

Material Copper Tube with Brass fittings

Electrical Connection Hardwired only

Power Entry Through wall bracket - Bottom Only

Heating Method Water Filled

Wattage 30 watts

IP Rating IPX5

Standard AS/NZS: 3350

Robe Hook Sold seperately

To see the complete MILLI range go to

www.reece.com.au/bathrooms

Dimensions are nominal measurements only.

page 1 of 5

Disclaimer: Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/

distributor reserves the right to vary specifications or delete models from their range without prior notification. Dimensions are nominal

measurements only. Dimensions and set-outs listed are correct at time of publication however the manufacturer/distributor takes no responsibility

for printing errors.

Tech Page Version 1

MILLI PURE VERTICAL SINGLE HEATED

TOWEL RAIL 900X38 - CHROME

WARNING

This product must be installed by a qualified electrician in accordance with AS/NZS 3000 wiring rules. Switch off the electrical

supply at the mains before installation and maintenance. A means of disconnection must be incorporated in the fixed wiring

in accordance with the wiring rules. Suitable for bathroom and non-bathroom/dry areas. Not suitable for above baths, nor

for installation in saunas, steam rooms or shower cubicles. Please consult with a qualified electrician to confirm appropriate

compliant installation location.

Do not connect to a plug and socket outlet. Rated IPX5 and suitable for indoor use only. Do not fix to damp or conductive

surfaces. Site well away from curtains and fabrics. Switch off after use. Do not leave on for prolonged periods. This appliance is

not to be used by persons (including children) with reduced physical, sensory or mental capabilities.

INSTALLATION INSTRUCTIONS

Please consult with a qualified electrician to confirm appropriate compliant installation location.

Power Entry:

Power cable if hung vertically must always be positioned at the bottom, never at the top.

If hung horizontally it can be installed with the cable on either side.

page 2 of 5

MILLI PURE VERTICAL SINGLE HEATED

TOWEL RAIL 900X38 - CHROME

CLOSE UP

WALL

Cord

Screw

Hold Towel Rail in desired position against wall, with a pencil

draw an outline around both bracket arms.

Take brass bracket insert and place against wall in outlined circle.

Feed wall cable through wall mount channel. Using a

pencil mark the screw hole position and cross it for accuracy.

Mark screw hole for second brass bracket insert.

Drill screw holes for both brackets, insert nylon plug into wall (if applicable).

If tiled wall installer MUST use a DIAMOND HEAD drill bit. Position wall

bracket so that GRUB SCREW HOLES face inwards.

Aqualied electrician must then connect towel rail element to

existing wall cable.

Screw

Place Towel Rail in correct position over mounted brackets, secure unit in place by tightening grub screw on inside of

each bracket arm with Alan key provided. Fig 3. and Fig 4.

50mm

WALL

Cord

Screw

70mm

WALL

DO NOT OVERTIGHTEN SCREW - LEAVE SLIGHT

ADJUSTMENT OF THE FLANGE (SLACK) TO ENABLE

MOVEMENT WHEN THE TOWEL RAIL IS POSITIONED.

Fig 1. Fig 2.

Fig 3. Fig 4.

Fig 1.

Fig 2.

Please ensure that the measurements are taken

accurately and that the screw is in a stud or noggin to

provide support. DO NOT overtighten screws.

Please ensure a DIAMOND HEAD drill bit is used to drill

screw and cord holes into tiled wall.

Hydrotherm take pride in the fact that all rails are

individually hand made. Due to this fact some

measurements may not be exact. PLEASE READ

INSTRUCTIONS CAREFULLY and do not force towel rail

into bracket if position of wall ange is not accurate.

30 mm

Brass Bracket Insert - Close Up

22mm

8mm Wide

Channel

TOWEL RAILS MUST ALWAYS BE INSTALLED WITH THE ELECTRIC ELEMENT

POSITIONED AT THE BOTTOM OF THE UNIT FOR CORRECT HEAT TRANSFER

page 3 of 5

MILLI PURE VERTICAL SINGLE HEATED

TOWEL RAIL 900X38 - CHROME

Step 1.

Step 2. Step 3.

Step 4.

Step 5.

Step 6.

REPLACING ELEMENT

Replacing an old element is a very simple process. All electrical wiring must be carried out by a licensed electrician.

There are Six Basic Steps:

1. You will need to obtain a 22mm tap spanner. Remove towel rail from brackets (if already installed).

2. On the side with the element cable remove push-on cap, and pull element cable through end.

3. Feed cable through spanner until you reach element hex nut.

5. Insert new element and screw in place with spanner until tight.

Please note:

Hydrotherm advise that the unit be removed from the wall and turned upside down to ensure that water does not spill.

Ensure element always remains at bottom of Towel Rail if being installed vertically.

- 22mm Tap Spanner

4. Loosen element with spanner and remove.

6. Feed element cable back through bracket hole, and ret push-on cap. Towel Rail is now ready be re-installed.

page 4 of 5

MILLI PURE VERTICAL SINGLE HEATED

TOWEL RAIL 900X38 - CHROME

HARD WIRING

Hydrotherm recommends that all hard-wired heated towel rails be connected to a light switch

or timer.

Connecting hard-wired heated towel rails to a light switch or timer will prolong the life of the

electric element and reduce energy consumption.

Hydrotherm recommend the brand HPM and the model XLP770TRT, this particular unit is

designed specically for heated towel rails that is incorprated into a light switch panel.

At Hydrotherm we pride ourselves on the highest quality standards of design and

manufacturing.

All Hydrotherm products come with a 10 year manufactures warranty on the construction

and ﬁnish of our towel rails.

All electric heating elements are covered by a 3 year manufactures warranty.

100% Australian Made and Owned

Construction & Finish

Manufacturers Warranty

year

Electric Element

Manufacturers Warranty

year

CARE DETAILS

This bathroom product should not be cleaned with abrasive

materials eg. steel wool/scourers. Do not use any corrosive or

abrasive cleaning agents containing acids or scouring agents.

Bleaches can also discolour products and therefore should not

be used. Damage caused by any improper treatment is not

covered by the product warranty.

Disclaimer: Products in this specication manual must be installed by licensed and registered

trade people. The manufacturer/distributor reserves the right to vary specications or delete models from

their range without prior notication. Dimensions are nominal measurements only. Dimensions and set-outs

listed are correct at time of publication however the manufacturer/distributor takes no responsibility for

printing errors.

HYDROTHERM WARRANTY

TOWEL RAILS MUST ALWAYS BE INSTALLED WITH THE ELECTRIC ELEMENT

POSITIONED AT THE BOTTOM OF THE UNIT FOR CORRECT HEAT TRANSFER

page 5 of 5

Plumbers, please ensure a copy of the installation

instructions is left with the end user for future reference
