Reebok PURE Manuel utilisateur

PURE BIKE USER MANUAL

Welcome from Reebok Fitness.

Thank you for choosing this Reebok Pure Exercise Bike.

Before you get started, please read the instructions. Should

you experience any difficulties, our support team will be happy

to help or check out our website at:

Important note:

Consult your doctor before starting any exercise program.

If you feel any sickness, chest pain, fts of dizziness or

breathlessness during your training, stop exercising and

consult your doctor immediately.

Model name: Reebok Pure Bike

Serial number:

These details can be found on the underside of your product.

www.reebokftness.info

If you have any further queries please

customer support team on the number or email address on

the back of this manual.

call or email our

CONTENTS

Pre-assembly Notes

Assembly Steps

Computer Operation

Exloded Diagram

Parts List

Warm Up

Limited Warranty

Precautions 06

Maintenance 10

Assembly Diagram

02 PRE-ASSEMBLY NOTES

Open The Box

Make sure to inventory all of the parts that are included in the box.

Check the Hardware Chart for a full count of the number of parts

included for proper assembly. If you are missing any parts,

please call our Technical Support line

Gather Your Tools

Before starting the assembly of your unit, gather the necessary tools.

Having all of the tools at hand will save time and make the assembly

quick and hassle-free.

Clear Your Work Area

Make sure that you have cleared away a large enough space to properly

assemble the unit. Make sure the space is free from anything that many

cause injury during assembly. After the unit is fully assembled, make

sure there is a comfortable amount of free area around the unit for

unobstructed operation.

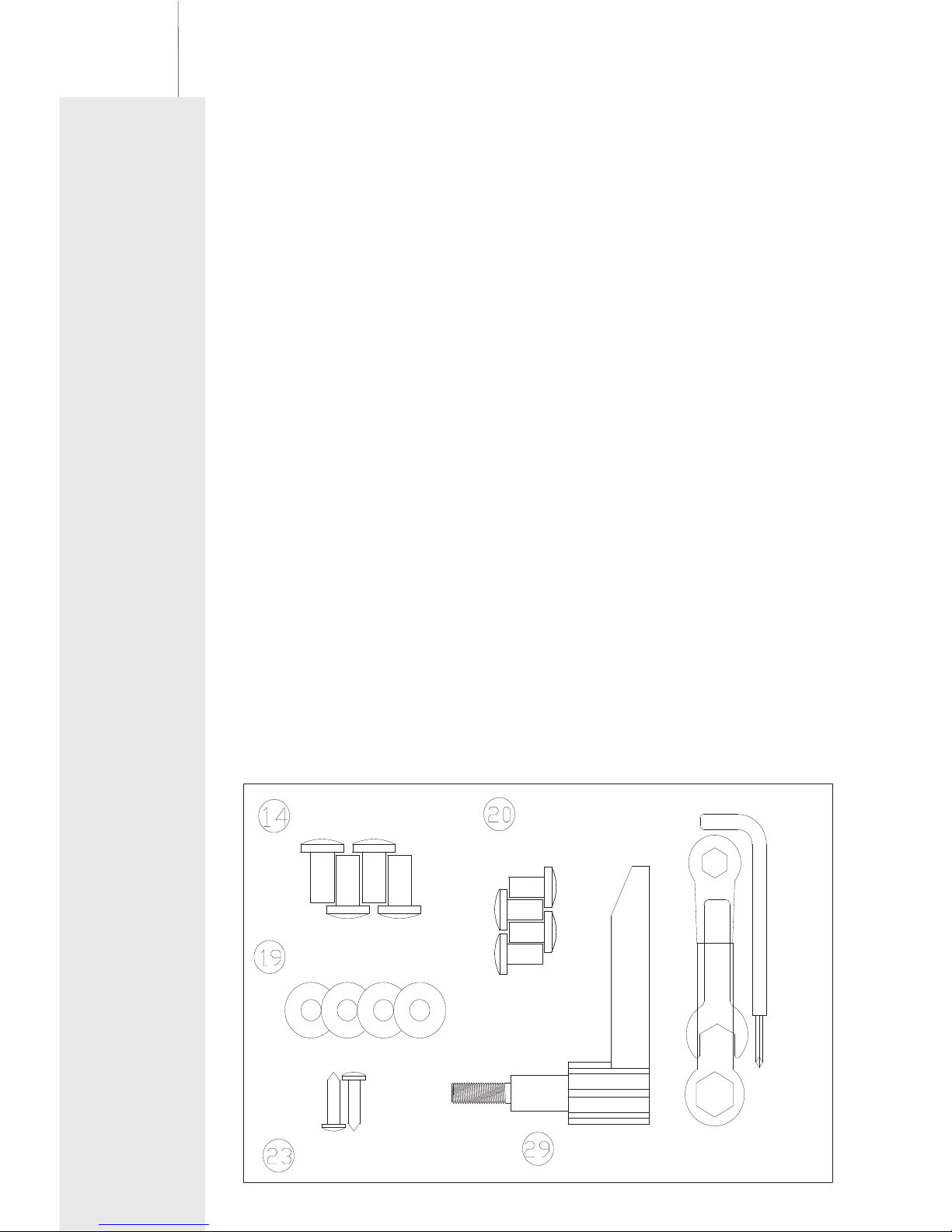

Hardware Chart

For your convenience, we have identified the hardware used in the

assembly of this product. This chart is provided to help you identify

those items that may be unfamiliar to you. If you find any parts missing

please contact our Technical Support line 0 .

0800 440 2459

800 440 2459

19.Arc Washer Φ8.5*Φ22*T1.5

20.Allen Hard Bolt M8*15

23.ScrewΦ4*20

29.L Shape Knob

14.Allen Head Bolt M10*20

Spanner L15

Box Wrench

Allen key L6

Ø22*Ø8.5-4PCS

M10*20-4PCS

M8*15-4PCS

Ø4*20-2PCS

1 PC

TOOL:

L6-1pc,L13*17-1pc,L15-1pc

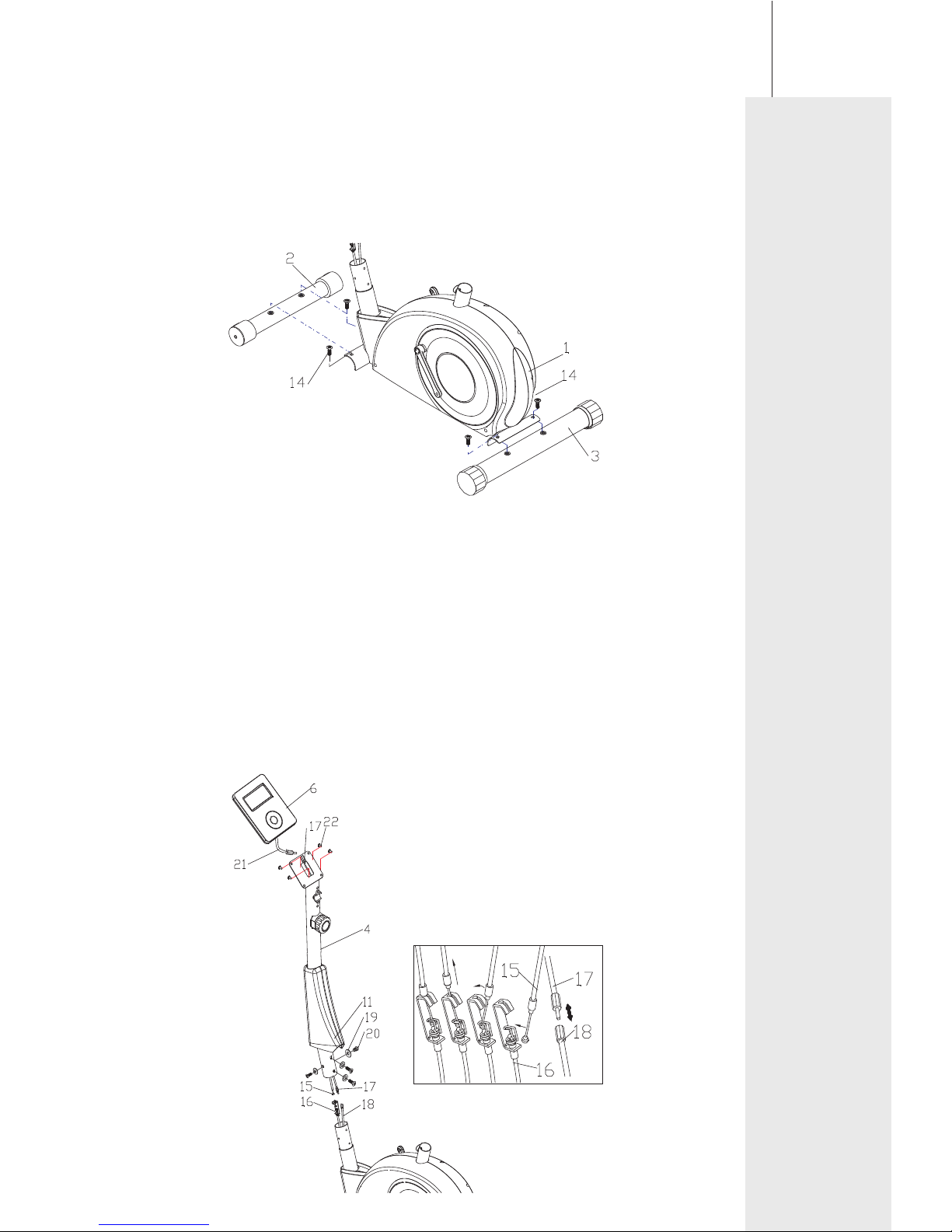

Step 1:

1-1: Attach Rear Stabilizer (3) to Main frame (1), fasten with Allen

Head Bolts (14), tighten with Allen Key.

1-2: Attach Front Stabilizer (2) to Main frame (1), fasten with Allen

Head Bolts (14), tighten with Allen Key.

ASSEMBLY STEPS

Step 2:

2-1:

2-2: Connect Middle Computer Wire (17) with Lower Computer Wire

(18).

2-3: Connect the Upper Tension Wire (15) with Lower Tension Wire

(16).

2-4: Insert Front Post (4) into Main frame (1), fasten with Allen Head

Bolt (20) and Arch Washers (19) tighen with Allen Key.

2-5: Connect the computer Wire(21) with the Middle computer wire(17).

Slide Front Post Cover (11) onto Front Post (4).( Lift it to the

position as the picture shown.)

Place the Front Post Cover (11) onto Main Frame (1).

Install Computer (6) onto Front Post (4) fasten by Screws (22) tightly

as shown.

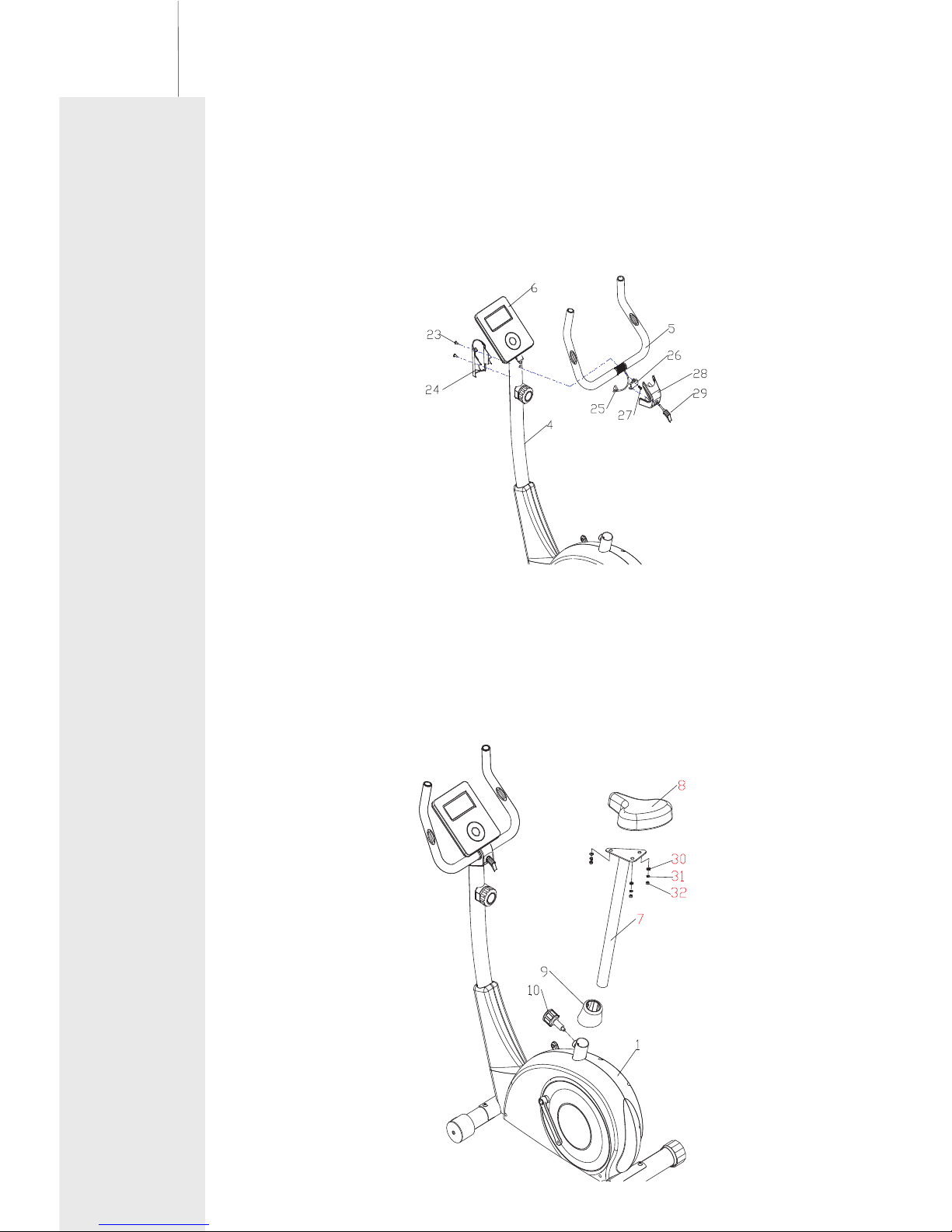

Step 3:

3-1: Secured Handlebar (5) onto Front Post (4), with Bracket (26),

fasten with Allen Head Bolt (27).

3-3: Plug the pulse sensor wire(25) to the back hold of the computer(6)

as shown below.

3-2:

with L shape Knob (29).Now fix Rear Bracket Cover (24) on the other side

and fasten with Screws(23).

Fix Front Bracket Cover (28) onto Handlebar (5), fasten to Handlebar (5)

Step 4:

4-1: Attach Seat (8) to Seat Post (7), fasten with Flat Washer (30),

Spring Washer (31), Nylon Nut (32).

4-2: the Quick Release Knob (10) from the Main Frame(1).

Place the Seat Post Cover (9) onto the Main Frame (1) as the

picture shown.

4-3: Insert Seat Post (7)into Main Frame(1), then line up the hole

and secure the seat in position with Quick Release Knob (10).

Remove

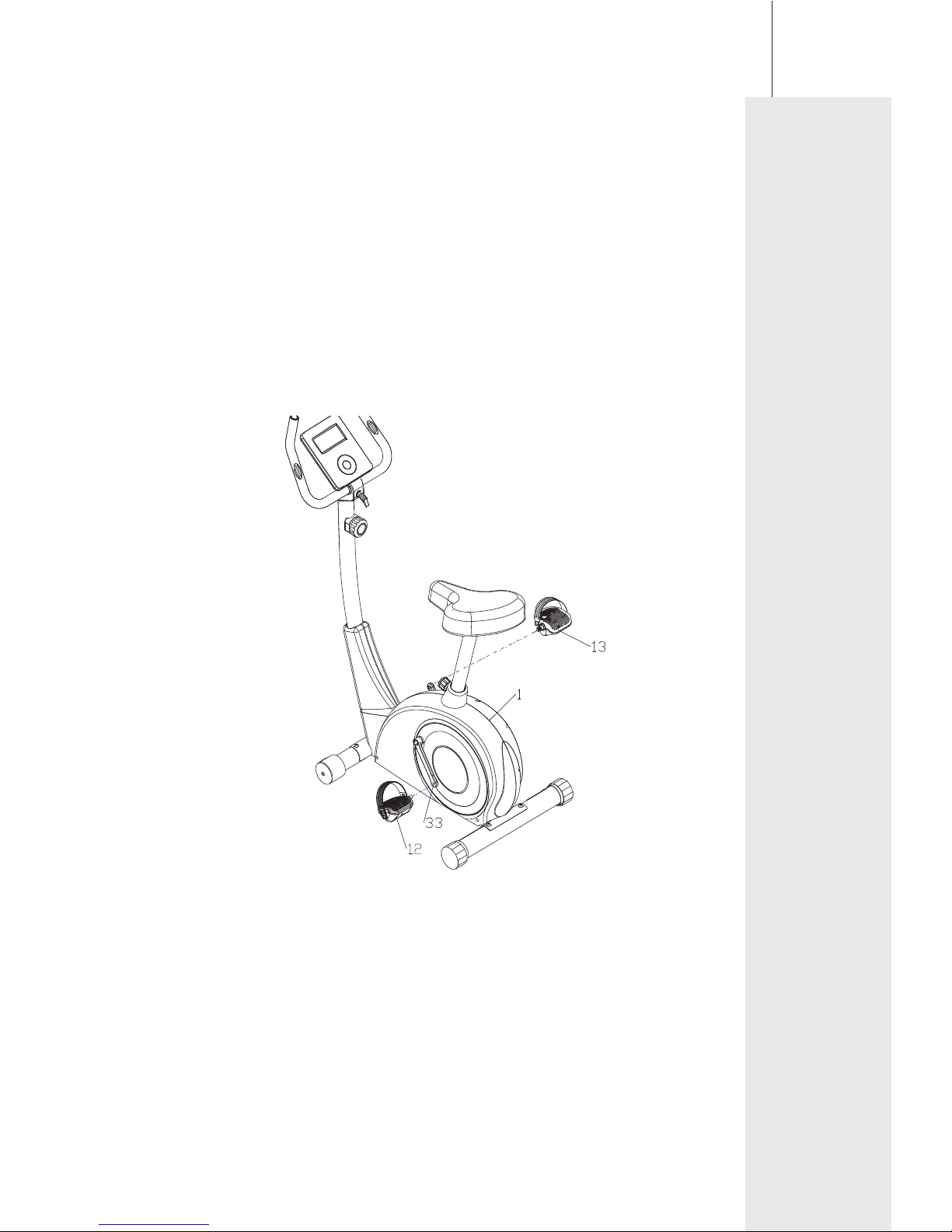

Step 5:

5- :

the side of the pedal strap with more slots should go on outside of pedal

to allow ease of adjustment at a later date

5-2: Attach the Right Pedal (13) onto the right pedal shaft and tighten

with open end spanner.

The right pedal is marked with R and should be threaded onto the crank (33)

in a CLOCKWISE direction.

5-3: Attach the Left Pedal (12) onto the left pedal shaft and tighten with

open end spanner.

The left pedal is marked with L and should be threaded onto the crank (33)

in a COUNTERCLOCKWISE direction.

1 Slot the Pedal Strap on the pedals as marked L and R for left and Right.

PRECAUTIONS

This product has been designed for in-home use. These instructions are

intended to provide important information for use and maintenance of the

equipment as well as for your personal safety. Keep this user manual safe for

future reference.

WARNING!

This product is made for home use only and tested up to a maximum body

weight of 120 kilograms.

RFE UK Ltd. assumes no responsibility for personal injury or

property damage sustained by or through the use of this equipment. It is

the responsibility of the owner to ensure that all users of this equipment are

adequately informed of all warnings and precautions.

SCOPE

•Maximum user weight of 120kg.

•This product is designed for physical exercise by adults. This product is not

suitable for use by persons under 14 years of age.

•Never allow more than one person on the equipment at a time.

ENVIRONMENT

•Ensure that those present are aware of possible hazards e.g. moveable

parts during training.

•Ensure that suffcient space is available to use the exercise bike.

•Please ensure that liquids or perspiration never enter the machine or

electronics.

•This product is designed to be used and stored indoors. Do not store the

product outside, or in damp/ dusty environments.

•The product is made for home use only. Warranty and manufacturer’s

liability do not extend to any product or damage to the product caused by

commercial use.

USER HEALTH

•Consult your doctor before starting any exercise programs to receive advice

on training.

•Incorrect/excessive training can cause health problems or injuries .

•If you feel sickness, chest pain, fts of dizziness or breathlessness during

your training, immediately stop the training and consult your doctor.

PRODUCT PREPARATION

•Ensure the bike is on a flat, level surface with at least 0.5m of clear area

surrounding the exercise bike.

•Ensure that training only starts after correct assembly, adjustment and

inspection of the product.

•Follow the steps of the assembly instructions carefully .

•Only use suitable tools for assembly and ask for assistance if necessary.

•Only use original Reebok parts as delivered).

SAFETY CHECKS BEFORE EVERY USE

•Tighten all adjustable parts to prevent sudden movement while training.

•Tighten all nuts and bolts.

•Check that the saddle is secure.

•Check that the pedals are secure.

•Check that the tension knob is secure.

•Check that the handlebars are secure.

•Press start to ensure there is power to the console.

•Do not use the product without shoes or with loose shoes.

•Be aware of non-fxed or moving parts whilst mounting or dismounting

the product.

•Do not wear loose or poorly ftting clothing that may become trapped in

the product.

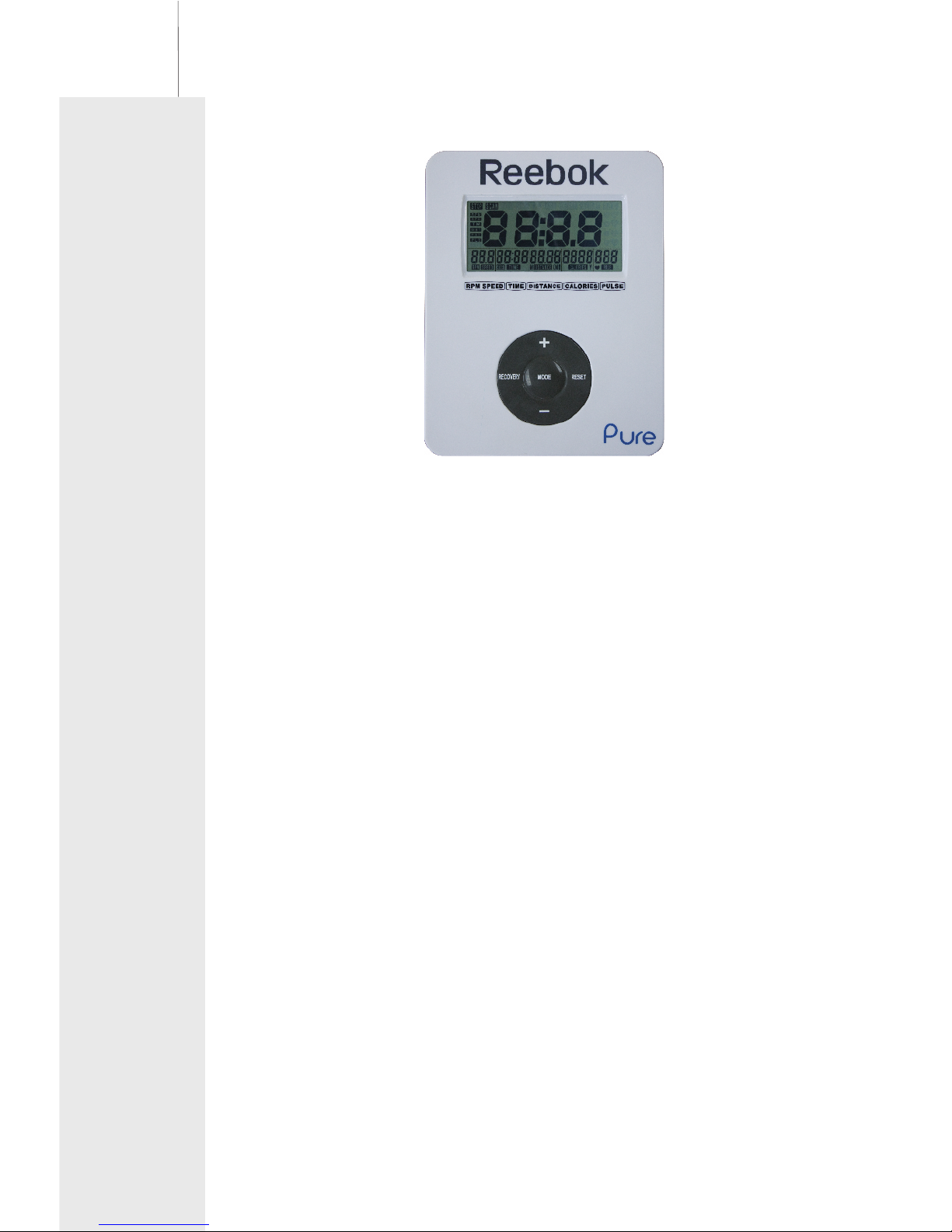

COMPUTER INSTRUCTION

POWER ON

1. To power on, please insert the 2 AA battery into the battery compartment on the

rear of cover and power on.

POWER ON DISPLAY

TEMPERATURE : ℃(0~60℃)；℉(32~99℉)。

CALENDAR : 1900/1/1~2006/1/1~2099/12/31。

CLOCK : 24 HOURS / 0:00~23:59

FUNCTION

SCAN: scans through the following every 6 seconds,

SCAN / SPEED / RPM / TIME / DISTANCE / CALORIES / PULSE / SCAN.

RPM : 0~15~999

SPEED : 0.0~99.9 KM

TIME : ount up and down are available.

DISTANCE : Count up and down are available.

CALORIES : Count up and down are available.

PULSE : 30~240 BPM.

OPERATION

After inserting the batteries the console will sound a beep for 2 seconds,

your PURE bike console is fitted with an automatic standby feature,

to turn on simply pedal.

OPERATION METHOD

You can set the time and calendar or by pressing mode set the following

0:00~99:00. C

0.00~99.50 K,

0~9990,

functions :TIME/DIST./CAL/PULSE ,the function selected can be set when it’s

flashing,set by using the +/- keys, press mode key to confirm and select

another function if required.
