The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

WARNING

OWNER/OPERATOR MANUAL

BACKPACK BLOWER

T4018-93110 (010)

EB4400



Thank you for purchasing a RedMax

product.

Before using our blower, please read

this manual carefully to understand the

proper use of your unit.

010001 and up

APPLICABLE SERIAL NUMBERS :

Read this manual carefully to understand all

safety precautions, controls, proper operation

and maintenance of your RedMax blower.

Failure to do so could result in serious injury.

Instructions labeled as shown at left, concern critical steps or

procedures which must be followed in order to prevent accidents

which could lead to serious bodily injury or death.This mark is

used to indicate instructions which must be followed without

exception.

Instructions labeled as shown at left concern steps or procedures

which, if not followed correctly, could lead to mechanical failure,

breakdown, or damage.

Used to label supplementary instructions designed to provide

hints or directions useful in the use of the product.

WARNING

IMPORTANT

NOTE

SAFETY FIRST

Instructions contained in warnings within this manual and warning seals marked

with a symbol on the blower concern critical points which must be taken into

consideration to prevent possible serious bodily injury, and for this reason you

are requested to read all such instructions carefully and follow them without fail.

Note that there may be times when warning seals peel off or become soiled and

impossible to read. If this happens, you should contact the dealer from which

you purchased the product to order new seals and affix the new seal(s) in the

required location(s).

■ Notes on types of warnings

CONTENTS

SAFETY PRECAUTIONS·······························································4

OPERATOR

USE OF BLOWER

FUEL

WORKING CONDITION

AVOID NOISE PROBLEM

AVOID CHANCES OF DAMAGE

WARNING LABELS ON THE MACHINE·······································7

SYMBOLS ON THE MACHINE······················································8

PARTS LOCATION & SPECIFICATIONS······································9

ASSEMBLY ····················································································9

BLOWER TUBE

FUEL·····························································································10

HOW TO MIX FUEL

FUELING THE UNIT

OPERATION·················································································11

CONTROL ARM

STARTING ENGINE

ADJUSTING IDLE SPEED

STOPPING ENGINE

MAINTENANCE ···········································································13

AIR CLEANER

FUEL FILTER

SPARK PLUG

MUFFLER

SPARK ARRESTER

AIR INLET NET

SHOULDER STRAP

STORAGE····················································································16

PARTS LIST·················································································17

•Read this Blower Owner/Operator Manual

carefully. Be sure you understand how to

operate this unit properly before you use

it. Failure to do so could result in serious

injury.

•Be sure to keep this manual handy so that

you may refer to it later whenever any

questions arise. Also note that you are

requested to contact the dealer from

whom you purchased the product for

assistance the event that you have any

questions which cannot be answered

herein.

•Always be sure to include this manual

when selling, lending, or otherwise

transferring the ownership of this product.

■OPERATOR

•Refrain from operating the blower if you are

tired, ill, or upset, or if you are under the

influence of alcohol, drugs or medication.

•To reduce the risk of hearing loss

associated with sound level(s), hearing

protection is required.

•Always wear eye protection and foot

protection. Eye protection should meet

the requirements of ANSI Z87.1.

•To reduce the risk of injury associated with

the inhalation of dust, use a face filter mask

in dusty conditions.

•Wear rubber-soled shoes or shoes with

WARNING

Safety Precautions

some other form of anti-slip protection to

help protect you against falling.

•To reduce the risk of injury associated with

objects being drawn into rotating parts, do

not wear loose clothing, scarves, neck

chains, unconfined long hair, and the like.

■USE OF BLOWER

•Each time before starting the engine,

inspect the entire unit to see if every part is

in good order and is securely tightened in

place. If any damage is found in the fuel

line, the exhaust line, or the ignition wiring,

do not use the blower until it has been

repaired.

•Before starting operation, always make

sure to check if any obstacles are left

inside the volute case. The obstacles may

cause damage on fan and volute case and

serious injury.

Check to see if the shock-absorbing rubber

mount has become cracked or otherwise

damaged. Note that failing to replace this

rubber mount when it has become

cracked or damaged may cause the

engine to come loose from its frame

during use, thus resulting in possible

serious bodily injury.

•If cracked, be sure to replace without delay.

WARNING

IMPORTANT

❲

❳

•To reduce the risk of injury associated with

contacting rotating parts, stop the engine

before installing or removing attachments.

Do not operate without net in place.

Always disconnect the spark plug before

performing maintenance or accessing

movable parts.

•Do not allow children to use blower. Make

sure that each person you authorize to

operate the blower understands all of the

safety rules in this manual.

•Avoid using any accessory or attachment

other than those bearing the RedMax mark

for use with the blower.

•Drain the fuel from the fuel tank before

transporting or storing the blower.

•When storing the blower, choose a space

indoors free from moisture and out of the

reach of children.

•Examine the blower at intervals for loose

fasteners and rusted or damaged parts.

Use special care around the fuel line, the

muffler, and the ignition wiring.

•All engine service except for those

described in this manual should be

performed by competent service personnel.

Improper service to the blower fan and

muffler could cause a hazardous failure.

WARNING

Safety Precautions

■FUEL

To reduce the risk of fire and burn injury:

•Handle fuel with care. It is highly

flammable.

•Do not smoke while handing fuel.

•Do not refuel a hot engine.

•Do not refuel a running engine.

•Avoid spilling fuel or oil. Always wipe unit

dry before using.

•Move at least 10 ft. (3 meters) away from

the fueling point before starting engine.

•Always store gasoline in a container

approved for flammable liquids.

•Make sure the unit is properly assembled

and in good operating condition.

■WORKING CONDITION

•Check the work area that the blower will be

used in and remove or cover all valuables

that may be damaged by the air blast or

thrown debris.

•To reduce the risk of injury associated with

exhaust fume inhalation, do not operate in

unventilated area. The exhaust gases

contain harmful carbon monoxide.

•Do not allow bystanders in work area.

•Do not point the blower nozzle in the

direction of people or pets.

WARNING

❲

❳

•Avoid using the blower where stable footing

and balance are not assured.

•Never to touch the spark plug or plug cord

while the engine is in operation. Doing so

may result in being subjected to an

electrical shock.

•Never to touch the muffler, spark plug, or

other metallic parts of the engine while the

engine is in operation or immediately after

shutting down the engine. These metallic

parts reach high temperatures during

operation and doing so could result in

serious burns.

■AVOID NOISE PROBLEM

Check and follow the local regulations

as to sound level and hours of

operations for blower.

•Operate power equipment only at

reasonable hours-not early in the morning

or late at night when people might be

disturbed. Comply with times listed in local

ordinances.

•To reduce sound levels, limit the number of

pieces of equipment used at any one time.

•Operate power blowers at the lowest

possible throttle speed to do the job.

•Check your equipment before operation,

especially the muffler, air intakes and air

filters.

•Loosen compacted leaves, grass or debris

with a rake or broom beforehand, so that

the lowest possible throttle setting would

get the job done.

•In dusty conditions, slightly dampen

surfaces or use mister attachment when

water is available.

■AVOID CHANCES OF DAMAGE

•Watch out for children, pets, open windows

or freshly washed cars, and blow debris

safely away.

•Use the full blower nozzle extension so the

air stream can work close to the ground.

•After using blowers and other equipment,

CLEAN UP! Dispose of debris in trash

receptacles.

•Always check to be sure that no debris has

been blown onto someone else’s property.

NOTE

❲

❳

Safety Precautions

❲

❳

(1)Read owner's manual before operating this machine.

(2)Wear head, eye and ear protection.

(3)Handling this machine improperly could result in accidents causing serious injury or

death. Read this manual carefully and practice using the blower until you are fully

acquainted with all operations and have learned to use it correctly.

If warning label peel off or become soiled and impossible to read, you should contact the dealer

from which you purchased the product to order new labels and affix them in the required

location(s).

Never modify your machine.

We won't warrant the machine, if you use the remodeled machine or you don't observe

the proper usage written in the manual.

WARNING

IMPORTANT

Warning labels on the machine

❲

❳

For safe operation and maintenance, symbols are

carved in relief on the machine. According to these

indications, please be careful not to make a

mistake.

(a)The port to refuel the "MIX GASOLINE"

Position: FUEL TANK CAP

(b)The direction to close the choke

Position: AIR CLEANER COVER

Symbols on the machine

Made in Japan

RedMax

IMPORTANT ENGINE INFORMATION

THIS ENGINE CONFORMS TO US EPA

PH1 AND 1995-1999 CALIFORNIA EMISSION

REGULATIONS FOR ULGE ENGINES.

ENGINE FAMILY : WKZXS. 0424ST ; EM

ENGINE DISPLACEMENT : 41.5cc

REFER TO OWNER'S MANUMAL FOR MAINTE-

NANCE SPECIFICATIONS AND ADJUSTMENTS.

MANUFACTURED :

Made in Japan

RedMax

INFORMATION IMPORTANTE

CONCERNANT LE MOTEUR

Ce moteur conformc aux normcs U.S. EPA PH1 et

1995-1999 de la régulementation concernant la

pollution de l'air pour les petits moteurs tout-terrain.

Type de moteur : WKZXS. 0424ST ; EM

Cylindrée du moteur : 41,5cc

Se référer au Manuel de l'utilisateur pour

les spécifications d'entretien et les réglages.

Manufacturé :

MODEL EB4400

Dimensions ( L x W x H ) mm ( in ) 480 x 535 x 495 (189 x 211 x 195)

Dry Weight kg ( lbs ) 8.8 (19.3)

Fuel Tank Capacity liter ( fl. oz ) 2.0 (67.6)

Engine Type Air cooled 2-cycle gasoline engine

Piston Displacement cc ( cu. in ) 41.5 (2.53)

Air Filter Regular size

Carburetor ( Diaphragm ) valve type Rotary

Ignition System C.D.I

Spark Plug Champion RJ6C (Noise-proof)

Muffler Spark arrester equipped

Durability Period hrs 300

Operating Engine Speed rpm 2000 to 6000

PIPE END φ57 φ66

Fuel Consumption liter/h ( fl. oz/h ) 1.7 (57.5)

Air Volume cu. m/min ( cfm ) 9.8 (345) 12 (423)

Air Volume (w/o Pipes) cu. m/min ( cfm ) 16 (564)

Air Velocity m/sec ( mph ) 83 (186) 72 (160)

Noise Level dB(A) 69

Parts Location & Specifications

Assembly

■BLOWER TUBES

1.Connect the blower and swivel joint with

flexible hose. Clamp both ends of the

flexible hose securely with the hardware

supplied with the unit.

2.Align the protrusion and the groove

provided on the tube ends and twist the

tube until connection is locked up.

❲

❳

• Gasoline is very flammable. Avoid

smoking or bringing any flame or

sparks near fuel. Make sure to stop the

engine and allow it cool before

refueling the unit. Select outdoor bare

ground for fueling and move at least

3m(10ft) away from the fueling point

before starting the engine.

• The RedMax engines are lubricated by oil

specially formulated for air-cooled 2-cycle

gasoline engine use. If RedMax oil is not

available, use an anti-oxidant added

quality oil expressly labeled for air-cooled

2-cycle engine use. (JASO FC GRADE

OIL or ISO EGC GRADE)

RECOMMENDED MIXING RATIO

GASOLINE 50:OIL 1

• Exhaust emission are controlled by the

fundamental engine parameters and

components(eq., carburation, ignition

timing and port timing) without

addition of any major hardware or the

introduction of an inert material during

combustion.

• These engines are certified to operate on

unleaded gasoline.

• Make sure to use gasoline with a

minimum octane number of 90

ROZ(USA/Canada : pump octane min.87)

WARNING

• Unleaded gasoline is recommended to

reduce the contamination of the air for the

sake of your health and the environment.

• Poor quality gasolines or oils may damage

sealing rings, fuel lines or fuel tank of the

engine.

■HOW TO MIX FUEL

1. Measure out the quantities of gasoline

and oil to be mixed.

2. Put some of the gasoline into a clean,

approved fuel container.

3. Pour in all of the oil and agitate well.

4. Pour in the rest of gasoline and agitate

again for at least one minute.

5. Put a clear indication on the outside of the

container to avoid mixing up with gasoline

or other containers.

6. Indicate the contents on outside of

container for easy identification.

■FUELING THE UNIT

1. Untwist and remove the fuel cap. Rest the

cap on a dustless place.

2. Put fuel into the fuel tank to 80% of the full

capacity.

3. Fasten the fuel cap securely and wipe up

any fuel spillage around the unit.

1. Select bare ground for fueling.

2. Move at least 10 feet (3 meters) away

from the fueling point before starting the

engine.

3. Stop the engine before refueling the unit.

FOR YOUR ENGINE LIFE, AVOID;

1. FUEL WITH NO OIL(RAW GASOLINE) –

It will cause severe damage to the internal

engine parts very quickly.

2. GASOHOL – It can cause deterioration of

rubber and/or plastic parts and disruption

of engine lubrication.

3. OIL FOR 4-CYCLE ENGINE USE or

WATER COOLED 2-CYCLE ENGINE

USE – It can cause spark plug fouling,

exhaust port blocking, or piston ring

sticking.

4. Mixed fuels which have been left

unused for a period of one month or

more may clog the carburetor and result

in the engine failing to operate properly.

WARNING

Fuel

❲

❳

50:1 MIXING CHART

GASOLINE gal. 1 2 3 4 5

2-CYCLE OIL fl.oz 2.6 5.2 7.8 10.4 13

GASOLINE liter 1 2 3 4 5

2-CYCLE OIL ml 20 40 60 80 100

Autres manuels pour EB4400

Table des matières

Autres manuels RedMax Ventilateur

RedMax

RedMax EBZ5100 Manuel du propriétaire

RedMax

RedMax EB6200 Manuel du propriétaire

RedMax

RedMax EBZ7100 Manuel du propriétaire

RedMax

RedMax EBZ8001-CA Manuel du propriétaire

RedMax

RedMax EBZ5150RH Manuel utilisateur

RedMax

RedMax HBZ2610 Manuel du propriétaire

RedMax

RedMax EBZ8000RH Manuel du propriétaire

RedMax

RedMax EBZ6500 Manuel utilisateur

RedMax

RedMax EB4400 Manuel du propriétaire

RedMax

RedMax HB280 Manuel du propriétaire

RedMax

RedMax EBZ7500 Manuel du propriétaire

RedMax

RedMax EBZ4800RH Manuel du propriétaire

RedMax

RedMax EBZ7150 Manuel du propriétaire

RedMax

RedMax EBZ7001 Manuel du propriétaire

RedMax

RedMax HBZ2601-CA Manuel du propriétaire

RedMax

RedMax EB4300 Manuel du propriétaire

RedMax

RedMax EBZ5000 Manuel du propriétaire

RedMax

RedMax EBZ7500 Manuel utilisateur

RedMax

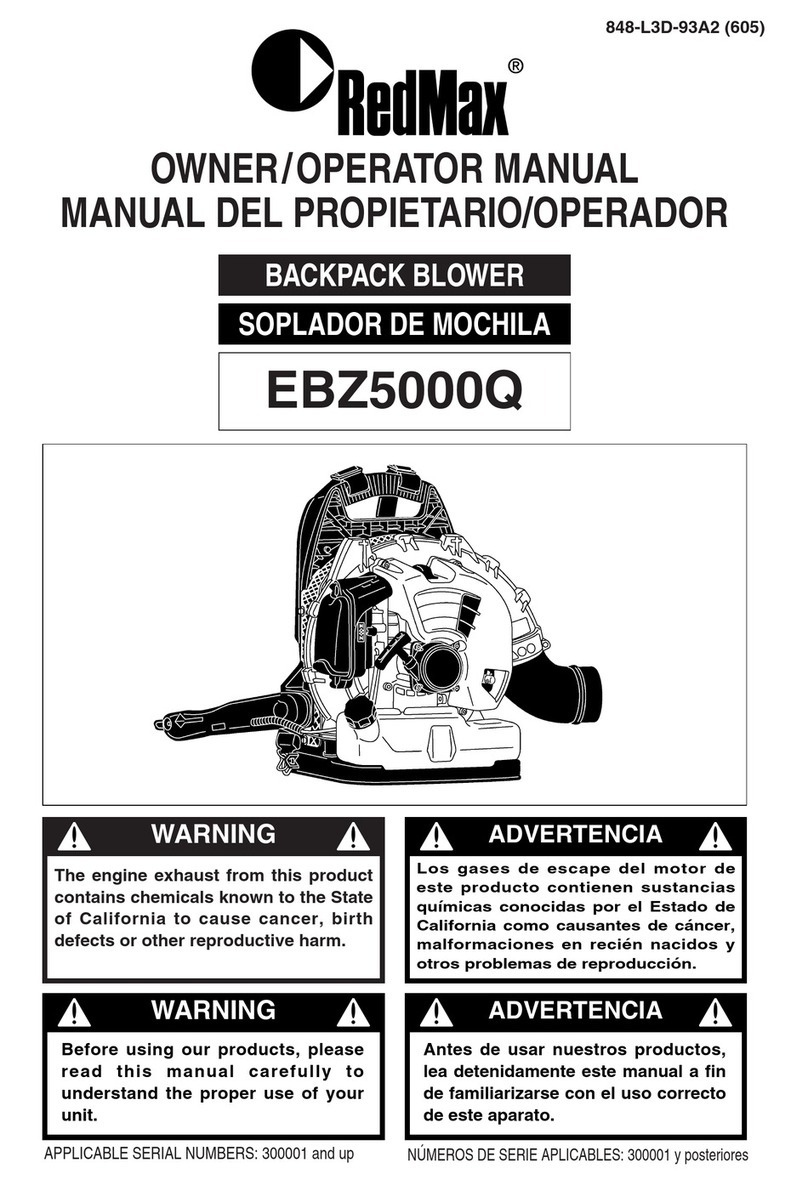

RedMax EBZ5000Q Manuel du propriétaire

RedMax

RedMax HBZ2500 Manuel du propriétaire

RedMax

RedMax EBZ5100Q Manuel du propriétaire

RedMax

RedMax HB281 Manuel utilisateur

RedMax

RedMax HBZ260R Manuel utilisateur

RedMax

RedMax HBZ2600 Manuel du propriétaire

Manuels Ventilateur populaires d'autres marques

Weed Eater

Weed Eater VS2000BV Manuel utilisateur

KRAUSMANN

KRAUSMANN U37020-00 Manuel utilisateur

Bosch

Bosch ALB 36 LI Manuel utilisateur

Cub Cadet

Cub Cadet HB425 Manuel utilisateur

GreenWorks Pro

GreenWorks Pro BLB482 Manuel utilisateur

ARIETE

ARIETE 2768 Manuel utilisateur

NuTone

NuTone 331H Manuel utilisateur

GÜDE

GÜDE GLB 200 18 Li-Ion Manuel utilisateur

I.VA.CO.

I.VA.CO. SC Series Mode d'emploi

DeWalt

DeWalt DCE100 Manuel utilisateur

Becker

Becker SV 7.330 Manuel utilisateur

Metabo

Metabo AG 18 Pro Manuel utilisateur

Desa

Desa GA3650TB Manuel utilisateur

Echo

Echo Power Blower PB-230LN Manuel utilisateur

Echo

Echo PB-413H Manuel utilisateur

Black & Decker

Black & Decker BV3100 Manuel utilisateur

Ryobi

Ryobi RY08570 Manuel utilisateur

Haaga

Haaga 355 Manuel utilisateur
