HandPunch 2000 Installation and Operations Manual
5
Wiring
For Exposed wiring,
•Route power and communication cables from the
computer to the hand reader terminal.
•Route the cables to the power and
communications jacks in the back of the terminal.
•Insert the barrel connector into the power socket
and plug the communications cable into the RS
232 connector. If a modem is installed, plug the
modem cable into the modem connector
•Attach the strain relief bushing to the power and
communications and press into place in the
underside of the terminal.
Completing the mechanical installation.

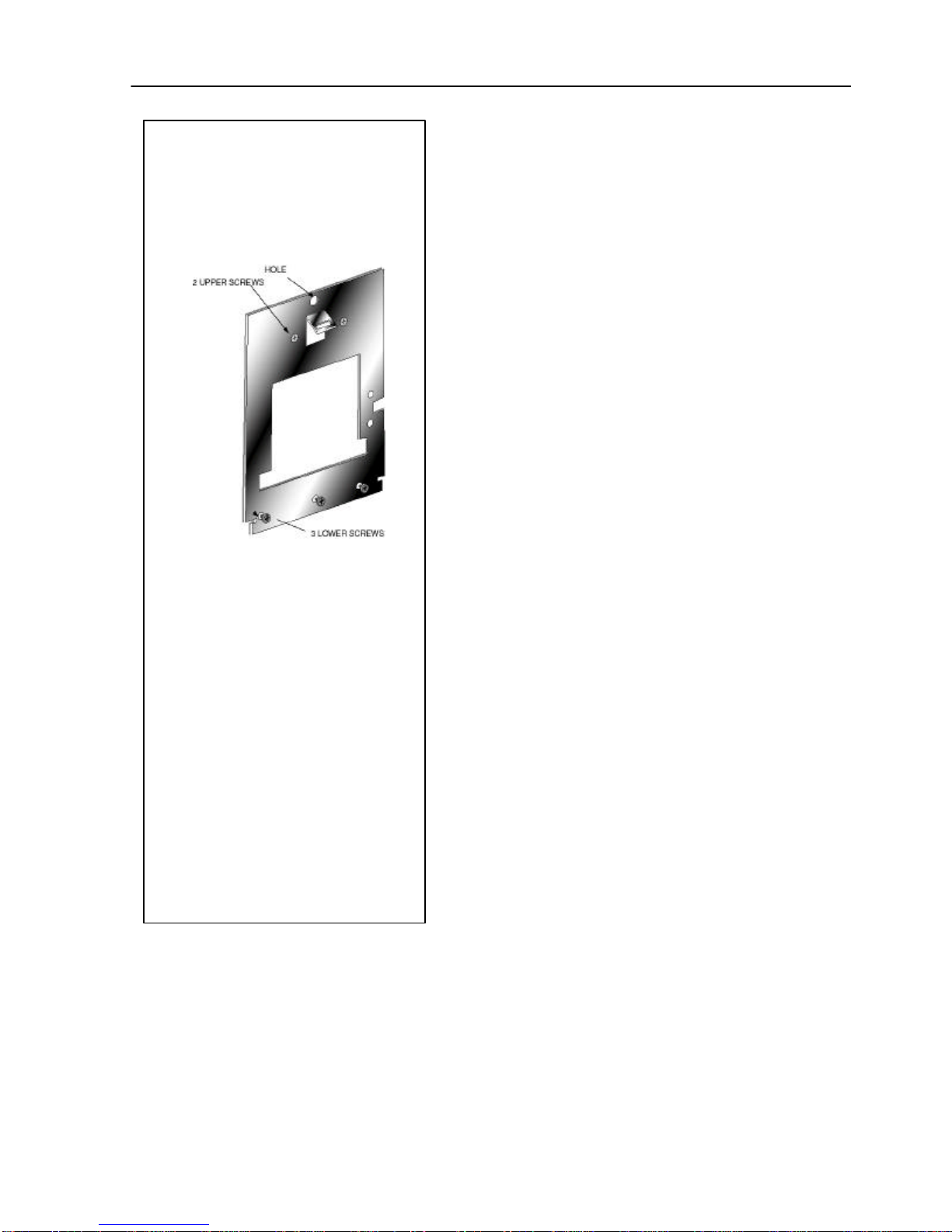

•Hang the terminal from its hinge on to the three
bolts at the bottom of the wall plate.
•Tighten the three bolts.
•Swing the terminal to the upright position while
holding the cables in place. Lock the unit to the
wall plate with the key provided. Turn the key
COUNTER-CLOCKWISE to lock.
•Plug the power supply into the wall outlet and
check the display to verify the unit is working.
After a few seconds you should see ENTER ID. If
the unit does not power up, unlock the terminal
and recheck the power connection. Check to
assure there is power at the duplex outlet.
•Route the communications cable back to the
computer. (For a modem, plug the modem cable
into the telephone jack and go to the last step).
•Plug the end of the cable into the provided 9 pin
serial port connector.
•Plug the connector into the appropriate serial
port of your computer.
•Check the communications with the terminal
using your time and attendance software package.
The terminal has a default baud rate of 9600
bps and its default address
is 1.
