HandPunch 50E
Manual
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy, and, if not installed and used in accordance with the Installation
Manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at the user’s own expense.
This Class A digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
Cet appareil numerique de la classe A respecte toutes les exigences du Reglemente
sure le materiel brouilleur du Canada.
© 1998 through 2005 Recognition Systems, Inc. – ALL RIGHTS RESERVED
Document Part Number: 70100-6011 – Revision 1.1 – February, 2005
HandPunch is a trademark of Recognition Systems, Inc.
The trademarks used in this Manual are the property of the trademark holders. The use
of these trademarks in this Manual should not be regarded as infringing upon or affecting
the validity of any of these trademarks.
Recognition Systems, Inc. reserves the right to change, without notice, product offerings
or specifications.
No part of this publication may be reproduced in any form without the express written
permission from Recognition Systems, Inc.
Table of Contents
Introduction.....3
Biometrics.....3
Principle of Operation.....4
The HandPunch Terminal.....4
Specifications.....6
Specifications Table.....6
Options.....7
Planning an Installation.....9
Site Preparation.....9
HandPunch Placement.....9
Wiring.....10
Power Input.....10
Battery Backup Operation.....10
Ethernet to Host Computer Connection.....11
Mechanical Installation.....13
Wall Plate Installation.....13
Wiring Connections.....17
Wiring Examples.....17
RS-232 Serial Connection.....18
Erasing the Memory.....21
Erasing HandPunch Memory.....21
Closing the HandPunch.....23
Enter Command Menu.....25
If No One is Enrolled in the HandPunch.....25
If Users are Enrolled in the HandPunch.....25
Navigating Command Menus.....27
Programming the HandPunch.....29
Basic Command Mode Structure.....29
Authority Level.....29
Programming Order.....30
System Management.....31
Service Menu.....32
Normal Operating Parameters.....33
Setup Menu.....34
Subnet Mask to Host Bit.....37
Management Menu.....39
Enrollment Menu.....41
Special Menu.....45
HandPunch Maintenance.....47
Cleaning the HandPunch.....47
Appendix A.....49
Tips for a successful Installation.....49
Appendix B.....51
Troubleshooting Guide.....51
Display Messages During Verification.....51
Beeper and LED Status During Verification.....52
Limited Warranty.....55
HandPunch 50E Manual
Page 3
Introduction
The HandPunch 50E is a member of the Recognition Systems’ line of
biometric hand geometry Time and Attendance Terminals1. The
HandPunch records and stores the three-dimensional shape of the
human hand for comparison and identity verification. Upon verification,
the HandPunch records the time, date, user ID number, and collected
time and attendance data for collection by a host computer. The
HandPunch will communicate to a host computer via Ethernet.
The HandPunch provides proof-positive employee identification
combined with the sophisticated operating features one expects in a
modern Time and Attendance Terminal. Because of this unique
combination of capabilities, the HandPunch provides the most accurate
Time and Attendance data collection terminal available. The key
features of the HandPunch include:
• Ethernet Communications
• Transaction Buffer
- 5,120 event capacity
• Programmable Clock and Date Formats and Daylight Savings
Switch-ove
Biometrics Biometrics is a term describing the automatic measurement and
comparison of human characteristics. While its origins are ancient, the
evolution of advanced scanning and microprocessor technology
brought biometrics into everyday life. Electronic hand geometry
technology first appeared in the 1970s. Recognition Systems Inc.,
founded in 1986, built the first mass-produced hand geometry readers
and made biometric technology affordable for the commercial market.
Today, Recognition Systems’ products are in use in every imaginable
application from protecting cash vaults to verifying employee
attendance in hospitals.
1. For the sake of using a consistent name throughout the manual, the
HandPunch 50E terminal is referred to as the HandPunch for the remainder of
this manual.
Introduction
Page 4
Principle of
Operation The HandPunch uses low-level infrared light, optics, and a CMOS (IC
chip) camera to capture a three-dimensional image of the hand. Using
advanced microprocessor technology, the HandPunch converts the
image to an electronic template. It stores the template in a database
with the user’s ID number.
To gain punch, the user enters his or her ID number at the
HandPunch’s keypad. The HandPunch prompts the user to place his or
her hand on the HandPunch’s platen1. The HandPunch compares the
hand on the platen with the user’s unique template. If the images
match, the HandPunch records the transaction for processing.
The
HandPunch
Terminal
The HandPunch is a time and attendance terminal designed for use
with time and attendance software.
Refer to Figure 1-1 on page 5 when reviewing the information in this
section.
The HandPunch has an integrated keypad for ID entry (see Figure 1-1).
The and keys are used for data entry and
programming.
Four different features assist the user with hand placement and read
verification.
1. A light emitting diode (LED) hand placement display on the Hand-
Punch’s top panel assists users with hand placement on the platen.
2. A liquid crystal display (LCD) shows operational data and program-
ming menus.
3. “Red light/Green light” verification LEDs quickly inform users if their
verification attempts were rejected or accepted.
4. An internal beeper provides audible feedback during keypad data
entry and user verification.
1. The Platen is the flat surface at the base of the HandPunch (see Figure 1-1).
This is where users place their hands for enrollment and verification. It has
guide pins to assist positioning the fingers during use.
CLEAR ENTER
HandPunch 50E Manual
Page 5

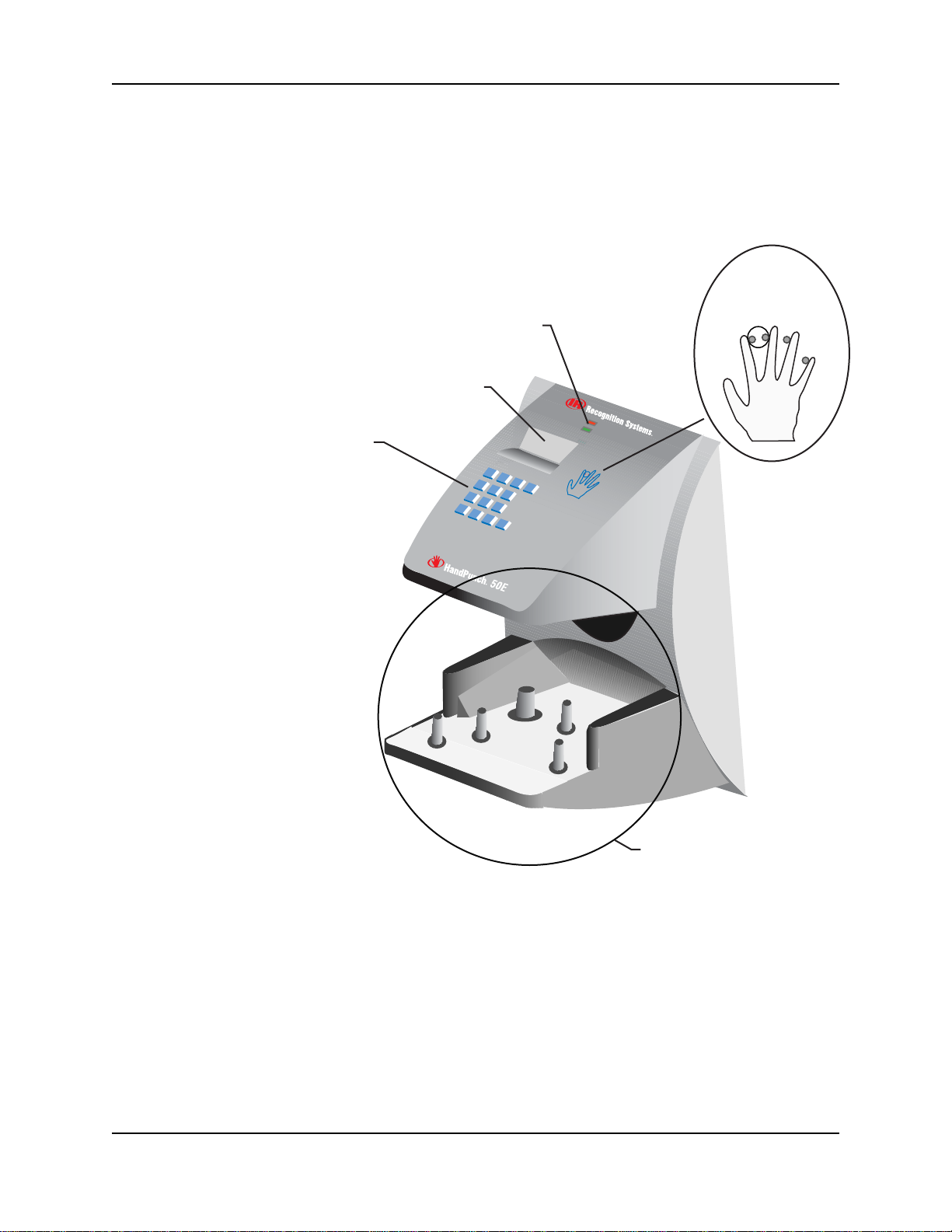

Figure 1-1: The HandPunch 50E
5
46
8
79
0
NoEnter
2
13
Clear
*#
Yes
No
PLATEN AND GUIDE PINS
HAND
PLACEMENT
DISPLAY
LCD DISPLAY
VERIFICATION
LIGHTS
NUMERICAL
KEYPAD
Introduction
Page 6
Specifica-
tions
Table 1: Specifications
Size: 8.85 inches wide by 11.65 inches high by 8.55 inches deep
22.3 cm wide by 29.6 cm high by 21.7 cm deep
Power: 12 to 24 VDC or 12 to 24 VAC 50-60 Hz, 7 watts
Weight: 6 lbs (2.7 kg) – 7 lbs (3.2 kg) with optional backup battery
Temperature: -10°C to +60°C – non-operating/storage (14°F to 140°F)
5°C to 40°C – operating (40°F to 110°F)
Relative Humidity
Non-Condensing: 5% to 95% – non-operating/storage (non-condensing)
20% to 80% – operating
Verification Time: 1 second or less
Memory Retention: 5 years using a standard internal lithium battery
Transaction Buffer: 5,120 transactions
ID Number Length: 1 to 10 digits
RS-232 Baud Rate: 300 to 28.8 K bps
Communications: Ethernet
User Capacity: 50 users
HandPunch 50E Manual
Page 7
Options The HandPunch has the following options available.
• Backup Battery Support SeeTechnical Note 70200-0012 –
Rev. D
Recommended European Power Supply:
Ault, Inc.
7300 Boone Ave. North
Minneapolis, MN 55428 USA
PH: 612-493-1900
E-mail: [email protected]
Part number: D48-121000-A040G
230 VAC Input, 12 VDC @ 1Amp output (unregulated)
Ault style #41 connector (barrel plug)
approved
recyclable
Introduction
Page 8
This page is intentionally blank.
