DIMENSIONS OF THE WASHER:

LENGTH: 29.0” (L)

DEPTH: 32.0” (D)

HEIGHT: 40.8” (H)

DEPTH WITH DOOR OPEN: 53.9”

WEIGHT: 221 lbs

SHIP WEIGHT: 300 lbs

PERMISSIBLE WATER PRESSURE: 20 - 120 psi

MAX SPIN - 100 G Force

POWER SUPPLY: 120 V~ 60 Hz

READY RACK EXTRACTOR

OWNER’S MANUAL

EW30

Extractor

MEETS NFPA

1851: 2020

REQUIREMENTS

2PRODUCT FEATURES

PRODUCT FEATURES

DIRECT DRIVE SYSTEM

The advanced brushless DC motor drives the drum directly without using a belt and pulley.

TILTED DRUM AND EXTRA LARGE DOOR OPENING

The tilted drum and extra large opening makes it possible to load and unload clothing more easily.

ULTRA CAPACITY

The larger drum enables more tumbling action and greater centrifugal force, but also less tangling

and wrinkling of the laundry.

SEE-THROUGH DOOR AND BIG DOOR

You can see the laundry throughout the cycle.

MAGNETIC DOOR PLUNGER

Safely and conveniently secure the door slightly ajar with the magnetic door plunger. This will

promote air circulation and allow the interior of the machine to dry. To use this feature, after the load

has been removed, do not close the door completely. When the magnetic door plunger comes into

contact with the metal washer cabinet, it will secure the door slightly open allowing the interior of

the washer to dry.

STAINLESS STEEL DRUM

Stainless steel drum offers extreme durability.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of re or

explosion, electric shock, or to prevent property damage, injury to persons, or death.

Your Safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always

read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazardsthat can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word DANGER,WARNING or

CAUTION.

These words mean:

DANGER

You will be killed or seriously injured if you don’t immediately follow instructions.

WARNING

You can be killed or seriously injured if you don’t follow instructions.

CAUTION

You may be slightly injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of

injury, and tell you what can happen if the instructions are not followed.

4IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of re or

explosion, electric shock, or to prevent property damage, injury to persons, or death.

GROUNDING INSTRUCTIONS

This appliancemust be grounded. In the event of malfunction or breakdown, grounding will reduce the risk

of electric shock by providing a path of least resistance for electric current. This appliance is equipped with

a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an

appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING

Improper connection of the equipment-grounding conductor canresult in risk of electric shock. Check with a

qualied electrician or servicer if you are in doubt as to whether the appliance is properly grounded. Do not

modify the plug provided with the appliance.If it does not t the outlet, have a proper outlet installed by a

qualied electrician. Failure to follow these warnings can cause serious injury, re, electric shock, or death.

BASIC SAFETY PRECAUTIONS

WARNING

To reduce the risk of re, electric shock, or injury to persons when using this appliance, follow basic

precautions, including the following.

•Before use, the washer must be properly installedas

described in this manual.

•Do not wash articles that havebeen previously cleaned

in, washed in, soakedin, or spotted with gasoline,dry

cleaningsolvents, or other ammable or explosive

substances, as they give off vapors that could ignite or

explode.

•Do not addgasoline,dry cleaning solvents, or other

ammable or explosivesubstancesto the wash water.

These substances give off vapors that could ignite or

explode.

• Under certain conditions, hydrogen gas may be produced

in a hot water system that has not been used for 2

weeks or more. HYDROGENGAS IS EXPLOSIVE. If the

hot water system has not been used for such a period,

before using the washer, turn on all hot water faucets

and let the water ow from each for several minutes.

This will release any accumulated hydrogen gas. As the

gas is ammable, do not smoke or use anopen ame

during this time.

•Do not allow children to playon or in the washer. Close

supervision of children is necessary when the washer is

used near children.

•Before the washer is removed from service or

discarded,remove the door to prevent children from

climbing inside.

•Do not install or store the washer where it will be

exposed to the weather or freezing temperatures.

•Do not tamper with controls.

•Do not repair or replace any part of the washer or

attempt any servicing other than asdescribed in this

manual. We strongly recommend that any service be

performed by a qualied technician.

•See InstallationInstructions for grounding requirements.

•ALWAYS follow the fabric care instructions suppliedby

the garment manufacturer.

•Do not placeitems exposed to cookingoil in your

washer. Items contaminated with cooking oils may

contribute to a chemical reaction that could cause a load

to catch re.

• This washer is not designed for maritime use or for

mobile installations such as in RVs,aircraft, etc.

•Turn off the water faucets and unplug the washer if the

machine is to be left for an extended period of time,

such as during vacations.

• Packagingmaterial can be dangerous for children. There

is a risk of suffocation! Keep all packagingfrom children.

•Always check the inside of the washer for foreign

objects before loadinglaundry. Keepthe door closed

when not in use.

•Do not reach into the appliance if the tub is

moving.

• WARNING : This product contains chemicals known to

the State of California to cause cancer and birth defects

or other reproductive harm.

Wash hands after handling.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of re or

explosion, electric shock, or to prevent property damage, injury to persons, or death.

SAFETYINSTRUCTIONS FOR INSTALLATION

WARNING

To reduce the risk of re, electric shock, or injury to persons when using this appliance, follow basic

precautions, including the following.

•Refer to INSTALLATION INSTRUCTIONS for

detailed grounding procedures. Installation

instructions are packed with the washer for

installer’s reference. If the washer is moved to a

new location, have it checked and reinstalled by a

qualied service technician. Failure to follow this

warning can cause serious injury, re, electric shock,

or death.

•Do not, under any circumstances, cut or remove

the third (ground)prong from the power cord.

Failure to follow this warning can cause serious

injury, re, electric shock, or death.

•For personal safety, this appliance must be properly

grounded. Failure to follow this warning can cause

serious injury, re, electric shock, or death.

•The power cord of this applianceis equipped with

a 3-prong (grounding) plug which mates with a

standard 3-prong (grounding)wall outlet to minimize

the possibility of electric shock from this appliance.

•This washer must be plugged into a 120 VAC, 60 Hz

grounded outlet. Failure to follow this warning can

cause serious injury, re, electric shock, or death.

•Have the wall outlet andcircuit checked by a

qualied electrician to make sure the outlet is

properly grounded. Failure to follow this warning

can cause serious injury, re, electric shock, or

death.

•Where a standard 2-prong wall outlet is

encountered, it is your personal responsibility

and obligation to have it replaced with a properly

grounded 3-prong wall outlet. Failure to follow this

warning can cause serious injury, re, electric shock,

or death.

•Do not install on carpet. Install washer on a solid

oor. Failure to follow this warning can cause

serious leak damage.

•Do not remove ground prong. Do not use an

adapter or extension cord. Plug into a grounded

3-prong outlet. Failure to follow these warnings can

cause serious injury, re, electric shock, or death.

•The washer should always be plugged into its own

individual electrical outlet which has a voltage rating

that matches the rating plate. This provides the best

performance and also prevents overloading house

wiring circuits which could cause a re hazardfrom

overheated wires.

•Never unplugyour washer by pulling on the power

cord. Always grip plug rmly and pull straight out

from the outlet. Failure to follow this warning can

cause serious injury, re, electric shock, or death.

•Repair or immediately replace all power cords that

have become frayed or otherwise damaged. Do not

use a cord that shows cracks or abrasion damage

along its length or at either end. Failure to follow

this warning can cause serious injury, re, electric

shock, or death.

•When installing or moving the washer, be careful

not to pinch, crush, or damage the power cord.

Failure to follow this warning can cause serious

injury, re, electric shock, or death.

•The washer must be installed and electrically

grounded by a qualied service person in

accordance with local codes to prevent shock

hazardand assure stability during operation.

•The washer is heavy. Two or more people may be

needed to install and move the appliance. Failure to

do so can result in back or other injury.

•Store andinstall the washer where it will not

be exposed to temperatures below freezing or

exposed to outdoor weather conditions. Failure to

follow this warning can cause serious leak damage.

•Do not install the washer in humid spaces to reduce

the risk of electric shock. Failure to follow this

warning can cause serious injury, re, electric shock,

or death.

•To reduce the risk of injury to persons, adhere to all

industry recommended safety procedures including

the use of gloves and safety glasses.

Failure to follow all of the safety warnings in this

manual could result in property damage, injury to

persons or death.

6IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of re or

explosion, electric shock, or to prevent property damage, injury to persons, or death.

SAFETY INSTRUCTIONS FOR USE, CARE, CLEANING, AND DISPOSAL

WARNING

To reduce the risk of re, electric shock, or injury to persons when using this appliance, follow basic

precautions, including the following.

SAVE THESE INSTRUCTIONS

•Unplug the washer before cleaning to avoid

the risk of electric shock.

•Never use harsh chemicals, abrasive

cleaners, or solvents to clean the washer.

They will damage the nish.

•Do not put oily or greasy rags or clothing on

top of the washer. These substances give off

vapors that could ignite the materials.

•Do not wash items that are soiled with

vegetable or cooking oil. These items may

contain some oil after laundering. Due to the

remaining oil, the fabric may smoke or catch

re by itself.

•Disconnect this appliance from the

power supply before attempting any user

maintenance. Turning the controls to the OFF

position does not disconnect this appliance

from the power supply. Failure to follow this

warning can cause serious injury, re, electric

shock, or death.

•Do not combine laundry products for use in

one load unless specied on the label.

•Do not mix chlorine bleach with ammonia

or acids such as vinegar. Follow package

directions when using laundry products.

Incorrect usage can produce poisonous gas,

resulting in serious injury or death.

•Do not reach into the washer while parts are

moving. Before loading, unloading, or adding

items, press the START/PAUSEbutton and

allow the drum to coast to a complete stop

before reaching inside. Failure to follow this

warning can cause serious injury, re, electric

shock, or death.

•Do not allow children to play on or in the

washer. Close supervision of children is

necessary when the washer is used near

children. As children grow, teach them the

proper, safe use of all appliances. Failure to

comply with these warnings could result in

serious injury to persons or death.

•Destroy the carton, plastic bag, and other

packing materials after the washer is

unpacked. Children might use them for play.

Cartons covered with rugs, bedspreads, or

plastic sheets can become airtight chambers.

Failure to comply with these warnings could

result in serious injury to persons or death.

•Keep laundry products out of children’s

reach. To prevent injury to persons, observe

all warnings on product labels. Failure to

comply with these warnings could result in

serious injury to persons or death.

•Remove the door to the washing

compartment to avoid the danger of children

or small animals getting trapped inside

before your washer is removed from service

or discarded. Failure to do so can result in

serious injury to persons or death.

7PARTS AND ACCESSORIES

PARTS AND ACCESSORIES

Parts

Accessories

Detergent

dispenser

drawer

Door

Magnet Door

Plunger

(see page 2)

Control

panel

Door seal

Tub

Water inlets

Shipping

bolts Power

cord

Drain pump lter cover

Drain pump lter

Drain hose

Drain

hose

Hot and Cold

Water Hoses

Non-skid pads Caps (4)

(for covering shipping

bolt holes)

Wrench

(for removing

shipping bolts and

adjusting leveling feet)

Hole cap (5)

(for securing auto

dosing hole)

Tie Strap

(for securing drain hose)

Elbow Bracket

(for securing drain

hose)

8CONTROL PANEL FEATURES

Display LED

The display shows t he remaining time and

programming options.

Error codes are also displayed here.

Optional cycle

Super Wash: Wash cycle with longest run time.

Start/Pause button

The Start/PauseLED ashes when the cycle has

been chosen.

Status LED

Cycle button

Press the CYCLE button to select the desired

cycle based on laundry types and conditions.

Blood Bourne

Increased temperature for cleaning of heavily

soiled clothing.

Outer Shells

Use for warm washing for heavy external fabrics.

Cold

Use for cold washing for sturdy fabrics, such as

in station clothing.

Liners

Use for warm washing for internal fabrics.

LED Description

LED ashes whenever the

washing cycle is in operation.

LED ashes whenever the

rinsing cycle is in operation.

LED ashes whenever the

spinning cycle is in operation.

LED ashes whenever the

door lock is activated.

CONTROL PANEL FEATURES

INSTALLATION INSTRUCTIONS

Space requirements

You must allow sufcient space for water lines,

the drain line, and airow.

Installing on a oor

Install the washing machine on a solid oor

that is strong and rigid enough to support the

weight of the washing machine, even when

fully loaded, without exing or bouncing. If

the oor has too much ex, you may need to

reinforce it to make it more rigid. If the oor

is not solid, it may cause severe vibration and

noise.

1Clean the oor before installation.

- Make sure to select solid and smooth

ground.

2Two or more people are needed for moving

and unpacking the washing machine.

3Allow for sufcient space between the walls

and the washing machine for installation.

Checking and choosing the

proper location

32.0”

(81.4 cm)

53.9”

(137.0 cm)

4.0”

(10.0 cm)

23.3”

(59.1 cm)

29.0”

(73.7 cm)

1.0”

(2.5 cm)

1.0”

(2.5 cm)

INSTALLATION INSTRUCTIONS

NOTE

• Be sure to allow for wall, door, or oor

moldings that may increase the required

clearances. NOTE

• The oor must be strong and rigid enough

to support the weight of the washer,

when fully loaded, without flexing or

bouncing. If your oor has too much ex,

you may need to reinforce it to make it

more rigid. A oor that is adequate for

a top-loading washer may not be rigid

enough for a front loading washer, due to

the difference in the spin speed and

direction. If the oor is not solid, your

washer may vibrate and you may hear and

feel the vibration throughout your house.

• Before installing the washer, make sure

the oor is clean, dry and free of dust,

dirt, water and oils so the washer feet

can not slide easily. Leveling feet that can

move or slide on the oor can contribute

to excess vibration and noise due to poor

contact with the floor.

10 INSTALLATION INSTRUCTIONS

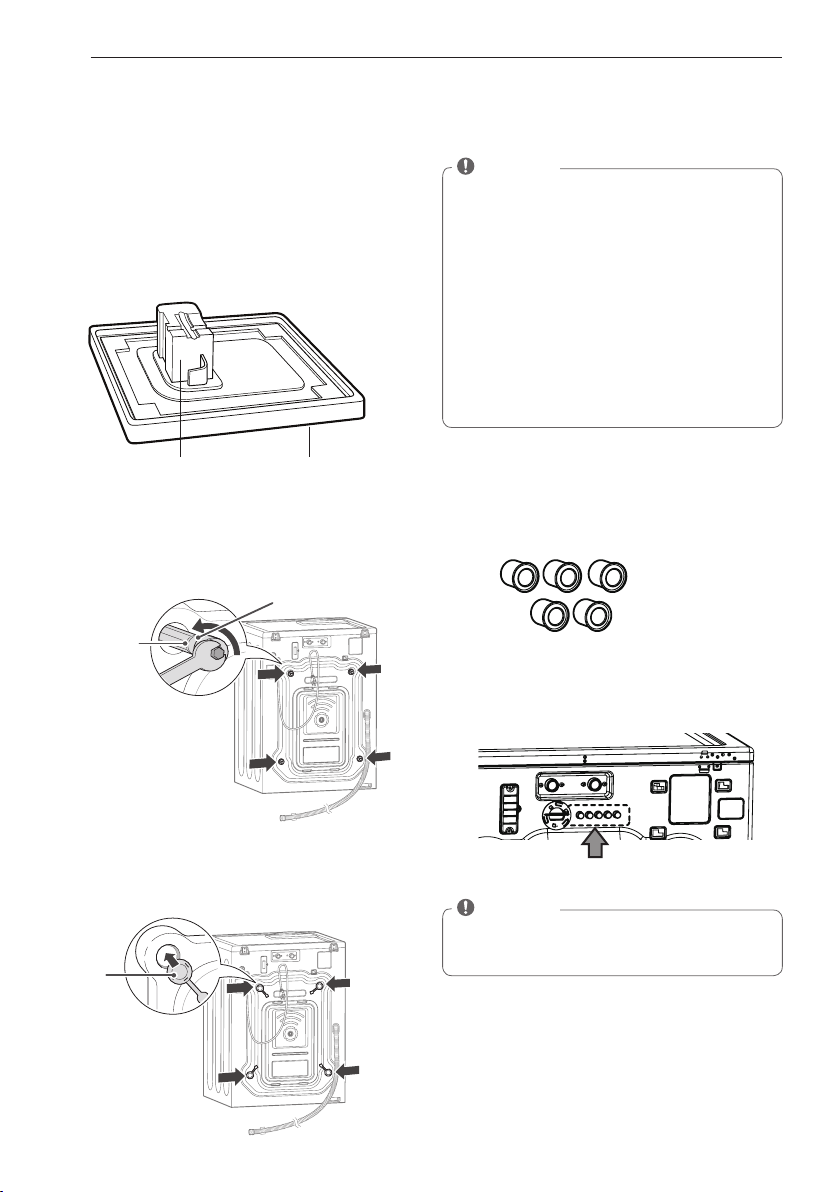

Installing Hole cap

1Use provided hole caps.

2Insert the hole cap (5 pieces) into hose

connect in back of the machine.

FoamTub Support Carton Base

NOTE

• Save the bolt assemblies for future use.

To prevent damage to internal

components, DO NOT transport the

washer without reinstalling the shipping

bolts.

• Failure to remove shipping bolts and

retainers may cause severe vibration

and noise, which can lead to permanent

damage to the washer. The cord is

secured to the back of the washer with

a shipping bolt to help prevent operation

with shipping bolts in place.

NOTE

• In case of using auto dosing feature,

inserting hole cap is unnecessary.

1Remove the bottom two shipping bolts

with the wrench (included) to fully loosen

all shipping bolts by turning them

counterclockwise and then pulling them out.

2Locate the four hole caps included in the

accessory pack and install them in the

shipping bolt holes.

Unpacking and removing

shipping bolts

When removing the washer from the carton

base, be sure to remove the foam drum

support in the middle of the carton base.

If you must lay the washer down to remove the

base packaging materials, always lay it carefully

on its side.

DO NOT lay the washer on its front or back.

Shipping

bolt

Retainer

Cap

Hole cap

Table des matières

Autres manuels Ready Rack Scrubber

Ready Rack

Ready Rack EW22 Manuel utilisateur

Manuels Scrubber populaires d'autres marques

Olympus

Olympus M200H Manuel utilisateur

Clarke

Clarke BEXT 100H Manuel d'installation et d'exploitation

JOHNY VAC

JOHNY VAC JVC70BCT Manuel utilisateur

RCm

RCm Elan Series Manuel

Kärcher

Kärcher B 120 W Manuel utilisateur

Truvox

Truvox Orbis MotorScrubber 20 Manuel utilisateur

Numatic

Numatic TTB 4045/100 Manuel utilisateur

U.S. Products

U.S. Products PEX 500-C-TICK Mode d'emploi

Mclennan

Mclennan C510 Manuel utilisateur

Tennant

Tennant T20 LPG Manuel utilisateur

Columbus

Columbus ARA 66 BM 100 Manuel utilisateur

Numatic

Numatic TTV 678G / 300T Manuel utilisateur

American-Lincoln

American-Lincoln 505-945 Manuel utilisateur

FIORENTINI

FIORENTINI ET 65-75 Manuel utilisateur

Floorpul

Floorpul ruby 48 blt Guide de l'utilisateur

Onyx

Onyx RX-34 Manuel utilisateur

Dustbane

Dustbane Hurricane 400 Manuel utilisateur

Sana

Sana EUJ-702 Manuel utilisateur
