1. Power: Pressing this button turns the monitor on and o

2. TV/AV: If your monitor is connected to another video source, pressing this button will

transfer the image from the 7" LCD monitor to the attached monitor.

3. Quad: Opens up a quad screen view. For more information on camera viewing, please

see“Camera Viewing”on Pg. 16

4. Volume: This adjusts the volume of the audio that plays through your monitor

5. IR Sensor: The IR sensor is how the remote and monitor communicate

6. Manual Record: Prompts the monitor to begin constant recording. To stop recording, press this

button again

7. Motion Record: Prompts the monitor to record only when motion is detected.To stop motion

recording, press this button again

8. Manual Channel: Manually changes which camera is being viewed on screen

9. Auto Channel: Turns auto channel on and o. When this function is on, the camera channels will

sequence through automatically

10. Delete/Scan: This button will turn on the screen saver. The screen saver will display until

motion is detected, once detected, the screen saver will close and the monitor

will display the camera that detected motion. During playback this button allows

you to delete single clips of recorded footage. For more information on deleting

recorded footage, please see“DELETE”on Pg. 27

11. Menu/Exit: Enters and exits the main menu

12. Joystick: This tab has many functions when accessing the menu as well as playing back

footage. For information about how to use this joystick, please see“Joystick”on

Pg. 14 of the manual

13. Antenna: This antenna allows for a stronger signal between the camera and monitor

14. Power Input: Plug the small end of the included power adapter marked“monitor”into this area

15. A/V Out: Plug the single end of the included A/V cable into this area

16. SD Card Insert: Your SD card can be inserted into this area to record and save footage

17. Talk: This button allows for two-way communication.The monitor and camera are

both equipped with a microphone and a speaker, pressing this button allows you

to speak through the camera from the monitor

MONITOR



REMOTE

The included remote control has the same functions

as the monitor with the exception of two commands

that are NOT included on the remote control,

they are:

• Talk: Cannot access talk function with remote

• Power: Cannot power on or o the monitor from

the remote control

CAMERA

1. Pair Button:

Located at the back of the

camera, you press this

button when pairing the

camera and monitor. For

more information, please

see“Pairing”on Pg 14

2. Antenna:

This removable antenna

allows for a better signal

between the camera and

monitor

3. Camera Housing:

Made of anodized aluminum

to prevent rust

4. Infrared (IR):

The 18 LEDs allow the

camera to see in the dark up

to 40ft away

5. Camera Lens:

The camera lens is located in

the center of the LEDs

6. CDS Sensor: Automatically turns on the infrared LEDs when it gets dark

7. Motion Detection: Detects any motion in front of the camera

8. Microphone: Allows you to hear and record sounds as well as footage

9. Camera Mount: Allows the camera to be desk or wall mounted

10. Power connection: This 3 ft. cord connects to the power adapter (marked“Camera”)

Back of Camera

THINGS TO CONSIDER BEFORE INSTALLATION

• The camera should be installed between 8 to 13ft above the area to be monitored

• Ensure that the camera is installed NO MORE than 100 ft away from the monitor’s position to maintain a

strong signal between the camera and monitor

• Before mounting the camera, ensure there are no obstructions in the camera’s view

• Place camera in the most strategic place where it can provide detailed video of your home or business. Having

the camera in the open for people to see can help deter criminals

• To cover large, dark areas such as backyards, garages, and driveways, place camera in a strategic location, such

as on the roof or deck. This way, more area is covered by the camera

• Ensure that the camera is positioned to avoid glare. Be sure to position camera away from direct sunlight or

indoor lighting

• For best results, light in front of the camera should be around the same brightness as the light around the area

or object being monitored

• Decide whether the camera will be wall-mounted, ceiling mounted or mounted on a desk/table top. We

recommend that the mount is secured using the included screws and hardware for all installations

The GX301 utilizes Clear Signal Technology,

meaning that it is designed to avoid the

frequencies of common wireless devices.

By doing so, the system does not receive

interference from any standardized

2.4GHz or 5.8 GHz wireless devices

within your home or business.

The signal also passes easily through

interior walls. However, buildings with

metal frames or placing the camera

near large metal objects may cause signal

interference. If reception is poor, moving the

camera and/or monitor closer to one another

may x this problem. Interference is also

possible if another device within the building

(such as a cordless phone) is operating on the

same frequency.

AVOIDING INTERFERENCE

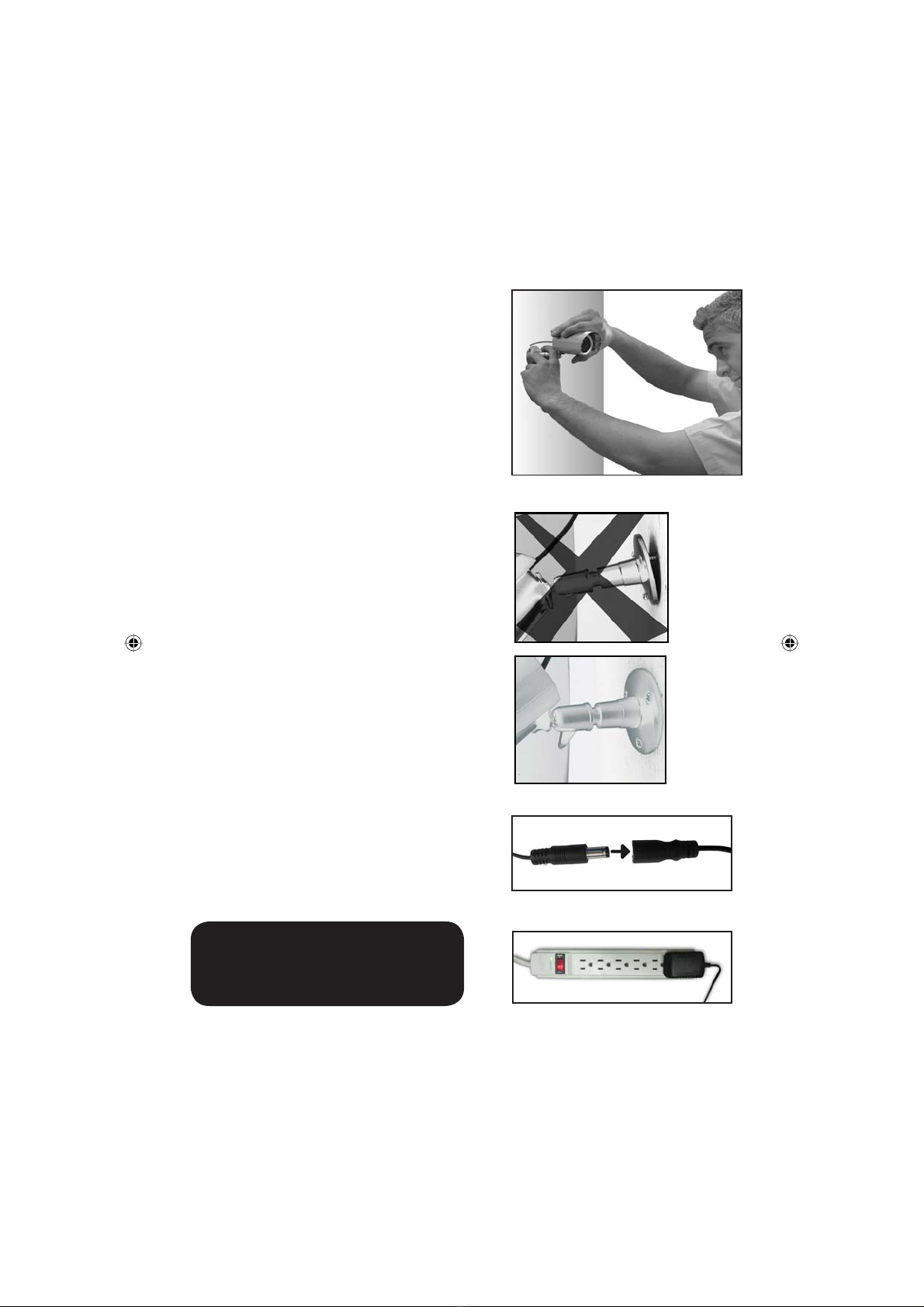

MOUNTING THE CAMERA

1. Decide if the camera will be wall-mounted or sitting

on a desk/tabletop. The camera can be adjusted

for many mounting scenarios by rotating it to the

required position.

• Keep in mind that the camera is microphone

equipped. If you would like audio recorded,

make sure the camera is within a close enough

range of the area being monitored to record

any sounds (within 6 ft)

• Be sure to mount the camera no further than

100ft away from your monitor

• Be sure to mount the camera no further than 8ft

away from a power source

2. Screw the mounting bracket into the camera’s

mounting hole, turning it clockwise.

3. Ensure that the camera is strongly secured into

the wall.

4. Adjust camera to the desired viewing angle.

5. For additional help with mounting the camera,

please see the drilling template located at the back

of the manual.

6. Once you have mounted the camera and placed

it at the desired viewing angle, plug the camera’s

power adapter (marked for camera) into the cord on

the camera and then plug the adapter into a power

source. (A surge protected power source is

recommended)

7. If you purchased a kit with additional cameras,

repeat the above steps for all additional cameras.

Note: The above photos are examples of

mounting a camera, your camera will

look dierent from the above images.

Plug power adapter into Camera’s cord

Plug into Surge Protected power source

Adjust camera to desired viewing angle

Ensure the camera is secure

To plug monitor in:

1. Make sure that the monitor is set up no more then

100ft from the camera.This is to ensure a strong

signal between the camera and monitor.

2. Plug the monitor’s power adapter (marked for

monitor) into the monitor’s power input area

(marked“9V DC”).

3. Plug the other end of the power adapter into a power

source (surge protected power source recommended).

4. Press the power button to turn the monitor on to view

and hear the camera.

PLUGGING IN MONITOR

Once the monitor is connected to a power source , turn it on using the power button and it will automatically pair

with the camera. If the camera and monitor do not automatically pair please see“PAIRING” Pg 14.

Plug into Surge Protected power source

To plug the 7" LCD Monitor into another Monitor:

1. Plug single end of the A/V cable into A/V out area on back of monitor.

2. Plug the video jack (yellow) into the video input on your monitor and the audio jack (white) into the audio

input on your monitor, then press the A/V button on the 7" LCD monitor.

3. You may have to adjust the channels or video source input on your monitor to view the footage.

4. Once the proper channel is set, the footage from the camera will display on the monitor.

CONNECTING TO ANOTHER MONITOR

The GX301 comes equipped with an audio/video cable that can be plugged into any monitor with an audio/video

input. Once plugged in, you will be able to watch and hear live video, access and view the menu as well as watch

playback footage from the monitor you have plugged into.

Plug adapter into 9VDC

Plug A/V cable into A/V out on monitor Plug A/V cord into monitor

CAMERA

Image sensor.............................................................................................................1/4" CMOS Color

Outdoor use ..............................................................................................................Yes

IP Rating ...................................................................................................................IP56

Maximum Wireless Range (Line of Sight)..................................................................300ft

Optimum Wireless Range (Line of Sight)...................................................................100ft

Wireless Frequency ...................................................................................................200~2483.5Mhz

Wireless Channel Frequencies ...................................................................................Hopping frequency

Resolution.................................................................................................................360 TV Lines

Night Vision............................................................................................................... Yes

Number of IR LEDs and Range...................................................................................18,up to 40ft

IR LED control............................................................................................................Automatic (CDS Sensor)

IR Cut Filter................................................................................................................Yes

Min. Illumination......................................................................................................0 lux

Viewing Angle...........................................................................................................62 degree

TV System .................................................................................................................NTSC

Focal Length..............................................................................................................4.5mm

Focus Type.................................................................................................................Fixed Focus

Optimal Focal Distance..............................................................................................20ft

Microphone...............................................................................................................Yes

Motion Detection......................................................................................................Yes, triggers audio alarm

Sun Shield.................................................................................................................Yes, not adjustable

Housing Material.......................................................................................................Aluminum & ABS

Housing Color............................................................................................................Silver

Electronic shutter speed............................................................................................1/60 ~ 1/15,000 sec

Signal/Noise Ratio.....................................................................................................>48dB

Camera Bracket.........................................................................................................Yes

OperatingTemperature.............................................................................................14°F ~ 104°F

Operating Humidity ..................................................................................................85%

Mounting Hardware..................................................................................................Included

Camera Power Input..................................................................................................9VDC 600mA

Power Adapter Input.................................................................................................AC 100~240 50/60 Hz

Dimensions ...............................................................................................................5.25" x 4.75" x 2'' (With Stand)

Weight......................................................................................................................0.75 lbs

 

SPECIFICATIONS

My Unit has Scrolling

horizontal lines

• Ensure that the device is set to NTSC. For more information

please see“AV OUT on Pg. 22

Schedule record is not working • Ensure that both manual and motion record modes are turned

OFF for schedule record to take place

MONITOR

Wireless Frequency ...................................................................................................2400~2483.5Mhz

Channel Frequencies.................................................................................................Hopping Frequency

Number of Cameras Supported.................................................................................4

Output Terminal ........................................................................................................1/8th inch to RCA A/V output

Resolution.................................................................................................................640x480 or 320x240

Speaker.....................................................................................................................Internal Buzzer

Maximum SD Card Size..............................................................................................32 GB

Compression .............................................................................................................MPEG-4

File Type ....................................................................................................................AVI

Operation Mode........................................................................................................Simplex

Scheduled Recording ................................................................................................24 Hour clock

Automatic Overwrite when Full ................................................................................Optional

Motion Activated Alert..............................................................................................Compatible

Post Motion Recording..............................................................................................5, 15, 30 seconds

Digital Zoom .............................................................................................................1x , 2x

Auto-Scanning..........................................................................................................Yes

Button Lock...............................................................................................................Yes

Remote Control.........................................................................................................IR

IR Remote Extension.................................................................................................6 ft

New Video Footage Notier.......................................................................................Yes, LED

Viewing Modes Single, Quad, Manual,

Automatic

Recording Mode........................................................................................................Manual, Schedule

Adjustable Brightness...............................................................................................Yes

Video Output.............................................................................................................PAL/NTSC

OperatingTemperature.............................................................................................14°F ~ 120°F

Operating Humidity ..................................................................................................85%

Housing Material.......................................................................................................Aluminum and ABS Plastic

Housing Color............................................................................................................Silver

Monitor Power Input.................................................................................................9VDC 500 mAh

Power Adapter Input.................................................................................................AC 100~240 V 50/60Hz

Dimensions ...............................................................................................................4.25" x 3" x 0.75''

Weight.......................................................................................................................4 lbs

If you accidentally damage or lose any parts they can be replaced with ease.The following are parts that

came with your system and their reference model numbers so you can continue to eectively monitor

your premises.

ADDITIONAL ACCESSORIES

PRODUCT MODEL# DESCRIPTION

GX301-C

Expand your system to a maximum of four cameras to monitor

more locations

VU100-ST

Alert all potential criminals of your security system and help

deter crime with a window sticker

SGN100

Alert all potential criminals of your security system and help

deter crime with this durable aluminum sign

You may wish to add to your system and upgrade some components of it. Here are some

items that can boost the eectiveness of your video security system.

PRODUCT MODEL# DESCRIPTION

Power Adapters

Audio/Video Cable

SOFTWARE/

MANUALS

Your product software and manual are available for download at:

http://www.SVAT.com/downloads.php

FCC NOTE:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:(1)this device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized

modifications to this equipment. Such modifications could void the user's authority to operate

the equipment.

IC NOTE:

Operation is subject to the following two conditions: (1) this device may not cause interference,

and (2) this device must accept any interference, including interference that may cause undesired

operation of the device.

This Class A/B digital apparatus meets all requirements of the Canadian Interference-Causing

Equipment Regulations.

Table des matières

Autres manuels RDI Technology Caméra de sécurité

RDI Technology

RDI Technology CA670 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
