3.Mounting on the wall

This unit is VESA-complian,and is designed to be wall-mounted

with a VESA-compliant 8.6"x8.6"(218mmx218mm)mounting kit

designde for flat-panel TVs(not supplied).Mount this unit according

to the instructions included in the monting kit. Length of screw should

not exceed 8 mm

NOTE

Remove the base stand before mounting the unit on the wall.

Four mounting holes

(size M4 screw)

8.6”

8.6”

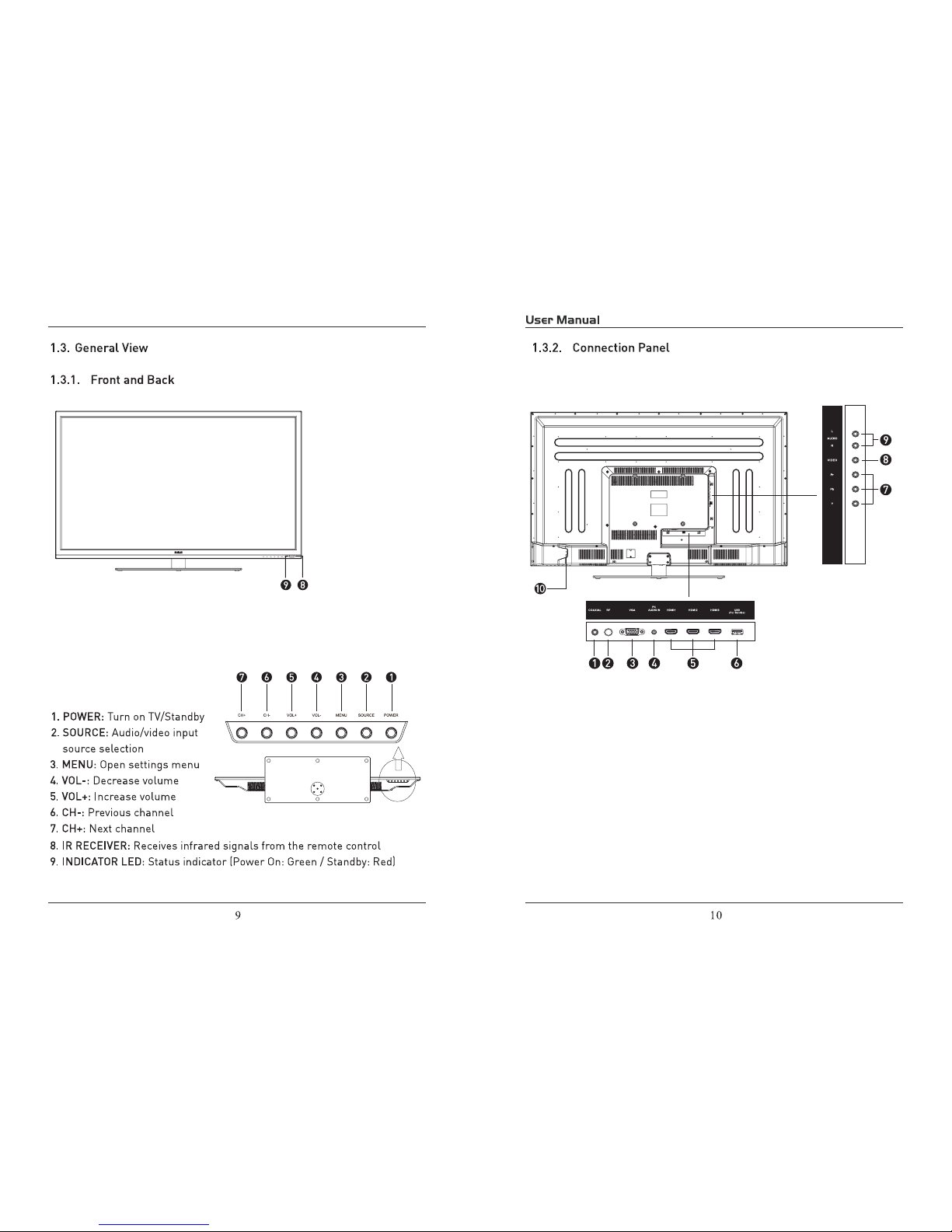

7. YPbPr: Composite.video.input

8. VIDEO: Composite.video.input

9. AUDIO IN R/L: Stereo.audio.input

10. ON/OFF: Power.switch

1..COAXIAL: Digital.audio.output

2. RF: Antenna.connection

3. VGA: PC.video.input

4. PC AUDIO IN: Audio.input.for.PC.

mode

5. HDMI: High.definition.HDMI.audio.

and.video.input

6. USB: USB.Host.port (For Service)

ASPECTSelectsthescreensize

UniversalRemote Code:08F7

(Universal Rmote Control is not included)

sound from speakers

adaptor

Note:Coaxial output

17 18

3.1.

adaptor

side
