FIRST THINGS FIRST ....................................... 3

Connecting your TV ....................................................... 4

TV Only ..................................................................... 4

TV with other Components ..................................... 5

USING THE MENU SYSTEM ........................... 7

The Menu Rule: Point and Select ................................. 8

What is Point and Select? ........................................ 8

Menus and Control Panels .......................................... 10

Menus ..................................................................... 10

Control Panels ........................................................ 11

Choice Lists ............................................................. 12

Numeric Entry ......................................................... 13

INTERACTIVE SETUP ..................................... 15

Entering Setup ............................................................. 16

Select a Language ....................................................... 16

Auto Channel Search ................................................... 17

Set the Time ................................................................. 18

Set the VCR1 Channel ................................................. 19

Set the DVD.VCR2 Channel ........................................ 20

Set the SAT.CABLE Channel ....................................... 21

Label the Channels ...................................................... 22

PROGRAMMING THE REMOTE .................. 25

Programming the Remote ......................................... 26

To Control a VCR .................................................... 26

To Control a DVD Player or Laserdisc Player ........ 28

To Control an RCA Audio Device .......................... 28

To Control a Satellite Receiver or Cable Box ........ 29

Using the Remote to Control a Device ....................... 29

TOUR OF THE TV ............................................ 31

Remote Buttons ........................................................... 32

Back Panel .................................................................... 34

Front Panel ................................................................... 36

Channel Marker ........................................................... 37

QUICK REFERENCE ........................................ 39

Audio Menu ................................................................. 40

Picture Quality Menu .................................................. 41

Screen Menu ................................................................ 42

Channel Menu ............................................................. 43

Time Menu ................................................................... 45

Parental Controls Menu .............................................. 46

Setup Menu ................................................................. 47

ADVANCED FEATURES ................................. 49

PIP (Picture-in-Picture) Operation .............................. 50

Fetch Menu .................................................................. 52

Choosing an Audio Processor ..................................... 53

Closed Captioning ....................................................... 54

To display Closed Captioning ................................ 54

Closed Captioning Modes ...................................... 55

On-screen Program Details ......................................... 56

APPENDIX A: USING THE

TV CONNECTIONS ........................................ 57

APPENDIX B: CONNECTING

OTHER COMPONENTS ................................. 68

APPENDIX C: TROUBLESHOOTI NG ............ 70

APPENDIX D: LIMITED WARRANTY ......... 72

APPENDIX E: CARE AND CLEANING .......... 73

ACCESSORIES ................................................. 74

INDEX .............................................................. 77

Hi, I'm Mark.

I wrote this manual to help you get the most from

your TV. I know you expect a lot from your TV, so I

designed this user manual to give you the

information you need.., when you need it,

Read the first four chapters

The manual is designed to get you started quickly...

and let you catch up on the details when you get a

chance. The first four sections of the manual will get

your TV up and running. You'll learn how to use the

menu system, run the interactive setup routine and

program the remote,

The rest of the manual gives you the specifics: a tour

of the TV, a quick reference guide, the advanced

features and appendices.

Well.,. if your TV's out of the box, let's get started,

First things first.

11 FIRST THINGS FIRST

ICheck out the notes I've added 1

throughout the manual. I've got some

great tips that will help you get the most

from your TV.

STEP 1

Unpack the TV. Make sure to locate the remote control and

Connections Foldout.

Important Information: Optional Stand

CAUTION: Matching stands were designed to be used with the

table model TV included in this book. The recommended stands

are provided with hardware to secure the TV to the stand so that

it cannot be easily pushed off, pulled off or tipped over. Your

RCA dealer can help you choose the appropriate stand for your

TV.

If you choose not to use the stand recommended for your TV,

take precautions that the stand or other furniture the TV is

placed on is properly located and of adequate size and strength

to prevent the TV from accidentally being tipped over or pulled

off, This could cause damage to the TV and or personal injury,

Stands are not available by mail order. To locate your nearest

RCA dealer, call 1-800-336-1900.

STEP 2: CONNECTING YOUR TV

If you're only going to connect the TV to your home antenna or

cable system, use the "TV Only" connection shown below. If

you're going to connect the TV to a VCR, satellite receiver, DVD

player or other component, look at the Connections Foldout. The

Connections Foldout details ten diagrams that are recommended

for hooking up the TV to a cable box or antenna, one or two

VCRs, a DVD player, and a satellite receiver.

TV ONLY

This is a basic connection from an antenna or cable system to

your TV. Connect the cable as shown. If you have a VCR or other

components to connect to the TV, skip to the top of the next

page. ICABLE, CABLE BOX, OR ANTENNA

INPI]T 1 V

I _ UMONOI L _ I1

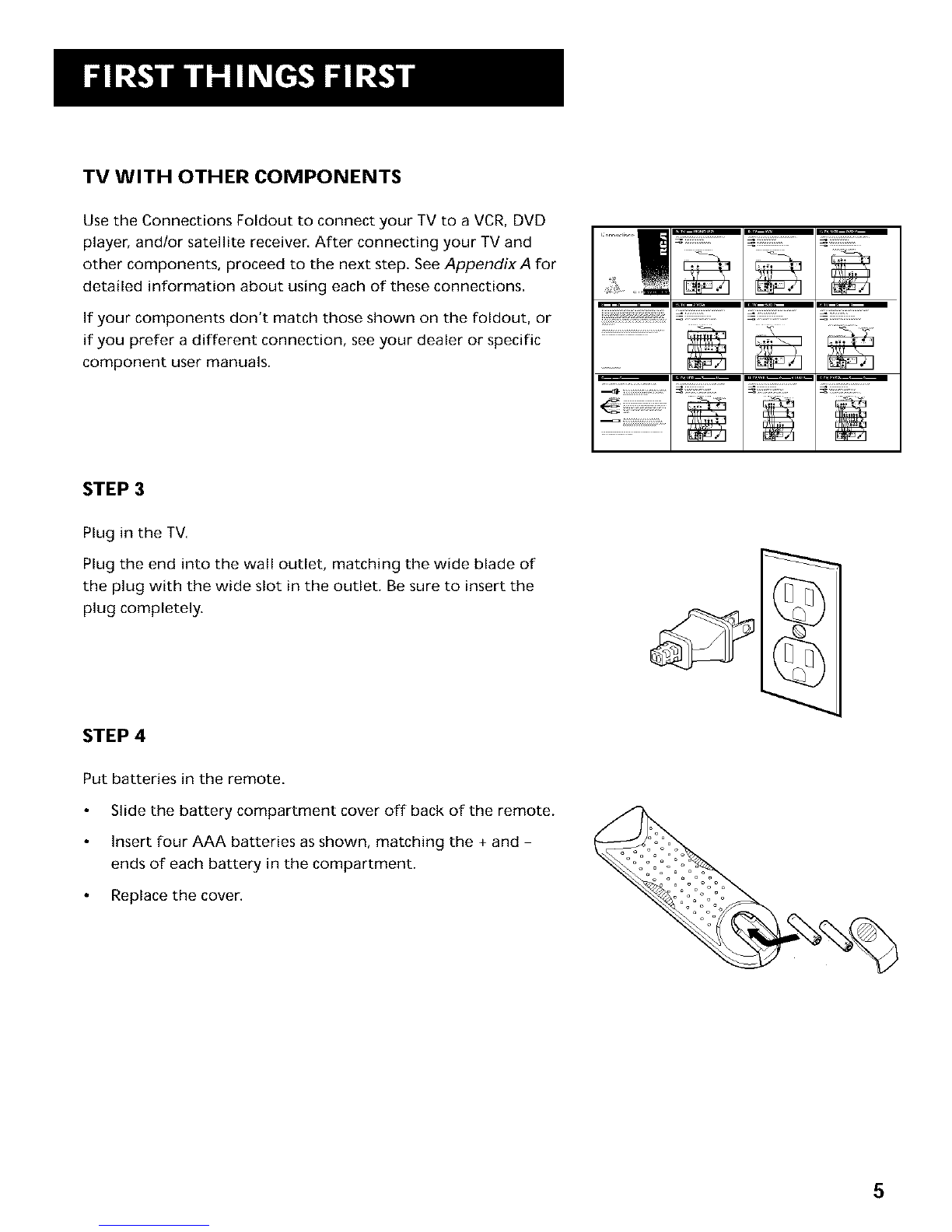

TV WITH OTHER COMPONENTS

Use the Connections Foldout to connect your TV to a VCR, DVD

player, andlor satellite receiver. After connecting your TV and

other components, proceed to the next step. See Appendix A for

detailed information about using each of these connections.

If your components don't match those shown on the foldout, or

if you prefer a different connection, see your dealer or specific

component user manuals.

STEP 3

Plug in the TV.

Plug the end into the wall outlet, matching the wide blade of

the plug with the wide slot in the outlet. Be sure to insert the

plug completely.

STEP 4

Put batteries in the remote.

Slide the battery compartment cover off back of the remote.

Insert four AAA batteries asshown, matching the + and -

ends of each battery in the compartment.

Replace the cover.

STEP 5

Turn on the TV.

Press TV on the remote, or press POWER on the TV itself.

STEP 6

Read the next section, Using the Menu System, which is a brief

overview of the basic rules for getting around in the menus,

STEP 7

Proceed to section three, Interactive Setup. The interactive setup

routine walks you through the steps needed to fully configure

the TV. The first steps ask you to select your preferred language

for the menu system and to begin the auto channel search,

which puts available cable TV or antenna signals into the TV's

memory. You must complete the auto channel search. After

the first two steps, you can skip any of the remaining steps and

return to them later.

R_\_E_E pLAy !0]_;A1_

r_l r_q r_q

MU],s _ i GO £_z*CK

'0 =0 _0

°O _O _0

_O _0 _O

,,,6_,%0A.,o......

_ ! E f(:l]

SOlN[

--TV BUTTON

One Rule to Remember

You control and customize the TV by making

changes to various control panels in the menu

system. The great thing is, you only need to know

one rule: point and select. I 2 V

USING THE MENU SYSTEM

I f you want a lot of cool features, you /

have to use some kind of menuing J

system. Look at it this way: you only

need to know one rule.

THE MENU RULE: POINT AND SELECT

You only need to know one rule to use the on-screen menus and

control panels: point and select.

WHAT IS POINT AND SELECT?

The point and select method has two steps.

1. Point to a menu item using the MOVE arrows on the

remote.

To point up or down, press the up or down arrows. To point

left or right, press the left or right arrows.

2. Select a menu item by pressing MENU°SELECT.

Selecting an item tells the TV's menu system to go ahead and

make the change or go to a place you have indicated.

For example, to select the Channel menu from the Main menu:

1. Press MENU to bring up the Main menu.

2. Point to Channelby pressing the down arrow until the word

Channel is highlighted.

Tip: You can also select a menu item

by entering the item number with the

number buttons on the remote.

Press CLEARat any time to remove all

displays from the screen and return to

TV viewing.

Many VCR user manuals refer to a

PROGRAM button. The MENU.SELECT

button on this remote works as a

PROGRAM button in VCR mode. The

rest of this manual refers to this

button only as MENU.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels RCA TV

RCA

RCA 27GT716YX1AY1 Manuel utilisateur

RCA

RCA F36444YX01 Manuel utilisateur

RCA

RCA G35850 Manuel utilisateur

RCA

RCA 15956220 Manuel utilisateur

RCA

RCA 20F650TECY Manuel utilisateur

RCA

RCA LED24G45RQD Manuel utilisateur

RCA

RCA F32550 Manuel utilisateur

RCA

RCA P50830 Manuel utilisateur

RCA

RCA 27F520T - 27" TruFlat Picture Tube TV Guide de démarrage rapide

RCA

RCA F20648TX51M9 Manuel utilisateur

RCA

RCA C33682 Manuel utilisateur

RCA

RCA F20645YX1B1 Manuel utilisateur

RCA

RCA M29400 Manuel utilisateur

RCA

RCA F32669YX51 Manuel utilisateur

RCA

RCA 27F530T Manuel utilisateur

RCA

RCA F27678 Manuel utilisateur

RCA

RCA F27615 Manuel utilisateur

RCA

RCA F20251 Manuel utilisateur

RCA

RCA 27GT720TX2AX1 Manuel utilisateur

RCA

RCA RLDED4331-B Manuel utilisateur

RCA

RCA F25215 Manuel utilisateur

RCA

RCA F36669 Manuel utilisateur

RCA

RCA Alert Guard 24F671T Manuel utilisateur

RCA

RCA RLED2969A Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
