RCA F20645YX1B1 Manuel utilisateur

WARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture.

To reduce the risk of electric shock, do not remove

cover (or back). No user serviceable parts inside.

Refer servicing to qualified service personnel.

This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

personal injury.

_ This symbol indicates

important instructions

accompanying the product.

Caution: To reduce the risk of electric shock, match wide

blade of plug to wide slot, fully insert.

Attention: Pour _viter les chocs 61ectriques, introduire la lame

la plus large de la fiche dans la borne correspondante de la

prise et pousserjusqo au fond.

Refer to the identification/rating label located on the back panel of your product

for its proper operating voltage.

FCCRegulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

If fixed (non-moving) images are left on the screen for long periods,

they may be permanently imprinted on the picture tube (or Projection

TV picture tubes). Such images include network Iogos, phone numbers,

and video games. This damage is not covered by your warranty.

Extended viewing of channels displaying these images should be

avoided.

Cable TV Installer: This reminder is provided to call your attention to Article

820-40 of the National Electrical Code (Section 54 of the Canadian Electrical

Code, Part 1) which provides guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected to the grounding system of

the building as close to the point of cable entry as practical.

Product Registration

Please fill OUt the product registration card and return it immediately. Returning the card allows us to contact you

needed.

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the

serial and model numbers in case you need them. The numbers are located on the back of the television.

Model No.

Serial No.

Purchase Date:

Dealer/Address/Phone:

VCR Plus+, C3,PlusCode, GUIDE Plus+, and GUIDE Plus+ Gold are trademarks of Gemstar Development Corporation.

The GUIDE Plus+ Gold system is manufactured under license from Index Systems Inc.

Thomson Consumer Electronics and Gemstar are not in any way liable for the accuracy of the program information

provided by the GUIDE Plus+ System. In no event shall Thomson Consumer Electronics or Gemstar be liable for any

amount representing loss of profits, loss of business, or indirect, special, or consequential damages in connection with

the provision or use of any information equipment, or services relating to the GUIDE Plus+ System.

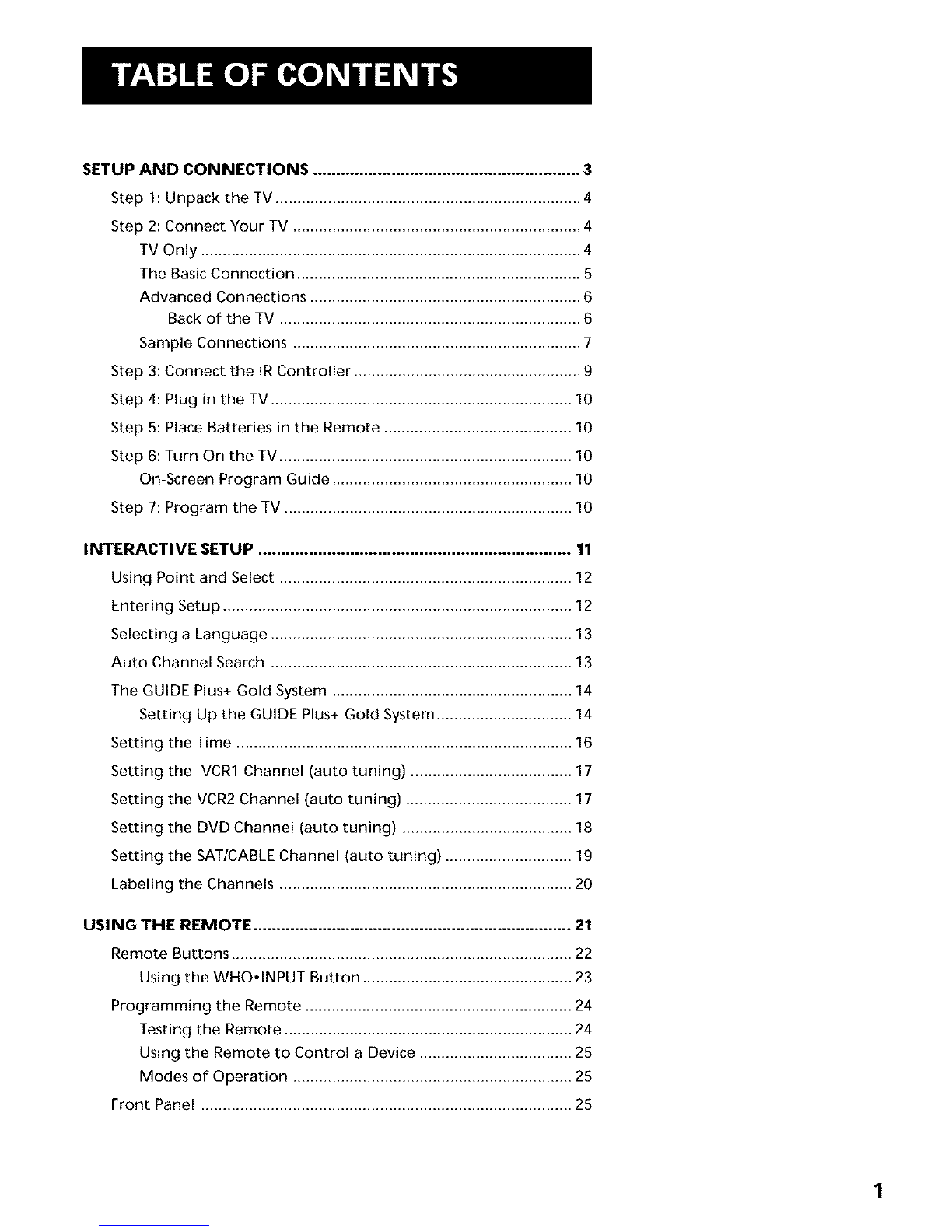

SETUP AND CONNECTIONS .......................................................... 3

Step 1: Unpack the TV ...................................................................... 4

Step 2: Connect Your TV .................................................................. 4

TV Only ....................................................................................... 4

The Basic Connection ................................................................. 5

Advanced Connections .............................................................. 6

Back of the TV ..................................................................... 6

Sample Connections .................................................................. 7

Step 3: Connect the IR Controller .................................................... 9

Step 4: Plug in the TV ..................................................................... 10

Step 5: Place Batteries in the Remote ........................................... 10

Step 6: Turn On the TV ................................................................... 10

On-Screen Program Guide ....................................................... 10

Step 7: Program the TV .................................................................. 10

INTERACTIVE SETUP .................................................................... 11

Using Point and Select ................................................................... 12

Entering Setup ................................................................................ 12

Selecting a Language ..................................................................... 13

Auto Channel Search ..................................................................... 13

The GUIDE Plus+ Gold System ....................................................... 14

Setting Up the GUIDE Plus+ Gold System ............................... 14

Setting the Time ............................................................................. 16

Setting the VCR1 Channel (auto tuning) ..................................... 17

Setting the VCR2 Channel (auto tuning) ...................................... 17

Setting the DVD Channel (auto tuning) ....................................... 18

Setting the SAT/CABLE Channel (auto tuning) ............................. 19

Labeling the Channels ................................................................... 20

USING THE REMOTE ..................................................................... 21

Remote Buttons .............................................................................. 22

Using the WHO,INPUT Button ................................................ 23

Programming the Remote ............................................................. 24

Testing the Remote .................................................................. 24

Using the Remote to Control a Device ................................... 25

Modes of Operation ................................................................ 25

Front Panel ..................................................................................... 25

USING THE MENU SYSTEM ......................................................... 27

Menus and Control Panels ............................................................. 28

Audio Menu .................................................................................... 30

Using the Remote to Select an Audio Processor .......................... 31

Picture Quality Menu ..................................................................... 32

Screen Menu ................................................................................... 33

Using Closed Captioning ......................................................... 34

Channel Menu ................................................................................ 35

Time Menu ...................................................................................... 36

Other Menus ................................................................................... 36

FEATURES AND CONTROLS ......................................................... 37

GUIDE Plus+ Gold Menu ................................................................ 38

About the GUIDE Plus+ Gold System ............................................ 38

Getting In & Out of the GUIDE Plus+ Gold System ................ 39

Downloading Data .................................................................. 39

The Different GUIDE Plus+ Gold System Menus .................... 39

Grid Guide ........................................................................... 40

Sort ...................................................................................... 41

Schedule .............................................................................. 42

Messages ............................................................................. 43

Editor ................................................................................... 43

Channel Marker .............................................................................. 46

Parental Controls and V-Chip ........................................................ 47

V-Chip TV Rating Limit ............................................................ 48

V-Chip Movie Rating Limit ...................................................... 52

V-Chip Unrated Program Block ............................................... 53

Channel Block .......................................................................... 53

Front Panel Block ..................................................................... 53

Lock/Unlock Parental Controls ................................................ 53

REFERENCE ..................................................................................... 54

Troubleshooting ............................................................................. 54

Care and Cleaning .......................................................................... 55

RCA Limited Warranty ................................................................... 56

Accessory Information ................................................................... 58

INDEX ............................................................................................. 61

GETTI NG STARTED

This manual isdesigned to get you started quickly.

The first five sections of the manual show you how to

get your TV set up and connected, run the Interactive

Setup, program the remote, and use all of the menus,

features, and controls of your TV.

The reference section in the back of the book

contains troubleshooting tips, care and cleaning

instructions, accessory ordering information and your

warranty.

Well... if your TV's out of the box, let's get started.

SETUP AND CONNECTIONS

I •

Checkout the notes that have been added

throughout the manual in thesetip boxes.

There are someimportant tips that will

help you get the mostfrom your TV.

STEP 1: UNPACK THE TV

Make sure to locate the remote control.

STEP 2: CONNECT YOUR TV

There are three types of connections outlined in this section:

fV Only: If you're only going to connect the TV to

your home antenna or cable system.

The Basic Connection: If you're going to connect the TV to a

VCR or satellite receiver.

Advanced Connections: If you're going to make multiple

connections, hooking up the TV to a

VCR and asatellite receiver.

Cable information and illustrations are given for each type of connection.

Once you have completed your desired connection you may skip forward

to Step 3.

TV ONLY

This is a basic connection from an antenna or cable system to your TV.

Connect the cable into the Cable/Antenna jack as shown.

Cables

You will use the following cable to make your connection:

Coaxial Cable: These cables carry audio and

video signals to the TV from an antenna, cable,

or cable box.

rImportant Stand Information

CAUTION: Choose the location for your TV

carefully. Take precautions that the stand

or other furniture on which the TV is

placed is properly located (see Important

Safeguards sheet) and of adequate size

and strength to prevent the TV from

accidentally being tipped over, pushed off,

or pulled off. This could cause damage to

the TV and/or personal injury.

Before You Connect

Protect against power surges:

• Connect all components before

plugging any power cords into the wall

outlet.

•Turn off the TV and/or component

before connecting or disconnecting any

cables.

•Make sure all antennas and cables are

properly grounded. Refer to the

Important Safeguards sheet packed

with your TV.

CABLE, CABLE BOX, OR ANTENNA

VCR CABLE/

CONTROL (_ _ ANTENNA

_ S VIDEO

IPlease note that the S-VIDEO and Audio R|

and L OUT jacks are not available for J

models F20625 and F19625.

Once you have completed this connection you may go to Step 3.

THE BASIC CONNECTION

The basic connection below (TV and VCR) is the most common

connection and is therefore used to illustrate a single component

connection with your TV. For better sound and picture quality and

multiple component connection information refer to the next section,

Advanced Connections.

Cables

You will use the following type of cable to make your connection:

Coaxial Cables: In this connection, two Coaxial

Cables are used: one connects from an antenna,

cable, or cable box to the VCR, and one connects

from the VCR to the TV. These cables carry both

audio and video signals.

How to View the VCR

To watch the VCR in this connection tune TV to Channel 3 or 4.

Later, in the Interactive Setup section you will program the TV to

automatically tune to Channel 3 or 4 when you turn on the VCR.

CABLE, CABLE BOX, OR ANTENNA

VCR I

TV •]

Please note that the S-VIDEO and Audio R

and LOUT jacks are not available for

models F20625 and F19625.

Once you have completed this connection you may skip to Step 3.

ADVANCED CONNECTIONS

Advanced connections give you better sound and video by separating

the audio and video signals and enabling you to connect multiple

components,

This section describes the types of inputs available on the back of your

TV and suggests ways you can use them for optimum performance.

Back of the TV

The diagram below describes each of the back panel jacks, When

connecting A/V cables, be sure to connect corresponding OUTPUTS and

INPUTS (Video to Video, Right Audio to Right Audio, etc,).

Once you have made your connections,

you will need to program the TV to tune

to the correct video input channel in

order to see and hear audio and video

from a component such as a VCR or DVD

player. You will program this later in the

Interactive Setup.

VIDEO and Audio Inputs |

Connect any one of the following components:

VCR Internet Access Device

• Laserdisc Player • DVD Player

• Satellite Receiver

To view the component connected to VIDEO,

use the WHO.INPUT button on the remote.

_ VIDEO

VCR

CONTROL

* Audio Outputs

Connect to an audio receiver or

amplifier for variable controlled

or fixed level stereo output.

ANTENNA

S-VIDEO

VCR Control

3onnect the GUIDE Plus_

Gold system IR controller

for one-button recording

and channel tuning from

the GUIDE Plus+ Gold

system.

* S-Video

This optional

connection can

be used for

better video

quality picture.

ICabie/Antenna

Takes the signal input from a cable,

cable box, or an off-air antenna. Can als(

be used for basic component connections_

* These jacks are not available for models F19625 and F20625.

SAMPLE CONNECTIONS

The following are sample connection scenarios you may encounter

when connecting components to your TV. Note: if you connect an S-

VIDEO cable, you must also connect an Audio/Video cable to the AUDIO

Rand Ljacks.

Cables

You will use the following types of cables to make your connection:

Coaxial Cables: Carries the signal from the

antenna or cable directly to the television or

through a cable box, as needed by your cable

system.

Audio/video Cables: Carries audio and video

from a component to the TV.

S-Video Cable: Carries video from an S-Video

capable component which provides best picture

quality.

TV and Stereo VCR

Compared to the Basic Connection, using Audio/Video and

S-Video (if available) cables will enhance the sound and picture

quality from a component.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

I_IDEO R L

@ @ _ ,.

vcR [o a]°°T

CONTROL _

_ S_VEDE0

Cautions:

Position cables to avoid audio hum

or interference

• Insert all cables firmly into jacks.

•Place the audio/video cables to the

sides of the TV's back panel instead of

straight down the middle.

•Try not to coil any twin-lead cables and

keep them away from the audio/video

cables.

Protect your components from

overheating

•Do not block ventilation holes in any of

the components. Arrange the

components so that air can circulate

freely.

•Do not stack components.

•Allow adequate ventilation when

placing your components in a stand.

•Place an amplifier on the top shelf of

the stand so heated air rising from it

will not flow around other

components.

How to View Your VCR

To watch the VCR in this connection, press

TV to put the remote control into TV

mode, then press WHO,INPUT to toggle to

the video (VID) inputs.

In the Interactive Setup section you can

program the TV to automatically tune to

the VID input channel when you turn on

the VCR.

Most Audio/Video cables are combined

into one cable with three heads on each

end.

We show individual

cables in these sample Vkd*o5,e_ow)

connections. Either

may be used, but _R_ght Audio(red)

yOU must be sure to _ri[2[_]_

connect Video to _ft A_d_o(_h,t.)

Video, Right to Right

and Left to Left.

• ]

Please note that the S-VIDEO and Audio R

and LOUT jacks are not available for

models F20625 and F19625.

TV, VCR and Satellite Receiver

CABLE, CABLE BOX, OR ANTENNA

SATELLITE RECEIVER

VCR 1

SATELLITE SIGNAL How to View Your Components

To watch the satellite receiver in this

connection, press TV to put the remote control

into TV mode, then press WHO*INPUT to scroll

through the video input channels until you

tune to VID (or SVID) input.

To watch the VCR in this connection, enter 03

to tune to the VCR channel.

In the Interactive Setup you can program the

TV to automatically tune to the correct input

channel when you turn on your component.

IPlease note that the S-VIDEO and Audio R |

and LOUT jacks are not available for J

models F20625 and F19625.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels RCA TV

RCA

RCA F27731 Manuel utilisateur

RCA

RCA F19421 Manuel utilisateur

RCA

RCA LED42A45RQ Guide de l'utilisateur

RCA

RCA F27641 Manuel utilisateur

RCA

RCA RLED1945A Manuel utilisateur

RCA

RCA M50WH186 Manuel utilisateur

RCA

RCA F32715 Manuel utilisateur

RCA

RCA G27692 Manuel utilisateur

RCA

RCA RNSMU5536 Manuel utilisateur

RCA

RCA Color Television Manuel utilisateur

RCA

RCA R52WH73 Guide de démarrage rapide

RCA

RCA 20F512T Manuel utilisateur

RCA

RCA M52732 Manuel utilisateur

RCA

RCA P60752 Manuel utilisateur

RCA

RCA TF 2920 Manuel utilisateur

RCA

RCA CRT Television Manuel utilisateur

RCA

RCA J32BE220 Manuel utilisateur

RCA

RCA RLDED4691A Manuel utilisateur

RCA

RCA F27242GY Manuel utilisateur

RCA

RCA Roku TV RTR4060-U-US Manuel utilisateur

RCA

RCA F25441 Manuel utilisateur

RCA

RCA P52811 Manuel utilisateur

RCA

RCA RBA27500, RCA27000 Manuel utilisateur

RCA

RCA G35851 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
