RCA RS32H2-EU Manuel utilisateur
RS32H2-EU
32 INCH LED HD LCD TV
PRECAUTIONS AND REMINDERS
IMPORTANT SAFETY INSTRUCTIONS
BUTTON CONTROL AND PERIPHERAL CONNECTION
OPERATING INSTRUCTIONS
SPECIFICATIONS
TROUBLESHOOTING
TABLE OF CONTENTS
1
IMPORTANT SAFETY INSTRUCTIONS
2
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of
Dolby Laboratories.
PRECAUTIONS AND REMINDERS
If you are going to clean the product,Unplug the TV,use
soft fabric,no water,never chemicals.
3
BUTTON CONTROL AND PERIPHERAL CONNECTION
PERIPHERAL CONNECTION
BUTTON CONTR LO
OK/
/
In the non-menu page,Under the menu page, press the left and
right keys to adjust the volume addition and subtraction.
In the standby mode, press the to turn on the TV.
In the boot state, long press the to shut down.
In the non-menu page, you can adjust the TV channel under the
program addition and subtraction;
Under the menu page, you can move the cursor up and down.
Under the menu page , function equivalent to the OK key.
3. HDMI1(ARC) input terminal.
2. Coaxial out terminal.
1. RJ45
7. Earphone terminal.
5. HDMI3 input terminal.
4. HDMI2 input terminal.
9. RF antenna.
10. USB 1& 2: Connect USB device, such as flash disk.
8. LNB IN.
6. Audio&Video input terminal.
2 3 4 51 6 7 8 9 10 11 12
11. CI slot.
12. YPbPr(MINI) input terminal.
OK/
OK/
/
4
OPERATING INSTRUCTIONS
USING THE REMOTE CONTROL
Item Descriptions
Power
Google
Assistant
Prime video
0~9 number
Guide
Press to enter a TV channel number
Enter electronic program guide.
(Used for models with DTV function only)
Press to open or close the on-screen menu.
Press to navigate the on-screen menu.
CH+/CH - Press CH+ or CH- to change TV channels.
VOL+/VOL- Press VOL+ or VOL- to adjust volume level.
MENU
OK
BACK Return to the previous menu.
EXIT It depends on the actual function
disconnect power, unplug the power cord.
MUTE
(reverse) Press to reverse playback in multimedia &
Timeshift mode.
Press to play in multimedia mode &Timeshift
mode.
(play)
Press to fast forward in multimedia &Timeshift
mode.
(forward)
Press to pause in multimedia mode&Timeshift
mode.
(Pause)
Press to stop multimedia playback, REC&
Timeshift mode.
(stop)
SOURCE Press to open the input source list.
NETFLIX
YouTube
Press to open the NETFLIX.
Press to open the YouTube.
Press to open the prime video.
Google Play Press to open the Google Play.
Press to open the google assistant or start a
voice search.
HOME
INFO Press to display the channel information.
Press to open the Home Page.
Enter the selected option or perform the
selected operation.
Text Press to enter the Tele text mode.
SUBT Open or close subtitle.
AUDIO Press to select the DTV audio.
COLOR
BUTTONS
Press to access directly to the corresponding
function in APP service.
5
INITIAL SETUP
Please according to the Text Tip to First Time Setup.
This function is used for the remote control pair
code. After the code is successful, you can use
the Bluetooth remote control to operate the TV.
press and hold "HOME" button and" Left"
button Simultaneously for 5 seconds.Then press "OK"
button When the "TV_BLE_Remote" displays in the
upper right corner of the screen.
INPUT SOURCE
1. In the HOME interface, press to select
the “Inputs” icon, press OK to open the input source
list, then press up to highlight an input and press
OK to switch.
2. Under live TV, press the SOURCE button to display
the list of input sources. You can select the desired
source.
Open the google assistant or start a voice search.
Among the applications installed on the TV, the
icons for the favourite applications are shown inside
here. (Favourite applications can be added / deleted /
changed its order by users.)
Apps: Click to jump to Apps screen where all the
installed applications are listed.
Inputs: Icon to select an input source.
Network&Interent:
Settings:
For details on the settings, see the next explanation.
HOME SCREEN
During initial setup, press EXIT to exit the initial setup, and
enter the HOME screen. NAVIGATING THE ON-SCREEN MENU
1. There are two ways to enter. First, in live TV, press
the menu button to display TV options, press
to select the settings menu and press
OK to
key to select the icon of the circular settings
menu, press OK
2.Press button to select what you want set.
6
1. Press / button to select what you want set .
2. Press OK button to adjust.
OK button to
save and return to the previous menu.
3.Press OK to enter setting.
Press BACK to return to the previous menu. If the main
menu is displayed, pressing BACK will close the
onscreen menu.
Network
Channels –
Display the scan sub-menu based on
Channel installation mode – Select on-screen display
channel sources. You can select the signal type.
Antenna – Set the signal type to antenna. When set to
Antenna,the TV can receive analog and digital (DVBT/T2)
broadcasting signals.
Cable – Set the signal type to cable. When set to Cable,
the TV can receive analog and QAM broadcasting signals
CHANNEL
Preferred Satellite/General Satellite –Set the signal
type to Satellite. When set to Satellite, the TV can receive
Satellite broadcasting signals.
Auto Channel Update
Parental controls – Press button to select the
option then press OK button to enter the sub-menu.
Audio Channel – Press button to select the
option then press OK button to enter the sub-menu.
Open source licenses – Press button to select the
option then press OK button to enter the sub-menu.
Antenna
1.Menu->Settings->Channel->Channel Installation Mode
enter, choose Antenna.
2. Enter Menu->Settings->Channel->Channels.
3. Channel Scan directly enters the ATV+DTV
automatic search platform interface of Antenna.
Update Scan: Re-automatically search for frequency
points outside the station.
7

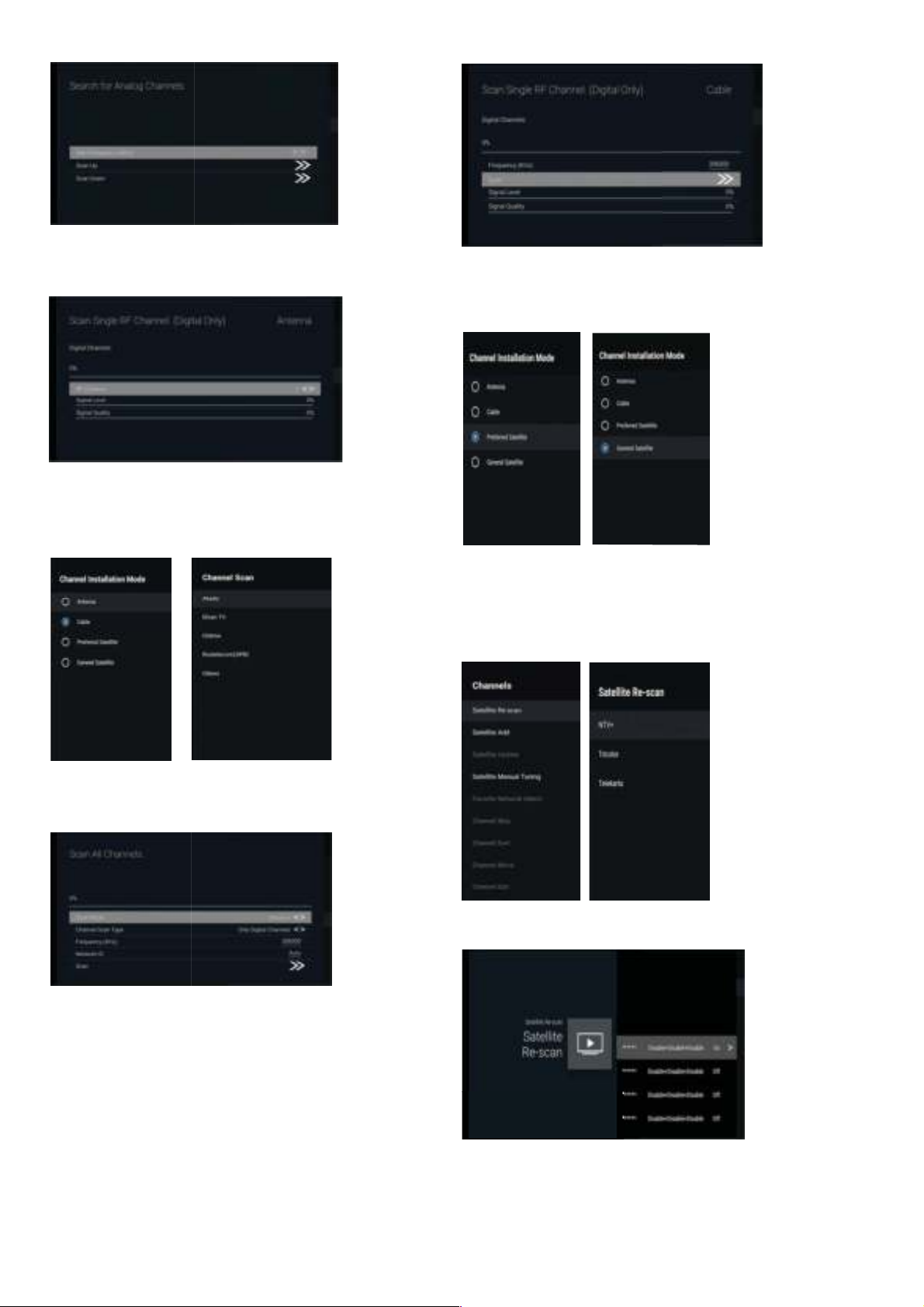

Analog Manual Scan: Manual ATV search station.
After input the frequency point, you can select up
or down search station.
Single RF Scan: DTV manual search, left and right
after selecting RF Channel, directly OK search.
Cable
1.Menu->Settings->Channel->Channel Installation
Mode, select Cable.
2. Enter Menu->Settings->Channel->Channels.
3. Enter Channel Scan, where Akado, Divan TV,
Online and Rostelecom (SPB) are the local
operators, and the default Scan Mode is
Advance;Others have Advance, Quick and Full
Scan modes.
Single RF Scan: manual search station.
Satellite
1.Menu->Settings->Channel->Channel Installation Mode,
select Preferred Satellite or General Satellite. Among them,
Preferred Satellite has been preset with corresponding
satellites of NTV+, Tricolor and Telekarta operators. I'm going
to go to General Satellite.
2.. Enter Menu->Settings-> channel-> Channels->Satelli
Re-scan.
