Raz AT600 Manuel utilisateur

RQD013ENr04 Rev.Date:2022-10-25

Mobile Shower

Commode Chairs

Raz-AT600

(Z360)

User and Dealer

Manual

BASIC UDI-DI: 628758RAZDESIGNINC2004V9

RQD013ENr04 Rev. Date: 2022-10-25

SAFETY

PRECAUT

ONS

Failure to comply may cause injury or

damage!

It is important that the Raz Mobile Shower Commode Chair be properly

assembled and that all adjustments be made carefully. Please ensure that

the user(s), dealer(s) and attendant(s) have read this manual and thoroughly

understood the safe operation of the Raz Shower Chair. Up-to-date manuals

are available online at www.razdesigninc.com. For clarification of any

section of this manual, contact your distributor or the manufacturer.

MANUFACTURER

U.S.A. AND WORLDWIDE

Raz Design Inc.

135 Railside Rd, Toronto, ON, Canada M3A 1B7

1.877720.5678 / 416.751.5678

[email protected]

DISTRIBUTOR

CANADA

Dynamic Health Care Solutions

Mono, Ontario, Canada

519.942.8441 / 866.875.2877

info@dynamichcs.com

CHAIR CLASSIFICATION BASED ON MAXIMUM USER WEIGHT

AT600 275 kg (605 lbs)

SAFETY WARNINGS TO CONSIDER FOR USER PURPOSES

THIS DEVICE IS SUITABLE FOR TYPE A; HIGH USAGE (e.g. INSTITUTIONS) AND SHOULD NEVER

BE USED FOR ANY PURPOSE OTHER THAN ORIGINALLY INTENDED

Forward Stability

The casters on all models are equipped with dual locks. The step-on

lever activates both the roll lock and the swivel lock. It is essential that

all casters on the shower chair be in an outward position before

engaging the locks for optimal forward and lateral stability. If so

equipped, disengage the optional directional caster lock before rotating

the rear caster to the rearward position and applying the caster’s dual-

locks.

USERS MUST NOT lean forward while sitting in the Raz Mobile Shower

Commode Chair as this may cause the chair to tip forward.

USERS MUST NOT wheel down a ramp without an attendant who can

hold onto the chair during the descent.

RQD013ENr04 Rev. Date: 2022-10-25

CASTER LOCKS ARE NOT BRAKES! Never use caster locks to

slow down the shower chair when descending inclines as this

could cause the chair to tip in the direction of travel.

Lateral Stability

USERS MUST NOT lean over the edge of a Raz Mobile Shower

Commode Chair as this could cause the chair to tip.

USERS MUST NOT attempt to pick up objects from the floor by leaning

over andreaching –use a reacher or ask for assistance from anattendant.

USERS MUST NOT position the Raz Mobile Shower Commode Chair on

a side slope as this could cause it to tip.

Ramps and Other Inclines

Ramps and other surfaces that are not level (suchas slopes into wheel- in

showers) must be tested with an attendant to ensure that they don’t

compromise the chair’s stability. A qualified healthcare professional

should be consulted to assist with this process.

DO NOT push or pull the Raz-AT600 up or down an incline or ramp

that exceeds a 1:12 grade (5° slope).

DO NOT allowany userto be propelled (pushedor pulled) in a Raz-AT600

in any other manner than by an attendant.

ALWAYS CHECK THAT THE RAZ-AT600 IS STABLE BEFORE IT IS

OCCUPIED BY ANY USER AT ANY TIME.

Immersion

The Raz Mobile Shower Commode Chair is not designed to be

used as a pool chair. Do not immerse the shower chair in whole

or in part, in water or any other liquid. Immersion may result in

damage to the shower chair.

Chlorine Exposure

Suitable for use in wet areas, but not pools and similarly corrosive

environments.

DO NOT store the device near pools because chlorine in

the air will cause the device to rust.

RQD013ENr04 Rev. Date: 2022-10-25

Transfers

The most dangerous part of using any shower chair is the transfer. Since

every chair has different stability characteristics, it is essential to carefully

review and test the transfer technique to ensure that the procedureissafe.

Test transfers should beperformedwithan attendant who can prevent the

chair from tipping or moving during the transfer. If you feel that the

transfers cannot be repeatedly performed safely, contact a healthcare

professional who is familiar with transfer techniques and options.

Individuals who have not learned proper transfer skills must seek

assistance during transfers and may require the use of a mechanical lift.

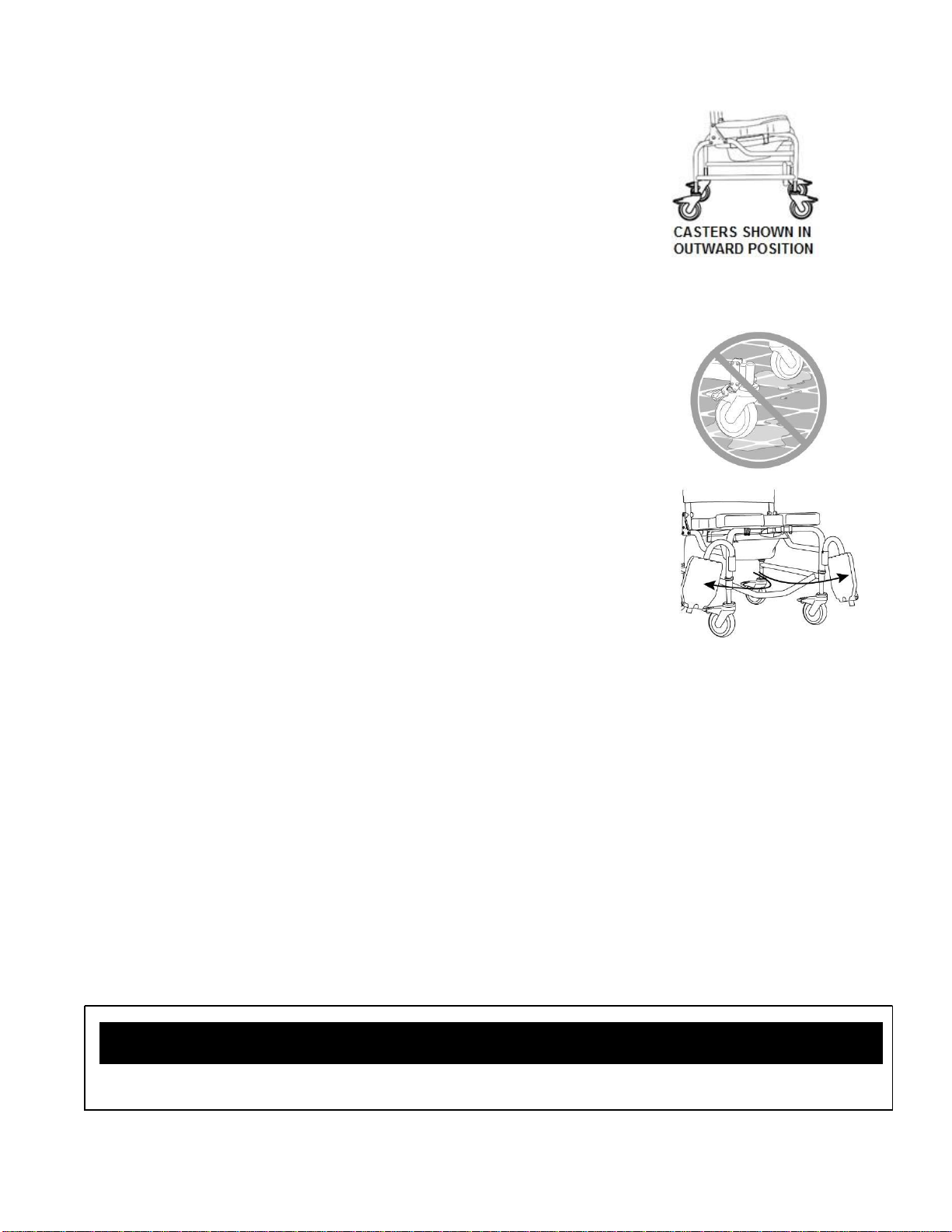

Transferring onto a Raz-AT600

ALWAYS lock all four casters in an outward position (front casters

positioned in the forward position/rear casters positioned to the rear) for

maximum chair stability.

Transfers should never be attempted with the shower chair

positioned on slippery surfaces. It is recommended that transfers be

performed on clean, dry, non-slippery surfaces. Hard surface flooring

such as tile, wood or concrete may not provide sufficient grip to keep

locked casters and/or rear wheels from sliding. A fully-carpeted

surface is optimal. Be aware that area rugs and shower mats can slide on

floors and thereby present a hazardous surface.

DO NOT stand on any part of the frame of the Raz-AT600.

NEVER use the footplates to assist in transfers. This could cause the

chair to tip. The footrests should be swung to the side or removed entirely

during transfers to provide unobstructed access to the shower chair.

Tilt Function

ALWAYS check the tilt function and ensure both locking gas springs and release cable assemblies are

fully operational BEFORE the chair is occupied by the user.

A pelvic strap can act as an additional safeguard for the user. A pelvic support strap may be ordered as

an option with the Raz-AT600.

DO NOT attempt to tilt an occupant if the attendant is physically incapable of safely and smoothly

operating the tilt function.

NEVER leave the user unattended in a Raz-AT600.

The Raz-AT600 is NOT intended for use as a transportation device or a long-term seating system.

IMPORTANT

USERS SHOULD NEVER BE LEFT UNATTENDED IN A RAZ MOBILE SHOWER

COMMODE CHAIR.

RQD013ENr04 Rev. Date: 2022-10-25

IMPORTANT

DO NOT LIFT A RAZ MOBILE SHOWER COMMODE CHAIR AND OCCUPANT BY THE

ARMRESTS OR FOOTRESTS!

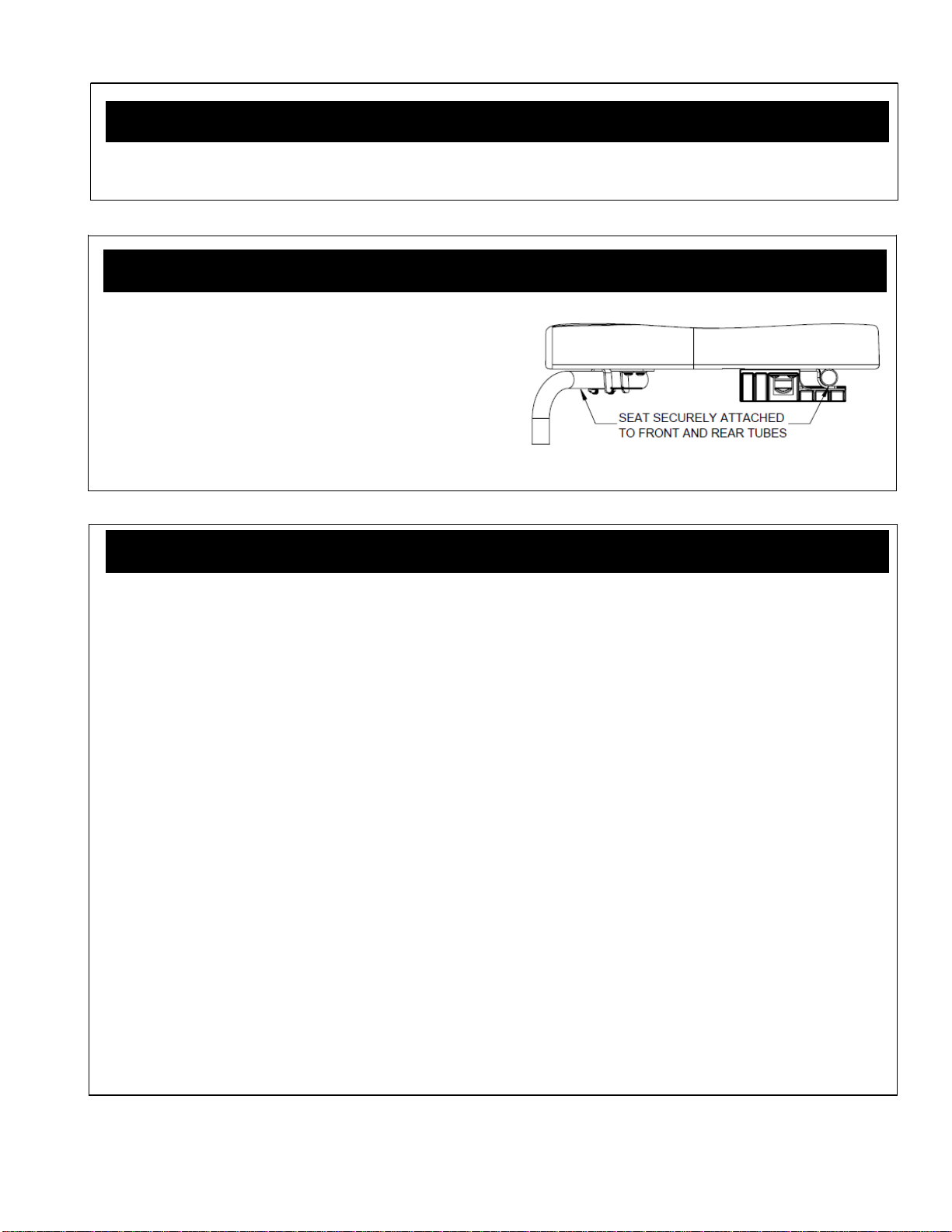

IMPORTANT

ALWAYS BE SURE THAT THE SEAT IS PROPERLY

INSTALLED AND LATCHED. THE REAR HOOKS MUST

BE FULLY ENGAGED AND THE FRONT BRACKETS

MUST BE LATCHED AND LOCKED AROUND THE

FRONT SEAT SUPPORT TUBES.

BE SURE THAT WHEN THE CHAIR IS DELIVERED TO

THE CLIENT, SEAT INSTALLATION INSTRUCTION IS

GIVEN TO THE CLIENT AND/OR CAREGIVERS.

IMPORTANT !_______________________

THE RAZ-AT600 IS INTENDED FOR FOLLOWING USE:

•AS AN AID FOR SHOWERING/BATING, GOING TO THE TOILET, AND FOR OTHER

ACTIVITIES ASSOCIATED WITH PERSONAL CARE AND PERSONAL HYGEINE;

•TO PROVIDE SUPPORT FOR THE BODY OF THE USER IN A SEATED OR RECLINED

POSITION;

•WITH OR WITHOUT THE ASSISTANCE FROM A CAREGIVER;

•OVER A STANDARD TOILET, OR AS A COMMODE WITH THE COMMODE PAN;

•IN INDOOR ENVIRONMENTS ONLY;

•IN BOTH TYPE A, HIGH USAGE (e.g. INSTITUTIONAL) ENVIRONMENTS AND IN HOME

ENVIRONMENTS

THE RAZ-AT600 DOES NOT PERFORM ANY THERAPEUTIC OR DIAGNOSTIC FUNCTIONS,

AND ARE NOT INTENDED FOR USE FOR ANY THERAPEUTIC OR DIAGNOSTIC PURPOSES.

ALL PRODUCTS WITHIN THE RAZ FAMILY ARE NON-STERILE, REUSABLE, NON-INVASIVE,

AND NON-IMPLANTABLE.

THE RAZ-AP AND RAZ-SP IS INTENDED TO BE USED BY PEOPLE WITH MOBILITY

IMPAIRMENTS, WHO MAY HAVE DIFFICULTY IN STANDING OR KEEPING THEIR BALANCE

WHILE COMPLETING ACTIVITIES SUCH AS SHOWERING, GOING TO THE TOILET, OR

PERSONAL HYGIENE. TYPICAL USERS HAVE LIMITED ENDURANCE AND POSTURAL

CONTROL, AND MAY REQUIRE ASSISTANCE FROM A CAREGIVER FOR ACTIVITIES SUCH

AS SHOWERING, GOING TO THE TOILET, OR PERSONAL HYGIENE. FOR PRODUCTS WITH

RECLINE FUNCTION, USE OF THE RECLINE FUNCTION MAY BE CONTRA-INDICATED

WHERE THE USER IS SENSITIVE TO SHEARING FORCES ON SEATED SURFACES WHEN

OPENING THE SEAT-TO BACK-ANGLE

RQD013ENr04 Rev. Date: 2022-10-25

CAUTION !__________

RISK OF BURNING YOUR SKIN

THE PRODUCT COMPONENTS CAN HEAT UP WHEN EXPOSED TO EXTERNAL SOURCES

OF HEAT.

•CONSIDER HEATED UP SURFACES WHEN USING THE SHOWER AND TOILET

CHAIR WHEN IT IS EXPOSED TO HOT WATER

•DO NOT EXPOSE THE PRODUCT TO DIRECT SUNLIGHT BEFORE USE

RQD013ENr04 Rev. Date: 2022-10-25

USER & DEALER MANUAL TABLE OF CONTENTS

1.0 GENERAL INFORMATION

1.1 Raz-AT600 Mobile Shower Commode Chair Overview.........................................................8

1.2 Raz-AT600 Mobile Shower Commode Chair Specifications .................................................8

2.0 SET-UP: INTENDED FOR DEALER USE ONLY

2.1 Caster Installation.................................................................................................................9

2.2 Back Support Installation......................................................................................................9

2.3 Raz Seat Installation...........................................................................................................10

2.4 Adjustable Footrest Installation...........................................................................................10

2.5 Fastener Installation...........................................................................................................10

3.0 ADJUSTMENTS: INTENDED FOR DEALER USE ONLY

3.1 Back Support Adjustment...................................................................................................11

3.1.1 Back Support Angle Adjustment..............................................................................11

3.1.2 Adjustable-Tension Back Upholstery Adjustment....................................................11

3.2 Molded Seat Adjustment.....................................................................................................11

3.2.1 Molded Seat Depth Adjustment...............................................................................11

3.2.2 Molded Seat Height Adjustment..............................................................................12

3.3 Molded Headrest Adjustment..............................................................................................12

3.4 Adjustable Footrest Adjustment..........................................................................................12

3.5 Weight Assisted Spring System (WASS) Adjustment..........................................................13

4.0 USE AND OPERATION

4.1 Tilt Function........................................................................................................................14

4.2 Multi-Position Back Support................................................................................................14

4.3 Adjustable-Tension Back Upholstery..................................................................................15

4.4 Molded Seat.......................................................................................................................15

4.5 Molded Headrest................................................................................................................16

4.6 Adjustable Footrests...........................................................................................................17

4.7 Casters...............................................................................................................................17

4.8 Tilt-Assist Pedal..................................................................................................................17

4.9 Commode Pan....................................................................................................................18

5.0 CLEANING AND MAINTENANCE

5.1 Cleaning After Each Use ....................................................................................................19

5.1.1 Commode Pan........................................................................................................19

5.1.2 Molded Seat............................................................................................................19

5.2 Cleaning As Needed...........................................................................................................19

5.2.1 Adjustable-Tension Back Upholstery.......................................................................19

5.2.2 Frame, Armrests, Adjustable Footrests, and Other Components.............................19

5.3 Suggested Cleaning Products ............................................................................................19

6.0 LIMITED WARRANTY ...................................................................................................................20

7.0 CONTACTS...................................................................................................................................21

RQD013ENr04 Rev. Date: 2022-10-25

1.0 GENERAL INFORMATION

1.1 Raz-AT600 Mobile Shower Commode Chair Overview

1.2 Raz-AT600 Mobile Shower Commode Chair Specifications

SPECIFICATIONS

Raz-AT600

WEIGHT CAPACITY

275 kg (605 lbs)

FRAME WIDTH

(seat and back frames)

22” (56 cm)

OVERALL WIDTH

26.5” (67 cm)

OVERALL LENGTH

(with footrests)

39” (99 cm)

SEAT WIDTH (commode seat)

22” (56 cm)

SEAT DEPTH

(front of back post to front of seat)

18” (46 cm)

CLEARANCE HEIGHT

with pan brackets:

without pan brackets:

18”-19” (43-48.5 cm)

18.75”-19.75” (47.5-50 cm)

ARMREST HEIGHT ABOVE SEAT

9.5” (24cm)

SEAT-TO-FLOOR HEIGHT

21.75” and 22.75” (55 cm and 58 cm)

PRODUCT WEIGHT

(with footrests)

84 lbs (38 kg)

FRAME AND HARDWARE MATERIAL

Stainless Steel

(Lifetime warranty against corrosion)

MINIMUM TURNING CIRCLE

45” (114 cm)

RQD013ENr04 Rev. Date: 2022-10-25

2.0 SET-UP: INTENDED FOR DEALER USE ONLY

2.1 Caster Installation

TheRaz-AT600 chairs are shipped with casters not installed. Please

follow the instructions below for caster installation.

Tool required: 6mm hex key

1. Insert caster stem into caster housing on the base frame.

2. Align the threaded hole in the caster stem with the hole in the

caster housing.

3. Insert a M8-1.25x30mm long button head screw through the

M8 split lock washer and into the hole on the caster housing.

NOTE: Ensure each M8 screw has medium strength thread locker

solution on its threads before using.

4. Thread the M8 screw through the caster housing and into the

caster stem.

5. Continue to thread the M8 screw until the split lock washer is

completely flat and the M8 screw is tight.

6. Repeat steps 1 to 5 until all four casters are secured in place.

2.2 Back Support Installation

Tools required: 6mm hex key, 13mm wrench

1. Remove the Shower Chair from the shipping carton.

2. Lift the back support to an upright position.

TIP: A Phillips screwdriver can be inserted through one of the plates

and back posts to temporarily hold the back support in an upright

position.

3. Insert an included 45mm long, button head cap screw

through one of the two holes on the backsupport plate, then push

the screw through the back support frame tube.

NOTE: Select the front hole for a 100o back support angle or rear hole

for 95oback support angle.

4. Attach to the other end of the screw with the coved spacer, flat

washer and locknut as shown below.

5. Tighten the assembly.

6. Repeat steps 3 to 5 for other back support plate.

TOP VIEW OF BACK SUPPORT ASSEMBLY

RQD013ENr04 Rev. Date: 2022-10-25

2.3 Raz Seat Installation

1. Ensure that the front spring brackets are in the open position.

To open the front brackets, squeeze to unlatch.

2. Slide the rear of the seat over the rear cross tubes as the

front of the seat is lowered onto the frame. Check to make

sure that the rear seat brackets hook below the cross tubes.

3. Continue lowering the front of the seat until the front seat

brackets nestle onto the front seat support tubes.

4. Secure the seat in place by closing the front seat brackets.

To close the seat bracket, squeeze the clip and close

the bracket around the front support tubes.

5. Reverse steps 1 to 4 to remove the seat from the frame.

2.4 Adjustable Footrest Installation

1. Remove wrapped footrests from the inner accessory box.

2. Place the footrest hanger tubes into the receivers, welded at the

front of the chair frame. If thesupport tubesaredirectedforward,

the pins on the tubes will engage with grooves in the receivers

and lock in place.

2.5 Fastener Installation

All fasteners should be installed securely. Locknuts that are removed

for any reason may need to be replaced rather than re-used. Check

performance of nyloc nuts when re-attaching to screw. There should

be significant detectable resistance when tightening. If not, replace

the nyloc nut with a new one. It is advisable to check annually that

all fasteners are secure.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Raz Aide à la mobilité

Raz

Raz AP600 Manuel utilisateur

Manuels Aide à la mobilité populaires d'autres marques

Alber

Alber Scalamobil iQ Manuel utilisateur

Ferno

Ferno CCT-PX Manuel utilisateur

HEPRO

HEPRO Gripo Manuel utilisateur

Otto Bock

Otto Bock Pheon 3R62 Manuel utilisateur

NRS Healthcare

NRS Healthcare M11090 Manuel utilisateur

Medline

Medline MDS86835DSHEC Guide d'installation

Guldmann

Guldmann Twin Turner II Manuel utilisateur

Drive

Drive ROOMBA Manuel utilisateur

Gate

Gate Balder Manuel utilisateur

Decon wheel

Decon wheel TNS Notos Manuel utilisateur

ExoAtlet

ExoAtlet ExoAtlet-II Manuel utilisateur

Invacare

Invacare Storm Series Mode d’emploi

Rhythm Healthcare

Rhythm Healthcare B3800F Manuel utilisateur

AMF-BRUNS

AMF-BRUNS PROTEKTOR Manuel utilisateur

Drive DeVilbiss Healthcare

Drive DeVilbiss Healthcare OTTER Manuel utilisateur

Rhythm Healthcare

Rhythm Healthcare C500U Manuel utilisateur

Lumex

Lumex RJ4200A Manuel utilisateur

Rebotec

Rebotec Jumbo Manuel utilisateur
